Hitachi Hydraulic Excavator UH103 Parts List Manual(P171-1-5) – PDF DOWNLOAD

Description

Hitachi Hydraulic Excavator UH103 Parts List Manual(P171-1-5) – PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH103 Parts List Manual(P171-1-5) – PDF DOWNLOAD

Language : English,Japanese
Pages :159
Downloadable : Yes
File Type : PDF
Size:7.28 MB

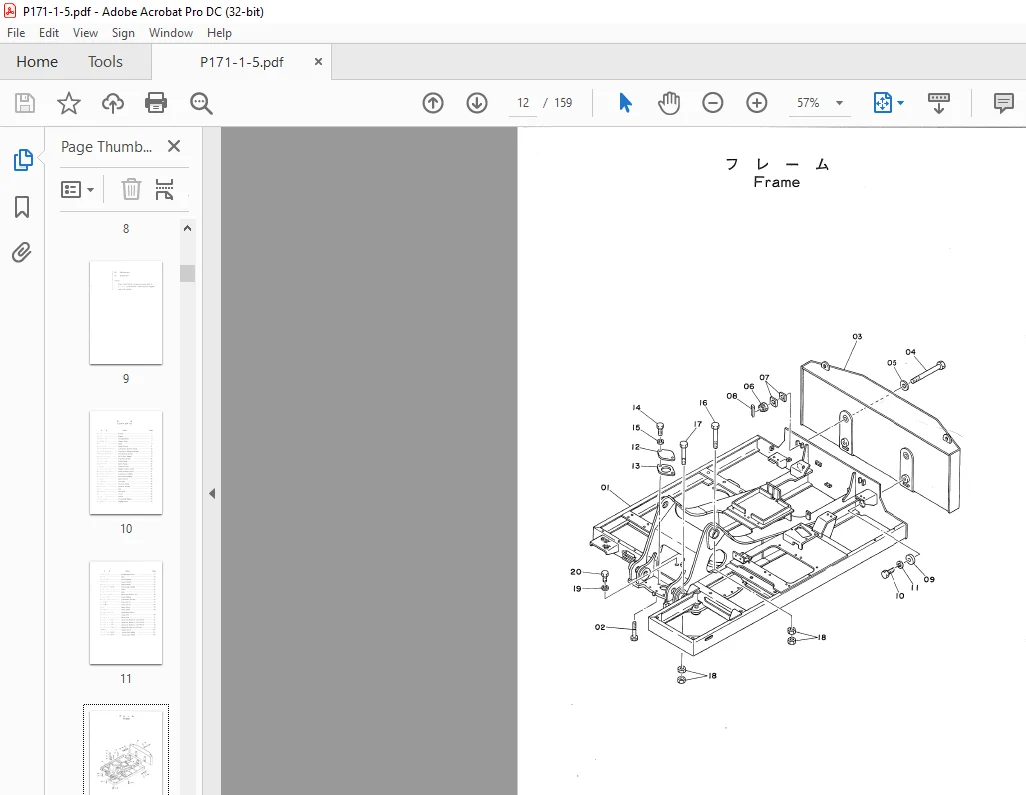

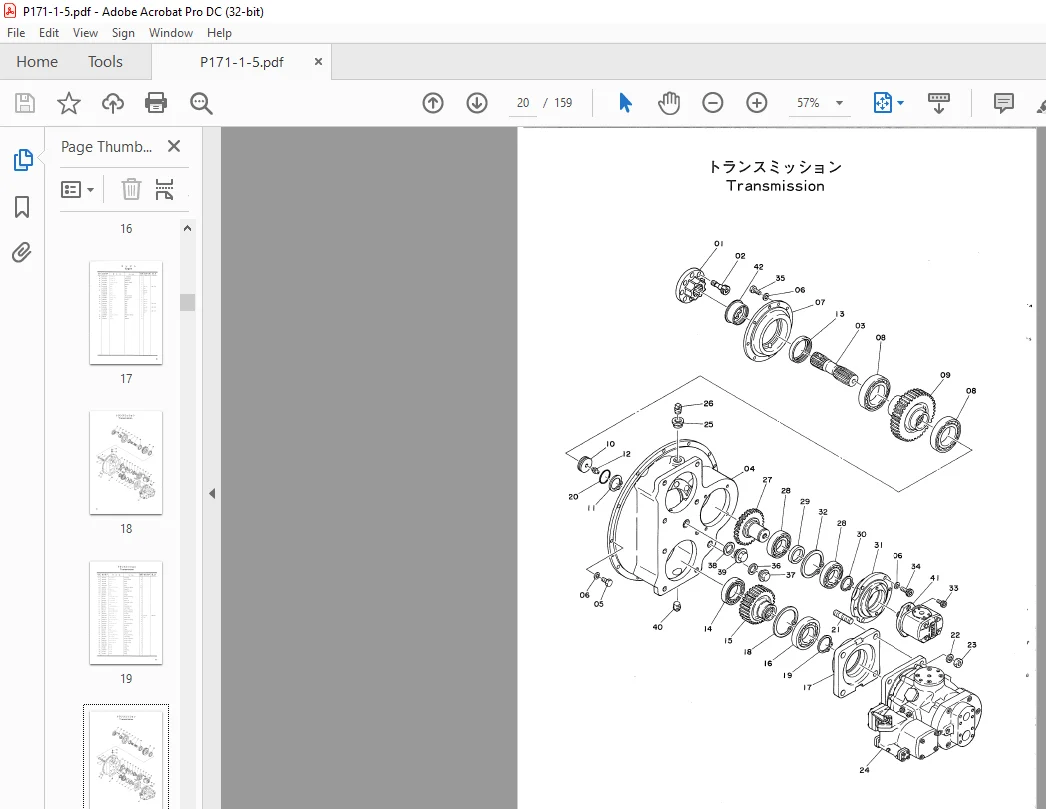

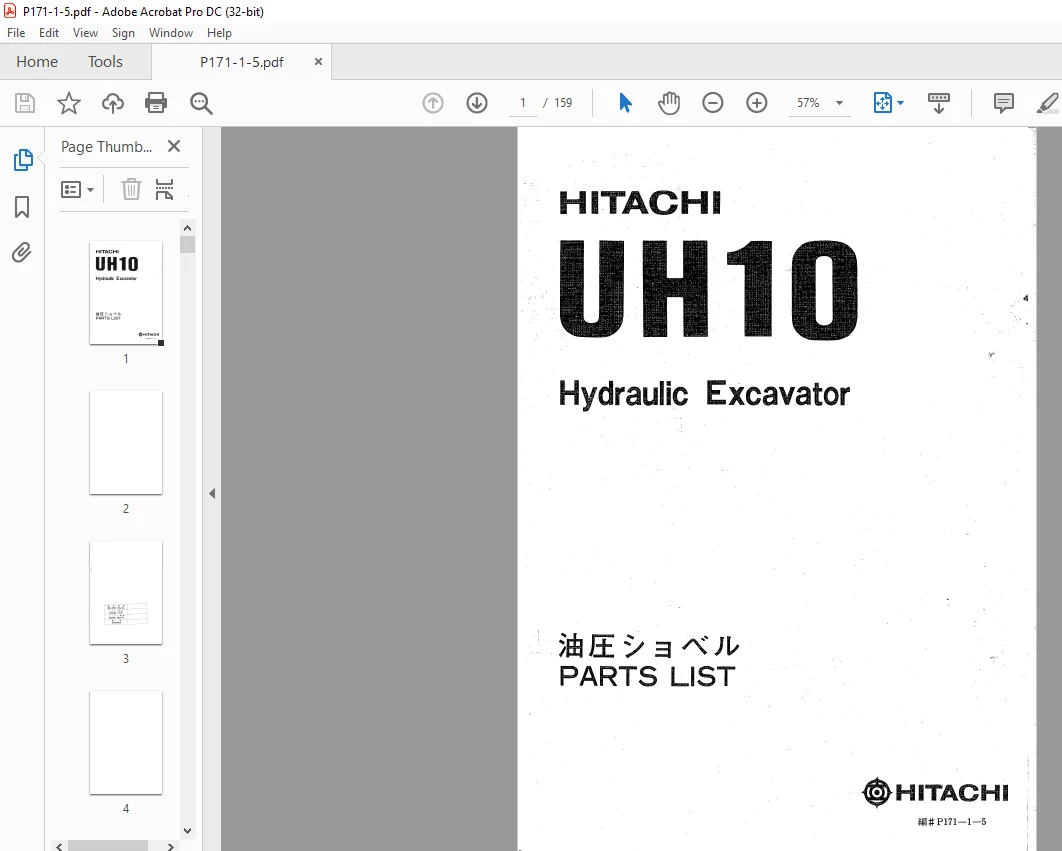

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION

Hitachi Hydraulic Excavator UH103 Parts List Manual(P171-1-5) – PDF DOWNLOAD

Instructions for Ordering Parts and the Parts Number

• In this parts list, drawings of assembly are shown on odd pages, and Item Parts No. Name of parts” and Q ty on even. The relation of positions on the machine body should be understood as follow;
• Where the driver’s seat is positioned is the left side, the right being on the opposite side, and where the boom is equipped is the front, in the Rear being installed the prime mover the driving tumbler, which is drawn under the side of engine room in the catalogue is also termed the Rear driving tumbler which ever position may take in actual operation.

1. HOW TO ORDER PAR TS

For example
UH 10 171-0101 3 502410 Filter Element 2
Lordering
quantity
Name of parts
Number of parts
Number of Body parts
L.__—–TYPE-Form of Body
Being carved on the
name-plate in cab

• When ordering machine parts you are requested to mention clearly the name, the number, and the quantity of parts in demand together with the Type -Form of machine for which the parts are in need the machine number.
• It is requested to use part which are supplied from the reliable source, and it is most advisable to use Hitachi genuine part. As for the engine parts, refer to the Parts List of ISUZU E-120 Diesel Engine.
• Figures shown in remarks column indicate serial number of the machines this parts list is applied for. This Parts List is for the mfg. No. 171-0101 and over after.

TABLE OF CONTENTS:

Hitachi Hydraulic Excavator UH103 Parts List Manual(P171-1-5) – PDF DOWNLOAD

Frame Engine Transmission
Center Joint
Tank
Swing Device
Lubricator (Center Joint)
Lubricator (Swing Bearing)
Fuel Suction Device
Oil Cooler Piping Full-Flow Filter
Pilot Piping
Main Piping Control Lever
Engine Control Lever
Pump Control Lever
Compressor
Piping Car
Heater Piping
Meter Board
Tool Box
Electric Parts
Electric Wiring
Cab
Cab Body
Cover
Track
Propelling Piping Piping Cover
Propelling Device
Idler
Track Spring
Lower Roller
Upper Roller
Track Link (600G)
Boom
Arm
Back hoe Bucket 1 0 Front Piping
Lubricator (Front)
Tools (No 1)
Tools (No2)
Spare Parts
Name Plate
Attachment Parts
Long Arm
Short Arm
Back hoe Bucket 0 9 m3 Ass’y
Back hoe Bucket 12 m3 Ass’y
Back hoe Bucket 14 m3 Ass’y
Ripper Bucket 0 8 m3 Ass ‘y
Ripper Ass’y
Track Link (800G)
Track Link (960A)
