Hitachi Hydraulic Excavator UH122 Parts List Manual(EP171-2-3) – PDF DOWNLOAD

Description

Hitachi Hydraulic Excavator UH122 Parts List Manual(EP171-2-3) – PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH122 Parts List Manual(EP171-2-3) – PDF DOWNLOAD

Language : English, Japanese
Pages :240
Downloadable : Yes
File Type : PDF
Size:7.41 MB

DESCRIPTION

Hitachi Hydraulic Excavator UH122 Parts List Manual(EP171-2-3) – PDF DOWNLOAD

FOREWORD

• This parts List shows the components of UH122 and UH122LC Hydraulic excavator. If a page where the parts of those machines are shown, the following indication is described on the top of the page.
• <EXAMPLE>
  INDICATION APPLICABLE MODEL
  ·····(STD TRACK) UH122
  ·····CLC TRACK) UH122LC
• The numerical parts No. index is provided at the end of this parts List. In the parts index, a part No. with”*” mark shows a newly added part on the parts List.
• This parts List contains the most recent information available at the time of printing, and the contents of the List are based on information in effect at that time and are subject to change without notice.
• The references in the parts List of “LEFT”, “RIGHT”, “FRONT” and “REAR” are identified as follows. The driver’s seat is positioned “LEFT” side, and the opposite side is “RIGHT”. The front attachment is at the “FRONT”. The counterweight is attached at the” REAR”. For the track, the travel motor is at the “REAR”, and the opposite is “FRONT”.
• For the engine parts, please refer to the parts List of ISUZU diesel engine E120PN issued separately.

1. HOW TO ORDER PARTS
When ordering parts, Please specify the following items as shown in the following example.

(EXAMPLE)
(1) Model of Machine:(UH122) Shown on Name-Plate in front of revolving frame
(2) Machine Serial No.(171-0101)
(3) Part No.(A81O165) Ordering Parts
(4) Part Name:(O-RING)
(5) Q’ty.(2) Ordering Q’ty
(6) Purchaser’s Name and Address

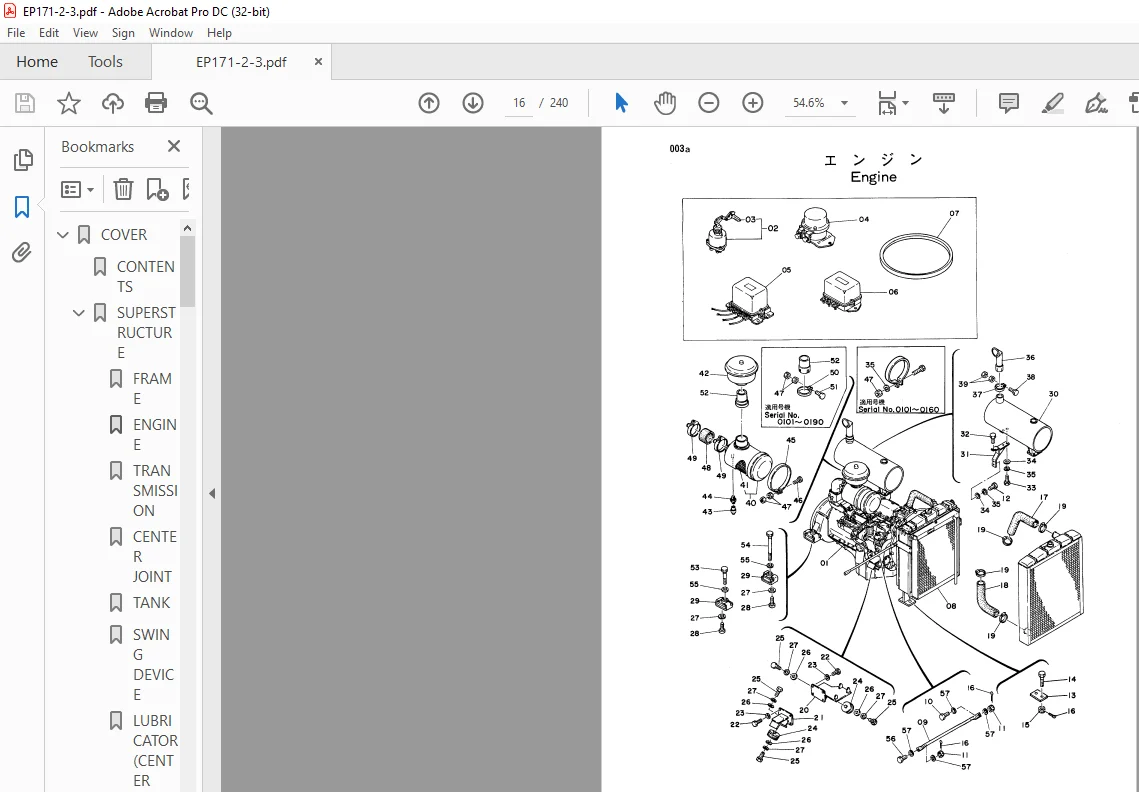

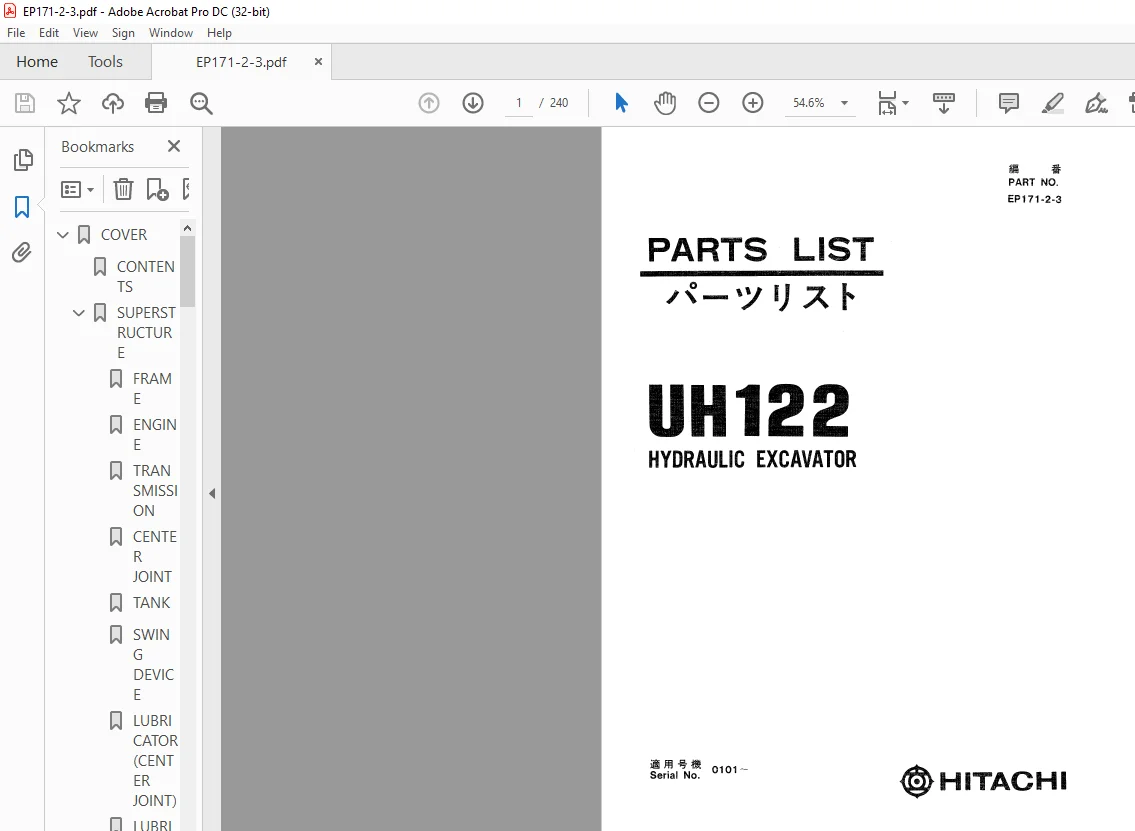

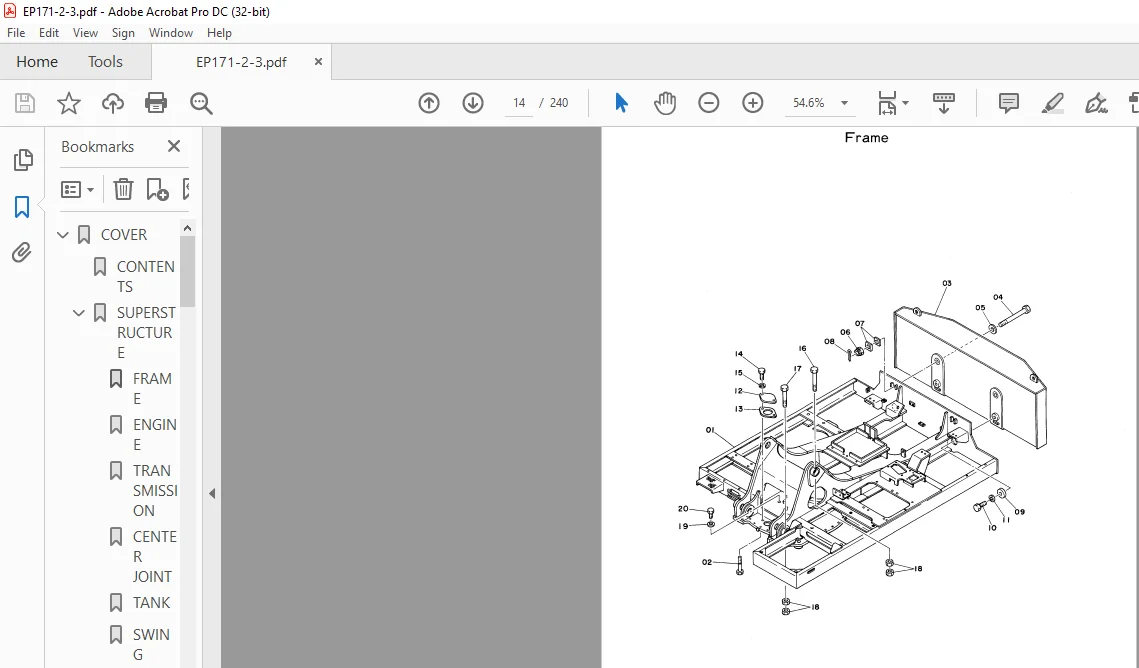

IMAGES PREVIEW OF THE MANUAL:

 TABLE OF CONTENTS:

Hitachi Hydraulic Excavator UH122 Parts List Manual(EP171-2-3) – PDF DOWNLOAD

COVER……………………………. 1
CONTENTS……………………… 9
SUPERSTRUCTURE………………… 13
FRAME…………………….. 14
ENGINE……………………. 16
TRANSMISSION………………. 20
CENTER JOINT………………. 24
TANK……………………… 26
SWING DEVICE………………. 30
LUBRICATOR (CENTER JOINT)…… 36
LUBRICATOR (SWING BEARING)….. 38
FUEL SUCTION DEVICE………… 40
OILO COOLER PIPING…………. 42
FULL-FLOW FILTER NO.1………. 46
FULL-FLOW FILTER NO.2………. 48
PILOT PIPINGS……………… 50
MAIN PIPINGS………………. 54
CONTROL LEVER……………… 60
ENGINE CONTROL LEVER……….. 66
PUMP CONTROL LEVER…………. 70
COMPRESSOR PIPINGS…………. 72
AIR HORN………………….. 76
CAR HEATER PIPINGS…………. 78
METER BOARD……………….. 82
TOOL BOX………………….. 86
ELECTRIC PARTS…………….. 88
ELECTRIC WIRING……………. 96
CAB………………………. 98
CAB BODY…………………..102
COVER (CAB WINDOW)………….114
COVER……………………..116
LOCK (R)…………………..128
LOCK (L)…………………..130
TRACK…………………………133
TRACK (STD TRACK)…………..134
TRACK (LC TRACK)……………136
TRAVEL PIPINGS (STD TRACK)…..140
TRAVEL PIPINGS (LC TRACK)……144
PIPING COVER (STD TRACK)…….148
PIPING COVER (LC TRACK)……..150
TRAVEL DEVICE………………152
FRONT IDLER………………..154
TRACK SPRING……………….156
UPPER ROLLER……………….158
LOWER ROLLER……………….160
TRACK-LINK 600G (STD TRACK)….162
TRACK-LINK 600G (LC TRACK)…..164
FRONT…………………………167
BOOM………………………168
ARM……………………….170
HOE BUCKET 1.0……………..172
FRONT PIPINGS………………174
LUBRICATOR PIPINGS (FRONT)…..178
TOOLS AND SPARE PARTS…………..181
TOOLS……………………..182
SPARE PARTS………………..186
OPTIONAL PARTS…………………189
LONG ARM…………………..190
SHORT ARM………………….194
HOE BUCKET 0.9……………..198
HOE BUCKET 1.2……………..200
HOE BUCKET 1.4……………..202
HOE BUCKET 1.6……………..204
RIPPER BUCKET 0.8…………..206
ONE-POINT RIPPER……………208
ROCK BUCKET 1.0…………….210
TRACK-LINK 800G (STD TRACK)….212
TRACK-LINK 800G (LC TRACK)…..214
TRACK-LINK 960A (STD TRACK)….216
TRACK-LINK 910A (LC TRACK)…..218
NAME PLATE…………………….221
NAME PLATE…………………222
PARTS INDEX……………………225
PARTS INDEX………………..226
