Hitachi Hydraulic Excavator UH123 Parts List Manual(P156-1-2) – PDF DOWNLOAD

Description

Hitachi Hydraulic Excavator UH123 Parts List Manual(P156-1-2) – PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH123 Parts List Manual(P156-1-2) – PDF DOWNLOAD

Language :English,Japanese
Pages :182
Downloadable : Yes
File Type : PDF
Size:8.04 MB

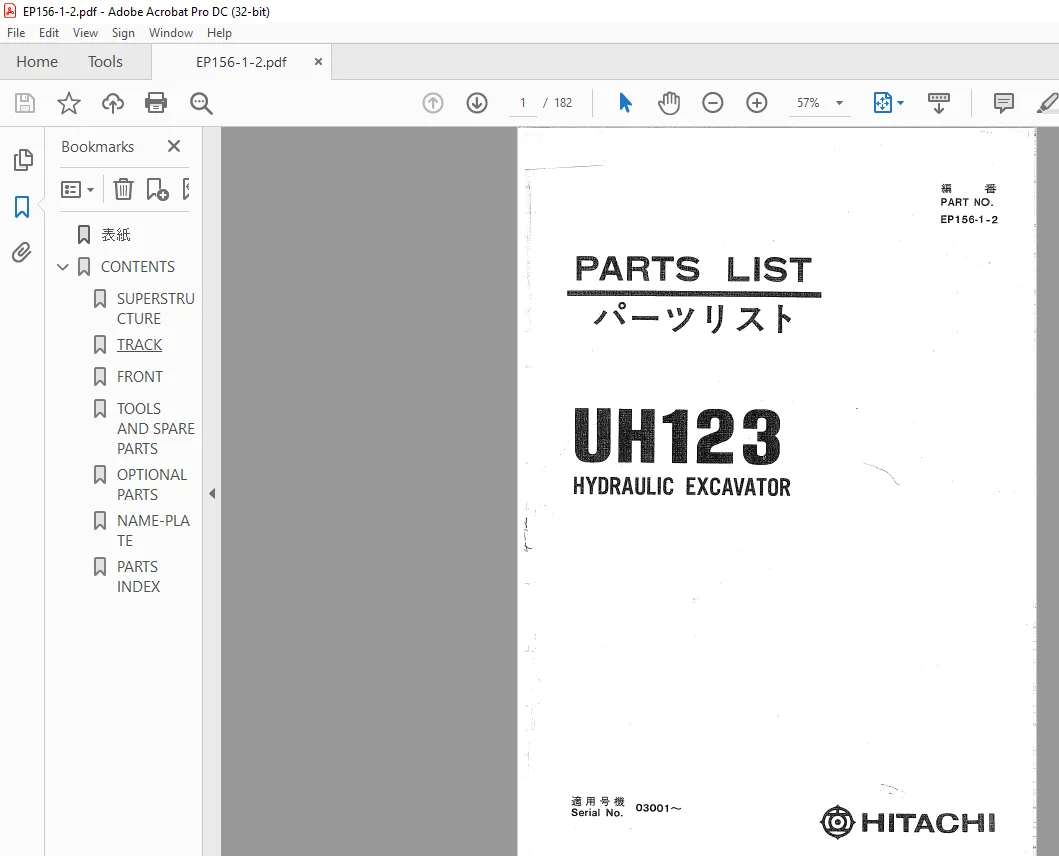

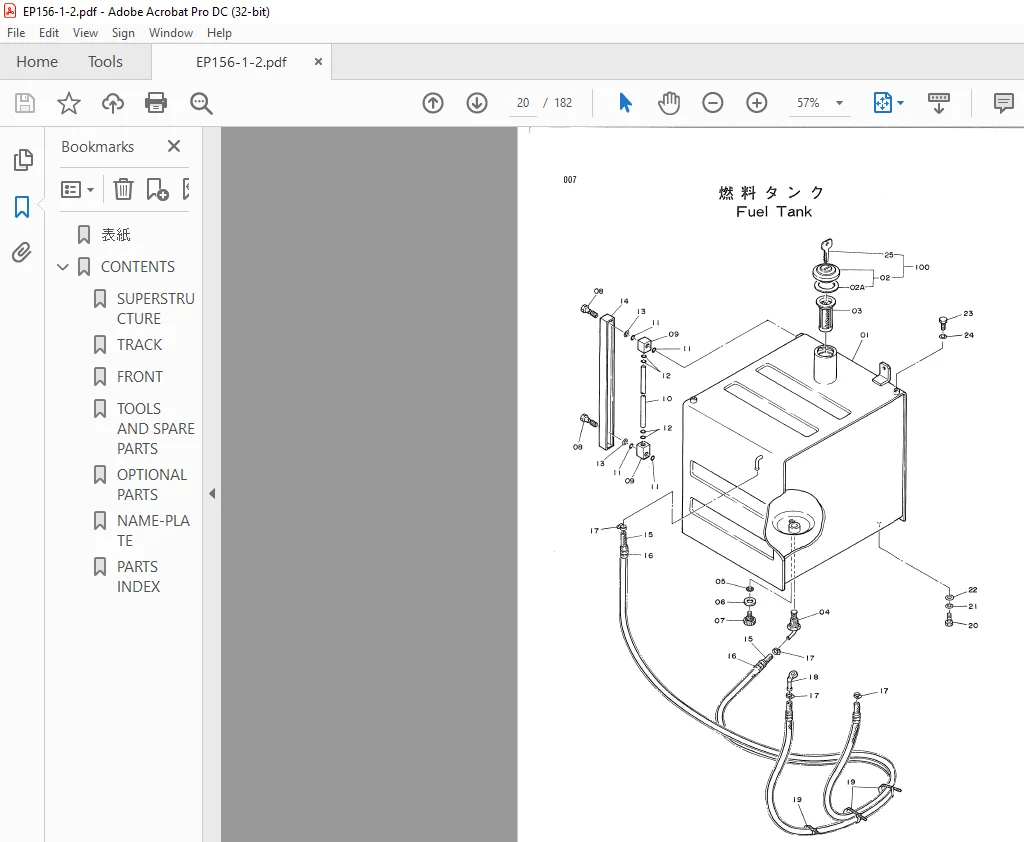

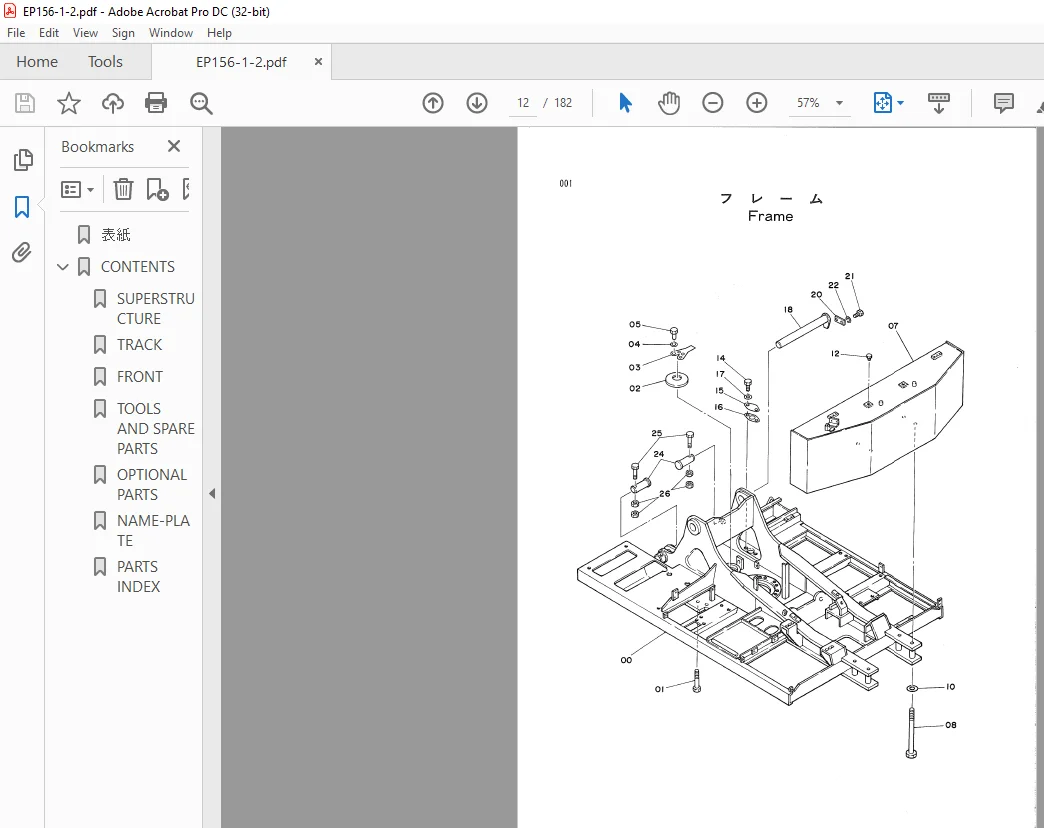

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION

Hitachi Hydraulic Excavator UH123 Parts List Manual(P156-1-2) – PDF DOWNLOAD

FOREWORD

• This parts list shows the components of UH123 Hydraulic excavator. The numerical parts No. index is provided at the end of this parts list. In the parts index, a part No. with ”*” mark shows a new Ly added part on the parts list.
• This parts list contains the most recent information available at the time of printing, and the contents of the list are based on information in effect at that time and are subject to change without notice.
• The references in the parts list of “LEFT”, “RIGHT”, “FRONT” and “REAR” are identified as follows. The driver’s seat is positioned “LEFT” side, and the opposite side is “RIGHT”. The front attachment is at the “FRONT”. The counterweight is attached at the “REAR”. For the track, the travel m6tor is at the “REAR”, and the opposite is “FRONT”.
• For the engine parts, please refer to the parts list of HIND diesel engine EM100 issued separately.

1. HOW TO ORDER PARTS
When ordering parts, Please specify the following items as shown in the following example.

(Examples)
(1) Model of Machine ( UH123)  Shown on Name-Plate in front of revolving frame
(2) Machine Serial no:    (156-03001)
(3) Part No.                     A810165               Ordering,parts
(4) Part Name                     0-Ririg
(5) Ordering Q’ty                      2                    Ordering Q’ty
(6) Pur.chaser’ s Name and Address
