Hitachi Hydraulic Excavator UH16C Parts List Manual P163-MC1-2 -PDF DOWNLOAD

Description

Hitachi Hydraulic Excavator UH16C Parts List Manual P163-MC1-2 -PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH16C Parts List Manual P163-MC1-2 -PDF DOWNLOAD

Language : English
Pages :124
Downloadable : Yes
File Type : PDF
Size:5.67 MB

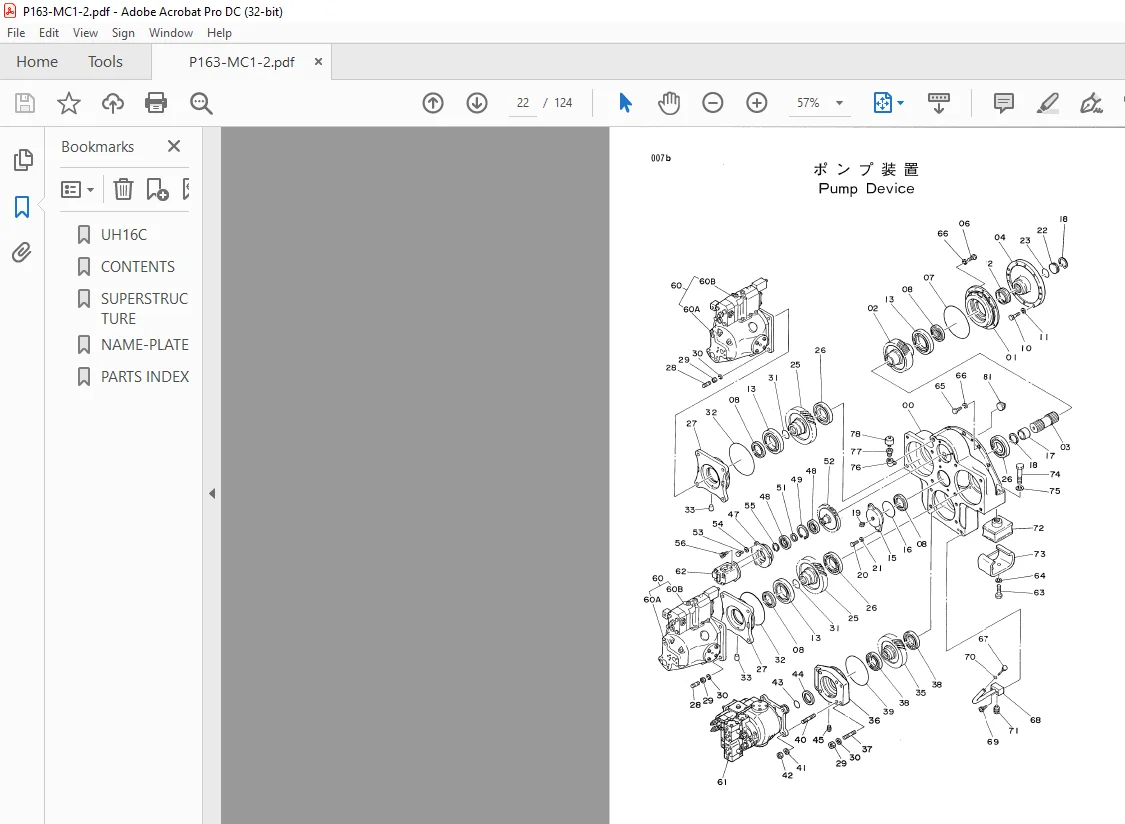

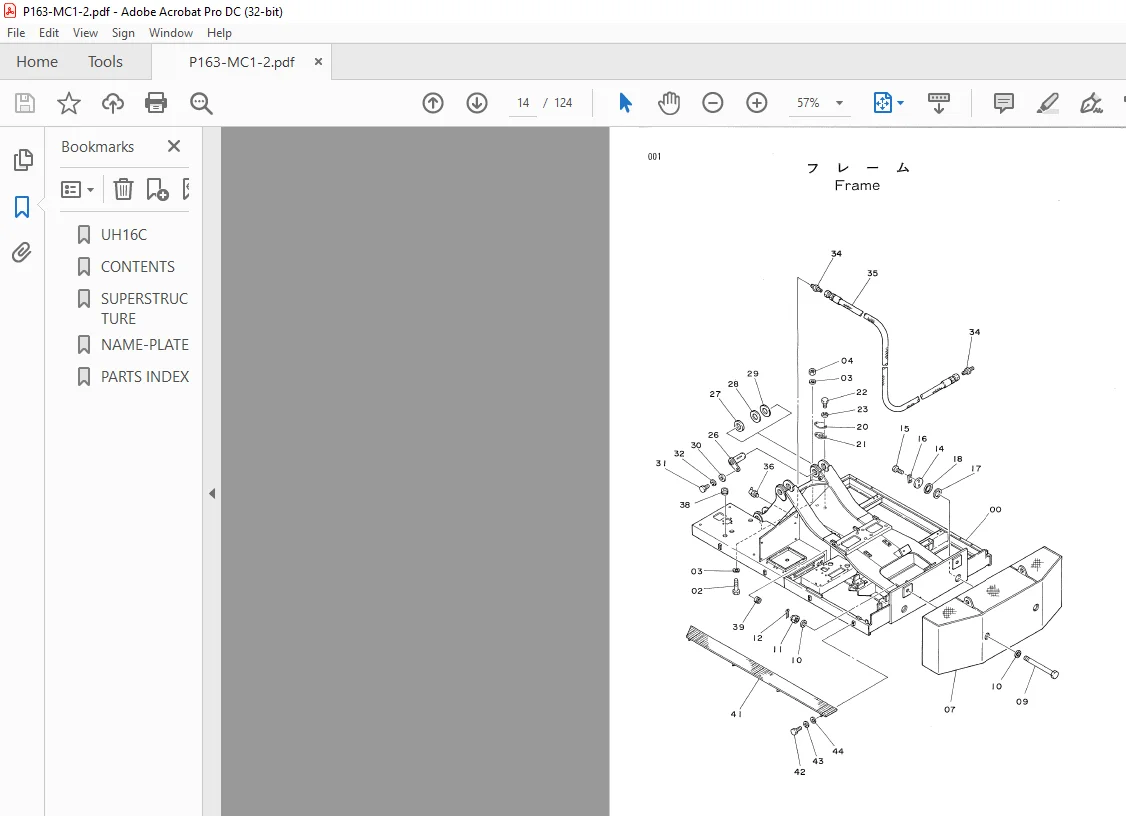

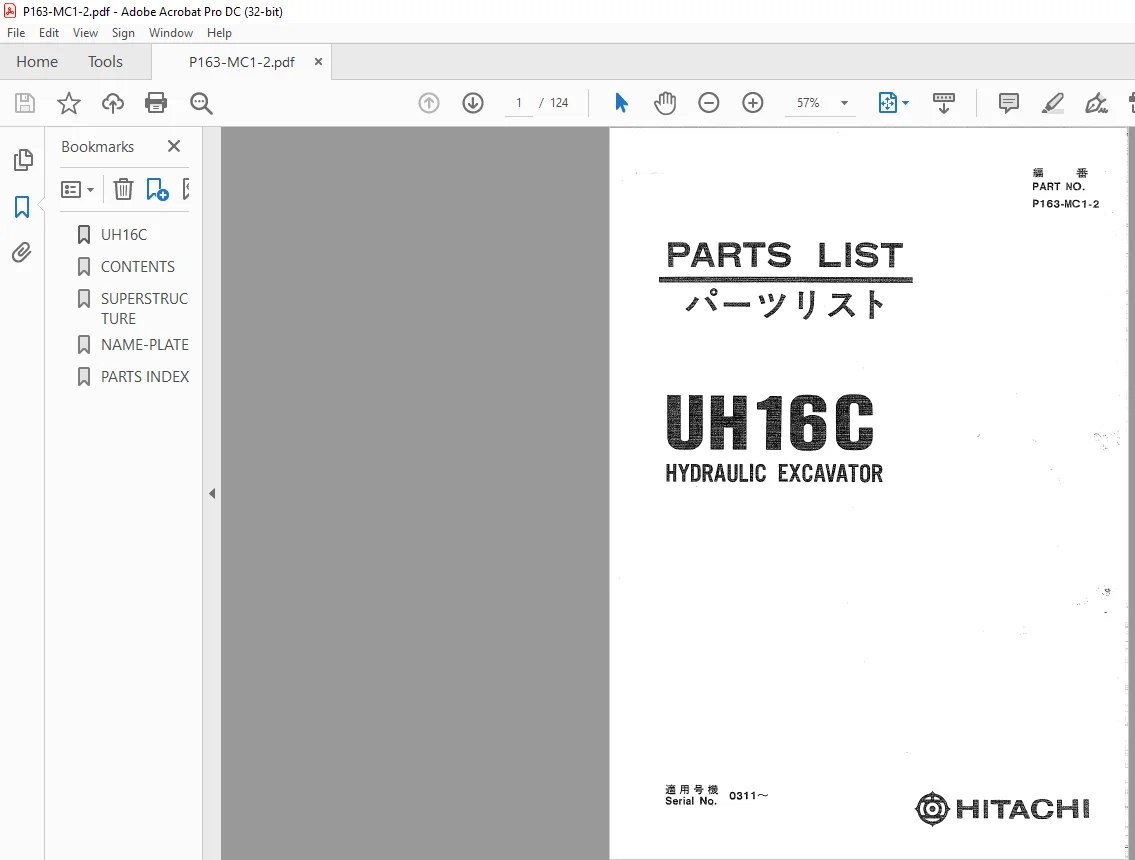

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Hitachi Hydraulic Excavator UH16C Parts List Manual P163-MC1-2 -PDF DOWNLOAD

SUPERSTRUCTURE
FRAME
ENGINE
RADIATOR
PUMP DEVICE
SWING DEVICE
CENTER JOINT
TANK
SUCTION PIPINGS
RETURN PIPINGS
FULL-FLOW FILTER
RETURN FILTER
DELIVERY PIPINGS
MAIN PIPINGS
SWING PIPINGS
BY-PASS FILTER
DRAIN PIPINGS
ENGINE CONTROL LEVER
CONTROL LEVER
PILOT PIPINGS N0.1
PILOT PIPINGS N0.2
PILOT PIPINGS N0.3
AIR PIPINGS
CONTROL BOX NO. 1
CONTROL BOX N0.2
ELECTRIC PARTS NO. 1
ELECTRIC PARTS N0.2
ELECTRIC PARTS N0.3
GAUGE PANEL
CAB GROUP
CAB
COVER NO. 1
COVER N0.2
ENGINE COVER
UNDER COVER
CAR HEATER
NAME-PLATE
NAME-PLATE (JAPANESE)
TRACK
BACKHOE ATTACHMENT
LOADER ATTACHMENT
TOOLS AND SPARE PARTS
OPTIONAL PARTS

DESCRIPTION:

Hitachi Hydraulic Excavator UH16C Parts List Manual P163-MC1-2 -PDF DOWNLOAD

FOREWORD

• This parts list shows the components of UH16C Hydraulic excavator. The numerical parts No. index is provided at the end of this parts list. In the parts index, a part No. with”*” mark shows a newly added part on the parts list.
• This parts list contains the most r·ecent information available at the time of printing, and the contents of the list are based on information in effect at that time andare subject to change without notice.
• The references in the parts list of “LEFT”, “RIGHT”, “FRONT” and “REAR” are identified as follows. The driver’s seat is positioned “LEFT” side, and the opposite side is “RIGHT”. The front attachment is at the “FRONT”. The counterweight is attached at the “REAR”. For the track, the travel motor is at the “REAR”, and the opposite is “FRONT”.
• For the engine parts, please refer to the parts list of ISUZU diesel engine 6RB1 issued separately.
