Hitachi LX110-7 LX130-7 LX160-7 LX190-7 LX230-7 Wheel Loader Workshop + General Information Manual – PDF Download

Description

Hitachi LX110-7 LX130-7 LX160-7 LX190-7 LX230-7 Wheel Loader Workshop + General Information Manual

FILE DETAILS:

Hitachi LX110-7 LX130-7 LX160-7 LX190-7 LX230-7 Wheel Loader Workshop + General Information Manual

This Manual Includes:

• Hitachi LX110-7 LX130-7 LX160-7 LX190-7 LX230-7 Wheel Loader Workshop Manual

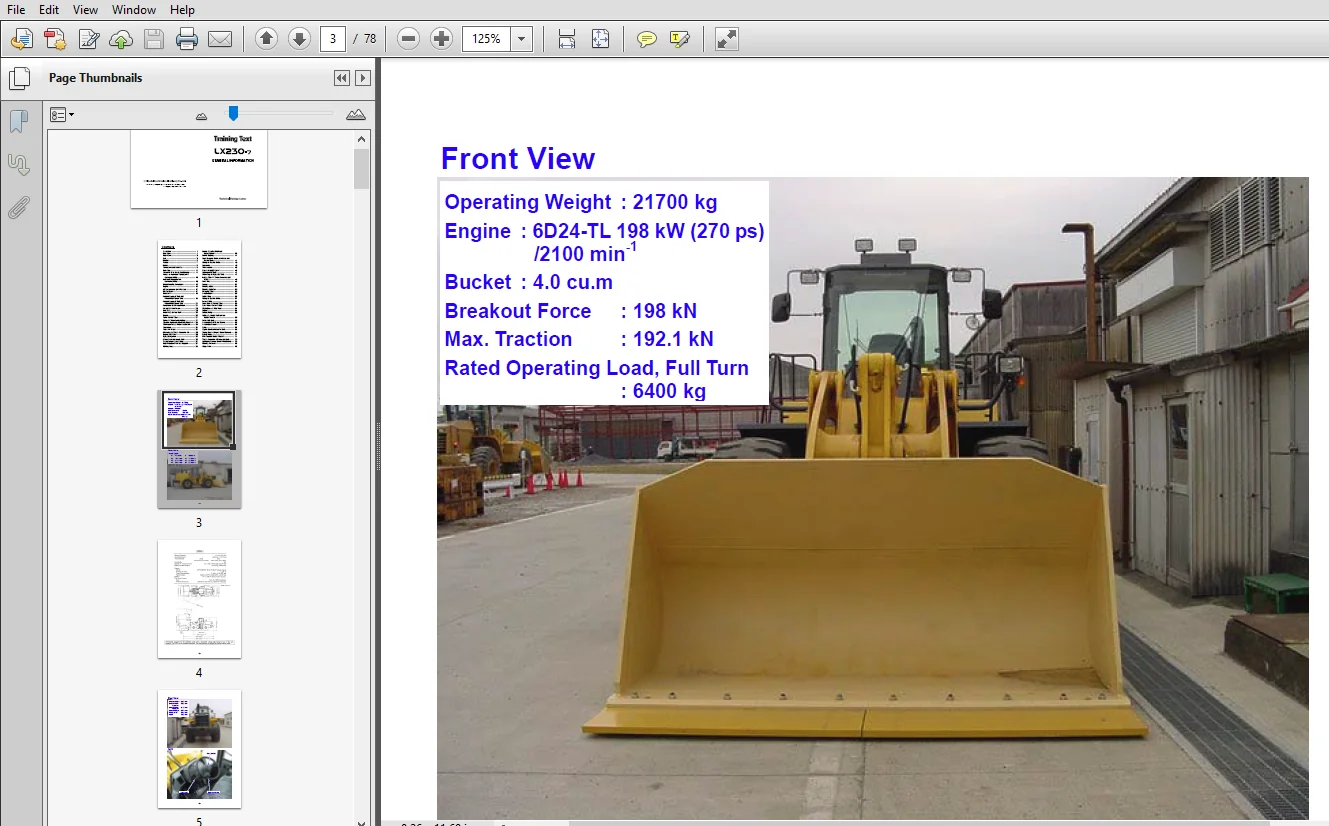

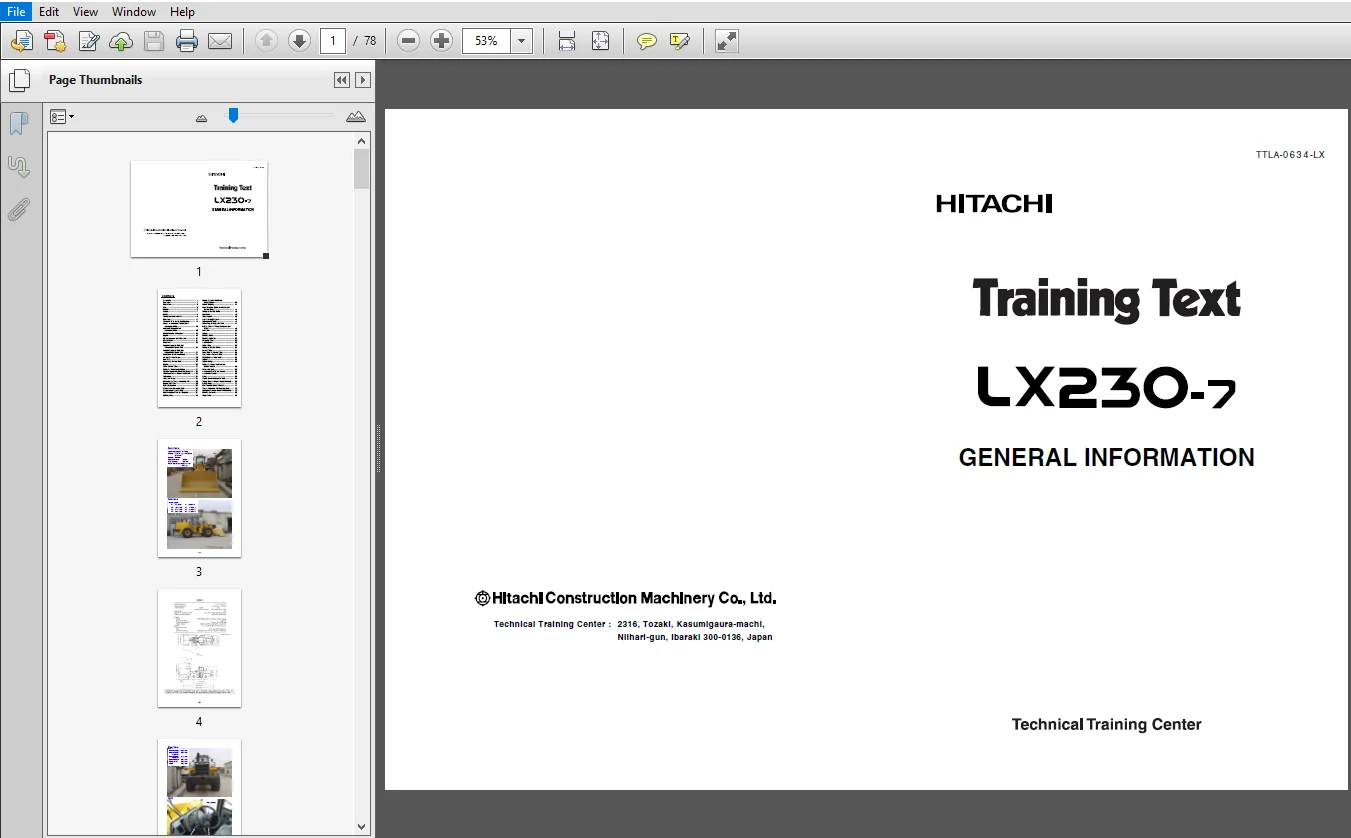

• Hitachi LX230-7 General Information Training Text Manual

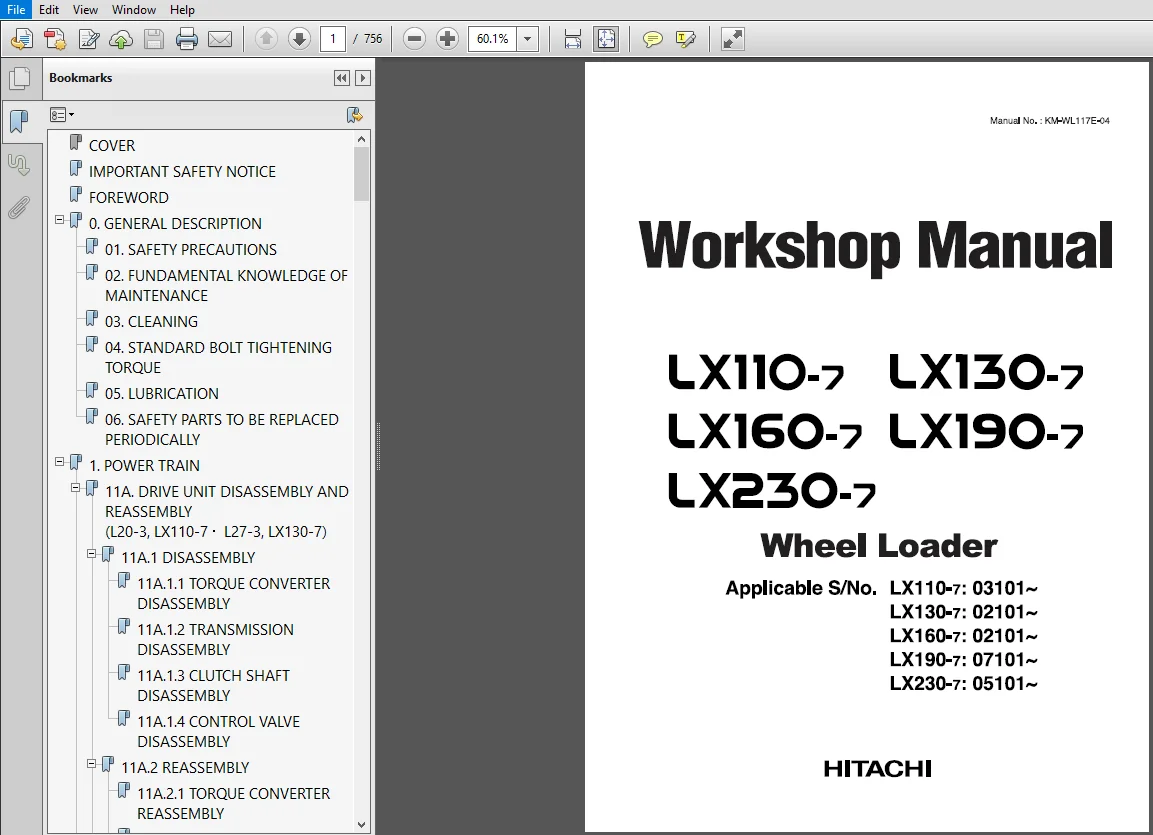

HITACHI LX110-7 LX130-7 LX160-7 LX190-7 LX230-7 WHEEL LOADER WORKSHOP + GENERAL INFORMATION MANUAL – PDF DOWNLOAD:

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

Hitachi LX110-7 LX130-7 LX160-7 LX190-7 LX230-7 Wheel Loader Workshop + General Information Manual

• With our persistent technological researches and various experiences, we have been developed products of superlative quality which have been satisfied our users. To use the machines safely with its full performance for a long time, proper handling and periodical inspections/maintenance are essential.
• This manual describes mainly disassembly, inspection, assembly and adjustment of the main components and systems of the wheel loaders. For the structure and the principle of operation, refer to the service manual. We hope this manual will be your good companion in your servicing jobs.
• The values and descriptions given in this manual are subject to change owing to change of design or some other reason.

TABLE OF CONTENTS:

Hitachi LX110-7 LX130-7 LX160-7 LX190-7 LX230-7 Wheel Loader Workshop Manual

COVER……………………………………………………………………………………………………………. 1
IMPORTANT SAFETY NOTICE……………………………………………………………………………………………. 3
FOREWORD…………………………………………………………………………………………………………. 5
0. GENERAL DESCRIPTION…………………………………………………………………………………………….. 7
01. SAFETY PRECAUTIONS…………………………………………………………………………………………. 9
02. FUNDAMENTAL KNOWLEDGE OF
MAINTENANCE………………………………………………………………………… 12
03. CLEANING………………………………………………………………………………………………….. 15
04. STANDARD BOLT TIGHTENING TORQUE……………………………………………………………………………… 16
05. LUBRICATION……………………………………………………………………………………………….. 22
06. SAFETY PARTS TO BE REPLACED
PERIODICALLY…………………………………………………………………….. 25
1. POWER TRAIN……………………………………………………………………………………………………. 27
11A. DRIVE UNIT DISASSEMBLY AND REASSEMBLY
(L20-3, LX110-7 ・ L27-3, LX130-7)………………………………………… 29
11A.1 DISASSEMBLY………………………………………………………………………………………….. 29
11A.1.1 TORQUE CONVERTER DISASSEMBLY……………………………………………………………………… 29
11A.1.2 TRANSMISSION
DISASSEMBLY………………………………………………………………………… 40
11A.1.3 CLUTCH SHAFT
DISASSEMBLY………………………………………………………………………… 48
11A.1.4 CONTROL VALVE
DISASSEMBLY……………………………………………………………………….. 52
11A.2 REASSEMBLY…………………………………………………………………………………………… 55
11A.2.1 TORQUE CONVERTER REASSEMBLY………………………………………………………………………. 55
11A.2.2 CLUTCH SHAFT
REASSEMBLY…………………………………………………………………………. 64
11A.2.3 CONTROL VALVE REASSEMBLY…………………………………………………………………………. 69
11A.2.4 TRANSMISSION
REASSEMBLY…………………………………………………………………………. 72
11A.3 TROUBLESHOOTING………………………………………………………………………………………. 86
11A.3.1 TORQUE CONVERTER TROUBLESHOOTING………………………………………………………………….. 86
11A.3.2 TRANSMISSION TROUBLESHOOTING……………………………………………………………………… 87
11A.3.3 PARKING BRAKE TROUBLESHOOTING…………………………………………………………………….. 89
11A.4 STANDARD VALUES FOR MAINTENANCE………………………………………………………………………… 90
11A.5 TIGHTENING TORQUE VALUES FOR MAIN BOLTS…………………………………………………………………. 92
11B. DRIVE UNIT DISASSEMBLY AND REASSEMBLY
(L32-3, LX160-7 ・ L35-3, LX190-7・ L40-3, LX230-7)………………………….. 93
11B.1 DISASSEMBLY………………………………………………………………………………………….. 93
11B.1.1 TORQUE CONVERTER DISASSEMBLY……………………………………………………………………… 93
11B.1.2 TRANSMISSION
DISASSEMBLY…………………………………………………………………………101
11B.1.3 CLUTCH SHAFT
DISASSEMBLY…………………………………………………………………………113
11B.1.4 CONTROL VALVE
DISASSEMBLY………………………………………………………………………..117
11B.2 REASSEMBLY……………………………………………………………………………………………120
11B.2.1 TORQUE CONVERTER REASSEMBLY……………………………………………………………………….120
11B.2.2 CLUTCH SHAFT
REASSEMBLY………………………………………………………………………….125
11B.2.3 CONTROL VALVE REASSEMBLY………………………………………………………………………….129
11B.2.4 TRANSMISSION
REASSEMBLY………………………………………………………………………….132
11B.3 TROUBLESHOOTING GUIDE………………………………………………………………………………….147
11B.3.1 TORQUE CONVERTER TROUBLESHOOTING…………………………………………………………………..147
11B.3.2 TRANSMISSION TROUBLESHOOTING………………………………………………………………………148
11B.3.3 PARKING BRAKE TROUBLESHOOTING……………………………………………………………………..150
11B.4 STANDARD VALUES FOR MAINTENANCE…………………………………………………………………………151
11B.5 TIGHTENING TORQUE VALUES FOR MAIN BOLTS………………………………………………………………….154
12A. DRIVE AXLE DISASSEMBLY AND REASSEMBLY
(L20-3, LX110-7)………………………………………………………..155
12A.1 DISASSEMBLY…………………………………………………………………………………………..155
12A.2 REASSEMBLY……………………………………………………………………………………………166
12A.3 TROUBLESHOOTING……………………………………………………………………………………….183
12A.4 STANDARD VALUES FOR MAINTENANCE…………………………………………………………………………185
12A.5 TIGHTENING TORQUE VALUES FOR MAIN BOLTS………………………………………………………………….186
12B. DRIVE AXLE DISASSEMBLY AND REASSEMBLY
(L27-3, LX130-7)………………………………………………………..187
12B.1 DISASSEMBLY…………………………………………………………………………………………..187
12B.2 REASSEMBLY……………………………………………………………………………………………198
12B.3 TROUBLESHOOTING……………………………………………………………………………………….216
12B.4 STANDARD VALUES FOR MAINTENANCE…………………………………………………………………………218
12B.5 TIGHTENING TORQUE VALUES FOR MAIN BOLTS………………………………………………………………….219
12C. DRIVE AXLE DISASSEMBLY AND REASSEMBLY
(L32-3, LX160-7 ・ L35-3, LX190-7 ・ L40-3, LX230-7)………………………….220
12C.1 DISASSEMBLY………………………………………………………………………………………………220
12C.2 REASSEMBLY……………………………………………………………………………………………….231
12C.3 TROUBLESHOOTING…………………………………………………………………………………………..251
12C.4 STANDARD VALUES FOR MAINTENANCE…………………………………………………………………………….253
12C.5 TIGHTENING TORQUE VALUES FOR MAIN BOLTS……………………………………………………………………..255
2. BRAKE SYSTEM……………………………………………………………………………………………………257
21A. DISASSEMBLY AND REASSEMBLY OF BRAKE
VALVE (L20-3, LX110-7)…………………………………………………….259
21A.1 DISASSEMBLY…………………………………………………………………………………………..260
21A.2 REASSEMBLY……………………………………………………………………………………………261
21A.3 ADJUSTMENT OF OIL PRESSURE……………………………………………………………………………..262
21B. DISASSEMBLY AND REASSEMBLY OF BRAKE VALVE
(L27-3 to L40-3, LX130-7 to LX230-7)…………………………………..263
21B.1 DISASSEMBLY…………………………………………………………………………………………..264
21B.2 TREATMENT AFTER DISASSEMBLY…………………………………………………………………………….265
21B.3 REASSEMBLY……………………………………………………………………………………………265
21B.4 STANDARD VALUES FOR MAINTENANCE…………………………………………………………………………268
22. DISASSEMBLY AND REASSEMBLY OF SPLIT
CYLINDER (L20-3, LX110-7)…………………………………………………..270
22.1 DISASSEMBLY……………………………………………………………………………………………271
22.2 TREATMENT AFTER DISASSEMBLY……………………………………………………………………………..271
22.3 REASSEMBLY…………………………………………………………………………………………….271
22.4 STANDARD VALUES FOR MAINTENANCE………………………………………………………………………….272
23. DISASSEMBLY AND REASSEMBLY OF CHARGING
VALVE (L27-3 to L40-3, LX130-7 to LX230-7)…………………………………273
23.1 DISASSEMBLY……………………………………………………………………………………………274
23.2 TREATMENT AFTER DISASSEMBLY……………………………………………………………………………..274
23.3 REASSEMBLY…………………………………………………………………………………………….275
23.4 STANDARD VALUES FOR MAINTENANCE………………………………………………………………………….276
24. ACCUMLATOR GAS SEALING WORK
(L27-3 to L40-3, LX130-7 to LX230-7)………………………………………………..277
24.1 INITIAL SEALING………………………………………………………………………………………..277
24.2 CHARGING PRESSURE INSPECTION AND PRESSURE
REDUCTION/PRESSURE INTENSIFICATION…………………………………278
3. STEERING SYSTEM…………………………………………………………………………………………………281
31A. DISASSEMBLY AND REASSEMBLY OF ORBITROL
(L20-3, LX110-7)……………………………………………………….283
31A.1 DISASSEMBLY…………………………………………………………………………………………..284
31A.2 REASSEMBLY……………………………………………………………………………………………287
31B. DISASSEMBLY AND REASSEMBLY OF ORBITROL
(L27-3, LX130-7 ・ L32-3, LX160-7)………………………………………..291
31B.1 DISASSEMBLY…………………………………………………………………………………………..292
31B.2 REASSEMBLY……………………………………………………………………………………………296
32. DISASSEMBLY AND REASSEMBLY OF STEERING
GEAR (L35-3, LX190-7 ・ L40-3, LX230-7)…………………………………….300
32.1 DISASSEMBLY……………………………………………………………………………………………301
32.2 REASSEMBLY…………………………………………………………………………………………….304
33. DISASSEMBLY AND REASSEMBLY OF STEERING VALVE
(L35-3, LX190-7 ・ L40-3, LX230-7)……………………………………309
33.1 DISASSEMBLY……………………………………………………………………………………………311
33.2 TREATMENT AFTER DISASSEMBLY……………………………………………………………………………..312
33.3 REASSEMBLY…………………………………………………………………………………………….313
33.4 ADJUSTMENT OF RELIEF VALVE………………………………………………………………………………315
34. DISASSEMBLY AND REASSEMBLY OF PRIORITY VALVE
(L20-3, LX110-7 ・ L27-3, LX130-7 ・ L32-3, LX160-7)…………………….316
34.1 DISASSEMBLY……………………………………………………………………………………………317
34.2 REASSEMBLY…………………………………………………………………………………………….317
35. DISASSEMBLY AND REASSEMBLY OF CUSHION VALVE
(L27-3, LX130-7 ・ L32-3, LX160-7)…………………………………….318
35.1 DISASSEMBLY……………………………………………………………………………………………319
35.2 REASSEMBLY…………………………………………………………………………………………….319
36A. DISASSEMBLY AND REASSEMBLY OF
STEERING CYLINDER (L20-3, LX110-7)……………………………………………….320
36A.1 DISASSEMBLY…………………………………………………………………………………………..321
36A.2 INSPECTION……………………………………………………………………………………………322
36A.3 REASSEMBLY……………………………………………………………………………………………323
36B. DISASSEMBLY AND ASSEMBLY OF STEERING CYLINDER
(L27-3 to L40-3, LX130-7 to LX230-7)……………………………….326
36B.1 DISASSEMBLY…………………………………………………………………………………………..327
36B.2 INSPECTION……………………………………………………………………………………………328
36B.3 REASSEMBLY……………………………………………………………………………………………329
4. HYDRAULIC SYSTEM………………………………………………………………………………………………..333
41A. DISASSEMBLY AND REASSEMBLY OF MAIN
PUMP (L20-3, LX110-7)………………………………………………………337
41A.1 DISASSEMBLY…………………………………………………………………………………………..338
41A.2 REASSEMBLY……………………………………………………………………………………………339
41A.3 SERVICE CRITERIA………………………………………………………………………………………341
41B. DISASSEMBLY AND REASSEMBLY OF MAIN
PUMP (L27-3,LX130-7 ・ L32-3,LX160-7)…………………………………………342
41B.1 DISASSEMBLY…………………………………………………………………………………………..343
41B.2 INSPECTION……………………………………………………………………………………………344
41B.3 REASSEMBLY……………………………………………………………………………………………345
41B.4 MAINTENANCE PROCEDURE OF SH VALVE……………………………………………………………………….349
41C. DISASSEMBLY AND REASSEMBLY OF MAIN
PUMP (L35-3,LX190-7 ・ L40-3,LX230-7)…………………………………………352
41C.1 DISASSEMBLY…………………………………………………………………………………………..353
41C.2 INSPECTION……………………………………………………………………………………………354
41C.3 REASSEMBLY……………………………………………………………………………………………355
41C.4 ADJUSTMENT OF PRESSURE IN SH VALVE………………………………………………………………………359
41D. DISASSEMBLY AND REASSEMBLY OF
STEERING PUMP (L35-3,LX190-7 ・ L40-3,LX230-7)……………………………………..360
41D.1 DISASSEMBLY…………………………………………………………………………………………..361
41D.2 INSPECTION……………………………………………………………………………………………362
41D.3 REASSEMBLY……………………………………………………………………………………………363
41E. DISASSEMBLY AND REASSEMBLY OF BRAKE
& ASSIST PUMP (L27-3 to L40-3, LX130-7 to LX230-7)……………………………366
41E.1 DISASSEMBLY…………………………………………………………………………………………..367
41E.2 INSPECTION……………………………………………………………………………………………368
41E.3 REASSEMBLY……………………………………………………………………………………………369
42A. DISASSEMBLY AND REASSEMBLY OF CHARGING
PUMP (L20-3, LX110-7 ・ L27-3, LX130-7)……………………………………371
42A.1 DISASSEMBLY…………………………………………………………………………………………..372
42A.2 INSPECTION……………………………………………………………………………………………372
42A.3 REASSEMBLY……………………………………………………………………………………………374
42B. DISASSEMBLY AND REASSEMBLY OF CHARGING PUMP
(L32-3, LX160-7 ・ L35-3, LX190-7・ L40-3, LX230-7)……………………..376
42B.1 DISASSEMBLY…………………………………………………………………………………………..377
42B.2 INSPECTION……………………………………………………………………………………………377
42B.3 REASSEMBLY……………………………………………………………………………………………379
43A. DISASSEMBLY AND REASSEMBLY OF MAIN VALVE
(L20-3, LX110-7)……………………………………………………..381
43A.1 DISASSEMBLY…………………………………………………………………………………………..382
43A.2 TREATMENT AFTER DISASSEMBLY…………………………………………………………………………….383
43A.3 REASSEMBLY……………………………………………………………………………………………384
43A.4 ADJUSTMENT OF RELIEF VALVE……………………………………………………………………………..386
43B. DISASSEMBLY AND REASSEMBLY OF MAIN
VALVE (L27-3,LX130-7)………………………………………………………387
43B.1 DISASSEMBLY…………………………………………………………………………………………..388
43B.2 TREATMENT AFTER DISASSEMBLY…………………………………………………………………………….389
43B.3 REASSEMBLY……………………………………………………………………………………………389
43B.4 ADJUSTMENT OF RELIEF VALVE……………………………………………………………………………..391
43C. DISASSEMBLY AND REASSEMBLY OF MAIN VALVE
(L32-3, LX160-7 ・ L35-3, LX190-7・ L40-3, LX230-7)………………………..392
43C.1 DISASSEMBLY…………………………………………………………………………………………..393
43C.2 REASSEMBLY……………………………………………………………………………………………395
43C.3 REASSEMBLY OF CONNECTION EXTENSION SECTION……………………………………………………………….396
44. DISASSEMBLY AND REASSEMBLY OF PILOT VALVE
(L27-3 to L40-3, LX130-7 to LX230-7)……………………………………397
44.1 DISASSEMBLY……………………………………………………………………………………………398
44.2 TREATMENT AFTER DISASSEMBLY……………………………………………………………………………..399
44.3 REASSEMBLY…………………………………………………………………………………………….399
44.4 ADJUSTMENT OF CLEARANCE BETWEEN PUSH ROD AND
PLATE………………………………………………………..401
45A. DISASSEMBLY AND REASSEMBLY OF BOOM CYLINDER
(L20-3, LX110-7)…………………………………………………..402
45A.1 DISASSEMBLY…………………………………………………………………………………………..403
45A.2 INSPECTION……………………………………………………………………………………………404
45A.3 REASSEMBLY……………………………………………………………………………………………405
45B. DISASSEMBLY AND REASSEMBLY OF BUCKET
CYLINDER (L20-3, LX110-7)…………………………………………………408
45B.1 DISASSEMBLY…………………………………………………………………………………………..409
45B.2 INSPECTION……………………………………………………………………………………………410
45B.3 REASSEMBLY……………………………………………………………………………………………411
45C. DISASSEMBLY AND REASSEMBLY OF BOOM
CYLINDER AND BUCKET CYLINDER
(L27-3, LX130-7 ・ L32-3, LX160-7 ・ L35-3, LX190-7)….414
45C.1 DISASSEMBLY…………………………………………………………………………………………..415
45C.2 INSPECTION……………………………………………………………………………………………416
45C.3 REASSEMBLY……………………………………………………………………………………………417
45D. DISASSEMBLY AND REASSEMBLY OF BOOM
CYLINDER AND BUCKET CYLINDER
(L40-3,LX230-7)…………………………………419
45D.1 DISASSEMBLY…………………………………………………………………………………………..420
45D.2 INSPECTION……………………………………………………………………………………………421
45D.3 REASSEMBLY……………………………………………………………………………………………422

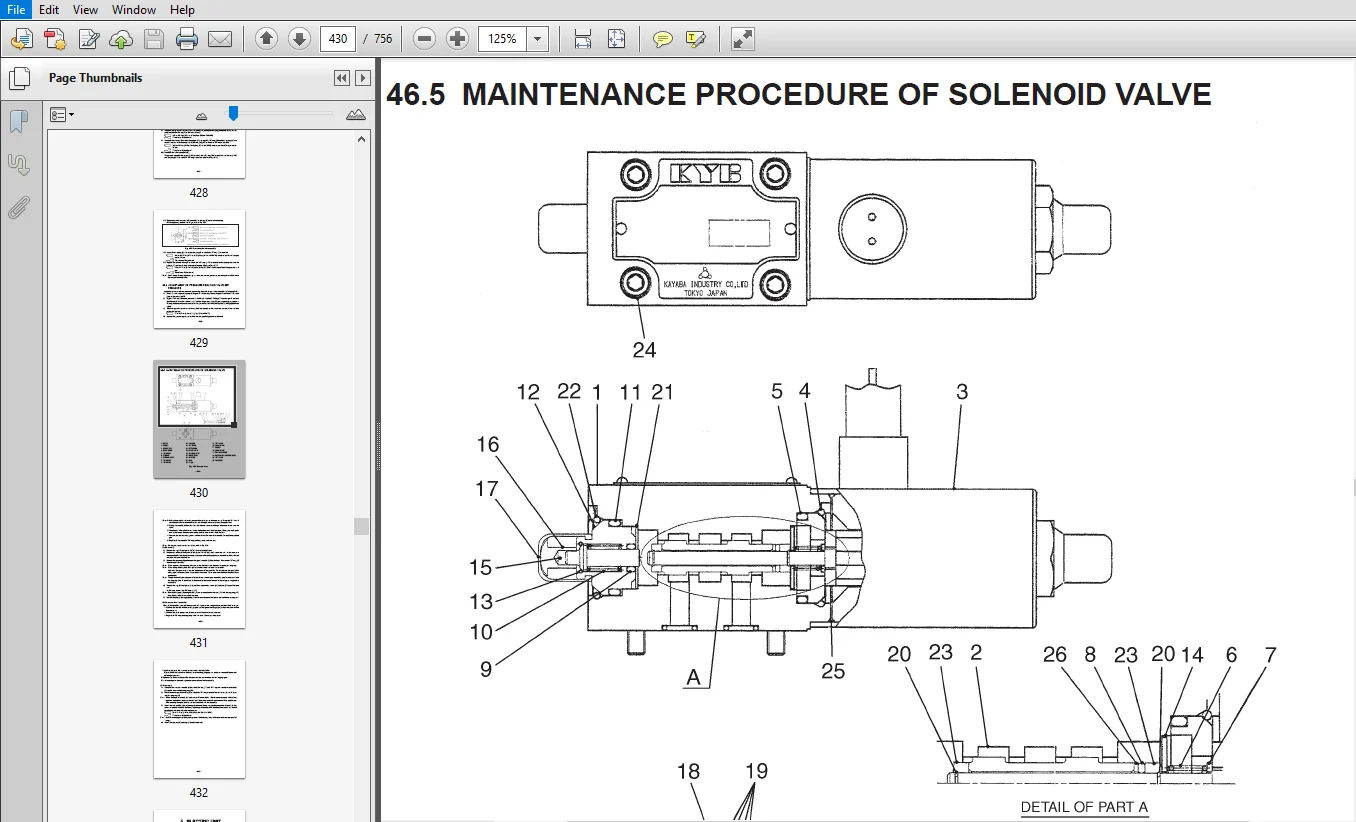

46. DISASSEMBLY AND REASSEMBLY OF TRAVEL
DAMPER VALVE FOR APS (OPTION)………………………………………………424
46.1 DISASSEMBLY……………………………………………………………………………………………425
46.2 TREATMENT AFTER DISASSEMBLY……………………………………………………………………………..427
46.3 REASSEMBLY…………………………………………………………………………………………….427
46.4 ADJUSTMENT OF PRESSURE REDUCING VALVE SET
PRESSURE………………………………………………………..429
5. ELECTRIC UNIT…………………………………………………………………………………………………..433
51A. ELECTRICAL EQUIPMENT LAYOUT DRAWING
(L20-3, LX110-7)………………………………………………………….435
51B. ELECTRICAL EQUIPMENT LAYOUT DRAWING
(L27-3, LX130-7 ・ L32-3, LX160-7)…………………………………………..441
51C. ELECTRICAL EQUIPMENT LAYOUT DRAWING
(L35-3, LX190-7 ・ L40-3, LX230-7)…………………………………………..449
52. WIRE HARNESS (REFERENCE)…………………………………………………………………………………….456
53. ELECTRIC CIRCUIT DIAGRAM…………………………………………………………………………………….483
54. STARTING SYSTEM ELECTRIC CIRCUIT……………………………………………………………………………..489
55. ATC (AUTOMATIC TRANSMISSION CONTROLLER)……………………………………………………………………….495
56. ELECTRONICALLY CONTROLLER FUEL SYSTEM –
TROUBLE SHOOTING (L35-3, LX190-7 ・ L40-3, LX230-7)…………………………506
57. AIR CONDITIONER – TROUBLE SHOOTING
(L27-3 to L40-3, LX130-7 to LX230-7)………………………………………….524
6. ENGINE AND ACCESSORY…………………………………………………………………………………………….531
GENERAL INFORMATION…………………………………………………………………………………………….535
MAINTENANCE……………………………………………………………………………………………………561
ENGINE ASSEMBLY 1………………………………………………………………………………………………581
ENGINE ASSEMBLY 2………………………………………………………………………………………………597
ENGINE ASSEMBLY 3………………………………………………………………………………………………627
LUBRICATING SYSTEM……………………………………………………………………………………………..657
FUEL SYSTEM……………………………………………………………………………………………………667
TURBOCHARGER…………………………………………………………………………………………………..677
AIR COMPRESSOR…………………………………………………………………………………………………681
ENGINE ELECTRICALS……………………………………………………………………………………………..689
TROUBLESHOOTING………………………………………………………………………………………………..697
SPECIAL TOOL LIST………………………………………………………………………………………………721
REPAIR STANDARDS……………………………………………………………………………………………….725
CONVERSION TALBE……………………………………………………………………………………………….745
REVISION REQUEST FORM………………………………………………………………………………………………755

Hitachi LX230-7 General Information Training Text Manual

LX230-7_TTLA-0634-LX…………………………….. 1
CONTENTS……………………………………….. 2
Front View……………………………………… 3
Side View………………………………………. 3
Rear View………………………………………. 5
CAB……………………………………………. 5
CAB……………………………………………. 7
MONITOR………………………………………… 7
PEDALS…………………………………………. 9
METERS………………………………………….11
INSTRUMENTS AND CONTROLS………………………….11
FUSE BOX………………………………………..13
INDOOR AIR FILTER FOR AIR CONDITIONING……………..13
ACCESS TO AUTOMATIC TRANSMISSION CONTROLLER (ATC)……15
AUTOMATIC TRANSMISSION CONTROLLER (ATC)…………….15
DIRECT-COUPLING CONNECTORS………………………..17
ENGINE………………………………………….17
A/C COMPRESSOR AND ALTERNATOR……………………..19
STARTER MOTOR……………………………………19
DRIVE UNIT………………………………………21
COOLANT RESERVOIR TANK AND WINDSHIELD WASHER TANK……21
COOLANT RESERVOIR TANK AND WINDSHIELD WASHER TANK……23
CONDENSER FOR AIR CONDITIONER……………………..23
AIR INLET FOR CONDENSER…………………………..25
FUEL TANK……………………………………….25
DRAIN COCK FOR FUEL TANK………………………….27
ENGINE………………………………………….27
TIMER CONTROL VALVE………………………………29
PIPING FOR TIMER CONTROL VALVE…………………….29
INJECTION PUMP WITH ELECTRONIC GOVERNOR…………….31
THERMOMETER AND THERMOMETER UNIT…………………..31
INTERCOOLER……………………………………..33
INTAKE AIR HEATER………………………………..33
OIL COOLER FOR TORQUE CONVERTER OIL………………..35
ENGINE OIL FILTERS……………………………….35
HYDRAULIC SYSTEM…………………………………37
CLUTCH PRESSURE CHECK PORTS……………………….37
TRANSMISSION CONTROL VALVE………………………..39
REAR PROPELLER SHAFT AND SUPPORT…………………..39
CENTER PROPELLER SHAFT AND SPEED SENSOR…………….41
CENTER BEARING…………………………………..43
FRONT PROPELLER SHAFT, FRONT AXLE AND SERVICE BRAKE….43
PIPING FOR SERVICE BRAKE………………………….45
FRONT AXLE………………………………………45
TRANSMISSION…………………………………….47
REAR AXLE AND SUPPORT…………………………….47
HYDRAULIC OIL TANK……………………………….49
DRAIN PLUG FOR HYDRAULIC TANK……………………..49
IN-LINE FILTER FOR TORQUE CONVERTER AND T/M OIL……..51
POC FILTER………………………………………51
PUMPS…………………………………………..53
STEERING VALVE…………………………………..53
STEERING CYLINDERS……………………………….55
CHARGING VALVE…………………………………..55
ACCUMULATORS…………………………………….57
BRAKE VALVE……………………………………..57
PIPING FOR SERVICE BRAKE………………………….59
CONTROL VALVE……………………………………59
FRONT VIEW OF CONTROL VALVE……………………….61
REAR VIEW OF CONTROL VALVE………………………..61
PILOT VALVE AND STOP VALVE………………………..63
BATTERY…………………………………………63
BATTERY RELAY……………………………………65
BELLCRANK, BUCKET CYLINDER AND BUCKET LEVELER……….65
BOOM KICK-OUT……………………………………67
ACCELERATOR SWITCH AND SENSOR……………………..67
ACCELERATOR SENSOR……………………………….69
RELAYS………………………………………….69
ENGINE ELECTRONIC CONTROL UNIT…………………….71
TIMING SENSOR (ENGINE SPEED SENSOR)………………..71
SAFETY RELAY…………………………………….73
WIRE HARNESS UNDER THE CAB………………………..73
TORQUE CONVERTER OIL PRESSURE (OUT)………………..75
HYDRAULIC PRESSURE (FRONT ATTACHMENT)………………75
STEERING PRESSURE………………………………..77
HINGE POINT……………………………………..77

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
