Hitachi UH045-7 UH063 Equipment Components Parts List Manual(P7309) – PDF DOWNLOAD

Description

Hitachi UH045-7 UH063 Equipment Components Parts List Manual(P7309) – PDF DOWNLOAD

FILE DETAILS:

Hitachi UH045-7 UH063 Equipment Components Parts List Manual(P7309) – PDF DOWNLOAD

Language : English,Japanese
Pages :82
Downloadable : Yes
File Type : PDF
Size:4.65 MB

DESCRIPTION

Hitachi UH045-7 UH063 Equipment Components Parts List Manual(P7309) – PDF DOWNLOAD

SERIAL NO.154-6001

FOREWORD

• THIS PARTS LIST SHOWS THE PRECISION PARTS OF UH045-7 AND UH063 HYDRAULIC EXCAVATOR. THE NUMERICAL PARTS NO. INDEX IS PROVIDED AT THE END OF THIS PARTS LIST.
• THIS PARTS LIST CONTAINS THE MOST RECENT INFORMATION AVAILABLE AT THE TIME OF PRINTING, AND THE CONTENTS OF THE LIST ARE BASED ON INFORMATION IN EFFECT AI THAT TIME AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.
• THE REFERENCES IN THE PARTS LIST OF “LEFT”, “RIGHT”, “FRONT” AND “REAR” ARE IDENTIFIED AS FOLLOWS. THE DRIVER’S SEAT IS POSITIONED “LEFT” SIDE, AND THE OPPOSITE SIDE IS “RIGHT”. THE FRONT ATTACHMENT IS AT THE “FRONT”. THE COUNTERWEIGHT IS ATTACHED AT THE “REAR”. FOR THE TRACK, THE TRAVEL MECHANISM IS AT THE “REAR”, AND THE OPPOSITE IS “FRONT”.

1. HOW TO ORDER PARTS
WHEN ORDERING PARTS, PLEASE SPECIFY THE FOLLOWING ITEMS AS SHOWN IN THE FOLLOWING EXAMPLE.

(EXAMPLE)
(1) Model of Machine:(UH063) Shown on Name-Plate in front of revolving frame
(2) Machine Serial No.(154-6001)
(3) Part No.(A810140) Ordering Parts
(4) Part Name:(O-RING)
(5) Q’ty.(2) Ordering Q’ty
(6) Purchaser’s Name and Address

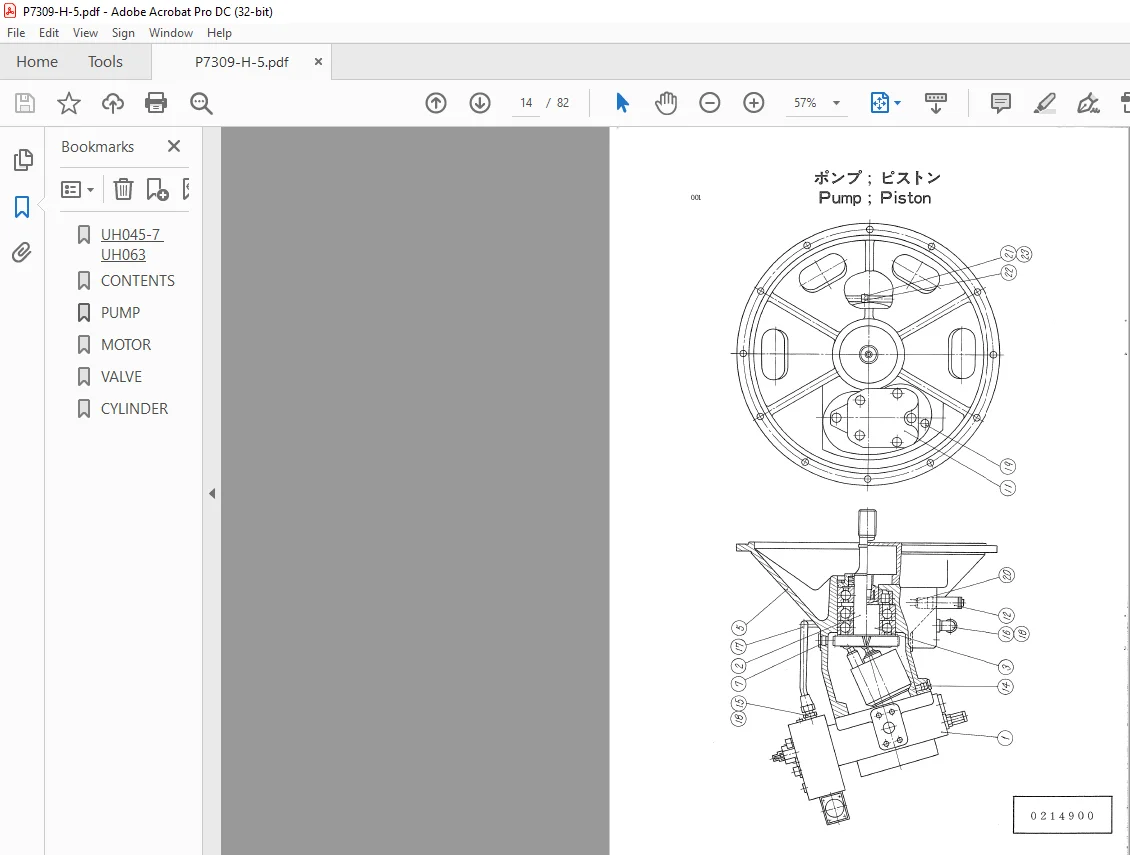

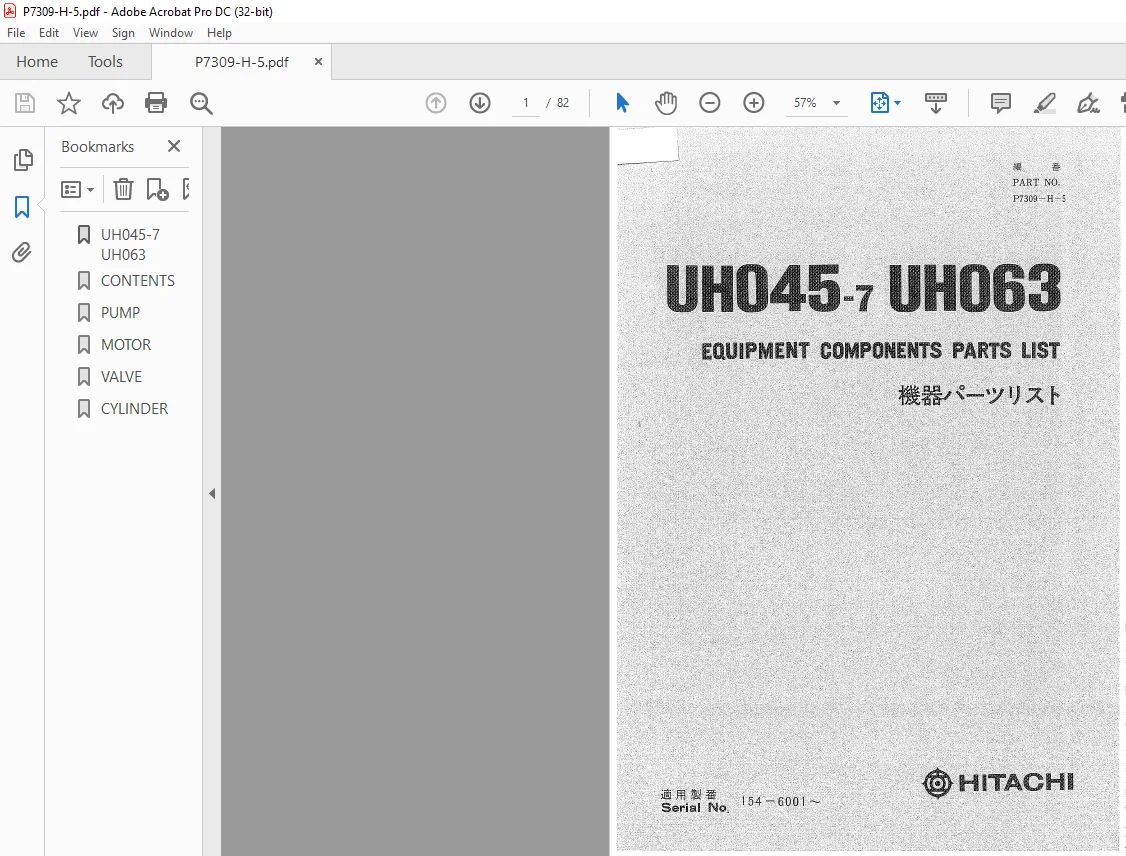

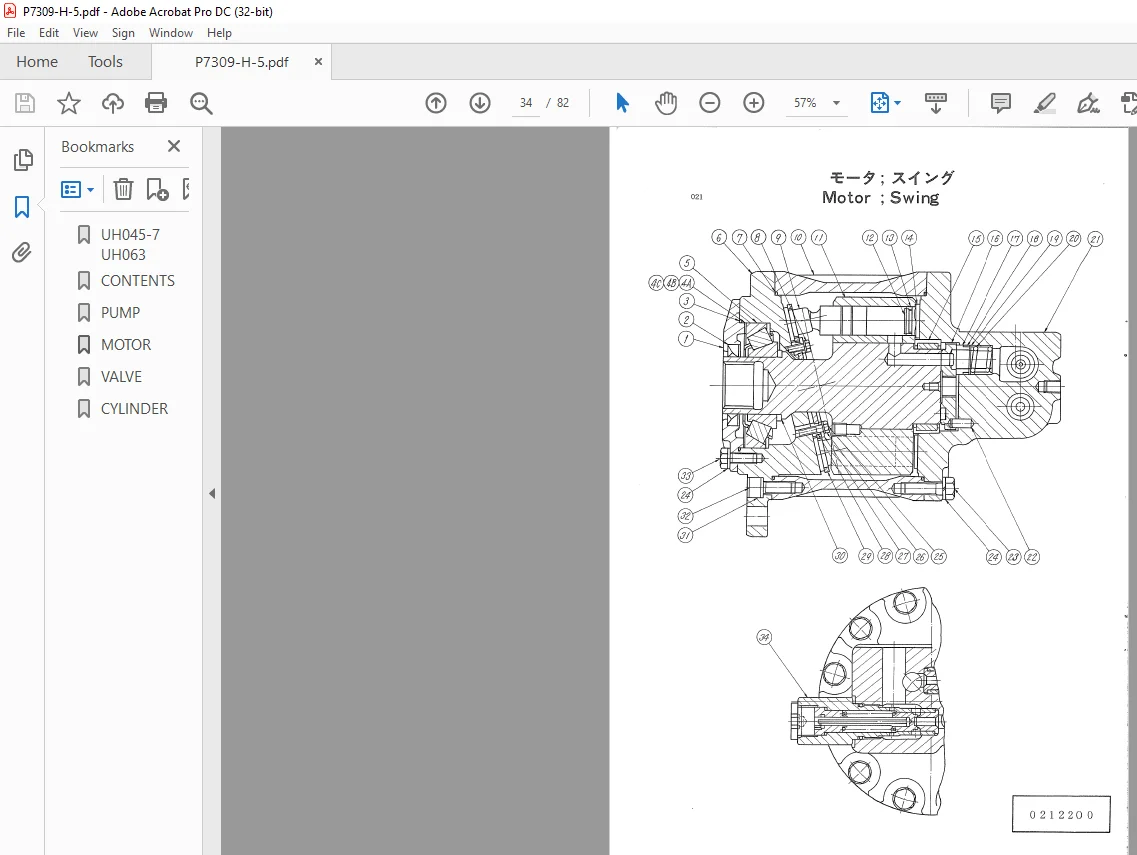

IMAGES PREVIEW OF THE MANUAL:

 TABLE OF CONTENTS:

Hitachi UH045-7 UH063 Equipment Components Parts List Manual(P7309) – PDF DOWNLOAD

PUMP
PUMP;PISTON
CONTROL PART
CONTROL PART
REGURATOR COVER
PILOT CONTROL VALVE
CONTROL SPRING
ROTARY GROUP (INPUT SHAFT)
ROTARY GROUP (DRIVEN SHAFT)
PILOT GEAR PUMP
VALVE;RELIEF
MOTOR
MOTOR;OIL
MOTOR;SWING
VALVE;LOCK
TMISSION;SWING MOTOR;OIL
VALVE;BRAKE
VALVE
VALVE;CONTROL
VALVE;RELIEF
VALVE
GONTROLER VALVE;CONTROL
VALVE;RELIEF
VALVE
GONTROLER VALVE;ASSIST VALVE;GHECK
VALVE;CHECK
VALIJE;SLOWRETURN
CYLINDER
CYL:BOOM (LH)
CYL; 800M CRH)
CYL, :ARM
CYL ;BUCKET
