Hitachi UH04M-5 UH052M Hydraulic Components Parts List Manual (P1579-H-1) – PDF DOWNLOAD

Description

Hitachi UH04M-5 UH052M Hydraulic Components Parts List Manual (P1579-H-1) – PDF DOWNLOAD

FILE DETAILS:

Hitachi UH04M-5 UH052M Hydraulic Components Parts List Manual (P1579-H-1) – PDF DOWNLOAD

Language : English
Pages :60
Downloadable : Yes
File Type : PDF
Size:3.07 MB

DESCRIPTION

Hitachi UH04M-5 UH052M Hydraulic Components Parts List Manual (P1579-H-1) – PDF DOWNLOAD

This Inner Parts List covers the hydraulic components used on the Hitachi hydraulic excavator UH04M-s, UH052M For the parts used in the basic machine, refer to basic machine parts list. For the engine parts, refer to the engine parts list.

1. HOW TO ORDER

• To order parts, always specify the machine model, serial number, Hitachi part number, part name, part number designated by the component supplier to Hitachi, and required quantity.
• * In ordering inner parts, be sure to specify the hydraulic component ass’y numbers marked on the name plate on the unit. 1 2 1Q’ty
• As for the inner parts available on the market or specified on JIS and similar standards, they are noted “A” on the RANK column in the Inner Parts List and their standards are on the REMARKS column.
• For obtaining, order from your nearest Hitachi’s authorized service shop.
• Machine serial number is marked on the name plate located in the cab.
• The component parts of machines UH04M-s and UH052M are identical, place an order with HITACHI for any UH052M parts you need, please specify them refering to UH04M-s

TABLE OF CONTENTS:

Hitachi UH04M-5 UH052M Hydraulic Components Parts List Manual (P1579-H-1) – PDF DOWNLOAD

COVER………………. 1
PUMP;GEAR………..14
MOTOR;OIL………..18
VALVE;BRAKE………22
MOTOR;OIL………..24
VALVE;CONTROL…….28
VALVE;CONTROL…….32
VALVE;CONTROL…….34
CYL.;BOOM………..36
CYL.;ARM…………38
CYL.;BUCKET………40
VALVE;BRAKE………42
VALVE;REDUCING……44
PLATE;VALVE………46
VALVE;CHECK………48
VALVE;CHECK………50
VALVE;SLOWRETURN….52
PARTS INDEX………55

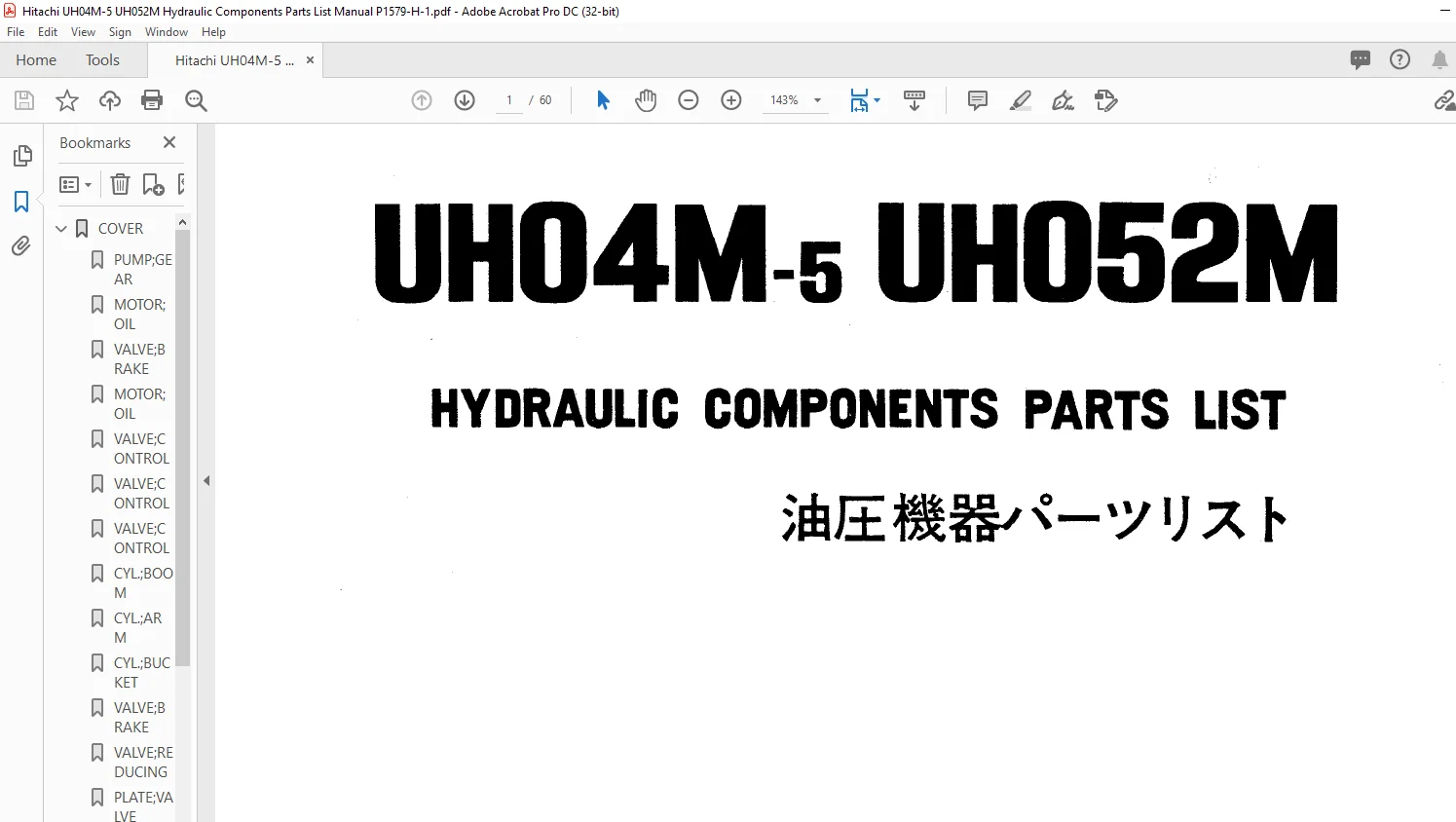

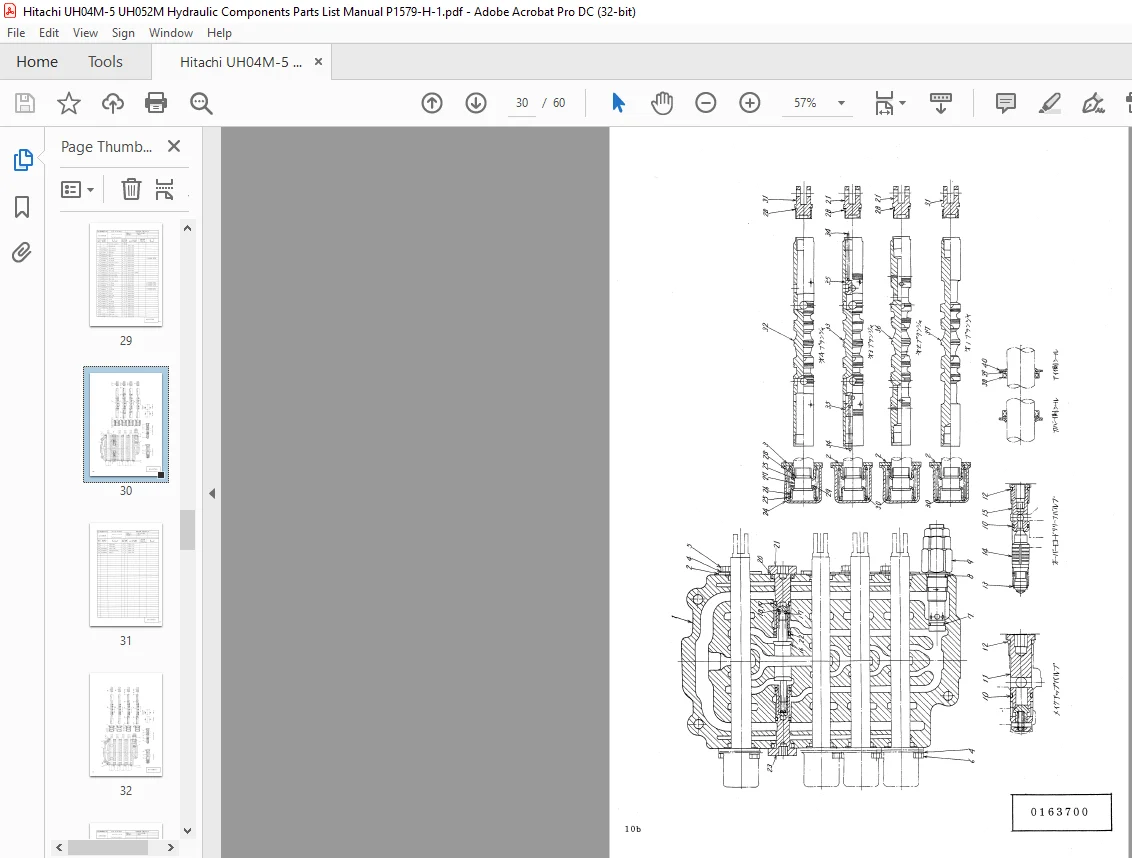

IMAGES PREVIEW OF THE MANUAL:
