Hitachi UH04M-7 UH053M Equipment Components Parts List Manual(EP1579-H-2) – PDF DOWNLOAD

Description

Hitachi UH04M-7 UH053M Equipment Components Parts List Manual(EP1579-H-2) – PDF DOWNLOAD

FILE DETAILS:

Hitachi UH04M-7 UH053M Equipment Components Parts List Manual(EP1579-H-2) – PDF DOWNLOAD

Language : English,Japanese
Pages :78
Downloadable : Yes
File Type : PDF
Size:5.36 MB

DESCRIPTION

Hitachi UH04M-7 UH053M Equipment Components Parts List Manual(EP1579-H-2) – PDF DOWNLOAD

SERIAL NO:1601

FOREWORD

• This parts list shows the pr·ecision pads of UH04M 7 and UH053M Hydraulic excavator·. The numerical parts No. index is provided at the end of this parts List. In the parts index, a part No. with “*'” mar·k shows a new Ly added part on the parts list, @ This parts List contains the most recent information available at the time of printing, and the contents of the list are based on infor·mation in effect at that time andare subject to change without notice.
• The references in the parts list of “LEFT'”, “RIGHT'”, .. FRONT'” and “REAR” are i dent i fi ed as follows. The driver’s seat is positioned ”LEFT” side, and the opposite side is “RIGHT”.
• The front attachment is at the “FRONTr. The counterweight is attached at the”REAR”. For the track, the travel motor is at the “REAR”, and the opposite is “FRONT”.

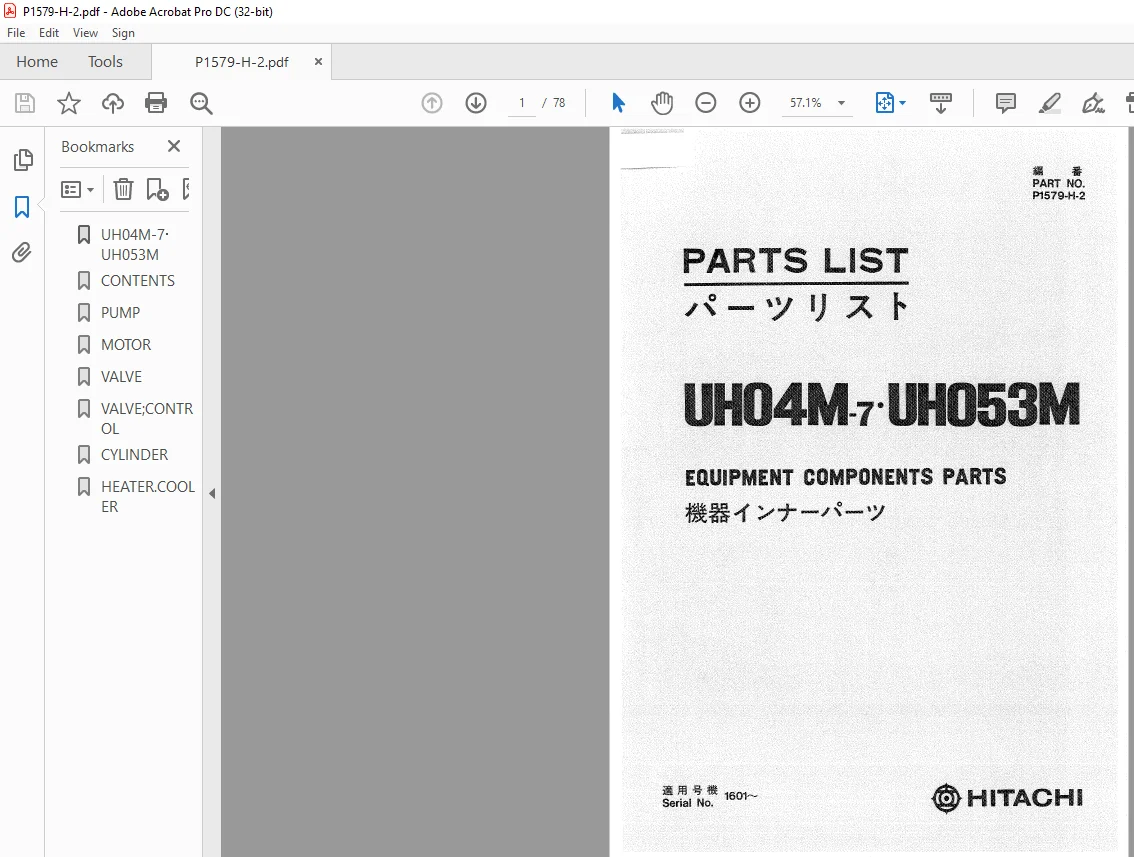

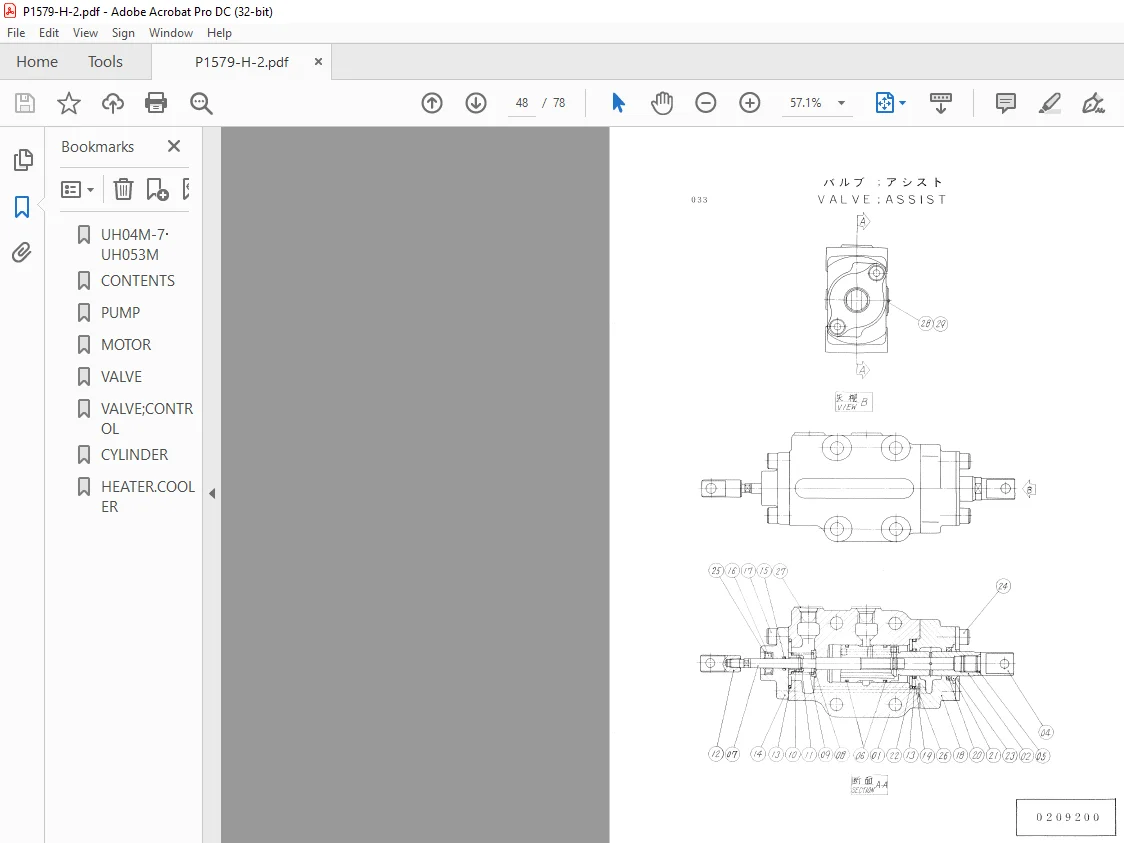

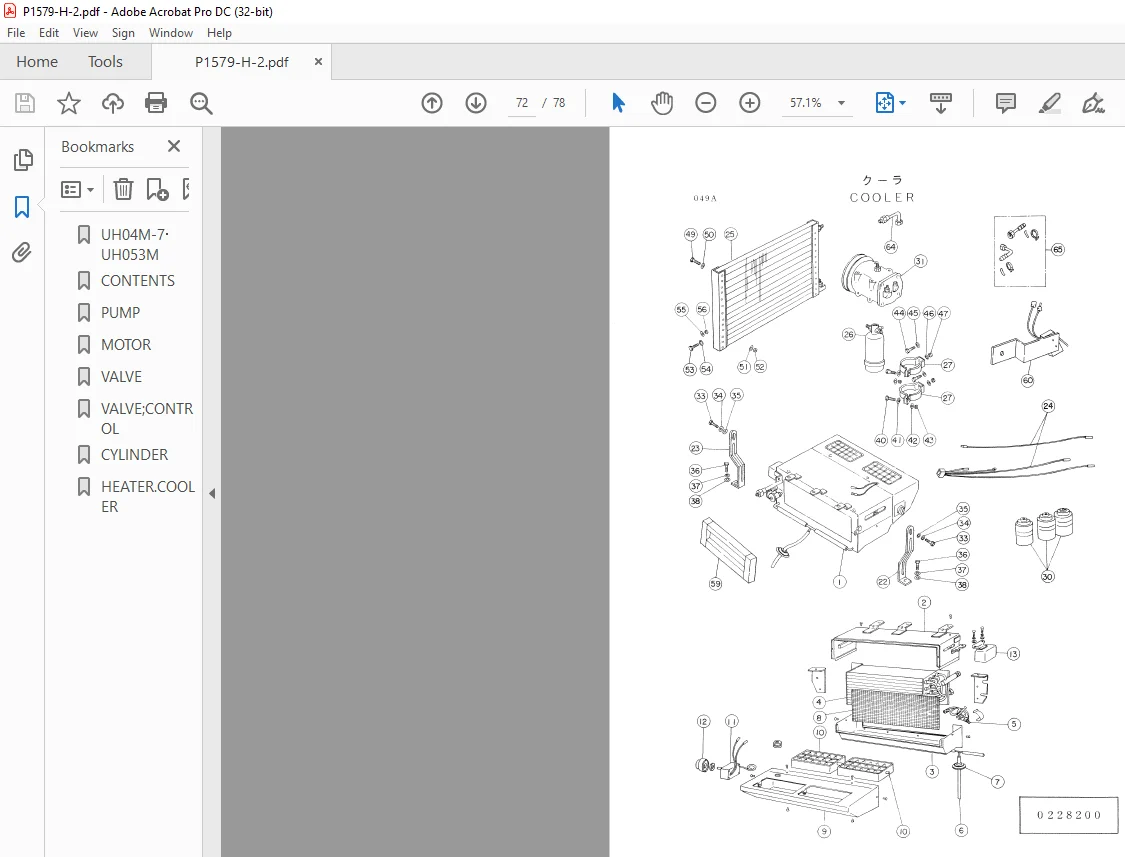

IMAGES PREVIEW OF THE MANUAL:
