Hitachi ZAXIS 330-3 330LC-3 350LC-3 350LCN-3 350H-3 350LCH-3 350K-3 350LCK-3 Parts Manual

Description

Hitachi ZAXIS 330-3 330LC-3 350LC-3 350LCN-3 350H-3 350LCH-3 350K-3 350LCK-3 Equipment Components Parts Catalog Manual – PDF DOWNLOAD

TABLE OF CONTENTS:

Hitachi ZAXIS 330-3 330LC-3 350LC-3 350LCN-3 350H-3 350LCH-3 350K-3 350LCK-3 Equipment Components Parts Catalog Manual – PDF DOWNLOAD

COVER.............................  1
MEMORANDUM........................  2
CONTENTS.......................... 15
PUMP.............................. 17
	PUMP DEVICE................... 17
	PUMP;UNIT..................... 21
	PUMP;REGULATOR................ 25
	PUMP;GEAR..................... 27
MOTOR............................. 29
	SWING DEVICE.................. 29
	MOTOR;OIL (SWING)............. 31
	T.MISSION (SWING)............. 33
	TRAVEL DEVICE................. 35
	MOTOR;OIL (TRAVEL)............ 39
	VALVE;BRAKE................... 41
	VALVE;RELIEF.................. 43
VALVE............................. 45
	VALVE;CONTROL (1/5)........... 45
	VALVE;CONTROL (2/5)........... 47
	VALVE;CONTROL (3/5)........... 51
	VALVE;CONTROL (4/5)........... 53
	VALVE;CONTROL (5/5)........... 57
	VALVE;PILOT (FRONT, SWING).... 61
	VALVE;PILOT (TRAVEL).......... 63
	VALVE;SOLENOID................ 67
	VALVE;LOCK.................... 69
	VALVE;SHUTTLE (1/5)........... 71
	VALVE;SHUTTLE (2/5)........... 73
	VALVE;SHUTTLE (3/5)........... 75
	VALVE;SHUTTLE (4/5)........... 77
	VALVE;SHUTTLE (5/5)........... 79
	VALVE......................... 81
	FILTER;OIL.................... 83
	JOINT;CENTER.................. 85
CYLINDER.......................... 87
	CYL.;BOOM (R)................. 87
	CYL.;BOOM (L)................. 91
	CYL.;ARM...................... 95
	CYL.;BUCKET................... 99
PARTS INDEX.......................103

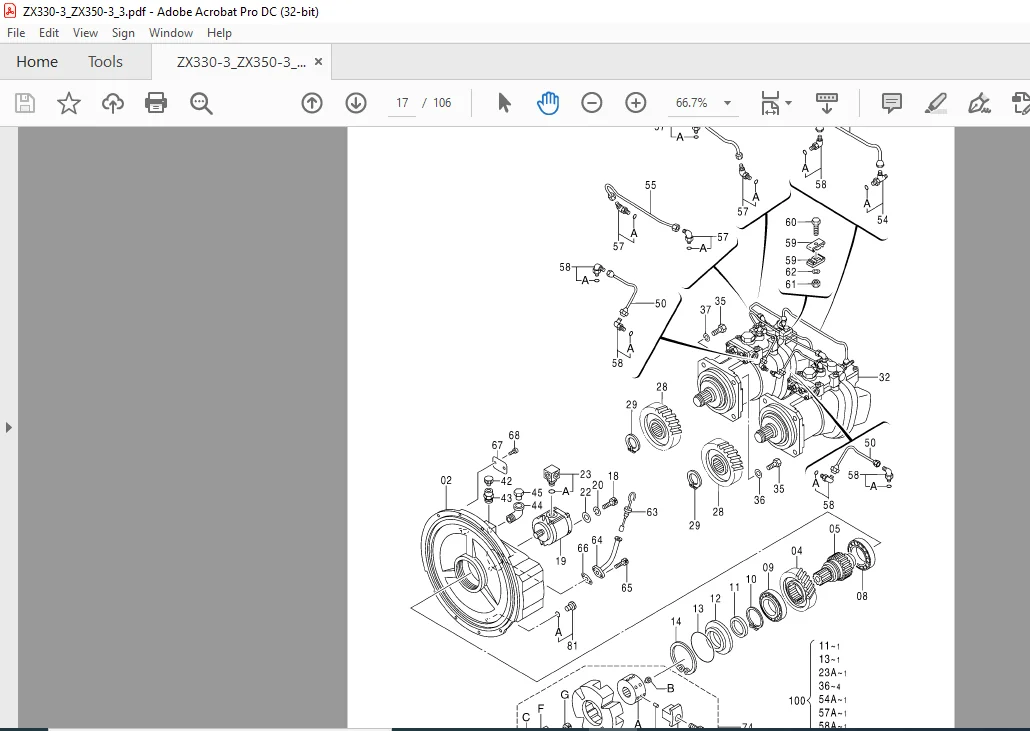

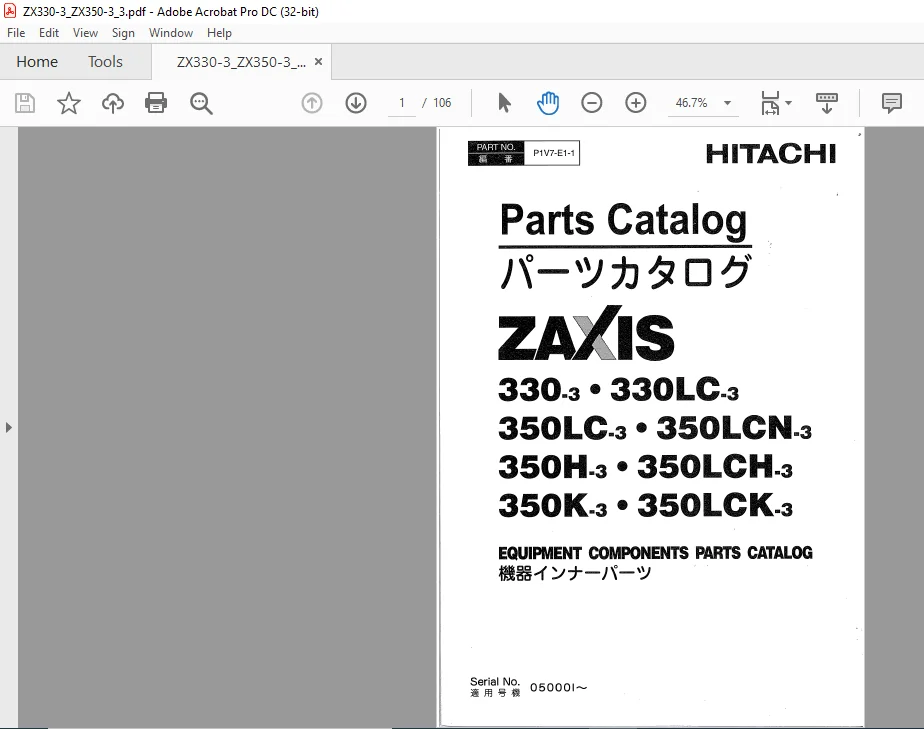

IMAGES PREVIEW OF THE MANUAL:
