Hitachi ZH 200-5A 200LC-5A Hybrid Excavator Technical Troubleshooting Manual – PDF DOWNLOAD

Description

Hitachi ZH 200-5A 200LC-5A Hybrid Excavator Technical Troubleshooting Manual

FILE DETAILS:

Hitachi ZH 200-5A 200LC-5A Hybrid Excavator Technical Troubleshooting Manual

Language : English
Pages : 537
Downloadable : YES
Format : PDF
Size : 13.7 MB
Part  No : TTDFM90-EN-00

DESCRIPTION:

Hitachi ZH 200-5A 200LC-5A Hybrid Excavator Technical Troubleshooting Manual

INTRODUCTION:

TO THE READER:
• This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine.
• Be sure to thoroughly read this manual for correct product information and service procedures.
• If you have any questions or comments, at if you found any errors regarding the contents of this manual, please contact using “Service Manual Revision Request Form” at the end of this manual.

ADDITIONAL REFERENCES:

• Please refer to the materials listed below in addition to this manual.
• The Operator’s Manual
• The Parts Catalog
• The Engine Manual
• Parts Catalog of the Engine
• Hitachi Training Material

MANUAL COMPOSITION:
• This manual consists of three portions: the Technical Manual (Operational Principle), the Technical Manual (Troubleshooting) and the Workshop Manual.
• Information included in the Technical Manual (Operational Principle): technical information needed for redelivery and delivery, operation and activation of all devices and systems.
• Information included in the Technical Manual (Troubleshooting): technical information needed for operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/ disassemble procedures.

TABLE OF CONTENTS:

Hitachi ZH 200-5A 200LC-5A Hybrid Excavator Technical Troubleshooting Manual

SECTION 4 OPERATIONAL
PERFORMANCE TEST
Group 1 Introduction
Group 2 Standard
Group 3 Engine Test
Group 4 Machine Performance Test
Group 5 Component Test
SECTION 5 TROUBLESHOOTING
Group 1 Diagnosing Procedure
Group 2 Monitor
Group 3 e-Service
Group 4 Component Layout
Group 5 Troubleshooting A
Group 6 Troubleshooting B
SECTION 7 HYBRID TROUBLESHOOTING
Group 1 Standard
Group 2 Diagnosing Procedure of Troubleshooting
Group 3 Monitor
Group 4 Component Layout
Group 5 Troubleshooting A
Group 6 Troubleshooting B

HITACHI ZH 200-5A 200LC-5A HYBRID EXCAVATOR TECHNICAL TROUBLESHOOTING MANUAL – PDF DOWNLOAD:

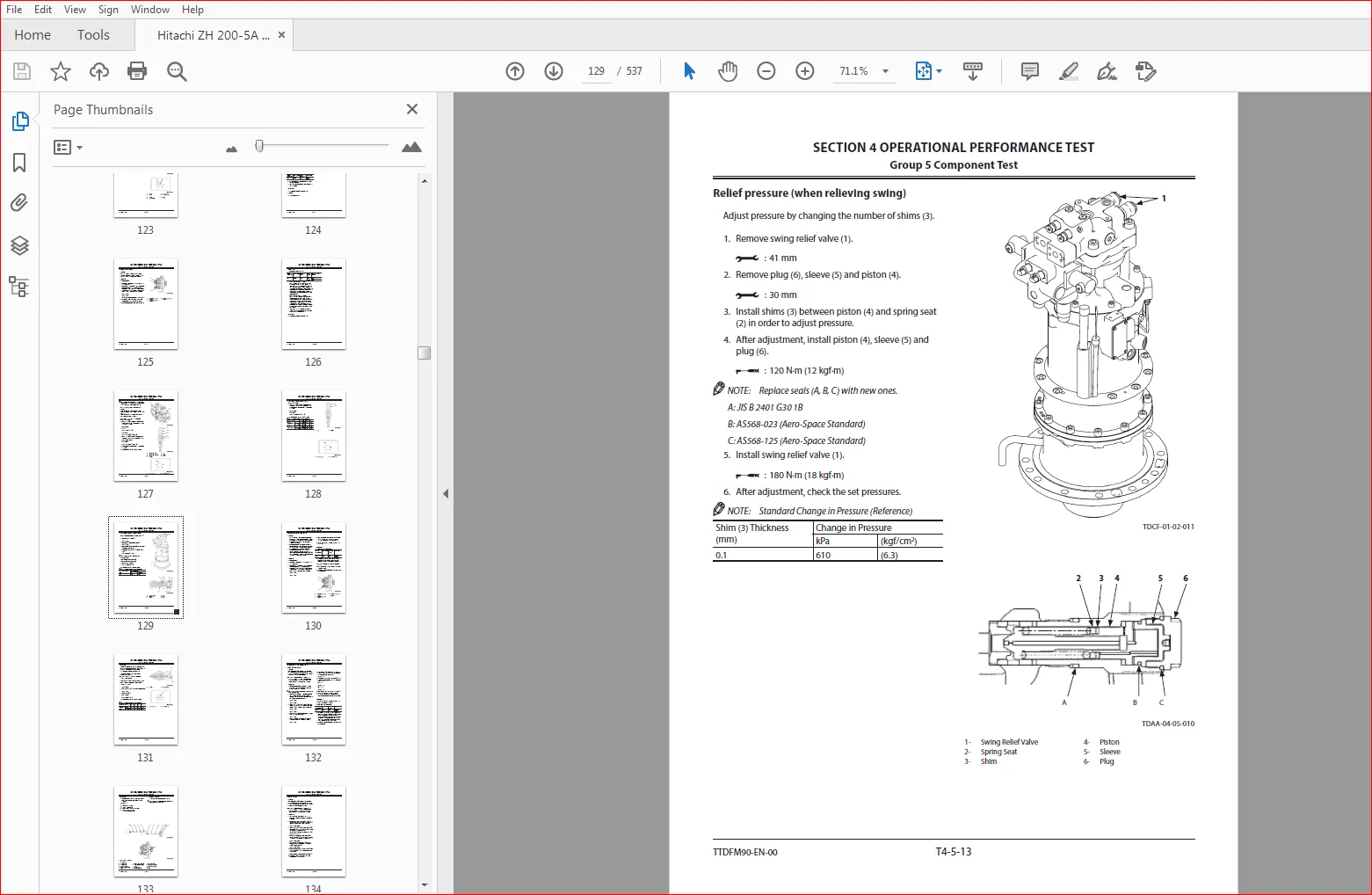

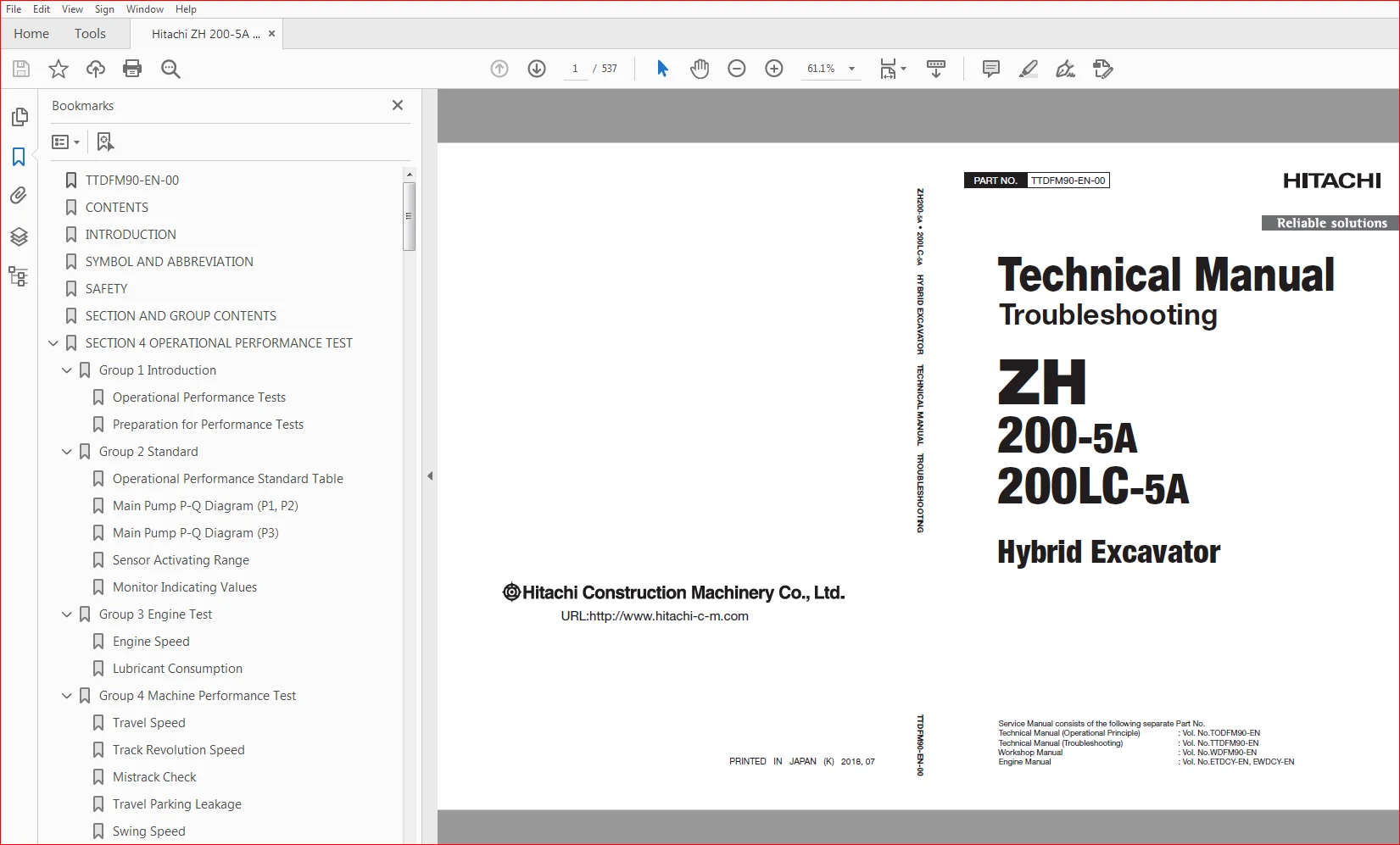

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
