Hitachi ZW 150-6 150PL-6 Wheel Loader Operational Principle Technical Manual – PDF DOWNLOAD

Description

Hitachi ZW 150-6 150PL-6 Wheel Loader Operational Principle Technical Manual

FILE DETAILS:

Hitachi ZW 150-6 150PL-6 Wheel Loader Operational Principle Technical Manual

Language : English
Pages : 527
Downloadable : YES
Format : PDF
Size : 13.2 MB
Part No : TOPTC50-EN-01

DESCRIPTION:

Hitachi ZW 150-6 150PL-6 Wheel Loader Operational Principle Technical Manual

INTRODUCTION:

TO THE READER:
• This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine.
• Be sure to thoroughly read this manual for correct product information and service procedures.
• If you have any questions or comments, at if you found any errors regarding the contents of this manual, please contact using “Service Manual Revision Request Form” at the end of this manual.

ADDITIONAL REFERENCES:

• Please refer to the materials listed below in addition to this manual.
• The Operator’s Manual
• The Parts Catalog
• The Engine Manual
• Parts Catalog of the Engine
• Hitachi Training Material

MANUAL COMPOSITION:
• This manual consists of three portions: the Technical Manual (Operational Principle), the Technical Manual (Troubleshooting) and the Workshop Manual.
• Information included in the Technical Manual (Operational Principle): technical information needed for redelivery and delivery, operation and activation of all devices and systems.
• Information included in the Technical Manual (Troubleshooting): technical information needed for operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/ disassemble procedures.

TABLE OF CONTENTS:

Hitachi ZW 150-6 150PL-6 Wheel Loader Operational Principle Technical Manual

SECTION 1 GENERAL
Group 1 Specifications
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Controller
Group 2 Control System
Group 3 ECM System
Group 4 Hydraulic System
Group 5 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Pump Device
Group 2 Control Valve
Group 3 Cooling Fan System
Group 4 Steering Valve
Group 5 HST Motor
Group 6 Pilot Valve
Group 7 Brake Charge Valve/Manifold Valve
Group 8 Transmission
Group 9 Axle
Group 10 Brake Valve
Group 11 Priority Valve
Group 12 Ride Control Valve
Group 13 Others

HITACHI ZW 150-6 150PL-6 WHEEL LOADER OPERATIONAL PRINCIPLE TECHNICAL MANUAL – PDF DOWNLOAD:

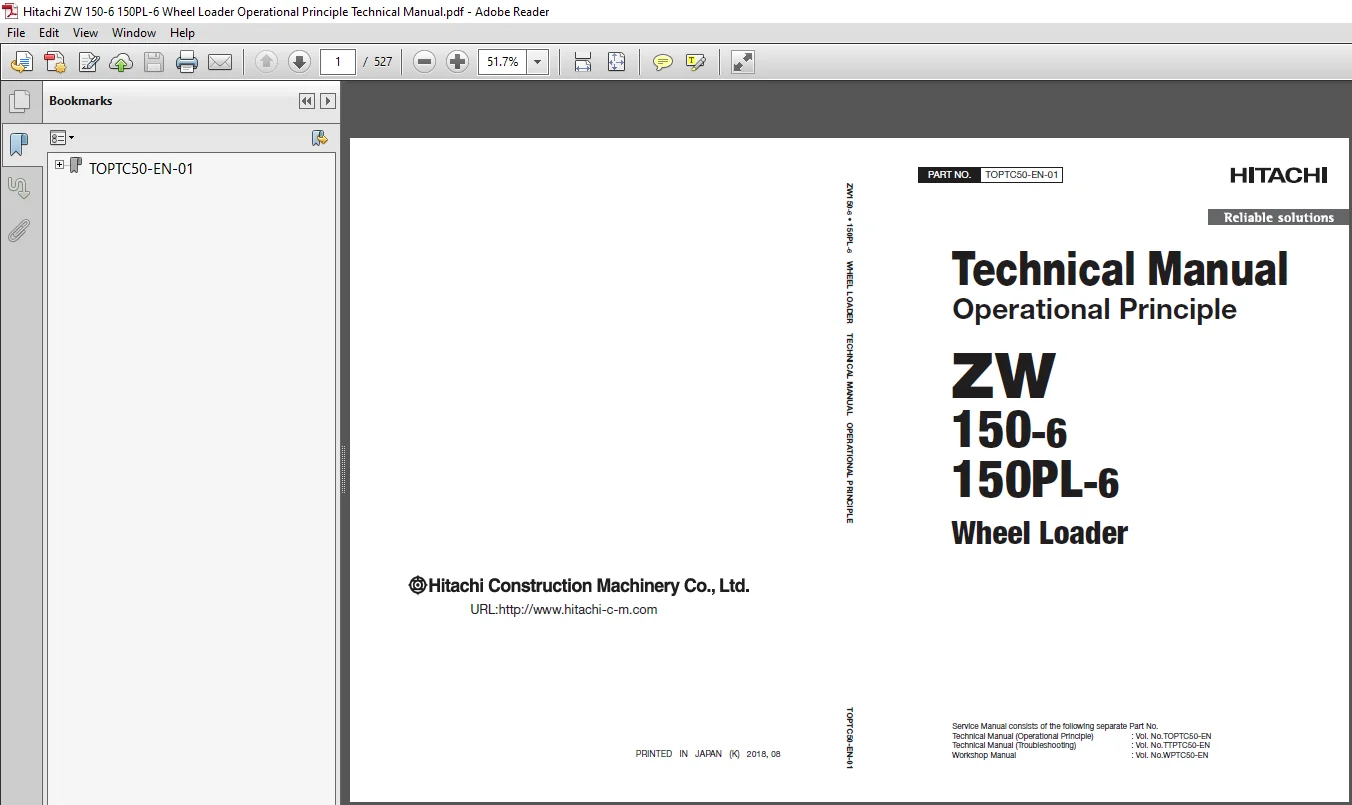

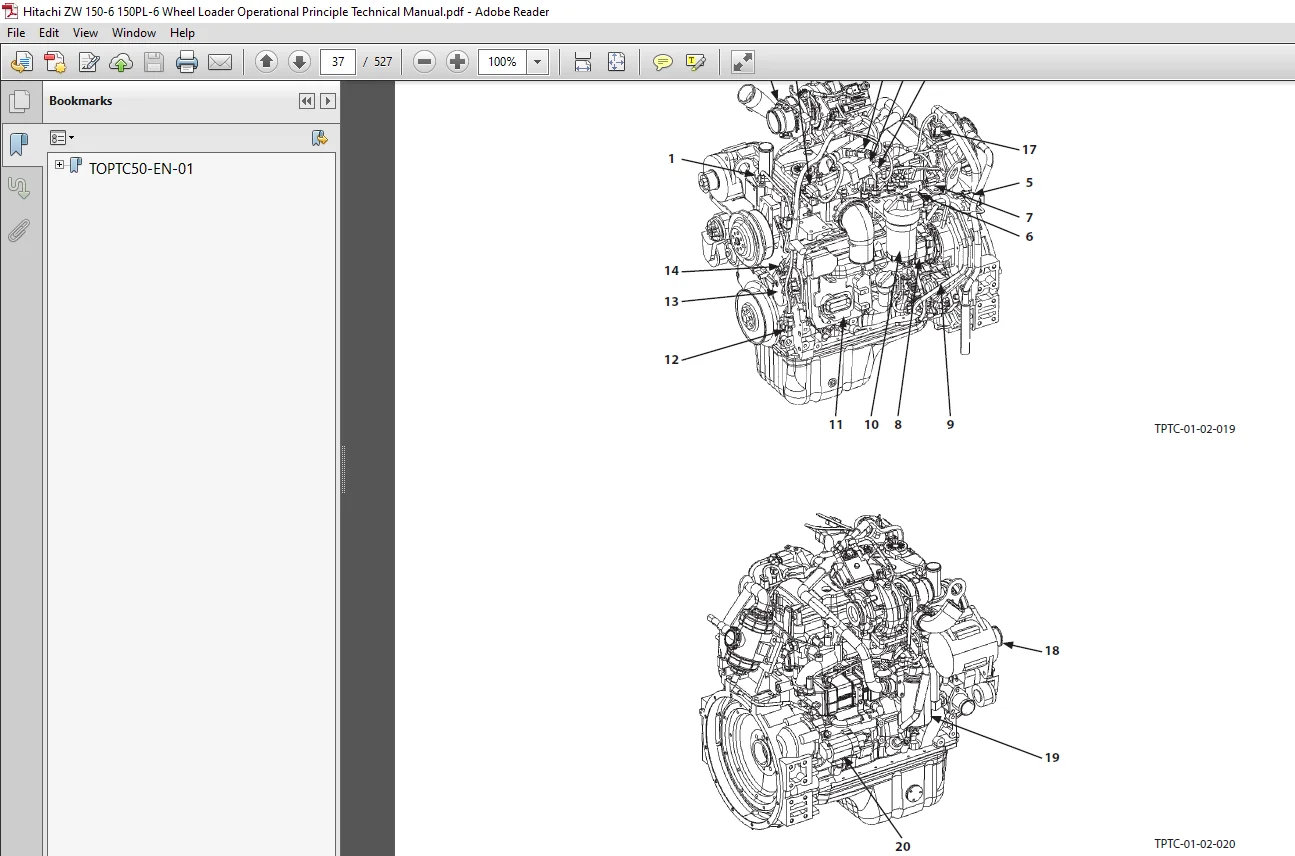

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
