Hitachi ZW150-5B 150PL-5B Wheel Loader Workshop + Operational Principle + Troubleshooting Manual – PDF Download

Description

Hitachi ZW150-5B 150PL-5B Wheel Loader Workshop + Operational Principle + Troubleshooting Manual

FILE DETAILS:

Hitachi ZW150-5B 150PL-5B Wheel Loader Workshop + Operational Principle + Troubleshooting Manual

This Listing includes all of the manuals mentioned below:

1. Hitachi ZW 150-5B 150PL-5B Wheel Loader Operational Principle Technical Manual.pdf
2. Hitachi ZW 150-5B 150PL-5B Wheel Loader Troubleshooting Technical Manual .pdf
3. Hitachi ZW 150-5B 150PL-5B Wheel Loader Workshop Manual WNDG90-EN-00.pdf
4. Hitachi ZW 150-5B 150PL-5B Wheel Loader Workshop Manual WNDG-EN-01.pdf
5. Hitachi ZW 150-5B Wheel Loader Workshop Manual .pdf
6. Hitachi ZW150-5B 150PL-5B Wheel Loader Operational Principle Technical Manual TONDG-EN-01.pdf
7. TROUBLESHOOTING-2.pdf

HITACHI ZW150-5B 150PL-5B WHEEL LOADER WORKSHOP + OPERATIONAL PRINCIPLE + TROUBLESHOOTING MANUAL – PDF DOWNLOAD:

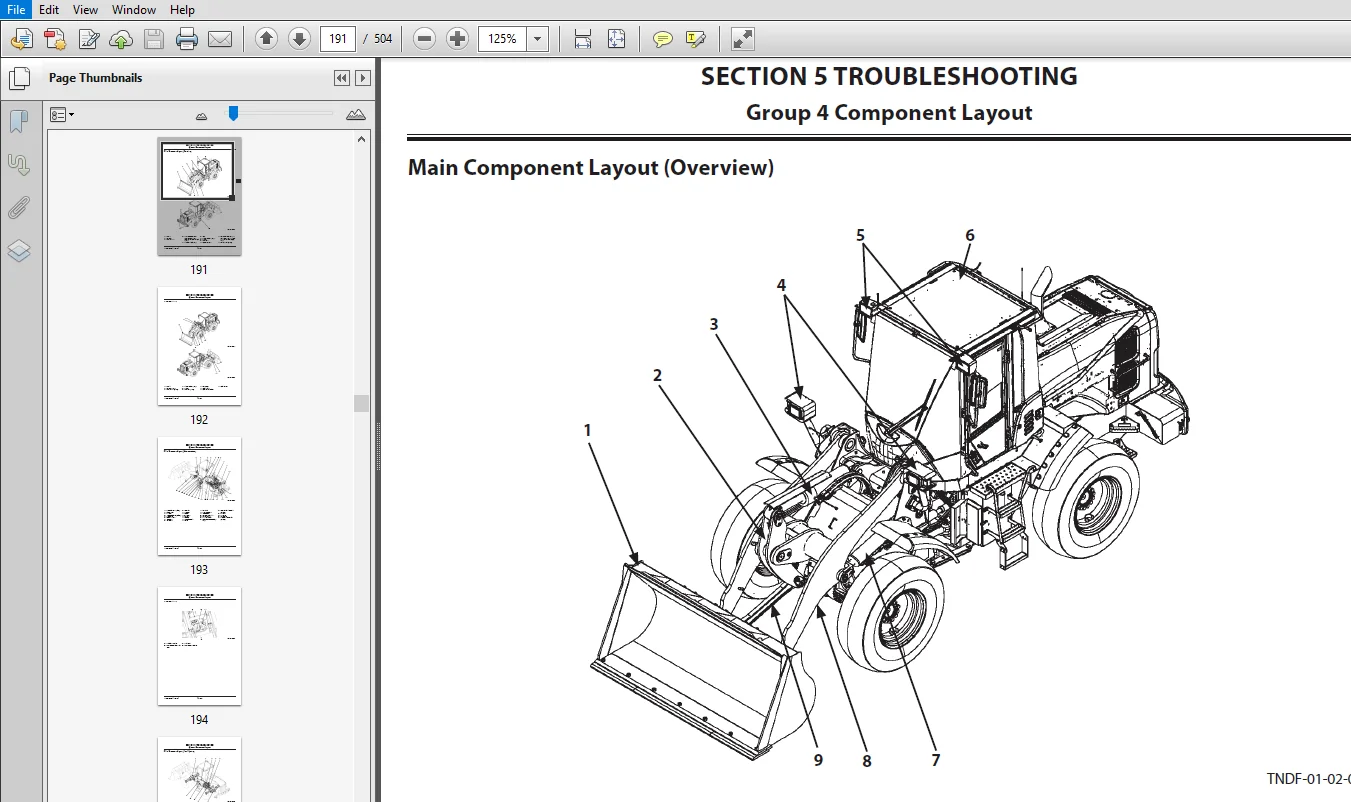

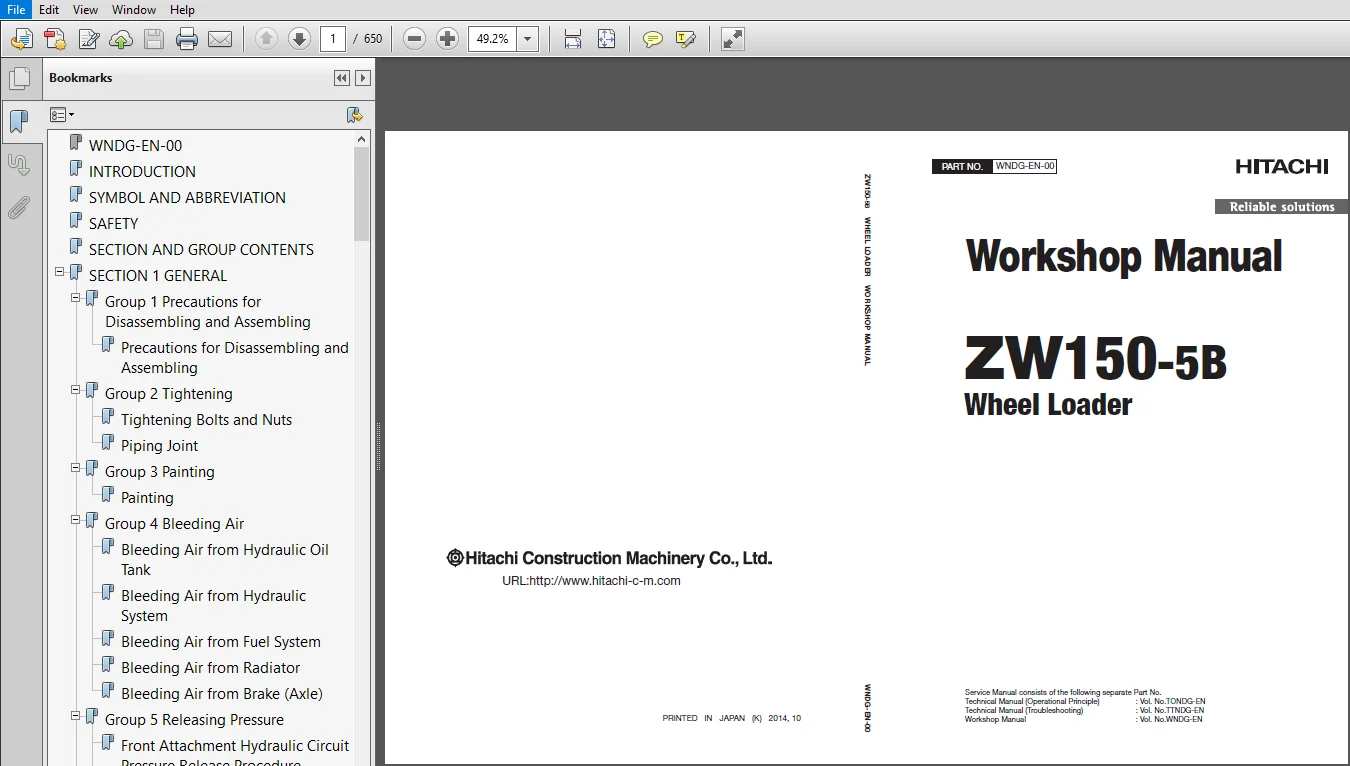

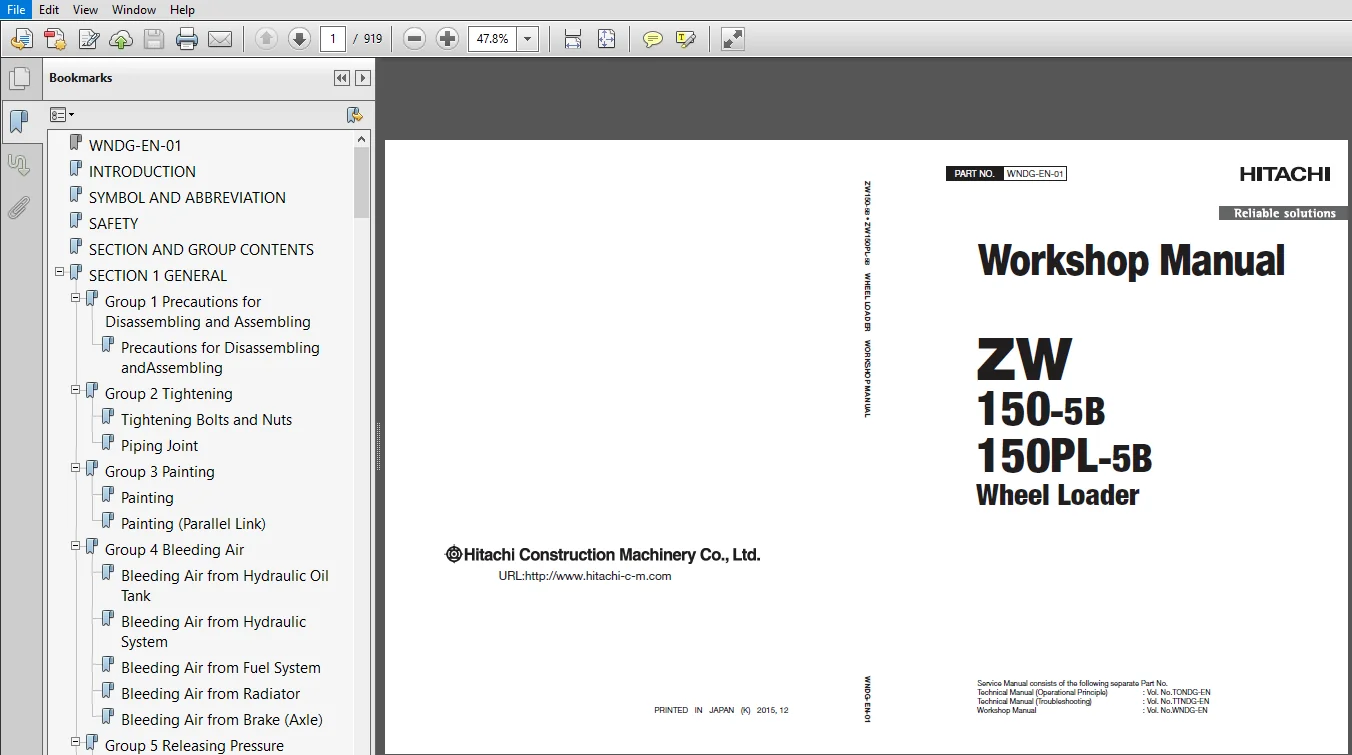

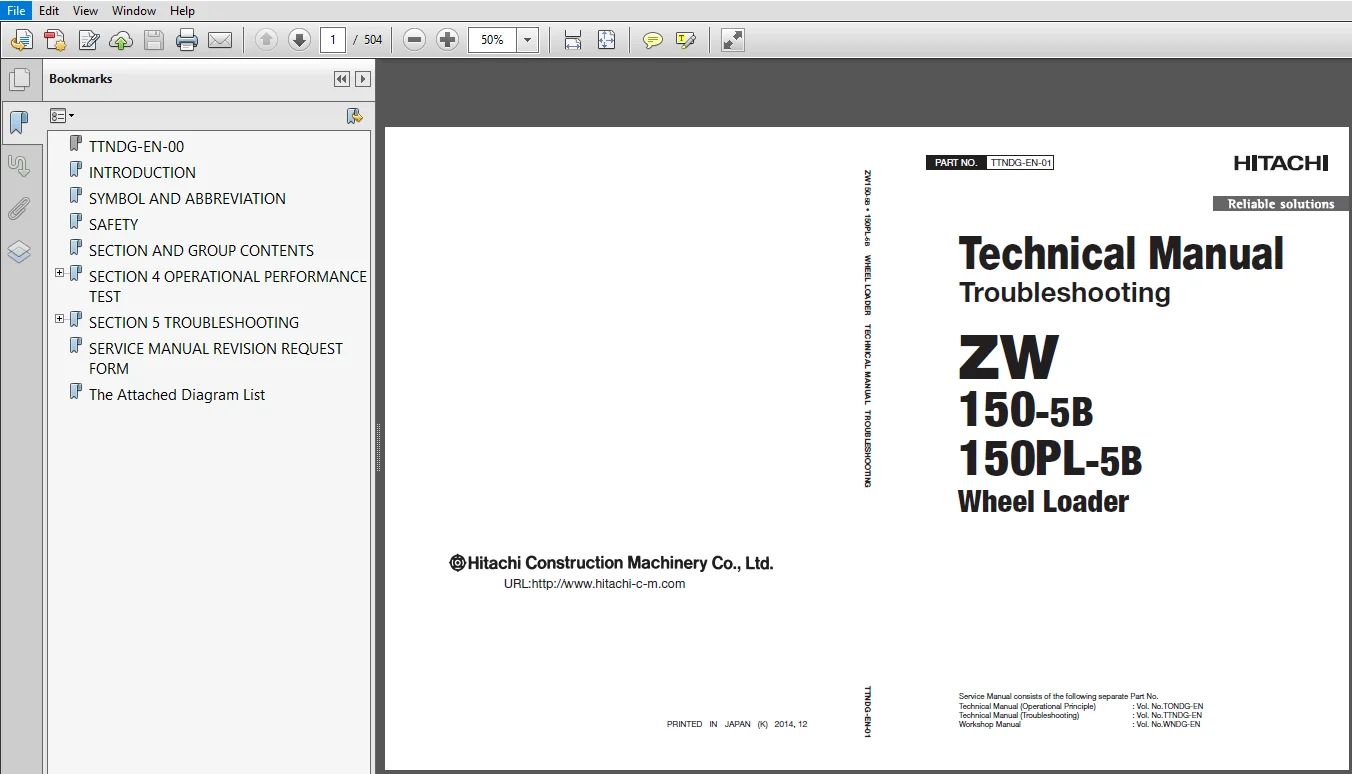

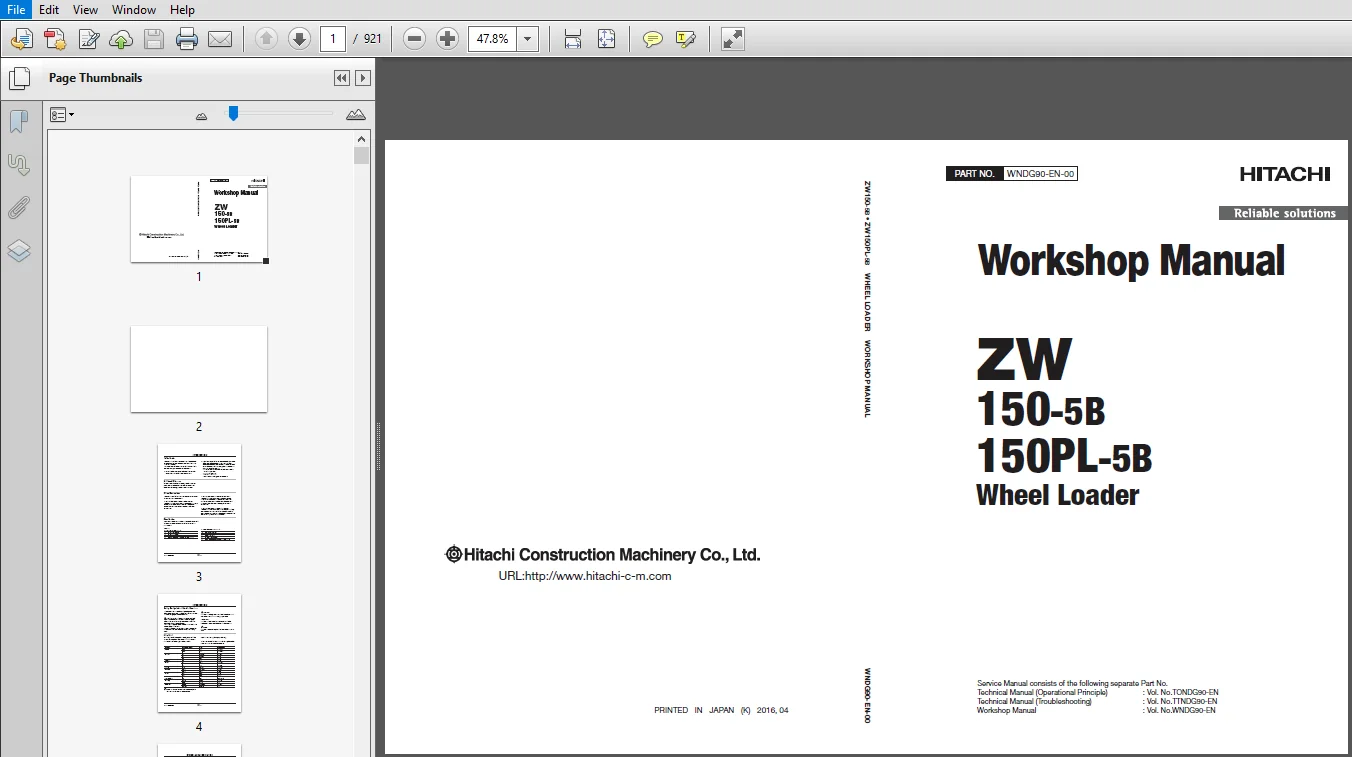

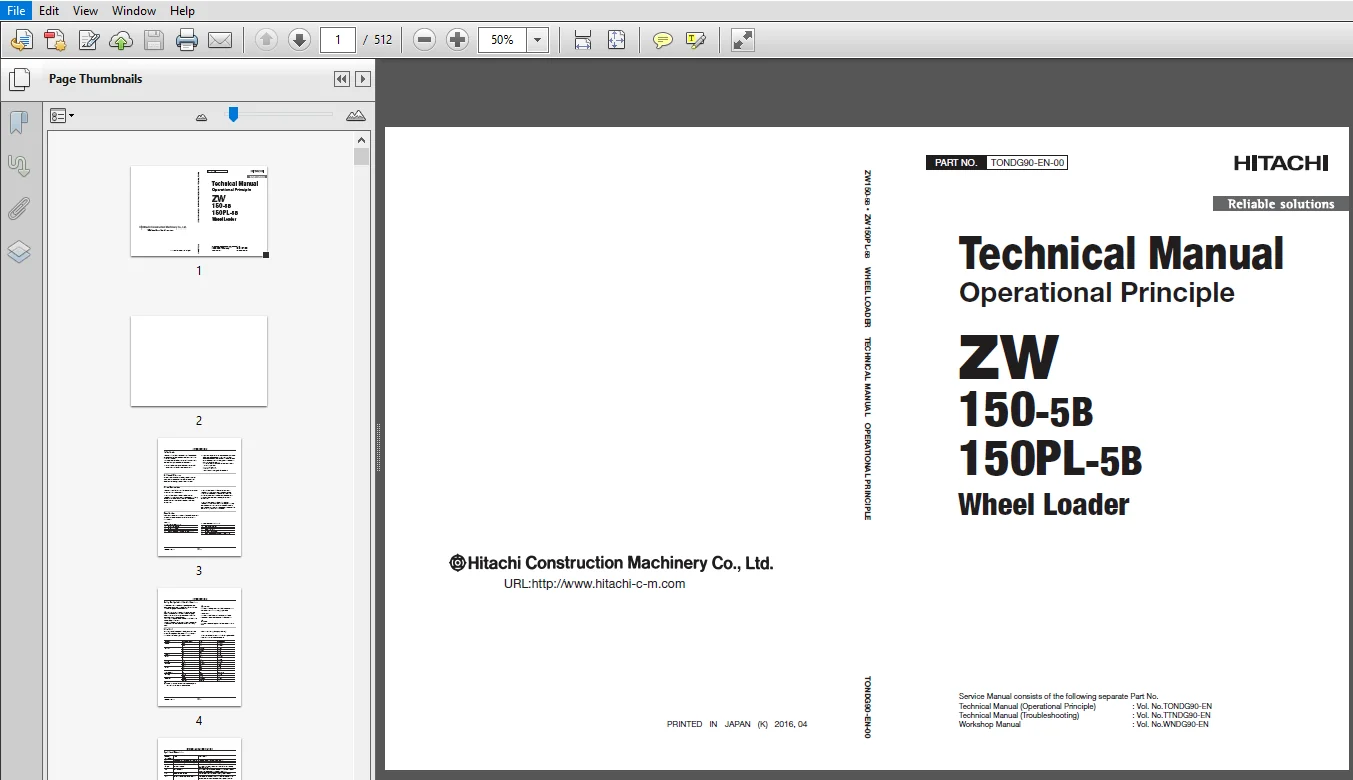

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

Hitachi ZW150-5B 150PL-5B Wheel Loader Workshop + Operational Principle + Troubleshooting Manual

• This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine.
• Be sure to thoroughly read this manual for correct product information and service procedures.
• If you have any questions or comments, at if you found any errors regarding the contents of this manual, please contact using “Service Manual Revision Request Form” at the end of this manual.
• This manual consists the Technical Manual and the Workshop Manual.
• Information included in the Technical Manual: technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/ disassemble procedures.

TABLE OF CONTENTS:

Hitachi ZW150-5B 150PL-5B Wheel Loader Workshop Manual

SECTION 1 GENERAL INFORMATION
Group 1 Precautions for Disassembling and Assembling
Group 2 Tightening
Group 3 Painting
Group 4 Bleeding Air
Group 5 Releasing Pressure
Group 6 Preparation
SECTION 2 MAINTENANCE STANDARD
Group 1 Body
Group 2 Travel System
Group 3 Front Attachment
Group 4 Front Attachment (Parallel Link)
SECTION 3 BODY
Group 1 Cab
Group 2 Counterweight
Group 3 Center Hinge
Group 4 Engine
Group 5 Radiator Assembly
Group 6 Hydraulic Oil Tank
Group 7 Fuel Tank
Group 8 Pump Device
Group 9 Control Valve
Group 10 Pilot Valve
Group 11 Brake Charge Valve
Group 12 Manifold Valve
Group 13 Solenoid Valve
Group 14 Priority Valve
Group 15 Cooling Fan System
Group 16 Ride Control Device
Group 17 Muffler Filter
Group 18 Parallel Link (Special Parts)
SECTION 4 TRAVEL SYSTEM
Group 1 Tire
Group 2 HST Motor
Group 3 Transmission
Group 4 Axle
Group 5 Propeller Shaft
Group 6 Brake Valve
Group 7 Steering Device
Group 8 Emergency Steering Device
SECTION 5 FRONT ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder
Group 3 Front Attachment (Parallel Link)
Group 4 Cylinder (Parallel Link)

Hitachi ZW150-5B 150PL-5B Wheel Loader Operational Principle Manual

SECTION 1 GENERAL
Group 1 Specifications
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Controller
Group 2 Control System
Group 3 ECM System
Group 4 Hydraulic System
Group 5 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Pump Device
Group 2 HST Motor
Group 3 Control Valve
Group 4 Fan Motor and Fan Valve
Group 5 Steering Valve
Group 6 Priority Valve
Group 7 Pilot Valve
Group 8 Brake Charge Valve
Group 9 Manifold Valve
Group 10 Transmission
Group 11 Axle
Group 12 Brake Valve
Group 13 Ride Control Valve
Group 14 Others

Hitachi ZW150-5B 150PL-5B Wheel Loader Troubleshooting Manual

SECTION 4 OPERATIONAL
PERFORMANCE TEST
Group 1 Introduction
Group 2 Standard
Group 3 Engine Test
Group 4 Machine Performance Test
Group 5 Component Test
Group 6 Adjustment
SECTION 5 TROUBLESHOOTING
Group 1 Diagnosing Procedure
Group 2 Monitor
Group 3 e-Service
Group 4 Component Layout
Group 5 Troubleshooting A
Group 6 Troubleshooting B
Group 7 Troubleshooting C
Group 8 Air Conditioner

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
