Hitachi ZW310 6 WORKSHOP MANUAL – PDF DOWNLOAD

Original price was: $92.95.Current price is: $24.95.

Hitachi ZW310 6 WORKSHOP MANUAL

Category: Tags: , , Vendor: HydraulicManuals
Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Hitachi ZW310 6 WORKSHOP MANUAL

File Details:

Hitachi ZW310 6 WORKSHOP MANUAL

Language : English
Pages : 327
Size : 41.8 MB
Downloadable : Yes
Format : PDF

HITACHI ZW310 6 WORKSHOP MANUAL – PDF DOWNLOAD:

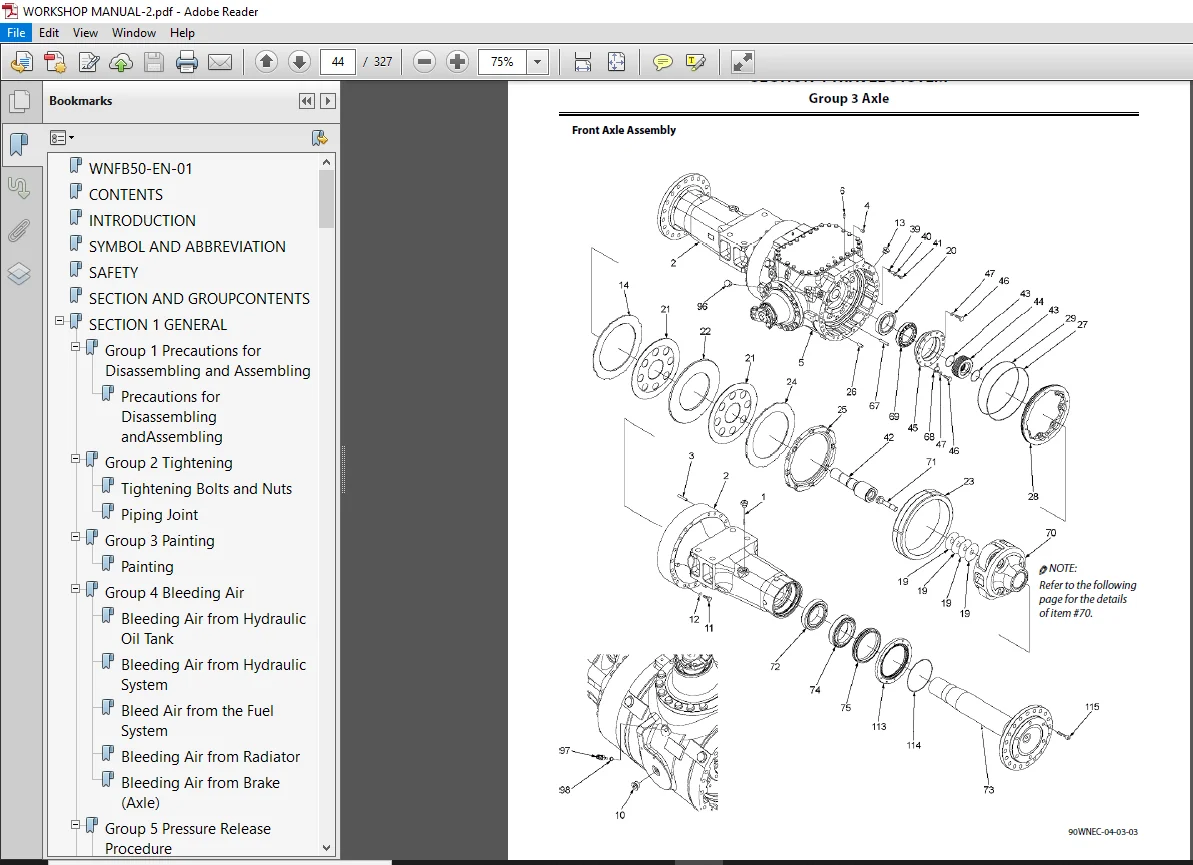

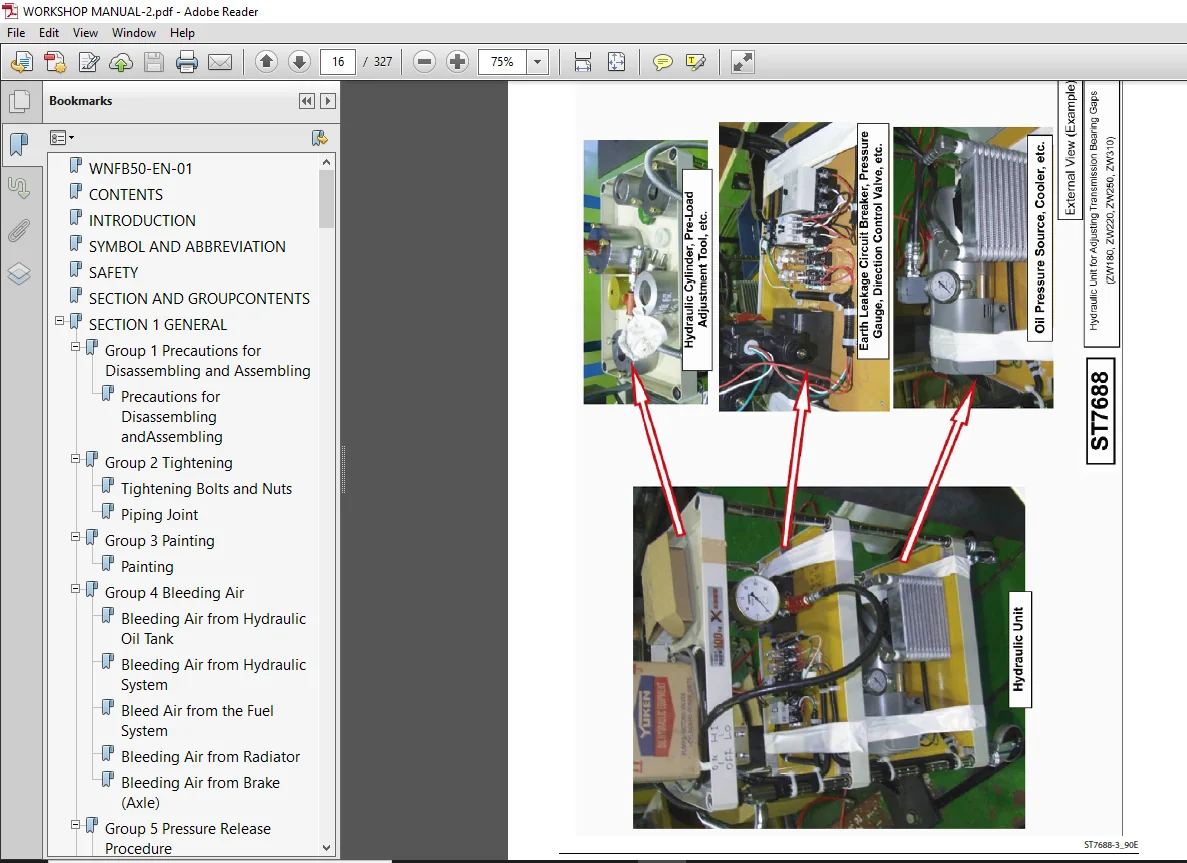

Image Preview:

Table of contents:

Hitachi ZW310 6 WORKSHOP MANUAL

WNFB50-EN-01............................................................................  0
CONTENTS................................................................................  0
INTRODUCTION............................................................................  0
SYMBOL AND ABBREVIATION.................................................................  0
SAFETY..................................................................................  0
SECTION AND GROUPCONTENTS...............................................................  0
SECTION 1 GENERAL.......................................................................  0
	Group 1 Precautions for Disassembling and Assembling................................  0
		Precautions for Disassembling andAssembling.....................................  0
	Group 2 Tightening..................................................................  0
		Tightening Bolts and Nuts.......................................................  0
		Piping Joint....................................................................  0
	Group 3 Painting....................................................................  0
		Painting........................................................................  0
	Group 4 Bleeding Air................................................................  0
		Bleeding Air from Hydraulic Oil Tank............................................  0
		Bleeding Air from Hydraulic System..............................................  0
		Bleed Air from the Fuel System..................................................  0
		Bleeding Air from Radiator......................................................  0
		Bleeding Air from Brake (Axle)..................................................  0
	Group 5 Pressure Release Procedure..................................................  0
		Front Attachment Hydraulic Circuit PressureRelease Procedure....................  0
		Ride Control Accumulator Pressure ReleaseProcedure..............................  0
		Parking Brake Accumulator Pressure ReleaseProcedure.............................  0
	Group 6 Preparation.................................................................  0
		Preparation before Inspection andMaintenance....................................  0
SECTION 2 MAINTENANCE STANDARD..........................................................  0
	Group 1 Body........................................................................  0
		Center Hinge....................................................................  0
		Pilot Valve (Two Lever Type )...................................................  0
	Group 2 Front Attachment............................................................  0
		Pin and Bushing.................................................................  0
		Standard Dimensions for Lift Arm and Bucket.....................................  0
		Bucket Stopper Clearance........................................................  0
SECTION 3 BODY..........................................................................  0
	Group 1 Cab.........................................................................  0
		Removal and Installation of Cab.................................................  0
	Group 2 Counterweight...............................................................  0
		Removal and Installation of Counterweight.......................................  0
	Group 3 Center Hinge................................................................  0
		Removal and Installation of Center Hinge........................................  0
		Removal and Installation of the HydraulicHoses of Front Chassis Side............  0
	Group 4 Engine......................................................................  0
		Removal and Installation of Engine..............................................  0
		Removal and Installation of Exterior Parts......................................  0
		Removal and Installation of Air Cleaner.........................................  0
	Group 5 Radiator Assembly...........................................................  0
		Replacement of Radiator, Oil Cooler,Intercooler, and Torque Converter Cooler....  0
	Group 6 Hydraulic Oil Tank..........................................................  0
		Removal and Installation of Hydraulic OilTank...................................  0
	Group 7 Fuel Tank...................................................................  0
		Removal and Installation of Fuel Tank...........................................  0
	Group 8 Pump Device.................................................................  0
		Removal and Installation of Pump Device.........................................  0
		Disassembly and Assembly of Pump Device.........................................  0
		Disassembly of Main Pump........................................................  0
		Assembly of Main Pump...........................................................  0
		Disassembly of Regulator........................................................  0
		Assembly of Regulator...........................................................  0
		Removal and Installation of Pilot Pump..........................................  0
		Disassembly of Pilot Pump.......................................................  0
		Assembly of Pilot Pump..........................................................  0
	Group 9 Control Valve...............................................................  0
		Removal and Installation of Control Valve.......................................  0
		Disassembly and Assembly of Control Valve.......................................  0
	Group 10 Pilot Valve................................................................  0
		Removal and Installation of Pilot Valve(Single-Lever Type)......................  0
		Removal and Installation of Pilot Valve (TwoLever Type).........................  0
		Disassembly of Pilot Valve (Single-LeverType)...................................  0
		Assembly of Pilot Valve (Single-Lever Type).....................................  0
		Disassembly of Pilot Valve (Two Lever Type).....................................  0
		Assembly of Pilot Valve (Two Lever Type)........................................  0
	Group 11 Brake Charge Valve.........................................................  0
		Removal and Installation of Brake ChargeValve...................................  0
		Structure of Brake Charge Valve.................................................  0
		Disassembly of Brake Charge Valve...............................................  0
		Assembly of Brake Charge Valve..................................................  0
		Removal and Installation of BrakeAccumulators...................................  0
	Group 12 Combination Valve..........................................................  0
		Removal and Installation of CombinationValve....................................  0
		Disassembly of Combination Valve (S/N 5001~5021)................................  0
		Assembly of Combination Valve (S/N 5001~5021)...................................  0
		Disassembly of Combination Valve (S/N 5022~,9001~)..............................  0
		Assembly of Combination Valve (S/N 5022~, 9001~)................................  0
	Group 13 DEF Tank...................................................................  0
		Removal and Installation of DEF Tank............................................  0
		Replacement of DEF Suction Filter...............................................  0
	Group 14 Flow Regulator Valve.......................................................  0
		Removal and Installation of Flow RegulatorValve.................................  0
		Structure of Flow Regulator Valve...............................................  0
	Group 15 Cooling Fan System.........................................................  0
		Removal and Installation of Fan ControlValve....................................  0
		Structure of Fan Control Valve..................................................  0
		Removal and Installation of Fan Motor...........................................  0
	Group 16 Aftertreatment Device......................................................  0
		Removal and Installation of AftertreatmentDevice................................  0
	Group 17 Ride Control Valve.........................................................  0
		Removal and Installation of Ride ControlValve and Accumulator (Option)..........  0
		Disassembly of Ride Control Valve...............................................  0
		Assembly of Ride Control Valve..................................................  0
	Group 18 Battery Disconnect Switch..................................................  0
		Removal of Battery Disconnect Switch............................................  0
		Installation of Battery Disconnect Switch.......................................  0
SECTION 4 TRAVEL SYSTEM.................................................................  0
	Group 1 Tire........................................................................  0
		Removal and Installation of Front Tire..........................................  0
		Removal and Installation of Rear Tire...........................................  0
	Group 2 Drive Unit..................................................................  0
		Removal and Installation of Drive Unit..........................................  0
		Disassembly of Drive Unit.......................................................  0
		Removal and Disassembly of TorqueConverter......................................  0
		Disassembly of Transmission.....................................................  0
		Disassembly of Torque Converter.................................................  0
		Assembly of Torque Converter....................................................  0
		Disassembly of Clutch Shaft (Forward Clutch, Reverse Clutch)....................  0
		Assembly of Clutch Shaft (Forward Clutch, Reverse Clutch).......................  0
		Disassembly of Clutch Shaft (1st & 2nd Speed Clutch, 3rd & 4th Speed Clutch)....  0
		Assembly of Clutch Shaft (1st & 2nd Speed Clutch, 3rd & 4th Speed Clutch).......  0
		Disassembly of Idler Shaft......................................................  0
		Assembly of Idler Shaft.........................................................  0
		Disassembly of Control Valve....................................................  0
		Assembly of Control Valve.......................................................  0
		Disassembly of Regulator Valve..................................................  0
		Assembly of Regulator Valve.....................................................  0
		Disassembly of Check Valve......................................................  0
		Assembly of Check Valve.........................................................  0
		Assembly of Drive Unit..........................................................  0
		Precautions for Bearing Preload Operation.......................................  0
		Preload Adjustment Sheet........................................................  0
		Idler Shaft Preload Adjustment Procedure........................................  0
		F and R axis Preload Adjustment Procedure.......................................  0
		Speed Gear Shaft Preload AdjustmentProcedure....................................  0
		Special Tools (For Transmission Assembly and Disassembly).......................  1
		Drawings for Special Tools......................................................  4
	Group 3 Axle........................................................................ 25
		Removal and Installation of Front Axle.......................................... 25
		Removal and Installation of Rear Axle........................................... 35
		Disassembly of Axle............................................................. 43
		Removal of Axle Support (Rear Axle)............................................. 46
		Disassembly of Axle............................................................. 47
		Assembly of Axle................................................................ 55
		Disassembly of Differential..................................................... 77
		Assembly of Differential........................................................ 85
	Group 4 Propeller Shaft............................................................. 95
		Removal and Installation of Propeller Shaft..................................... 95
	Group 5 Brake Valve.................................................................105
		Removal and Installation of Brake Valve.........................................105
		Disassembly of Brake Valve Assembly.............................................109
		Assembly of Brake Valve Assembly................................................112
		Structure of Brake Valve........................................................115
		Disassembly of Brake Valve......................................................116
		Assembly of Brake Valve.........................................................117
		Brake Valve Maintenance Standard................................................118
	Group 6 Steering Pilot Valve........................................................119
		Removal and Installation of Steering PilotValve.................................119
		Disassembly of Steering Pilot Valve.............................................123
		Assembly of Steering Pilot Valve................................................126
	Group 7 Steering Valve..............................................................131
		Removal and Installation of Steering Valve......................................131
		Disassembly of Steering Valve...................................................137
		Assembly of Steering Valve......................................................140
	Group 8 Steering Cylinder...........................................................143
		Removal and Installation of Steering Cylinder...................................143
		Disassembly of Steering Cylinder................................................149
		Assembly of Steering Cylinder...................................................154
		Removal and Installation of SteeringAccumulator.................................161
		Tools for Steering Cylinder Disassembly andAssembly.............................163
	Group 9 Emergency Steering Device...................................................167
		Removal and Installation of EmergencySteering Pump (Option).....................167
	Group 10 Reducing Valve.............................................................171
		Removal and Installation of Reducing Valve......................................171
		Disassembly of Reducing Valve...................................................173
		Assembly of Reducing Valve......................................................174
	Group 11 Stop Valve.................................................................175
		Removal and Installation of Stop Valve..........................................175
		Adjustment of Stop Valve InstallationPosition...................................177
		Disassembly of Stop Valve.......................................................179
		Assembly of Stop Valve..........................................................180
	Group 12 Main Pressure Block........................................................181
		Removal and Installation of Main Pressure Block.................................181
		Disassembly of Main Pressure Block..............................................183
		Assembly of Main Pressure Block.................................................184
	Group 13 Axle Oil Cooler............................................................185
		Removal and Installation of Axle Oil Cooler.....................................185
		Structure of Oil Cooler Assembly................................................197
		Structure of Oil Cooler Pump Unit...............................................198
		Structure of Check Valve Assembly...............................................200
	Group 14 Joystick Steering..........................................................203
		Removal and Installation of Joystick SteeringValve..............................203
		Disassembly and Assembly of JoystickSteering Control Valve......................211
		Disassembly and Assembly of JoystickSteering Solenoid Valve.....................214
		Removal and Installation of Joystick SteeringLever (for Grammer Seat)...........217
		Removal and Installation of Joystick SteeringLever (for Sears Seat).............227
SECTION 5 FRONT ATTACHMENT..............................................................241
	Group 1 Front Attachment............................................................243
		Removal and Installation of Front Attachment....................................243
		Removal and Installation of Lever (Bell Crank)..................................257
		Removal and Installation of Bucket..............................................271
	Group 2 Cylinder....................................................................277
		Removal and Installation of Lift Arm Cylinder...................................277
		Removal and Installation of Bucket Cylinder.....................................285
		Disassembly of Lift Arm Cylinder................................................295
		Assembly of Lift Arm Cylinder...................................................300
		Disassembly of Bucket Cylinder..................................................307
		Assembly of Bucket Cylinder.....................................................314
		Tools for Cylinder Disassembly and Assembly.....................................321
SERVICE MANUAL REVISION REQUEST FORM....................................................327

Please Note:

  • This is the SAME exact manual used by your dealers to fix your vehicle.
  • The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
  • Any queries / doubts regarding your purchase, please feel free to contact [email protected]

What Our Customers Say

★★★★★ Live reviews from customers
Loading customer reviews...
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    🛒
    Recently Purchased
    🕒 verified order
