Hitachi ZW80 90 Wheel Loader Workshop + Operational Principle + Troubleshooting + Electrical-Hydraulic Circuit Manual – PDF Download

Description

Hitachi ZW80 90 Wheel Loader Workshop + Operational Principle + Troubleshooting + Electrical-Hydraulic Circuit Manual

FILE DETAILS:

Hitachi ZW80 90 Wheel Loader Workshop + Operational Principle + Troubleshooting + Electrical-Hydraulic Circuit Manual

This Listing includes all of the manuals mentioned below:

1. Hitachi ZW80 90 Wheel Loader Electrical-Hydraulic Circuit Diagram.pdf
2. Hitachi ZW80 90 Wheel Loader Operational Principle Technical Manual.pdf
3. Hitachi ZW80 90 Wheel Loader Troubleshooting Technical Manual.pdf
4. Hitachi ZW80 90 Wheel Loader Workshop Manual.pdf
5. Hitachi ZW80 Wheel Loader Operational Principle Technical Manua.pdf
6. Hitachi ZW80 Wheel Loader Troubleshooting Technical Manual.pdf

HITACHI ZW80 90 WHEEL LOADER WORKSHOP + OPERATIONAL PRINCIPLE + TROUBLESHOOTING + ELECTRICAL-HYDRAULIC CIRCUIT MANUAL – PDF DOWNLOAD:

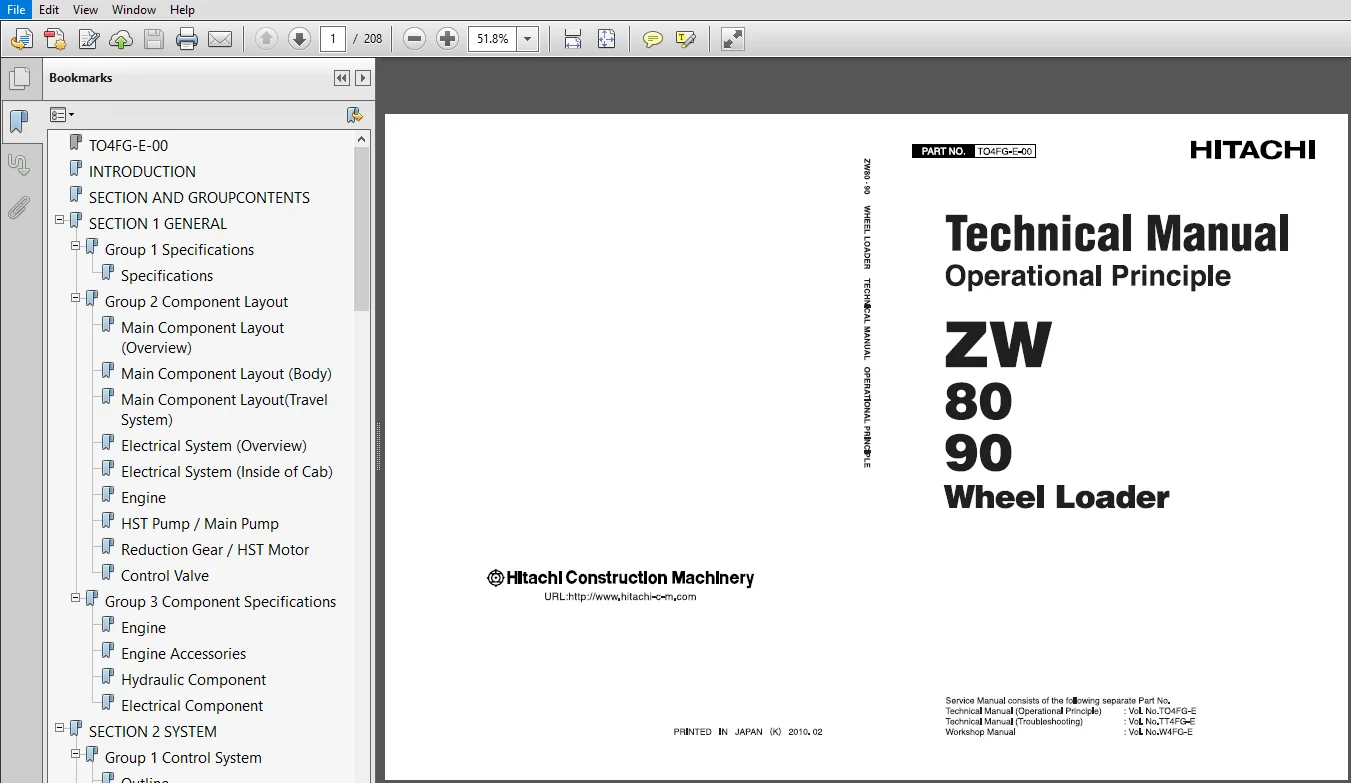

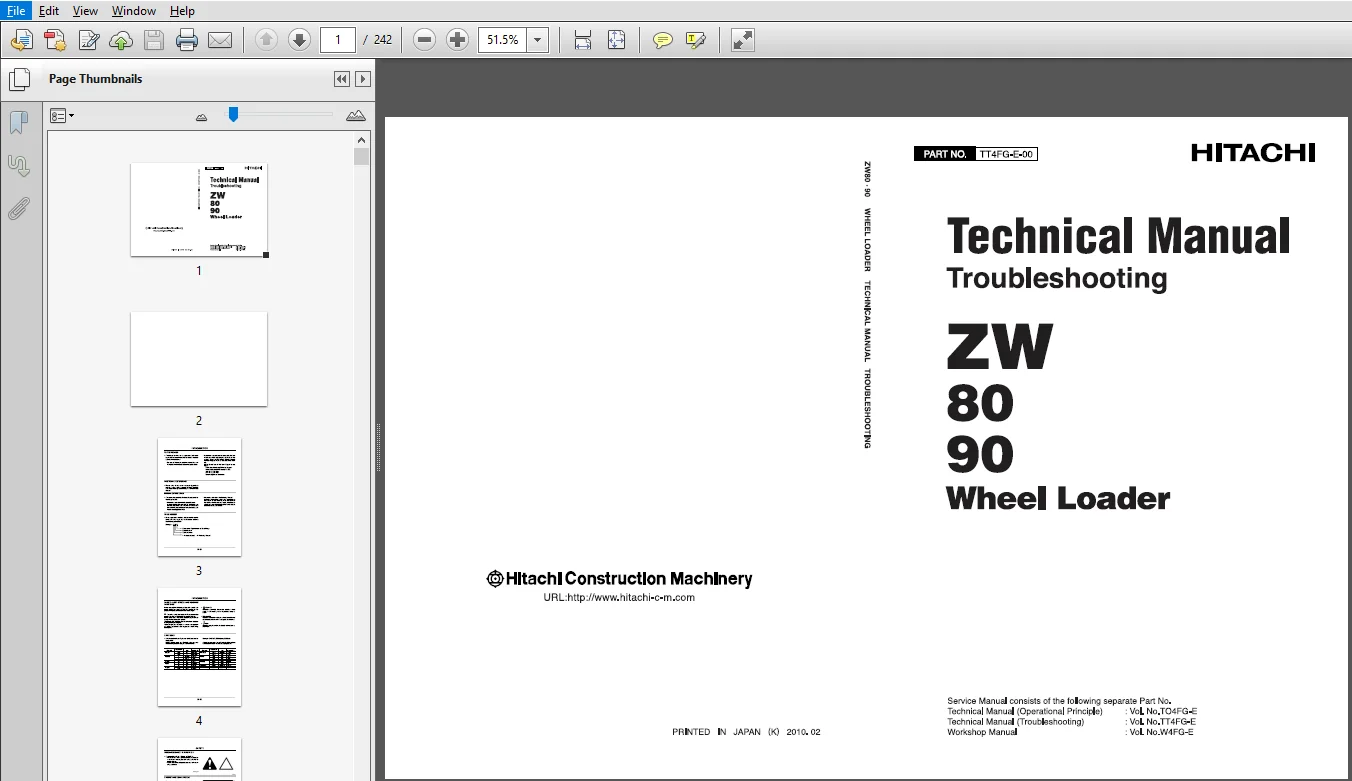

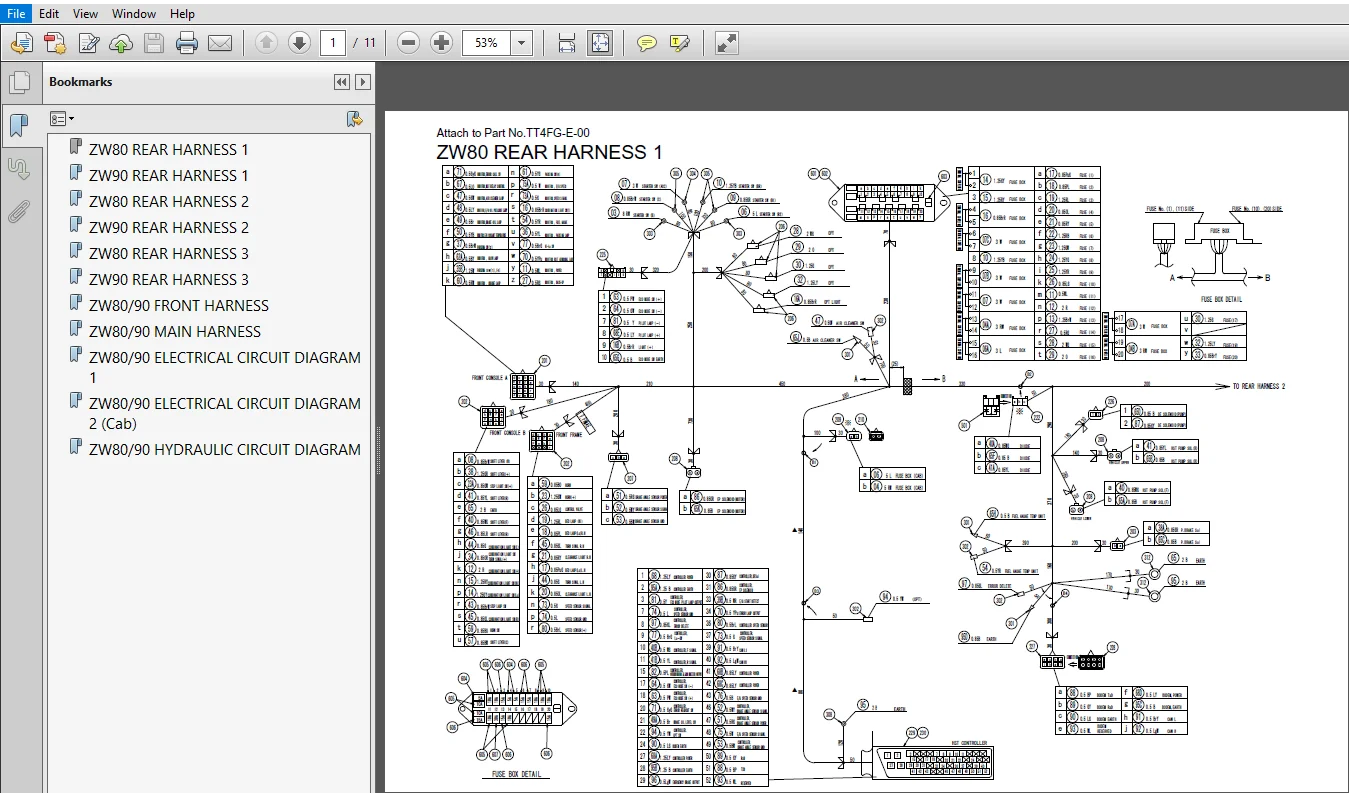

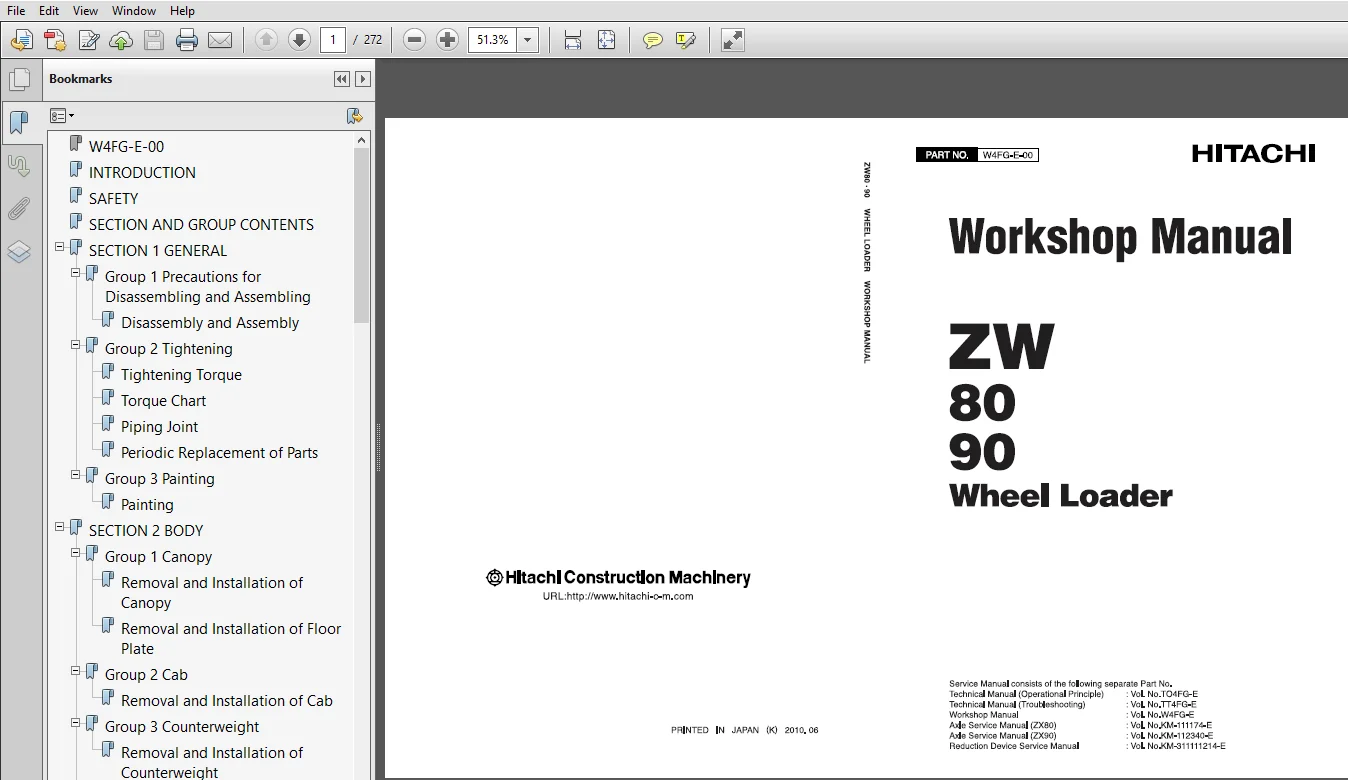

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

Hitachi ZW80 90 Wheel Loader Workshop + Operational Principle + Troubleshooting + Electrical-Hydraulic Circuit Manual

• This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine.
• Be sure to thoroughly read this manual for correct product information and service procedures.
• If you have any questions or comments, at if you found any errors regarding the contents of this manual, please contact using “Service Manual Revision Request Form” at the end of this manual.
• This manual consists the Technical Manual and the Workshop Manual.
• Information included in the Technical Manual: technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/ disassemble procedures.

TABLE OF CONTENTS:

Hitachi ZW80 90 Wheel Loader Workshop Manual

SECTION 1 GENERAL
Group 1 Precautions for disassembling
and Assembling
Group 2 Tightening
Group 3 Painting
SECTION 2 BODY
Group 1 Canopy
Group 2 Cab
Group 3 Counterweight
Group 4 Center Hinge
Group 5 Engine Hood
Group 6 HST Pump and Main Pump
Group 7 HST Motor
Group 8 Control Valve
SECTION 3 TRAVEL SYSTEM
Group 1 Tire
Group 2 Reduction Device
Group 3 Axle
Group 4 Propeller Shaft
Group 5 Master Cylinder
Group 6 Parking Brake Solenoid
Group 7 Steering Valve
Group 8 Steering Cylinder
Group 9 Priority Valve
SECTION 4 ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder

Hitachi ZW80 90 Wheel Loader Operational Principle Manual

SECTION 1 GENERAL
Group 1 Specifications
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Control System
Group 2 Hydraulic System
Group 3 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Priority Valve
Group 2 Control Valve
Group 3 Steering Valve
Group 4 HST Pump
Group 5 HST Motor
Group 6 Reduction
Group 7 Axle
Group 8 Brake Master Cylinder
Group 9 Others

Hitachi ZW80 90 Wheel Loader Troubleshooting Manual

SECTION 1 GENERAL
Group 1 Specifications
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Control System
Group 2 Hydraulic System
Group 3 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Priority Valve
Group 2 Control Valve
Group 3 Steering Valve
Group 4 HST Pump
Group 5 HST Motor
Group 6 Reduction
Group 7 Axle
Group 8 Brake Master Cylinder
Group 9 Others

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
