Hitachi ZX130 5B 130LCN 5B Hydraulic Excavator Electrical Circuit Diagram – PDF DOWNLOAD
$65.95 Original price was: $65.95.$11.95Current price is: $11.95.
Hitachi ZX130 5B 130LCN 5B Hydraulic Excavator Electrical Circuit Diagram
Description
Hitachi ZX130 5B 130LCN 5B Hydraulic Excavator Electrical Circuit Diagram
File details:
Hitachi ZX130 5B 130LCN 5B Hydraulic Excavator Electrical Circuit Diagram
Language : English
Pages : 17
Size : 2.00 MB
Downloadable : Yes
Format : PDF
HITACHI ZX130 5B 130LCN 5B HYDRAULIC EXCAVATOR ELECTRICAL CIRCUIT DIAGRAM – PDF DOWNLOAD:

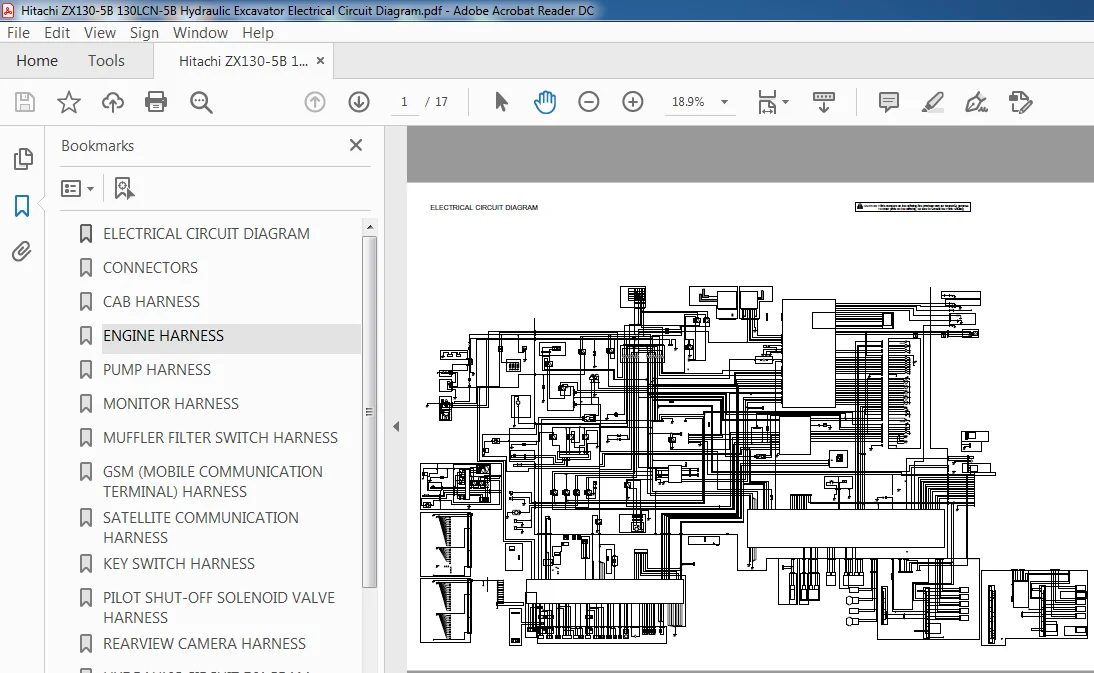

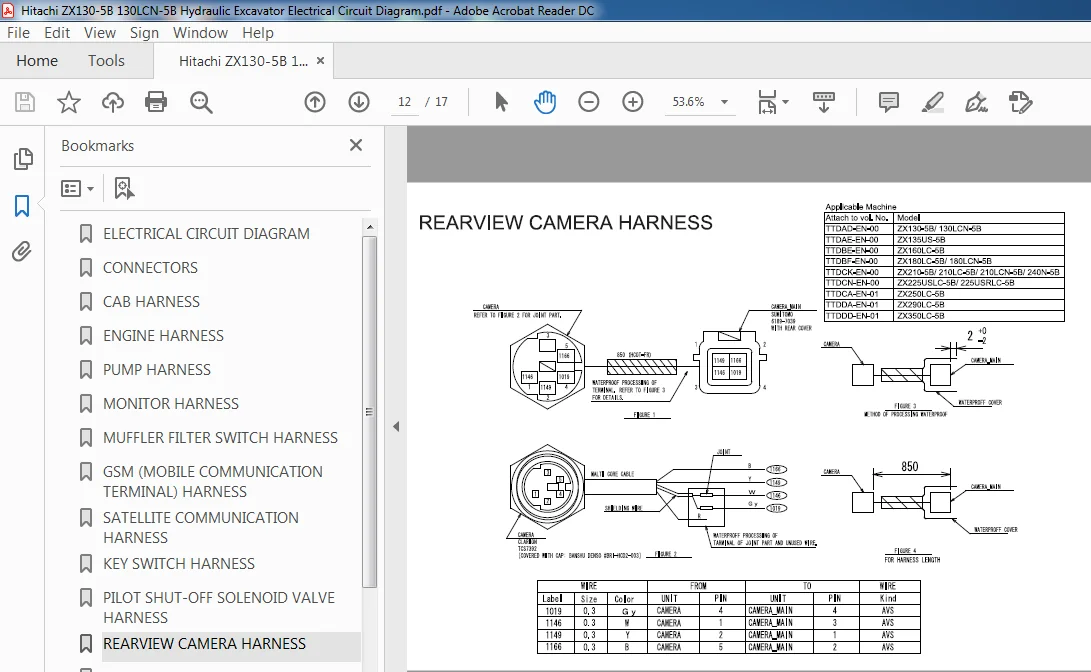

Image Preview:

Table of Contents:
Hitachi ZX130 5B 130LCN 5B Hydraulic Excavator Electrical Circuit Diagram
ELECTRICAL CIRCUIT DIAGRAM…………………………. 1
CONNECTORS……………………………………….. 2
CAB HARNESS………………………………………. 3
ENGINE HARNESS……………………………………. 4
PUMP HARNESS……………………………………… 5
MONITOR HARNESS…………………………………… 6
MUFFLER FILTER SWITCH HARNESS………………………. 7
GSM (MOBILE COMMUNICATION TERMINAL) HARNESS………….. 8
SATELLITE COMMUNICATION HARNESS…………………….. 9
KEY SWITCH HARNESS…………………………………10
PILOT SHUT-OFF SOLENOID VALVE HARNESS………………..11
REARVIEW CAMERA HARNESS…………………………….12
HYDRAULIC CIRCUIT DIAGRAM (MONOBLOCK BOOM) (STANDARD)….13
HYDRAULIC CIRCUIT DIAGRAM (2-PIECE BOOM) (STANDARD)……14
HYDRAULIC CIRCUIT DIAGRAM (OPTIONAL)…………………15
AIR CONDITIONER CIRCUIT DIAGRAM……………………..16
AIR CONDITIONER HARNESS…………………………….17
Please Note:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
