Hitachi ZX145W 6 Wheeled Excavator Electrical Hydraulic Circuit Diagram – PDF DOWNLOAD

Description

Hitachi ZX145W 6 Wheeled Excavator Electrical Hydraulic Circuit Diagram

File details:

Hitachi ZX145W 6 Wheeled Excavator Electrical Hydraulic Circuit Diagram

Language : English
Pages : 24
Size : 17.4 MB
Downloadable : Yes
Format : PDF

HITACHI ZX145W 6 WHEELED EXCAVATOR ELECTRICAL HYDRAULIC CIRCUIT DIAGRAM – PDF DOWNLOAD:

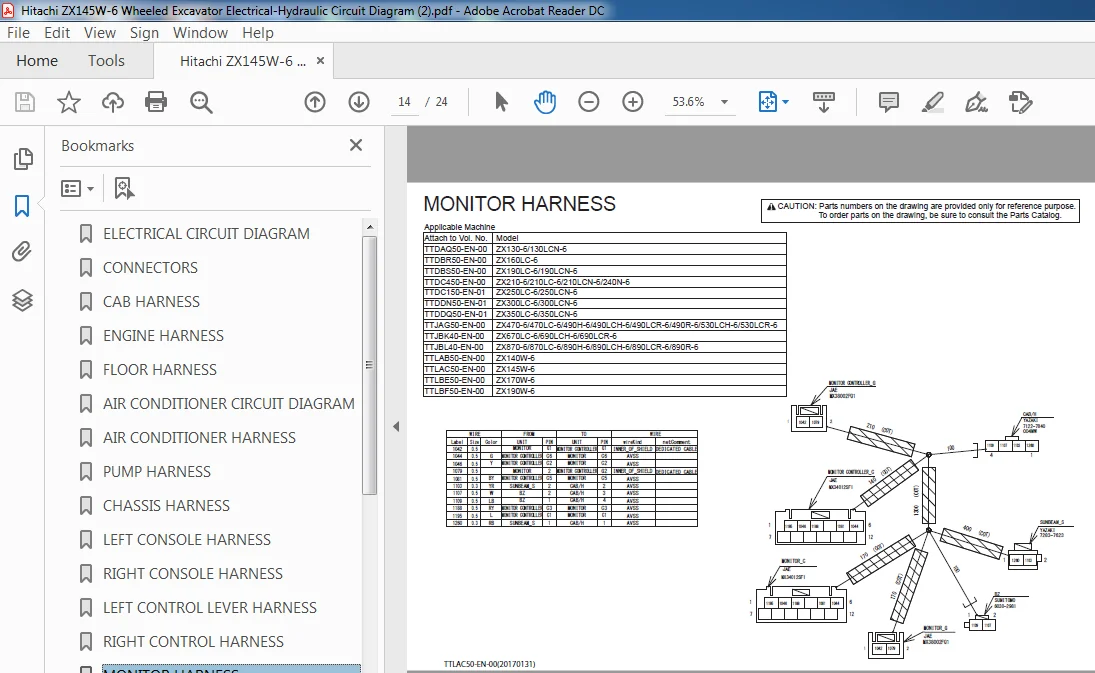

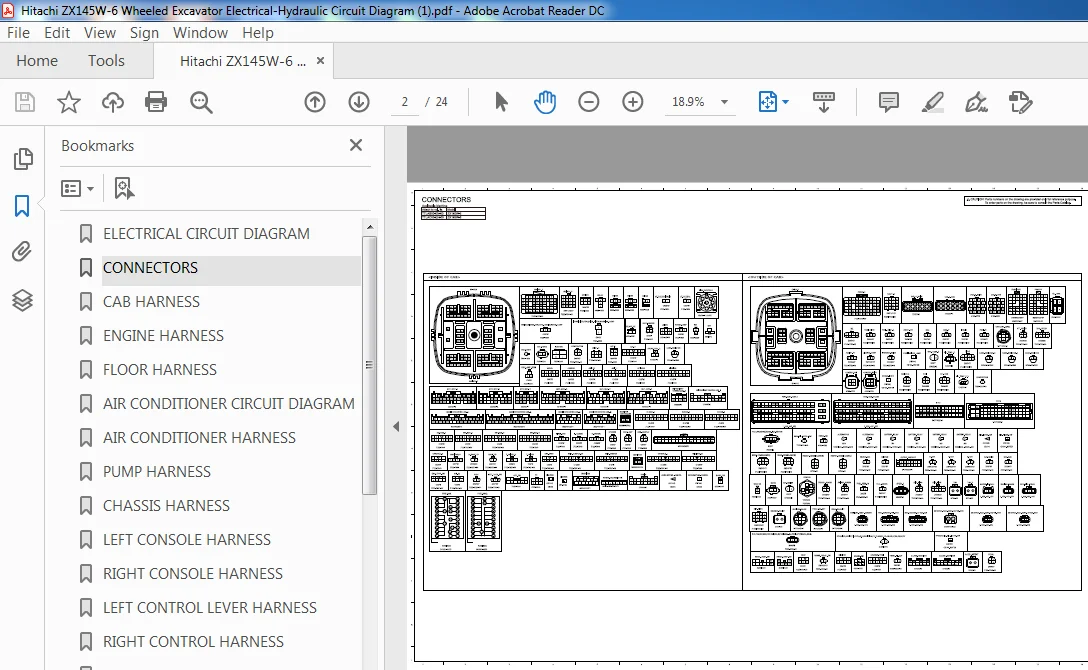

Image Preview:

Table of Contents:

Hitachi ZX145W 6 Wheeled Excavator Electrical Hydraulic Circuit Diagram

ELECTRICAL CIRCUIT DIAGRAM.................................. 1
CONNECTORS.................................................. 2
CAB HARNESS................................................. 3
ENGINE HARNESS.............................................. 4
FLOOR HARNESS............................................... 5
AIR CONDITIONER CIRCUIT DIAGRAM............................. 6
AIR CONDITIONER HARNESS..................................... 7
PUMP HARNESS................................................ 8
CHASSIS HARNESS............................................. 9
LEFT CONSOLE HARNESS........................................10
RIGHT CONSOLE HARNESS.......................................11
LEFT CONTROL LEVER HARNESS..................................12
RIGHT CONTROL HARNESS.......................................13
MONITOR HARNESS.............................................14
MANUAL REGENERATION SWITCH HARNESS..........................15
GSM (MOBILE COMMUNICATION TERMINAL) HARNESS.................16
ENGINE STOP SWITCH HARNESS..................................17
KEY SWITCH HARNESS..........................................18
PILOT SHUT-OFF SOLENOID VALVE HARNESS.......................19
REARVIEW CAMERA HARNESS.....................................20
BLADE/OUTRIGGER HARNESS.....................................21
HYDRAULIC CIRCUIT DIAGRAM (MONOBLOCK BOOM) (FULL OPTION)....22
HYDRAULIC CIRCUIT DIAGRAM (2-PIECE BOOM) (FULL OPTION)......23
HYDRAULIC CIRCUIT DIAGRAM (ONLY REAR BLADE).................24
