Hitachi ZX300LC-7 300LCN-7 HYDRAULIC Circuit Diagram Manual – PDF DOWNLOAD
$15.95
Hitachi ZX300LC-7 300LCN-7 HYDRAULIC Circuit Diagram Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Hitachi ZX300LC-7 300LCN-7 HYDRAULIC Circuit Diagram Manual – PDF DOWNLOAD
DETAILS:
Hitachi ZX300LC-7 300LCN-7 HYDRAULIC Circuit Diagram Manual – PDF DOWNLOAD
Language :English
Pages :17
Downloadable : Yes
File Type : PDF

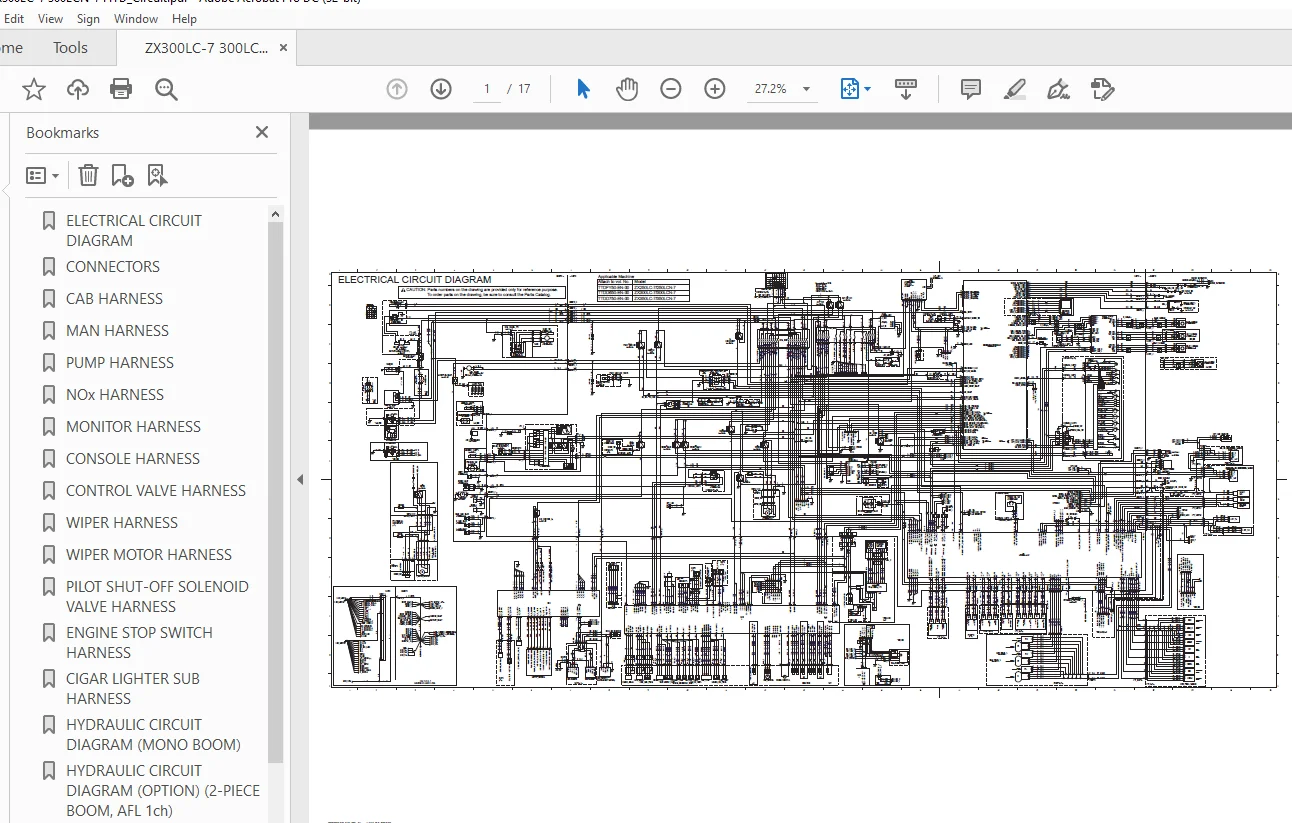

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Hitachi ZX300LC-7 300LCN-7 HYDRAULIC Circuit Diagram Manual – PDF DOWNLOAD
ELECTRICAL CIRCUIT DIAGRAM 1
CONNECTORS 2
CAB HARNESS 3
MAN HARNESS 4
PUMP HARNESS 5
NOx HARNESS 6
MONITOR HARNESS 7
CONSOLE HARNESS 8
CONTROL VALVE HARNESS 9
WIPER HARNESS10
WIPER MOTOR HARNESS11
PILOT SHUT-OFF SOLENOID VALVE HARNESS12
ENGINE STOP SWITCH HARNESS13
CIGAR LIGHTER SUB HARNESS14
HYDRAULIC CIRCUIT DIAGRAM (MONO BOOM)15
HYDRAULIC CIRCUIT DIAGRAM (OPTION) (2-PIECE BOOM, AFL 1ch)16
HYDRAULIC CIRCUIT DIAGRAM （OPTION) (2-PIECE BOOM, AFL 2ch)17
