Hitachi ZX330 ZX330LC ZX350LC ZX350LCN ZX350H ZX350K ZX350LCK ZX370 ZX370MTH Hydraulic Excavator Parts Catalog Manual – PDF Download
Original price was: $76.95.$26.95Current price is: $26.95.
Hitachi ZX330 ZX330LC ZX350LC ZX350LCN ZX350H ZX350K ZX350LCK ZX370 ZX370MTH Hydraulic Excavator Parts Catalog Manual
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Hitachi ZX330 ZX330LC ZX350LC ZX350LCN ZX350H ZX350K ZX350LCK ZX370 ZX370MTH Hydraulic Excavator Parts Catalog Manual
FILE DETAILS:
Hitachi ZX330 ZX330LC ZX350LC ZX350LCN ZX350H ZX350K ZX350LCK ZX370 ZX370MTH Hydraulic Excavator Parts Catalog Manual
- Manual Language:English
- Pages: 824
- Size: 29.6 MB
- Downloadable:Yes
- Format:PDF
DESCRIPTION:
Hitachi ZX330 ZX330LC ZX350LC ZX350LCN ZX350H ZX350K ZX350LCK ZX370 ZX370MTH Hydraulic Excavator Parts Catalog Manual
- This parts catalog shows the components of Zaxis330, Zaxi5330LC, Zaxis350LC, Zaxis350LCN, Zaxis350H. ZaxisBSOLCH, ZaxisSSOK, ZaxisSSOLCK, Zaxis370 and Zaxis370MTH Hydraulic Excavator.
If a page where the parts of those machines are shown, the following indication is described on the top of the page.
The numerical parts No. index is provided at the end of this parts catalog.
In the parts index, a part No. with “*” mark shows a newly added part on the parts catalog. - This parts catalog contains the most recent information available at the time of prirrting, and the contents of the list are based on information in effect at that time and are subject to change without notice.
- Optional parts listed in this parts catalog may not be supplied according to countries. If you need certain optional parts, please contact our authorized distributor or dealer to check availability.
TABLE OF CONTENTS:
Hitachi ZX330 ZX330LC ZX350LC ZX350LCN ZX350H ZX350K ZX350LCK ZX370 ZX370MTH Hydraulic Excavator Parts Catalog Manual
COVER.......................................................................... 1 CONTENTS................................................................... 48 UPPERSTRUCTURE............................................................. 84 FRAME <330, 370, H, MTH>............................................... 84 FRAME <350, MTH[EU3, EU4]>............................................. 86 FRAME <K>.............................................................. 88 BOOM FOOT PIN.......................................................... 90 CENTER JOINT PARTS (UPPERSTRUCTURE).................................... 91 COUNTERWEIGHT <330>.................................................... 92 COUNTERWEIGHT <350, MTH[EU3, EU4]>..................................... 93 COUNTERWEIGHT 8.2T <350>............................................... 94 COUNTERWEIGHT <370, H, MTH>............................................ 95 COUNTERWEIGHT <K>...................................................... 96 ENGINE................................................................. 97 ENGINE SUPPORT......................................................... 98 OIL FILTER PIPING......................................................100 INTER COOLER PIPING....................................................102 INTER COOLER NET.......................................................103 RADIATOR...............................................................104 RADIATOR SUPPORT.......................................................105 RADIATOR COVER.........................................................106 RESERVE TANK...........................................................108 AIR CLEANER............................................................109 AIR CLEANER SUPPORT....................................................110 AIR CLEANER PARTS......................................................111 PRE CLEANER............................................................112 PRE CLEANER PARTS......................................................113 MUFFLER................................................................114 FUEL TANK..............................................................116 FUEL TANK SUPPORT......................................................117 FUEL PIPING............................................................118 FUEL FEED PUMP.........................................................120 FUEL DOUBLE FILTER.....................................................122 FUEL DOUBLE FILTER <350, MTH[EU3, EU4]>................................126 PUMP DEVICE............................................................128 PUMP DEVICE SUPPORT....................................................129 SWING DEVICE...........................................................130 SWING DEVICE SUPPORT...................................................134 OIL TANK...............................................................136 OIL TANK <K>...........................................................140 SUCTION PIPING.........................................................144 DELIVERY PIPING........................................................145 RETURN PIPING (1)......................................................146 RETURN PIPING (2)......................................................148 DRAIN PIPING...........................................................149 DRAIN PIPING <350, MTH[EU3, EU4]>......................................150 MAIN PIPING (1)........................................................151 MAIN PIPING (2)........................................................152 MAIN PIPING (2) <350, MTH[EU3, EU4]>...................................153 MAIN PIPING (3)........................................................154 MAIN PIPING (4)........................................................155 MAIN PIPING (4) <350, MTH[EU3, EU4]>...................................156 BOOM BOTTOM PIPING.....................................................158 BOOM BOTTOM PIPING <K>.................................................159 SIDE BRANCH PIPING.....................................................160 ENGINE CONTROL.........................................................161 ENGINE CONTROL MOTOR...................................................162 ENGINE STOP CABLE......................................................163 CONTROL LEVER (FRONT, SWING)...........................................164 CONTROL LEVER (TRAVEL).................................................166 CONTROL LEVER (TRAVEL) <K>.............................................168 LOCK LEVER.............................................................170 CONTROL VALVE..........................................................171 CONTROL VALVE SUPPORT..................................................172 SOLENOID VALVE.........................................................173 PILOT PIPING (1).......................................................174 PILOT PIPING (2).......................................................176 PILOT PIPING (2) <350, MTH[EU3, EU4]>..................................177 PILOT PIPING (3).......................................................178 PILOT PIPING (4-1).....................................................179 PILOT PIPING (4-1) <350, MTH[EU3, EU4]>................................180 PILOT PIPING (4-2).....................................................181 PILOT PIPING (4-2) <350, MTH[EU3, EU4]>................................182 PILOT PIPING (5-1).....................................................184 PILOT PIPING (5-2).....................................................186 PILOT PIPING (5-3).....................................................187 PILOT PIPING (6).......................................................188 PILOT PIPING (7).......................................................189 PILOT PIPING (8).......................................................190 PILOT PIPING (9).......................................................192 PILOT PIPING (10-1)....................................................194 PILOT PIPING (10-1) <350, MTH[EU3, EU4]>...............................196 PILOT PIPING (10-2)....................................................198 PILOT PIPING (10-2) <350, MTH[EU3, EU4]>...............................199 PILOT PIPING (11)......................................................200 CONSOLE................................................................201 CONSOLE COVER..........................................................202 CONSOLE COVER <K>......................................................204 RIGHT COVER............................................................206 RIGHT COVER [NA] <350, MTH[EU3, EU4]>..................................207 RADIO (AM/FM)..........................................................208 RADIO LESS PARTS.......................................................209 CONTROL UNIT...........................................................210 ELECTRIC PARTS (A).....................................................212 ELECTRIC PARTS (B).....................................................214 ELECTRIC PARTS (C).....................................................216 ELECTRIC PARTS (D).....................................................218 ELECTRIC PARTS (E).....................................................220 ELECTRIC PARTS (F) <K>.................................................224 SWITCH BOX [AUTO. ENGINE CONTROL]......................................225 SATELLITE DATA COMMUNICATOR PARTS......................................226 FRONT HEAD LAMP (2 LAMP)...............................................228 FRONT HEAD LAMP (2 LAMP) <MTH>.........................................230 FRONT HEAD LAMP (4 LAMP) <350>.........................................232 FRONT HEAD LAMP (2 LAMP WITH SUNSHADE) <350>...........................234 FRONT HEAD LAMP (4 LAMP WITH SUNSHADE) <350>...........................236 REAR HEAD LAMP (1 LAMP)................................................238 REAR HEAD LAMP (1 LAMP) <350, MTH[EU3, EU4]>...........................240 REAR HEAD LAMP (2 LAMP) <350, MTH[EU3, EU4]>...........................242 ROTATING BEACON <350, [EU3, EU4]>......................................244 FUSE <350, MTH[EU3, EU4]>..............................................245 BOOM LIGHT HARNESS.....................................................246 BOOM LIGHT (R).........................................................248 BOOM LIGHT (R) [MONO BOOM] [WITH LIGHT COVER] <350, MTH[EU3, EU4]>.....250 BOOM LIGHT (R) [2P-BOOM] [WITH LIGHT COVER] <350, MTH[EU3, EU4]>.......252 HORN...................................................................254 SWING MOTION ALARM.....................................................256 TRAVEL MOTION ALARM....................................................258 AIR CONDITIONER (1)....................................................260 AIR CONDITIONER (2)....................................................262 AIR CONDITIONER (3)....................................................264 AIR CONDITIONER (4)....................................................266 AIR-CON. UNIT..........................................................268 CONDENSER NET..........................................................272 HEATER PIPING..........................................................273 CAR HEATER.............................................................274 HEATER UNIT............................................................276 DUCT...................................................................280 REAR BOX (AIR-CON.)....................................................282 REAR BOX (HEATER)......................................................284 REAR BOX (HEATER LESS).................................................286 REAR BOX (12V POWER SUPPLY)............................................288 12V POWER UNIT.........................................................290 CAB GROUP..............................................................291 CAB GROUP <MTH> (OPG)..................................................292 CAB <330, H>...........................................................293 CAB [NA]...............................................................294 CAB <350>..............................................................295 CAB (WITH GUARD SEAT) <350>............................................296 CAB (WITH VANDAL HOOK) <350>...........................................297 CAB <WITH[EU3, EU4]> (OPG).............................................298 CAB <K>................................................................299 CAB <MTH>..............................................................300 CAB (1)................................................................302 CAB (1) <K>............................................................306 CAB (2) <330, 370, H>..................................................310 CAB (2) <350>..........................................................314 CAB (2) <K>............................................................318 CAB (2) <MTH> (OPG)....................................................322 CAB (3)................................................................324 CAB (3) (WITH VANDAL HOOK) [NA] <350>..................................328 CAB (4)................................................................332 CAB (5)................................................................336 CAB (5) <350>..........................................................338 CAB (6) <330, H, MTH>..................................................339 CAB (6) [NA] <350>.....................................................340 CAB (6) <K>............................................................344 CAB (7)................................................................345 CAB (8) <MTH> (OPG)....................................................346 CAB (8) <K>............................................................348 CAB GUARD..............................................................350 CAB GUARD <MTH> (OPG)..................................................351 WINDOW GUARD [NA]......................................................352 WINDOW GUARD <350>.....................................................354 CAB MIRROR.............................................................356 POWER WINDOW...........................................................357 POWER WINDOW PARTS.....................................................358 WINDOW WASHER..........................................................359 SUNSHADE...............................................................360 SUNVISOR <350, MTH[EU3, EU4]>..........................................362 FLOOR PARTS............................................................364 FLOOR PARTS (HEATER LESS)..............................................365 FLOOR PLATE............................................................366 SEAT (CLOTH)...........................................................368 SEAT (VINYL)...........................................................370 SUSPENSION SEAT (CLOTH)................................................372 SUSPENSION SEAT (VINYL)................................................374 SUSPENSION SEAT (WITH HEATER) <350, MTH[EU3, EU4]>.....................376 AIR-SUSPENSION SEAT (WITH HEATER) <350, MTH[EU3, EU4]>.................378 HEATER SEAT PARTS <350, MTH[EU3, EU4]>.................................379 SEAT BELT (SUSPENSION SEAT)............................................380 SEAT BELT (SUSPENSION SEAT) [NA].......................................381 SEAT BELT (AIR-SUSPENSION SEAT) <350, MTH[EU3, EU4]>...................382 SEAT STAND.............................................................383 SEAT STAND (SUSPENSION) <330, H, K, MTH>...............................384 SEAT STAND (SUSPENSION) <350> [NA].....................................386 COVER (1)..............................................................388 COVER (2)..............................................................390 COVER (3)..............................................................391 COVER (3) [MONO BOOM] <350, MTH[EU3, EU4]>.............................392 COVER (3) [2P-BOOM] <350>..............................................393 COVER (4)..............................................................394 COVER (5)..............................................................396 COVER (5) <350, MTH[EU3, EU4]>.........................................398 COVER (6)..............................................................400 COVER (7)..............................................................404 COVER (7) <350, MTH[EU3, EU4]>.........................................406 COVER (8)..............................................................408 TROPICAL COVER.........................................................410 DOOR LOCK (1)..........................................................412 DOOR LOCK (2)..........................................................413 WEATHER STRIP..........................................................414 ENGINE COVER...........................................................416 TOOL COVER.............................................................418 UNDER COVER <330, 370>.................................................420 UNDER COVER <350>......................................................421 UNDER COVER (4.5mm) <350, MTH[EU3, EU4]>...............................422 UNDER COVER <H, MTH>...................................................424 UNDER COVER <K>........................................................426 SIDE WALK <MTH>........................................................427 LUBRICATOR.............................................................428 UNDERCARRIAGE..............................................................432 TRACK FRAME (STD. TRACK)...............................................432 TRACK FRAME (LC TRACK).................................................433 TRACK FRAME (NARROW LC TRACK)..........................................434 TRACK FRAME <K>........................................................435 TRACK FRAME (MTH TRACK)................................................436 TRACK GUARD <330, 350, K>..............................................437 TRACK GUARD <H>........................................................438 TRACK GUARD <370, MTH>.................................................439 FULL-LENGTH TRACK GUARD (STD. TRACK)...................................440 FULL-LENGTH TRACK GUARD (LC TRACK. NARROW LC TRACK)....................441 FULL-LENGTH TRACK GUARD (MTH TRACK)....................................442 STEP...................................................................443 ADDITIONAL STEP........................................................444 TRACK UNDER COVER......................................................445 SWING BEARING..........................................................446 SWING BEARING PARTS....................................................447 TRAVEL DEVICE..........................................................448 TRAVEL DEVICE (MTH TRACK)..............................................452 TRAVEL DEVICE SUPPORT..................................................456 TRAVEL DEVICE SUPPORT (MTH TRACK)......................................457 FRONT IDLER <330, 350[EU1], H, K>......................................458 FRONT IDLER <350[EU2]>.................................................459 FRONT IDLER (R) <370, MTH, MTH[EU3]>...................................460 FRONT IDLER (R) <350[EU4]>.............................................461 FRONT IDLER (L) <370, MTH, MTH[EU3]>...................................462 FRONT IDLER (L) <MTH[EU4]>.............................................463 ADJUSTER <330, 350[EU1], H, K>.........................................464 ADJUSTER <350[EU2]>....................................................465 ADJUSTER <370, MTH, MTH[EU3]>..........................................466 ADJUSTER <MTH[EU4]>....................................................467 UPPER ROLLER <330, 350[EU1], H, K>.....................................468 UPPER ROLLER <350[EU2]>................................................469 UPPER ROLLER <370, MTH, MTH[EU3]>......................................470 UPPER ROLLER <MTH[EU4]>................................................471 LOWER ROLLER <330, 350[EU1], H, K>.....................................472 LOWER ROLLER<350[EU2]>.................................................473 LOWER ROLLER <370, MTH, MTH[EU3]>......................................474 LOWER ROLLER <MTH[EU4]>................................................475 LOWER ROLLER SUPPORT (STD. TRACK)......................................476 LOWER ROLLER SUPPORT (LC TRACK, NARROW LC TRACK).......................477 LOWER ROLLER SUPPORT (MTH TRACK).......................................478 TRACK-LINK (STD. TRACK)................................................480 TRACK-LINK (LC TRACK)..................................................482 TRACK-LINK <350[EU1]>..................................................484 TRACK-LINK <350[EU2]>..................................................486 TRACK-LINK <370, MTH, MTH[EU3]>........................................488 TRACK-LINK <MTH[EU4]>..................................................489 CENTER JOINT...........................................................490 CENTER JOINT SUPPORT (TRACK)...........................................491 TRAVEL PIPING (STD. TRACK).............................................492 TRAVEL PIPING (LC TRACK, NARROW LC TRACK)..............................494 TRAVEL PIPING (MTH TRACK)..............................................496 TRAVEL MOTOR COVER.....................................................498 TRAVEL MOTOR COVER (MTH TRACK).........................................499 MONO BOOM FRONT-END ATTACHMENTS............................................500 STD. BOOM <330, 370>...................................................500 H BOOM <350, H, MTH>...................................................504 K BOOM <K>.............................................................508 ARM 3.2M <330, 350, 370>...............................................512 H ARM 3.2M <H, MTH>....................................................514 K ARM 3.2M <K>.........................................................516 ARM 2.33M <350, MTH[EU3, EU4]>.........................................518 ARM 2.66M..............................................................520 ARM 4.0M...............................................................522 LINK A.................................................................524 LINK B <330, 350, 370>.................................................525 LINK B <350, H, MTH>...................................................526 LINK B <K>.............................................................527 FRONT PIPING...........................................................528 BOOM CYLINDER (R)......................................................529 BOOM CYLINDER (L)......................................................530 ARM CYLINDER...........................................................531 BUCKET CYLINDER........................................................532 LUBRICATE PIPING.......................................................533 AUTO. LUBRICATE DEVICE.................................................534 AUTO. LUBRICATE PIPING (BOOM)..........................................536 AUTO. LUBRICATE PIPING (ARM)...........................................540 BUCKET 1.15 [JIS 94]...................................................542 BUCKET 1.4 [JIS 94]....................................................544 K BUCKET 1.4 [JIS 94]..................................................546 BUCKET 1.4 [JIS 94] (SUPER V TOOTH)....................................548 BUCKET 1.4 [JIS 94] (SUPER V TOOTH, FOR TOOTH PLATE)...................549 BUCKET 1.4 [JIS 94] (SIDE-PIN TOOTH)...................................550 BUCKET 1.62 [JIS 94]...................................................552 BUCKET 1.86 [JIS 94]...................................................554 ROCK BUCKET 1.15 [JIS 94]..............................................556 ROCK BUCKET 1.38 [JIS 94] (SUPER V TOOTH)..............................558 ROCK BUCKET 1.38 [JIS 94] (SIDE-PIN TOOTH).............................560 ROCK BUCKET 1.5 [JIS 94] (SUPER V TOOTH)...............................562 ROCK BUCKET 1.5 [JIS 94] (SIDE-PIN TOOTH)..............................564 RIPPER BUCKET 0.9 [JIS 94].............................................566 ONE POINT RIPPER.......................................................567 HOSE RUPTURE VALVE PIPING (BOOM) [ISO SPEC.]...........................568 HOSE RUPTURE VALVE PIPING (ARM) [ISO SPEC.] (MONO BOOM)................570 OVER LOAD ALARM DEVICE.................................................572 2P-BOOM FRONT-END ATTACHMENTS..............................................574 2P-BOOM <350>..........................................................574 FRONT PIPING (2P-BOOM) <350>...........................................578 ARM CYLINDER (2P-BOOM) <350>...........................................580 POSITIONING CYLINDER (2P-BOOM) <350>...................................581 LUBRICATE PIPING (2P-BOOM) <350>.......................................582 HOSE RUPTURE VALVE PIPING (ARM) [ISO SPEC.] (2P-BOOM)..................584 HOSE RUPTURE VALVE PIPING (POSITIONING) [ISO SPEC.] (2P-BOOM)..........585 CONTROL PEDAL (2P-BOOM) <350>..........................................586 PILOT PIPING (2P-BOOM) <350>...........................................588 PILOT PIPING (2P-BOOM/PTO) <350>.......................................590 MAIN PIPING (2P-BOOM) <350>............................................594 BEH BOOM FRONT-END ATTACHMENTS.............................................598 BEH BOOM <350>.........................................................598 BEH ARM (2.11M) <350>..................................................600 BEH FRONT PIPING <350>.................................................602 BEH BUCKET CYLINDER <350>..............................................603 BEH LUBRICATE PIPING <350>.............................................604 BEH BOOM PIPING (BREAKER & CRUSHER) <350>..............................606 BEH ARM PIPING [2.11M] (BREAKER & CRUSHER) <350>.......................608 BREAKER & CRUSHER PARTS....................................................610 CONTROL PEDAL (BREAKER & CRUSHER)......................................610 PILOT PIPING (BREAKER & CRUSHER).......................................612 MAIN PIPING (BREAKER & CRUSHER)........................................614 MAIN PIPING (BREAKER & CRUSHER) <350, MTH[EU3, EU4]>...................618 BOOM PIPING (BREAKER & CRUSHER)........................................622 BOOM PIPING (BREAKER & CRUSHER) [MONO BOOM] <350, MTH[EU3, EU4]>.......624 BOOM PIPING (BREAKER & CRUSHER) [2P-BOOM] <350>........................626 ARM PIPING (BREAKER & CRUSHER).........................................628 ARM PIPING (2.33M ARM) [BREAKER & CRUSHER] <350>.......................630 ARM PIPING (2.66M ARM) [BREAKER & CRUSHER] <350>.......................632 ARM PIPING (3.20M ARM) [BREAKER & CRUSHER] <350, MTH[EU3, EU4]>........634 ARM PIPING (4.00M ARM) <350>...........................................636 NPK BREAKER PIPING (BREAKER & CRUSHER).................................638 HSB BREAKER PIPING (BREAKER & CRUSHER) [MONO BOOM].....................639 HSB BREAKER PIPING (BREAKER & CRUSHER) [2P-BOOM] <350>.................640 NPK COMMON PIPING (BREAKER & CRUSHER)..................................642 HSB COMMON PIPING (BREAKER & CRUSHER) [MONO BOOM]......................644 HSB COMMON PIPING (BREAKER & CRUSHER) [2P-BOOM] <350>..................646 PILOT PIPING (FLOW RATE SELECTOR)......................................650 MAIN PIPING (FLOW RATE SELECTOR).......................................652 MAIN PIPING (FLOW RATE SELECTOR) <350, MTH[EU3, EU4]>..................654 ELECTRIC PARTS (FLOW PATE SELECTOR)....................................656 ASSIST PIPING..............................................................658 ADD. GEAR PUMP PIPING (30L) <350, MTH[EU3, EU4]>.......................658 ADD. GEAR PUMP PIPING (50L) <350, MTH[EU3, EU4]>.......................662 HIGH PERFORMANCE FILTER KIT <350, MTH[EU3, EU4]>.......................666 ELECTRIC TYPE CONTROL PARTS (ADD/P)....................................668 ELECTRIC TYPE CONTROL PARTS (PTO)......................................670 MAIN PIPING (PTO) [MONO BOOM]..........................................672 PILOT PIPING (PTO/V, FLOW RATE SELECTOR)...............................676 QUICKHITCH PIPING (MAIN) <350, MTH[EU3, EU4]>..........................680 QUICKHITCH PIPING (PILOT) <350, MTH[EU3, EU4]>.........................682 QUICKHITCH PIPING (MONO BOOM) <350, MTH[EU3, EU4]>.....................686 QUICKHITCH PIPING (2P-BOOM) <350>......................................688 QUICKHITCH PIPING (2.33M ARM) <350>....................................690 QUICKHITCH PIPING (2.66M ARM) <350>....................................691 QUICKHITCH PIPING (3.20M ARM) <350, MTH[EU3, EU4]>.....................692 QUICKHITCH PIPING (4.00M ARM) <350>....................................693 ASSIST PIPING (MONO BOOM) <350, MTH[EU3, EU4]>.........................694 ASSIST PIPING (2P-BOOM) <350>..........................................696 ASSIST PIPING (2.33M ARM) <350>........................................698 ASSIST PIPING (2.66M ARM) <350>........................................699 ASSIST PIPING (3.20M ARM) <350, MTH[EU3, EU4]>.........................700 ASSIST PIPING (4.00M ARM) <350>........................................701 CLAMSHELL PIPING (2.33M ARM) <350>.....................................702 CLAMSHELL PIPING (2.66M ARM) <350>.....................................704 CLAMSHELL PIPING (3.20M ARM) <350, MTH[EU3, EU4]>......................706 CLAMSHELL PIPING (4.00M ARM) <350>.....................................708 QUICKHITCH / ASSIST COMMON PARTS (MONO BOOM) <350, MTH[EU3, EU4]>......710 QUICKHITCH / ASSIST COMMON PARTS (2P-BOOM) <350>.......................711 TRAVEL HEAT PARTS..........................................................712 PILOT PIPING (4-2) <TRAVEL HEAT>.......................................712 PILOT PIPING (11) <TRAVEL HEAT>........................................713 TRAVEL HEAT ARTICLE <TRAVEL HEAT>......................................714 TRAVEL HEAT PIPING <TRAVEL HEAT>.......................................716 TRAVEL DEVICE (STD. TRACK, LC TRACK, NARROW LC TRACK) <TRAVEL HEAT>....718 TRAVEL PIPING (STD. TRACK) <TRAVEL HEAT>...............................722 TRAVEL PIPING (LC TRACK, NARROW LC TRACK) <TRAVEL HEAT>................724 ETC........................................................................726 4 WAY MULTI LEVER [STD]................................................726 4 WAY MULTI LEVER PARTS [STD]..........................................728 4 WAY MULTI LEVER PIPING (1) [STD].....................................730 4 WAY MULTI LEVER PIPING (2) [STD].....................................731 4 WAY MULTI LEVER PIPING (3) [STD].....................................732 4 WAY MULTI LEVER PIPING (4) [STD].....................................733 TOOLS......................................................................734 TOOLS..................................................................734 NAME-PLATE.................................................................736 NAME PLATE (JAPANESE)..................................................736 NAME PLATE (ENGLISH) [ASIA]............................................744 NAME PLATE (ENGLISH) [OCEANIA].........................................750 NAME PLATE (ENGLISH) [NA]..............................................756 NAME PLATE (RUSSIAN)...................................................762 NAME PLATE (TAIWANESE).................................................768 NAME PLATE <350, MTH[EU3, EU4]>........................................774 PARTS INDEX................................................................784
HITACHI ZX330 ZX330LC ZX350LC ZX350LCN ZX350H ZX350K ZX350LCK ZX370 ZX370MTH HYDRAULIC EXCAVATOR PARTS CATALOG MANUAL – PDF DOWNLOAD:

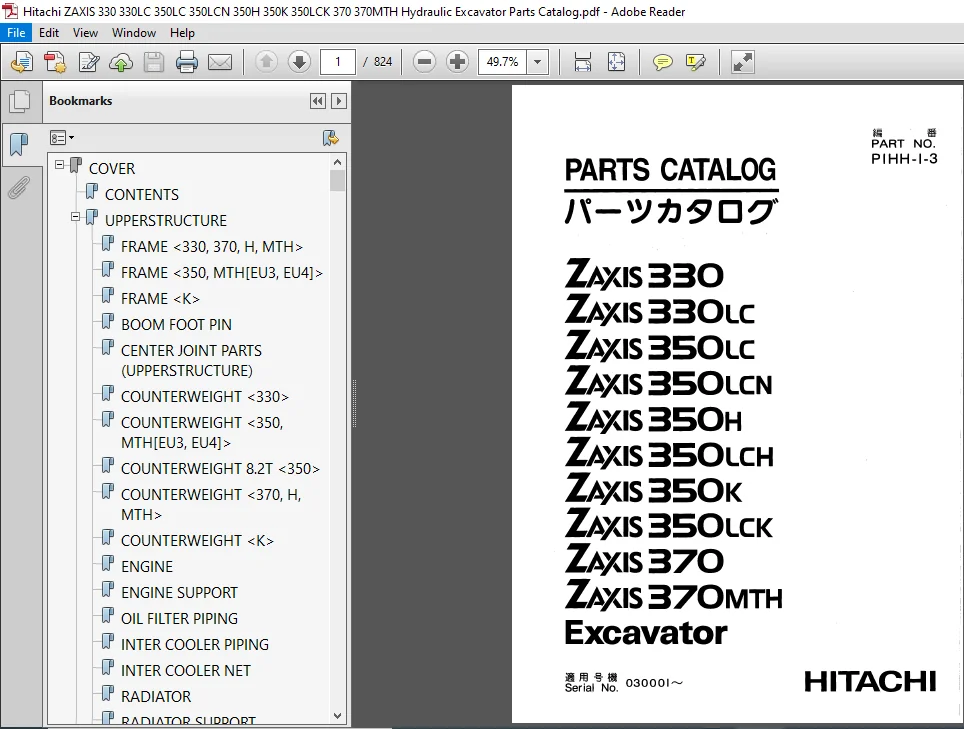

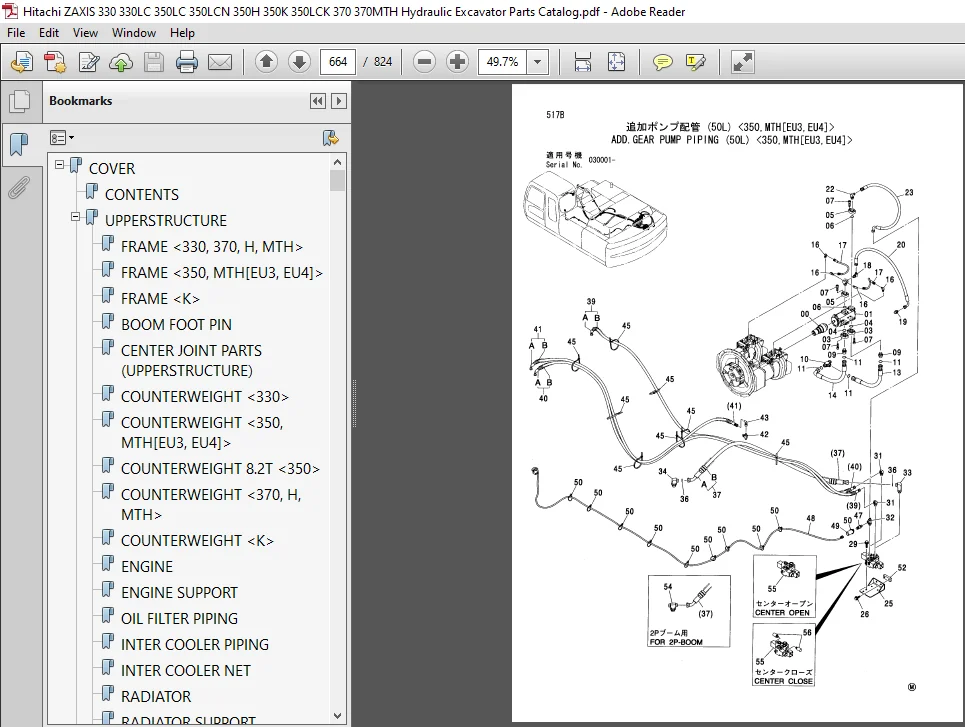

IMAGES PREVIEW OF THE MANUAL:
