Hitachi ZX350LC-6 350LCN-6 Hydraulic Excavator Electrical Circuit Diagram Manual – PDF DOWNLOAD

Description

Hitachi ZX350LC-6 350LCN-6 Hydraulic Excavator Electrical Circuit Diagram Manual

FILE DETAILS:

Hitachi ZX350LC-6 350LCN-6 Hydraulic Excavator Electrical Circuit Diagram Manual

Language : English
Pages : 15
Downloadable : YES
Format : PDF
Size : 13.5 MB

TABLE OF CONTENTS:

Hitachi ZX350LC-6 350LCN-6 Hydraulic Excavator Electrical Circuit Diagram Manual

ELECTRICAL CIRCUIT DIAGRAM
CONNECTORS
ENGINE HARNESS
PUMP HARNESS
NOX HARNESS
MONITOR HARNESS
GSM (MOBILE COMMUNICAÜON
TERMINAL) HARNESS
SATELLITE COMMUNICATÏON
HARNESS
KEY SWITCH HARNESS
PILOT SHUT—OFF SOLENOID VALVE
HARNESS
REARVIEW CAMERA HARNESS
HYDRAULIC CIRCUIT DIAGRAM
(MONOBLOCK BOOM) (STANDARD)
HYDRAULIC CIRCUIT DIAGRAM
(2—PIECE BOOM) (OPTIONAL)
HYDRAULIC CIRCUIT DIAGRAM (AFL)

HITACHI ZX350LC-6 350LCN-6 HYDRAULIC EXCAVATOR ELECTRICAL CIRCUIT DIAGRAM MANUAL – PDF DOWNLOAD:

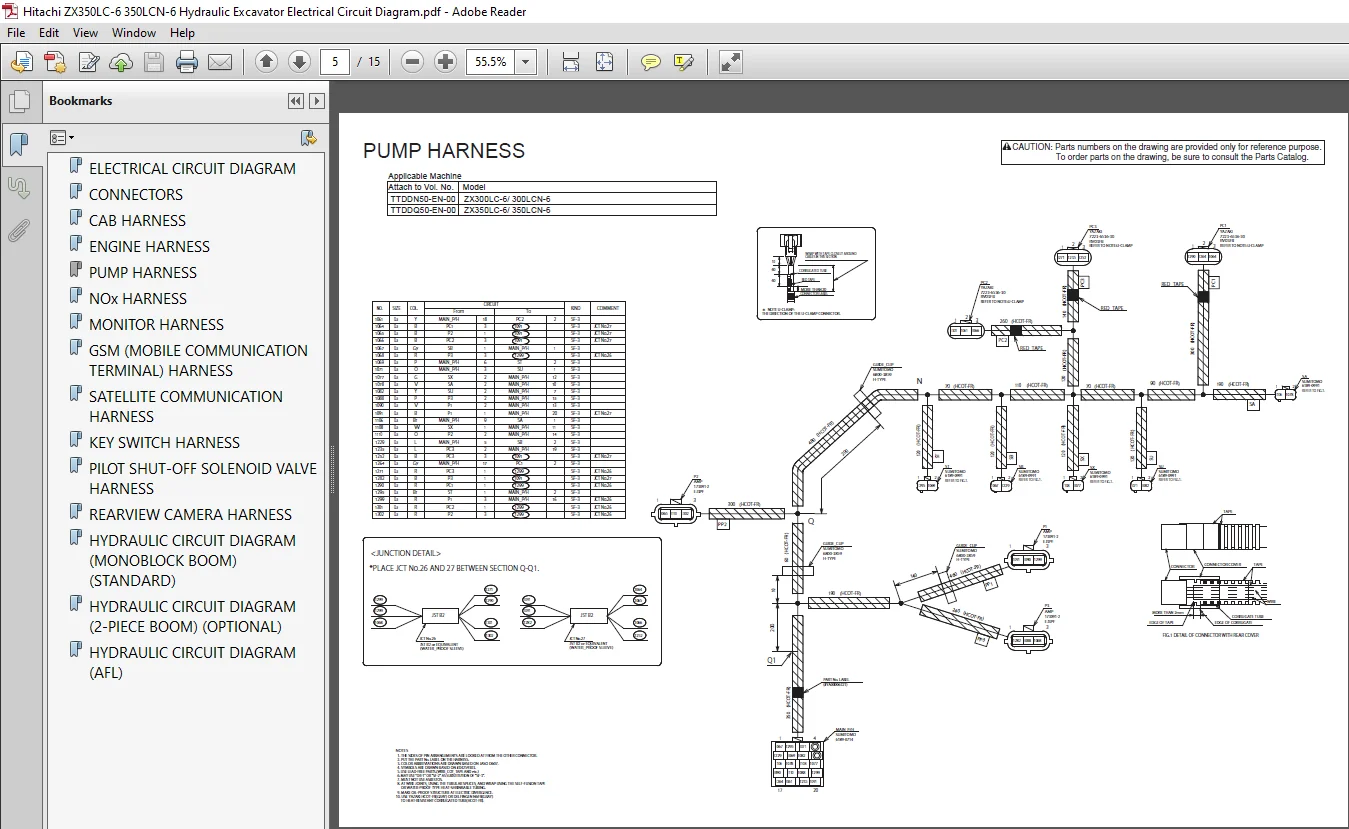

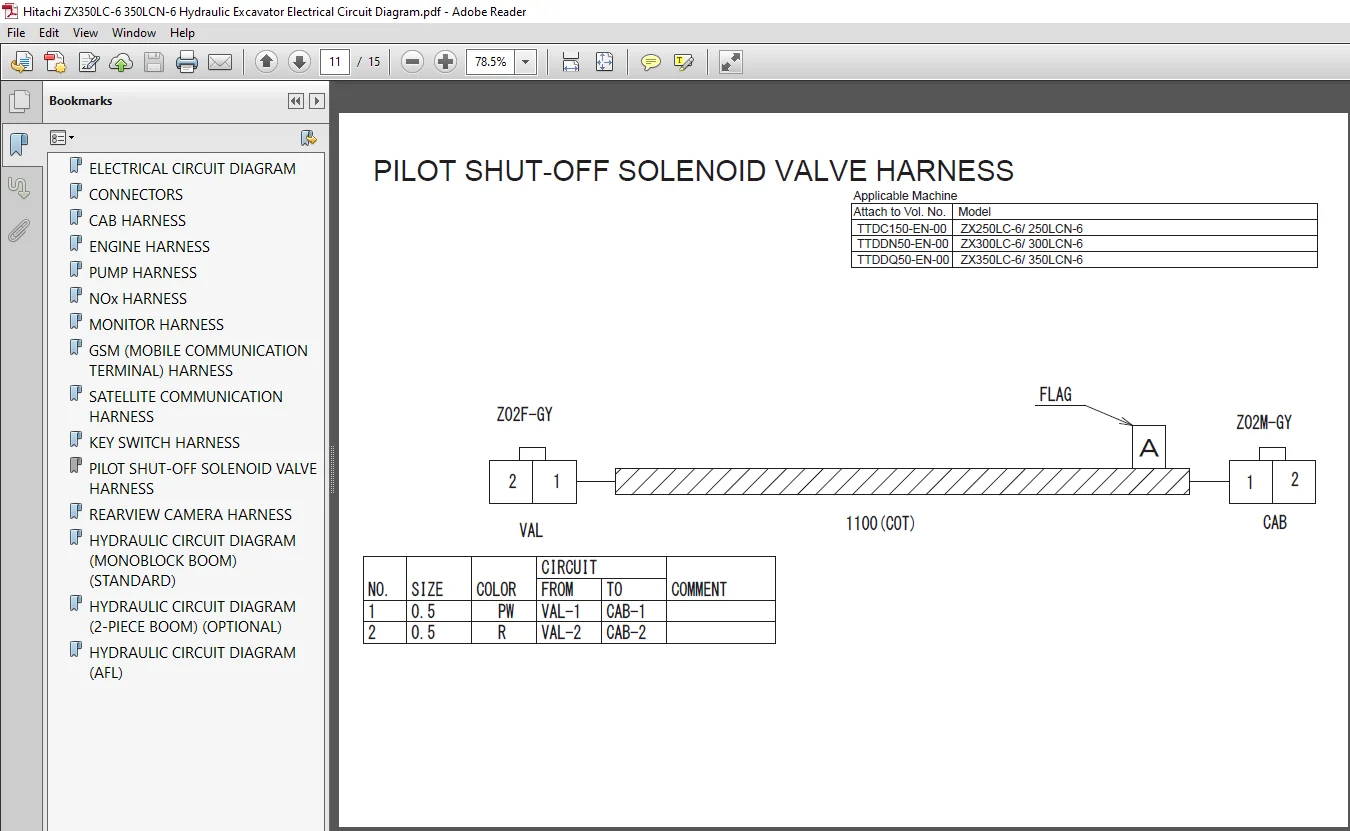

IMAGES PREVIEW OF THE MANUAL:
