Hitachi ZX65USB-5A Hydraulic Excavator Electrical-Hydraulic Circuit Diagram Manual – PDF DOWNLOAD
Original price was: $65.95.$18.95Current price is: $18.95.
Hitachi ZX65USB-5A Hydraulic Excavator Electrical-Hydraulic Circuit Diagram Manual
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Hitachi ZX65USB-5A Hydraulic Excavator Electrical-Hydraulic Circuit Diagram Manual
FILE DETAILS:
Hitachi ZX65USB-5A Hydraulic Excavator Electrical-Hydraulic Circuit Diagram Manual
Language : English
Pages : 13
Downloadable : YES
Format : PDF
Size : 9.59 MB
TABLE OF CONTENTS:
Hitachi ZX65USB-5A Hydraulic Excavator Electrical-Hydraulic Circuit Diagram Manual
- ELECTRICAL CIRCUIT DIAGRAM (STANDARD)
- ELECTRICAL CIRCUIT DIAGRAM (AUTO SHUT-DOWN) (OPTIONAL)
- FLOOR HARNESS
- MAIN HARNESS
- LIGHT HARNESS
- AUTO SHUT-DOWN HARNESS (OPTIONAL)
- OVERLOAD ALARM HARNESS 1 (OPTIONAL)
- TRAVEL ALARM FLOOR HARNESS (OPTIONAL)
- ELECTRIC LEVER HARNESS (OPTIONAL)
- BEACON LIGHT HARNESS (CAB) (OPTIONAL)
- HYDRAULIC CIRCUIT DIAGRAM
- HARNESS and CONNECTORS DIAGRAM
HITACHI ZX65USB-5A HYDRAULIC EXCAVATOR ELECTRICAL-HYDRAULIC CIRCUIT DIAGRAM MANUAL – PDF DOWNLOAD:

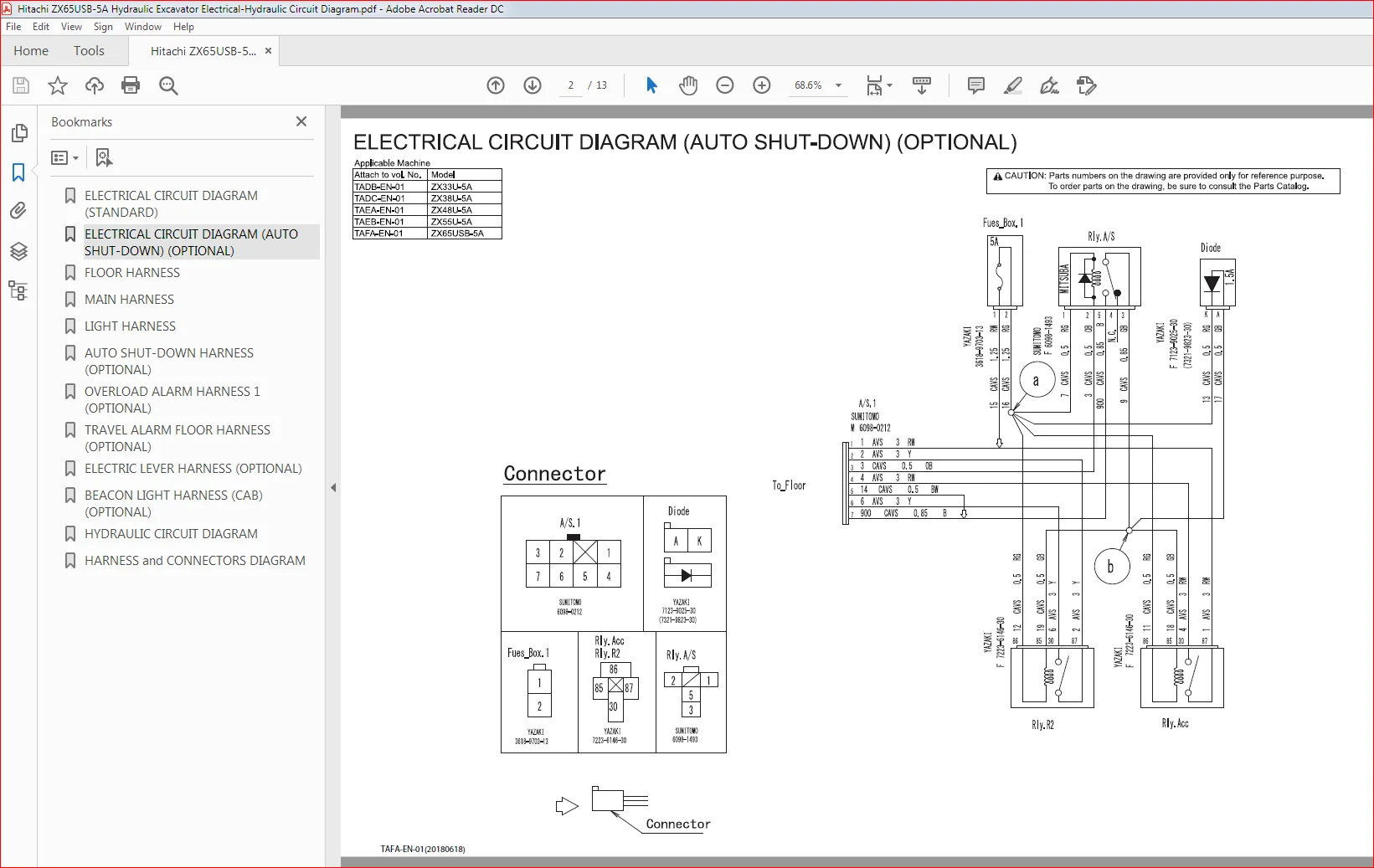

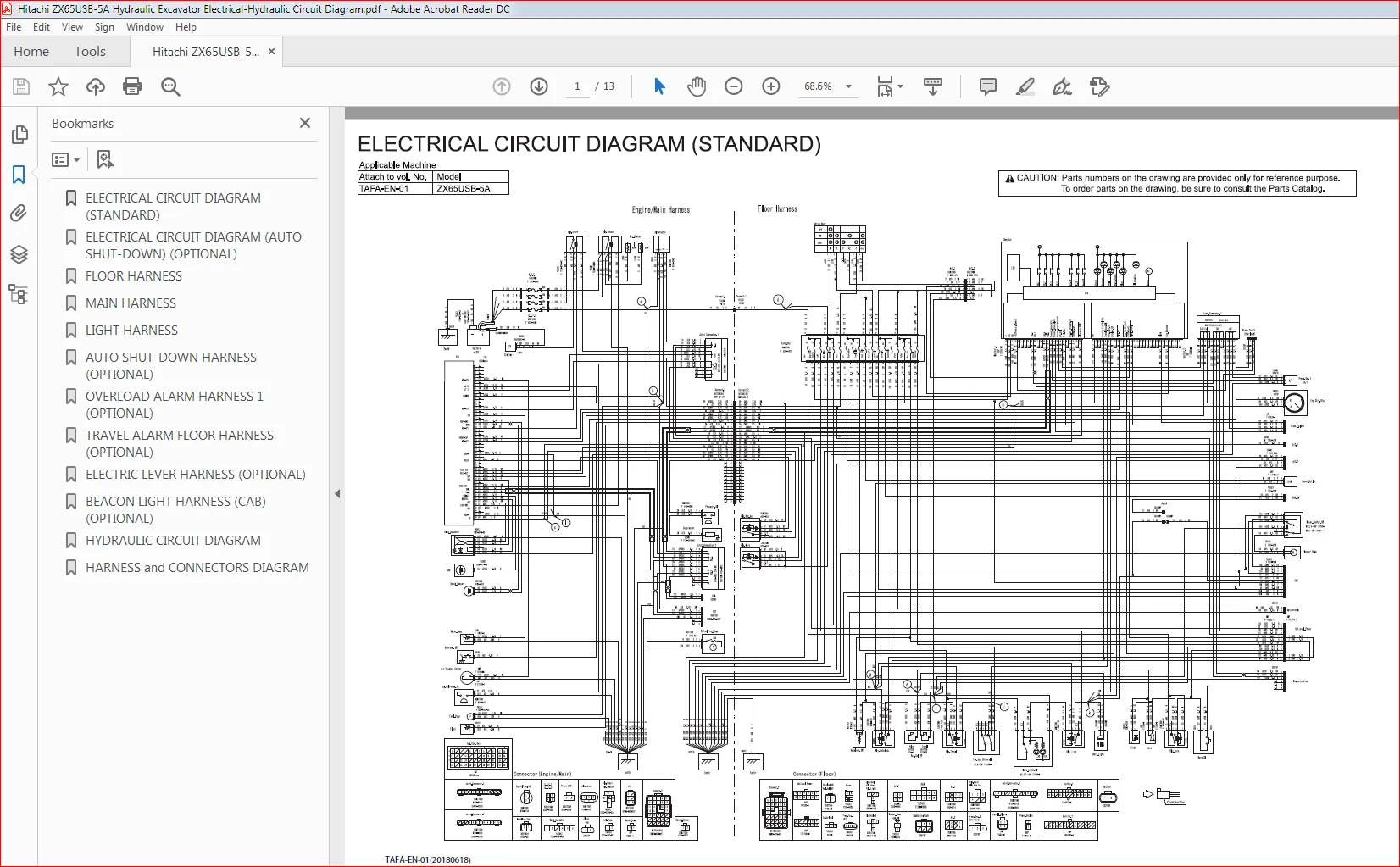

IMAGES PREVIEW OF THE MANUAL:
