Hologic Lorad Affinity Series Mammography System Service Manual PDF (Rev 007)

Description

Hologic Lorad Affinity Series Mammography System Service Manual PDF (Rev 007) DOWNLOAD

DESCRIPTION

The Definitive Maintenance Resource for Biomedical Professionals

This comprehensive Hologic Lorad Affinity Service Manual (PN 9-500-0255, Rev 007) is the authoritative guide for installing, calibrating, and repairing Affinity and Affinity Platinum mammography systems. Designed for service engineers and biomedical technicians, it offers step-by-step protocols for everything from initial room planning to complex circuit board diagnostics.

This manual is fully searchable and bookmarked, ensuring you can instantly locate test points, jumper settings, and schematic references without wasting valuable bench time.

Comprehensive Table of Contents & Covered Systems

1. General Information & Safety

• System Specs: Power requirements, heat dissipation, and environmental limits.

• Safety Protocols: Radiation safety (21 CFR/IEC 60601), electrical isolation, and mechanical interlocks.

• Compliance: Certifiable components list and labeling locations.

2. System Installation

• Setup: Uncrating, room planning, and input power configuration (200V–240V taps).

• Connections: Remote X-ray/Power ON light wiring and footswitch installation.

• Accessories: Installing AutoFilm I.D., Rapid ID, and label printers.

3. Functional Tests & Defaults

• Startup: Pre-startup inspections, power-up sequence, and error code verification.

• User Defaults: Setting compression release, film ID, and date/time formats.

• Technique Defaults: Configuring AEC modes, kV/mAs limits, and auto-windows.

4. Calibration Procedures

• Compression: Force load cell calibration (Newtons/Lbs) and thickness potentiometer adjustments.

• Exposure System: Tube voltage (kV) and filament current (mA) calibration waveforms.

• AEC System: Automatic Exposure Control gain, offset, and density adjustments for Mo/Rh filters.

• Safety Logic: C-arm safety microprocessor calibration and vertical drive force limits.

5. Performance Tests

• Image Quality: HVL (Half-Value Layer), reproducibility, and linearity tests.

• X-Ray Field: Light field alignment, edge contrast, and illuminance verification.

• Compliance: Radiation output rate and backup timer testing.

6. Maintenance & Troubleshooting

• Diagnostics: Full Alert Codes Log and system data retrieval via laptop.

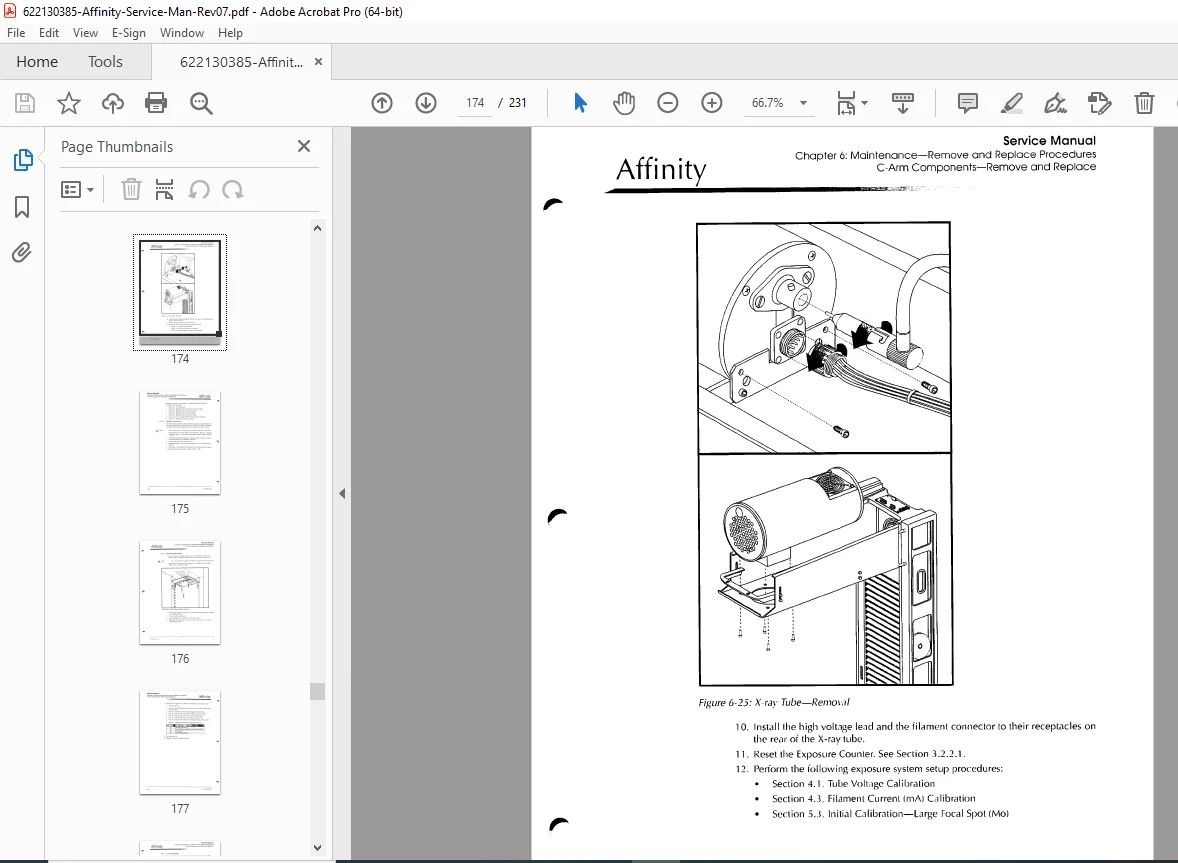

• Removal/Replacement: Step-by-step guides for replacing the X-ray tube, HV generator, and CPU boards.

• Mechanicals: Compression chain tension and C-arm rotation brake adjustments.

Appendices & Technical References

• Test Points: TP locations for Filament Board, Power Control Board, and Host Microprocessor.

• LED Indicators: Diagnostic LED status charts for fast troubleshooting.

• Fuses & Jumpers: Complete fuse ratings and jumper configuration tables.

FILE DETAILS

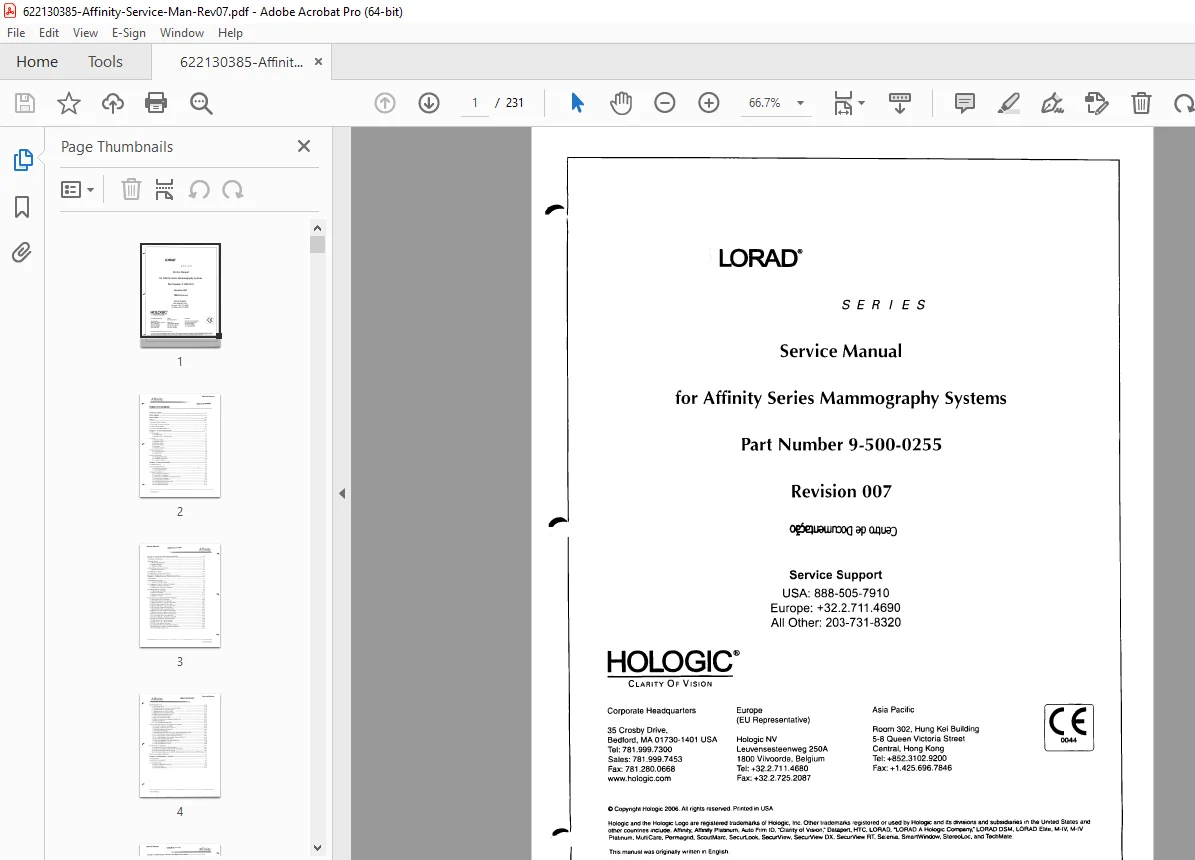

• Manual Name: Hologic Lorad Affinity Series Service Manual

• Part Number: 9-500-0255

• Revision: 007

• Models Covered: Affinity, Affinity Platinum

• File Type: High-Quality PDF (Searchable, Printable, Bookmarked)

• Total Pages: 234 Pages

Eliminate guesswork and reduce downtime. Download the official Hologic Lorad Affinity Service Manual instantly to access the precise calibration data and repair procedures trusted by factory engineers. Get your system back to patient-ready status today!
