HONDA Acura MDX Mechanical & Chassis Service Manual

Description

HONDA Acura MDX Mechanical & Chassis Service Manual – PDF DOWNLOAD

Customer Support: [email protected]

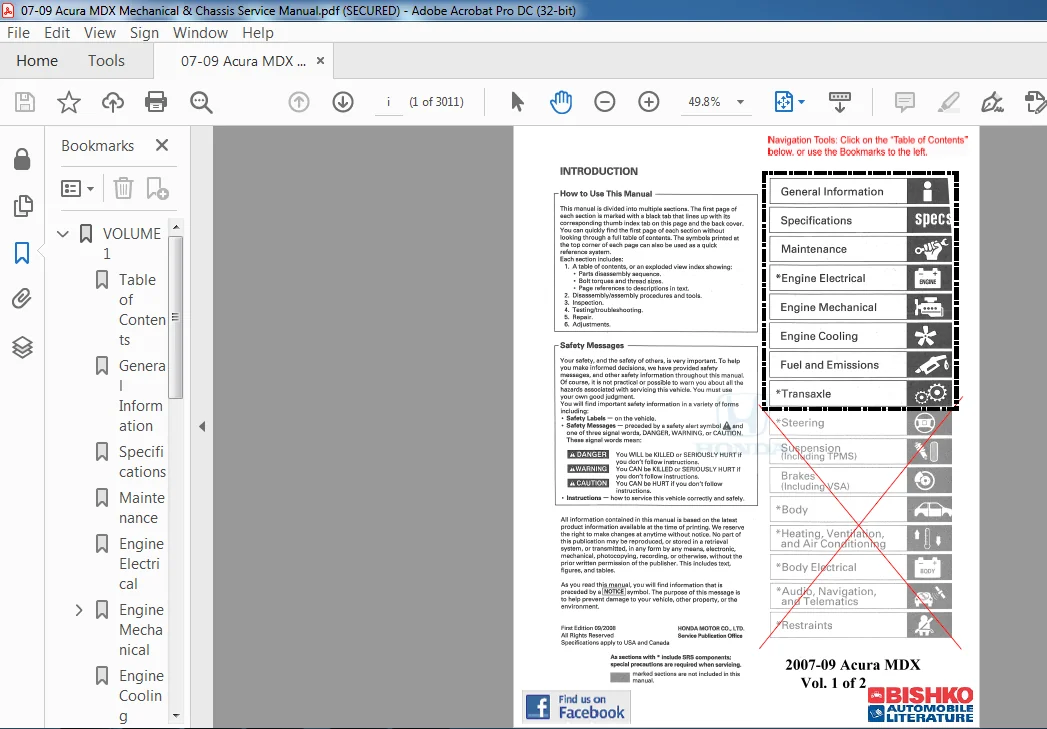

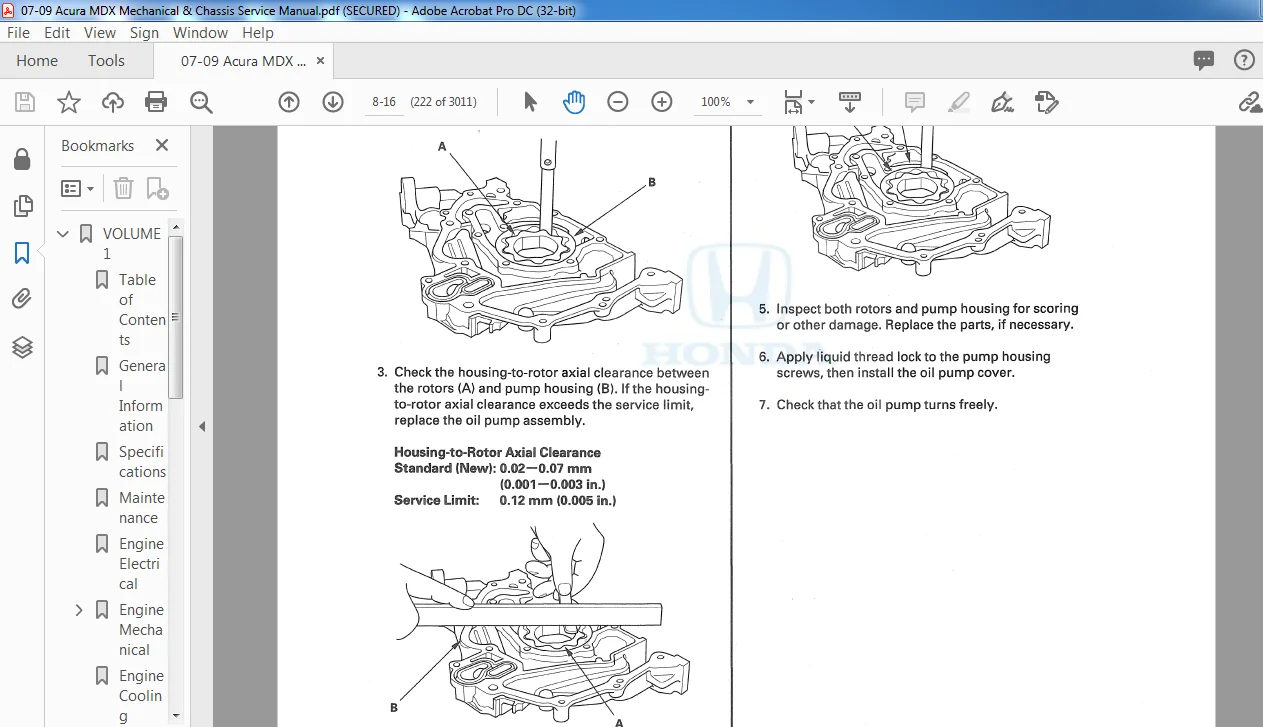

IMAGE PREVIEW:

DESCRIPTION:

HONDA Acura MDX Mechanical & Chassis Service Manual – PDF DOWNLOAD

• The Acura MDX SRS includes a driver’s airbag i n the steering wheel hub, a passenger’s airbag i n the dashboard above the glove box, seat belt tensioners in the front seat belt retractors, side curtain airbags i n the sides of the roof, and side airbags i n the front seat-backs. Information necessary to safely service the SRS is included in this Service Manual.
• Items marked with an asterisk ( * ) on the contents page include or are located near SRS components. Servicing, disassembling, or replacing these items requires special precautions and tools, and should be done by an authorized Acura dealer. • To avoid rendering the SRS inoperative, which could lead to personal injury or death in the event of a severe frontal or side collision, all SRS service work should be done by an authorized Acura dealer, •
• Improper service procedures, including incorrect removal and installation of the SRS, could lead to personal injury ■ caused by unintentional deployment of the airbags and/or side airbags. • Do not bump or impact the SRS unit, front impact sensors, side impact sensors, or roll rate sensor when the ignition switch is in ON (II), or for at least 3 minutes after the ignition switch is turned to LOCK (0); otherwise, the system may fail in a collision, or the airbags may deploy.
• • SRS electrical connectors are identified by yellow color coding. Related components are located in the steering column, front console, dashboard, dashboard lower panel, in the dashboard above the glove box, in the front seats, in the roof side, and around the floor. Do not use electrical test equipment on these circuits.

TABLE OF CONTENTS:

HONDA Acura MDX Mechanical & Chassis Service Manual – PDF DOWNLOAD

Chassis and Paint Codes
’07 Model ……………………………………………………………… 1-2
’08 Model ……………………………………………………………… 1-3
’09 Model …………………………………………………. 1-4
Identification Number Locations ………………. .1-5
Danger/Warning/Caution Label Locations …. 1-6
Under-hood Emission Control Label ………… …1-8
Lift and Support Points …………………………….. .1-9
Towing …………………………………………….. ……. .1-10
Parts Marking …………………………………………….1-12
Precautions for Super Handling All-Wheel
Drive (SH-AWD) System ………………………… 1-12

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
