Honda CB750 SC NIGTHAWK SHOP MANUAL – PDF DOWNLOAD

Description

Honda CB750 SC NIGTHAWK SHOP MANUAL – PDF DOWNLOAD

DESCRIPTION:

Honda CB750 SC NIGTHAWK SHOP MANUAL – PDF DOWNLOAD

IMPORTANT SAFETY NOTICE

WARNING

Indicates a strong possibility of severe personal injury or loss of life 1f instructions are not followed.

CAUTION:

Indicates a possibility of personal injury or equipment damage if instructions are not followed.

NOTE:

Gives helpful information.

Detailed descriptions of standard workshop procedures, safety principles and service operations are not included. It is important to note that this manual contains some warnings and cautions against some specific service methods which could cause PERSONAL INJURY to service personnel or could damage a vehicle or render it unsafe. Please understand that those warnings could not cover all conceivable ways in which service, whether or not recommended by Honda migh\ be done or of the possibly hazardous consequences of each conceivable way, nor could Honda investigate all such ways. Anyone using service procedures or tools, whether or not recommended by Honda must satisfy himself thoroughly that neither personal safety nor vehicle safety will be jeopardized by the service method or tools selected.

HOW TO USE THIS MANUAL

Follow the Maintenance Schedule (Section 3) recommendations to ensure that the vehicle is in peak operating condition and the emission levels are within the standards set by the U.S. Environmental Protection Agency. Performing the first scheduled maintenance is very important. It compensates for the initial wear that occurs during the break-in period. · Sections 1 through 3 apply to the whole motorcycle, while sections . 4 through 21 describe parts of the motorcycle, grouped according to location. Find the section you want on this page, then turn to the table of contents on page 1 of that section. Most sections start with an assembly or system illustration, service information and troubleshooting for the section. The subsequent pages give detailed procedures. If you are not familiar with this motorcycle, read the Technical Features in section 23. If you don’t know the source of the trouble, go to section 24, Troubleshooting. All information, illustrations, directions and specifications included in this publication are based on the latest product information available at the time of approval for printing. HONDA MOTOR CO., LTD. reserves the right to make changes at any time without notice and without incurring any obligation whatever. No part of this publication may be reproduced without written permission.

1.GENERAL INFORMATION

GENERAL SAFETY 1-1
SERVICE RULES 1-1
MODEL IDENTIFICATION 1-2
SPECIFICATIONS 1-3
TORQUE VALUES 1-5
TOOLS 1-7
CABLE & HARNESS ROUTING 1-9
EMISSION CONTROL SYSTEMS 1-13
EMISSION CONTROL INFORMATION
LABELS1-14

GENERAL SAFETY

WARNING

If the engine must be running to do some work, make sure the area is well-ventilated. Never run the engine in a closed area. The exhaust contains poisonous carbon monoxide gas.

WARNING

Gasoline is extremely flammable and is explosive under certain conditions. Do not smoke or allow flames or sparks in your working area.

WARNING

The battery electrolyte contains sulfuric acid. Protect your eyes, skin and clothing. In case of contact, flush thoroughly with water and call a doctor if electrolyte gets in your eyes.

WARNING

The battery generates hydrogen gas which can be highly explosive. Do not smoke or allow flames or sparks near the battery, especially while charging it.

SERVICE RULES

1. Use genuine HONDA or HONDA-recommended parts and lubricants or their Parts that do not meet HONDA’s design specifications may damage the motorcycle.
2. Use the special tools designed for this
3. Use only metric tools when servicing this Metric bolts, nuts, and screws are not interchangeable with English fasteners. The use of incorrect tools and fasteners may damage the motorcycle.
4. Install new gaskets, O-rings, cotter pins, lock plates, when reassembling.
5. When tightening bolts or nuts, begin with the larger-diameter or inner bolts first, and tighten to the specified torque dia­gonally, unless a particular sequence is
6. Clean parts in cleaning solvent upon Lubricate any sliding surfaces before reassembly.
7. After reassembly, check all parts for proper installation and

TABLE OF CONTENTS:

Honda CB750 SC NIGTHAWK SHOP MANUAL – PDF DOWNLOAD

GENERAL INFORMATION
LUBRICATION
MAINTENANCE
FUEL SYSTEM
ENGINE REMOVAL/INSTALLATION
CYLINDER HEAD/VALVES
CYLINDER/PISTON CLUT
GEAR SHIFT LINKAGE
CRANKCASE TRANSMISSION
CRANKSHAFT/STARTER CLUTCH
FINAL DRIVE
FRONT WHEEL/SUSPENSION
REAR WHEEL/SUSPENSION/BRAKE
HYDRAULIC BRAKE
MUFFLER/REAR FENDER BATTERY/CHARGING SYSTEM
IGNITION SYSTEM
ELECTRIC STARTER
LIGHTS/INSTRUMENTS/SWITCHES WIRING DIAGRAM
TECHNICAL FEATURES TROUBLESHOOTING

Customer Support: [email protected]

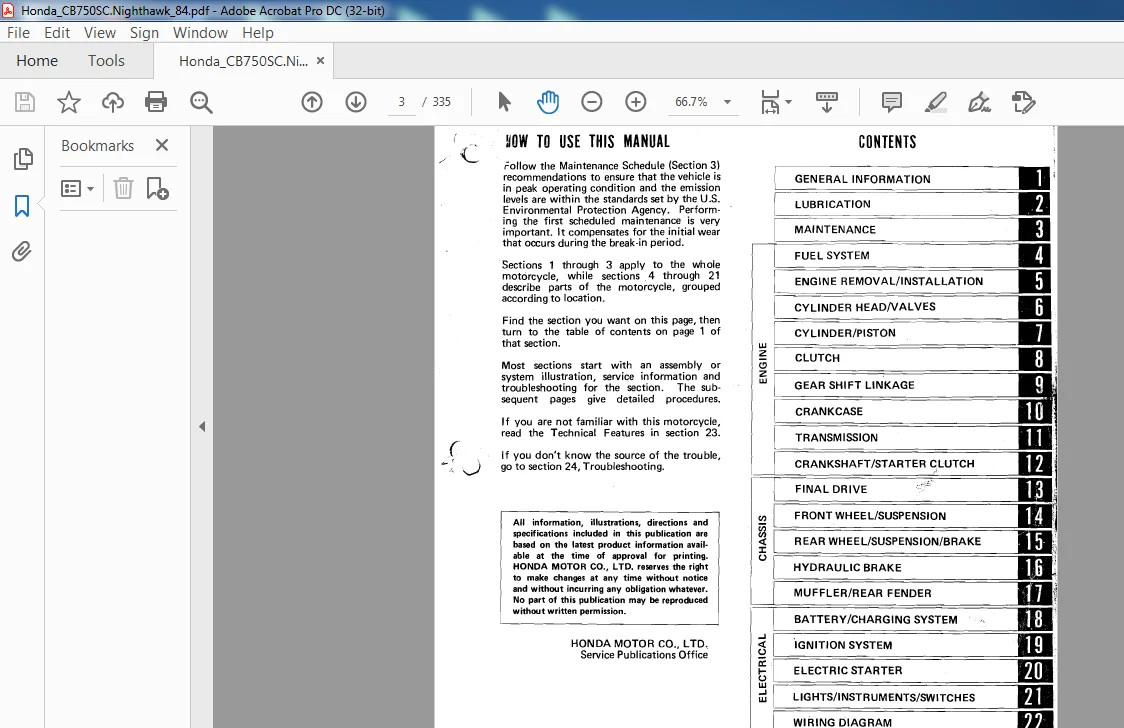

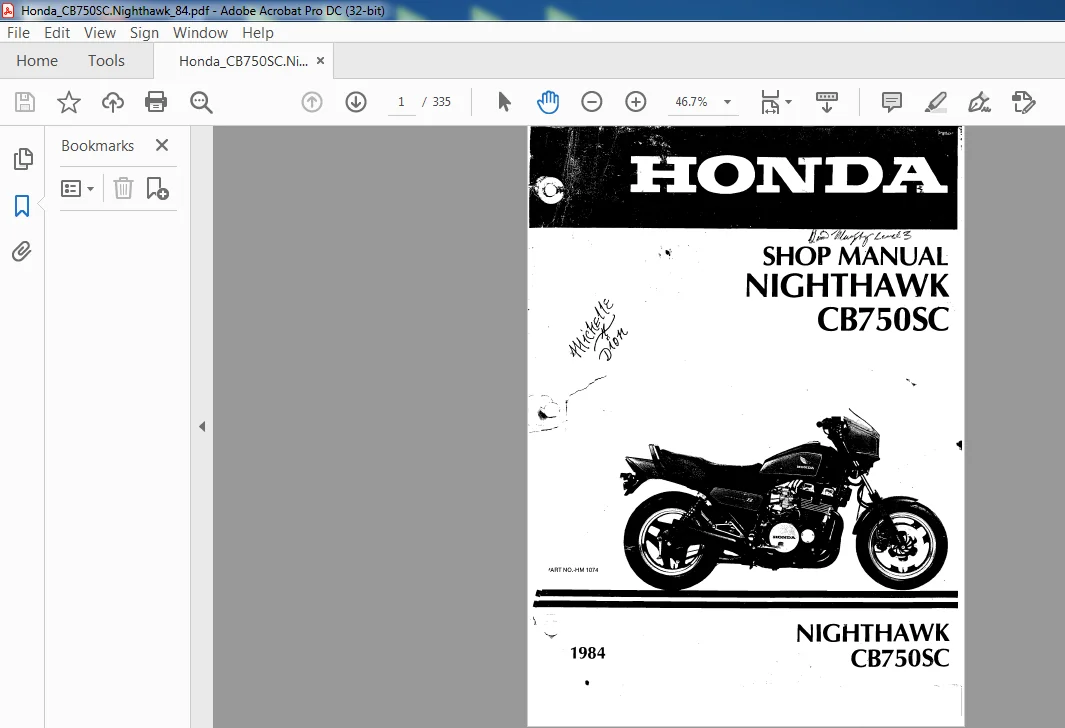

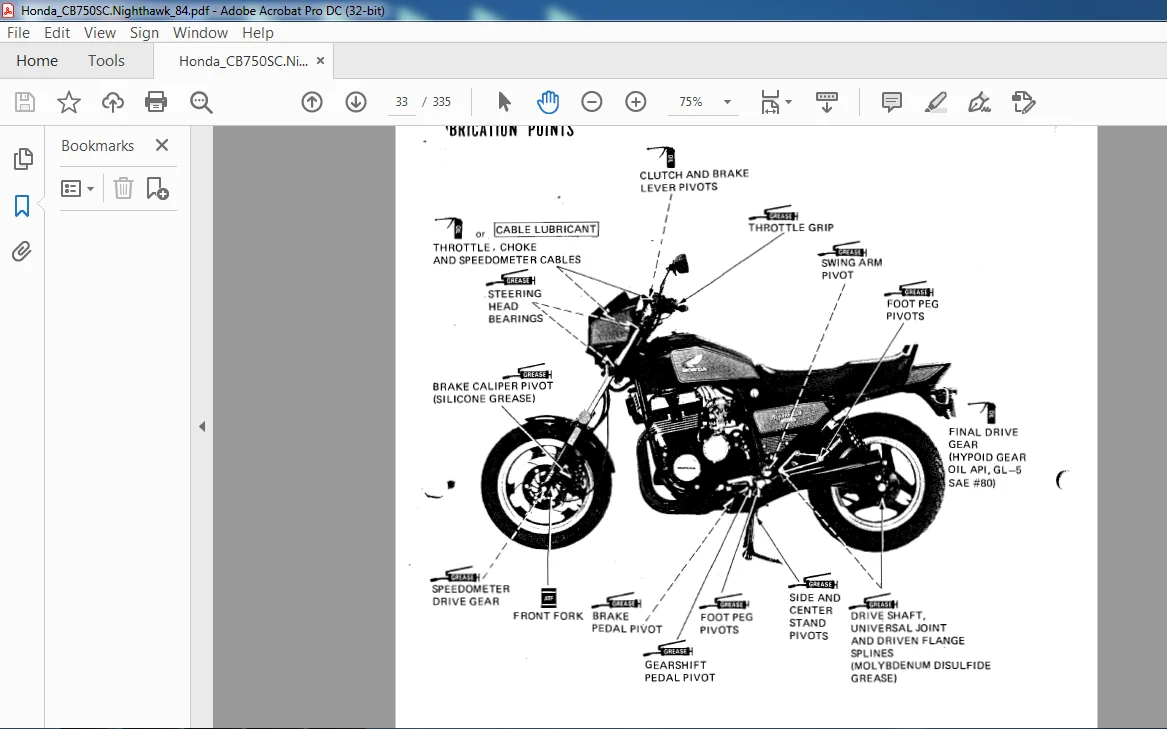

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
