Honda CBR1000F Hurricane Service Repair Manual (1987–1996) – PDF DOWNLOAD
Description
Overview

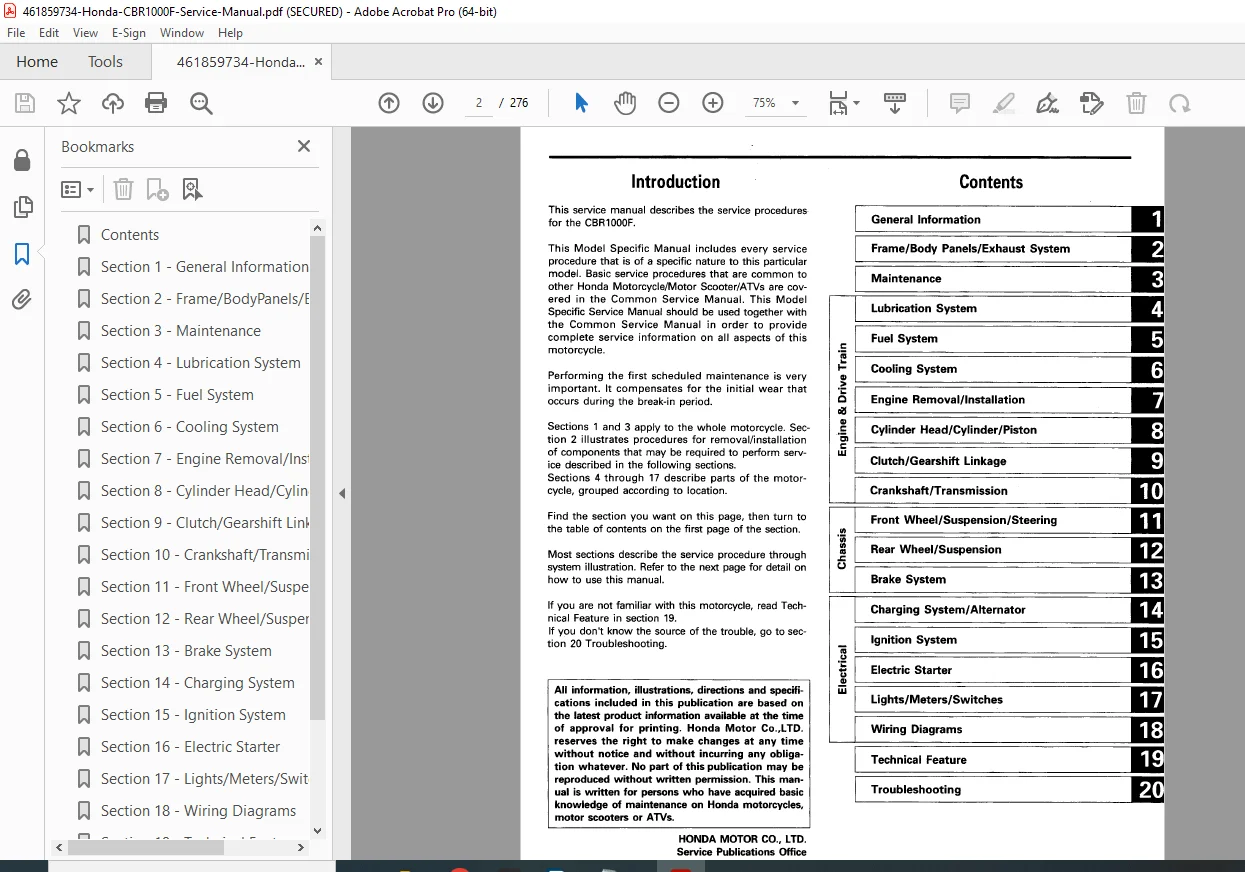

The Honda CBR1000F (Hurricane) Service Manual is the original factory-issued repair reference for the CBR1000F SC21/SC24 series. Covering both European and North American versions, this manual provides in-depth service, overhaul, and troubleshooting procedures, including complete electrical diagrams and specifications for all major systems.
Publication includes Addendum Section 21 (CBR1000FS) for later-year updates and model revisions
Table of Contents (Main Sections)
| Section | Contents |
|---|---|
| 1. General Information | Safety precautions, VIN locations, service specifications, special tools, torque values, lubrication, and sealant usage. |

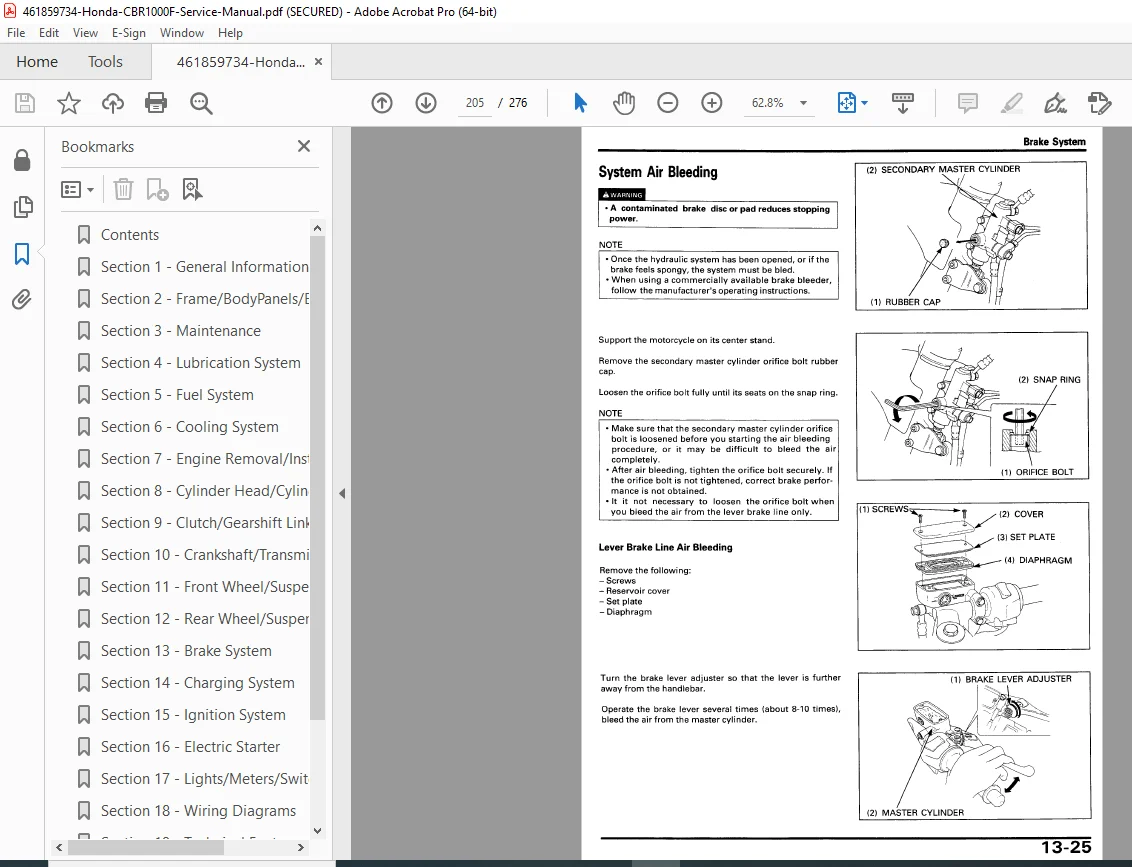

| 2. Frame / Body Panels / Exhaust System | Fairing, fuel tank, seat, exhaust removal, and installation procedures. |
| 3. Maintenance | Scheduled inspection charts, oil and filter change, valve clearance, chain slack, and brake fluid renewal. |
| 4. Lubrication System | Oil pump inspection, pressure testing, and strainer replacement. |
| 5. Fuel System | Carburetor disassembly (Keihin), float height (7.5 ± 0.5 mm), synchronization, air cut valve service, and choke mechanism. |
| 6. Cooling System | Radiator, thermostat, water pump service, fan motor, and coolant replacement. |
| 7. Engine Removal / Installation | Engine mounting, alignment, and torque sequences. |
| 8. Cylinder Head / Cylinder / Piston | Camshaft timing, valve lapping, piston clearance, ring end gap, and compression ratios (10.5:1). |
| 9. Clutch / Gearshift Linkage | Multi-plate clutch service, spring height, and shift drum assembly. |
| 10. Crankshaft / Transmission | Primary drive, bearing replacement, and gearbox reassembly. |
| 11. Front Wheel / Suspension / Steering | Fork oil levels, seal replacement, bearing preload, and steering head torque. |
| 12. Rear Wheel / Suspension | Swingarm pivot adjustment, shock absorber removal, and linkage lubrication. |
| 13. Brake System | Hydraulic service, pad replacement, bleeding, and master cylinder overhaul. |
| 14. Charging System | Stator, rectifier/regulator tests, and alternator resistance checks. |
| 15. Ignition System | CDI ignition troubleshooting, spark plug testing, and pulse generator inspection. |
| 16. Electric Starter | Starter motor disassembly, brush inspection, and relay testing. |
| 17. Lights / Meters / Switches | Headlight, indicators, horn, instrument cluster service. |
| 18. Wiring Diagrams | Full-color electrical schematics with connector layouts. |
| 19. Technical Features | Engine design updates, lubrication circuits, and cooling flow diagrams. |
| 20. Troubleshooting | Systematic diagnosis for hard starting, poor performance, oil leaks, and electrical faults. |
| 21. CBR1000F(S) Addendum | Revisions for later models (1994–1996): ignition timing, carb specs, jetting, emissions, and ECU updates. |
⚙️ Technical Specifications
| Component | Specification |
|---|---|
| Engine Type | 998 cc, DOHC, 16-valve inline-4 |
| Bore × Stroke | 77.0 × 53.6 mm |
| Compression Ratio | 10.5:1 |
| Carburetors | 4 × Keihin CV (36 mm) |
| Ignition System | Digital CDI |
| Transmission | 5-speed constant mesh |
| Final Drive | Chain (530 O-ring) |
| Oil Capacity | 3.6 liters |
| Cooling System | Liquid-cooled with thermostat control |
| Front Suspension | Telescopic fork (41 mm) |
| Rear Suspension | Pro-Link monoshock |
| Front Brakes | Dual hydraulic discs |
| Rear Brake | Single hydraulic disc |
| Tire Sizes | F: 120/70ZR17 — R: 160/70ZR17 |
| Dry Weight | 235 kg |
| Fuel Tank Capacity | 21 liters |
| Power Output | Approx. 130 hp @ 10,000 rpm |
Key Features
✅ Step-by-step factory repair procedures
✅ Complete engine teardown and rebuild guides
✅ Wiring and color electrical schematics
✅ Torque and clearance tables for every assembly
✅ Addendum for late-model CBR1000F(S) updates
File Details
| Field | Description |
|---|---|
| Manual Name | Honda CBR1000F Service Repair Manual |
| Models Covered | CBR1000F (SC21 / SC24) |
| Years | 1987–1996 |
| Publisher | Honda Motor Co., Ltd. |
| Language | English |
| Pages | 276 |
| Format | |
| Quality | OEM scan, fully searchable |
