Honda Outboard Motor BF20 BF2A Service Repair Manual 66ZV001 – PDF DOWNLOAD

Description

Honda Outboard Motor BF20 BF2A Service Repair Manual 66ZV001 – PDF DOWNLOAD

FILE DETAILS:

Honda Outboard Motor BF20 BF2A Service Repair Manual 66ZV001 – PDF DOWNLOAD

Language : English
Pages : 60
Downloadable : Yes
File Type : PDF
Size: 2 MB

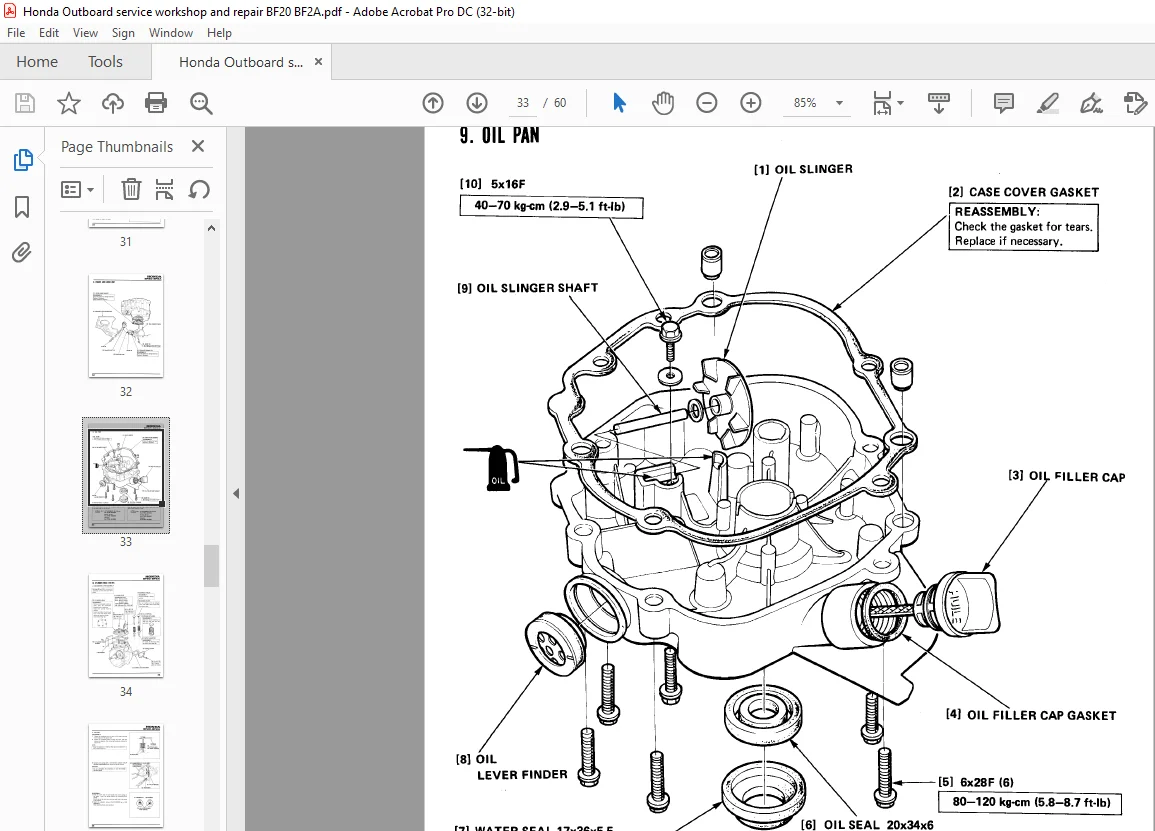

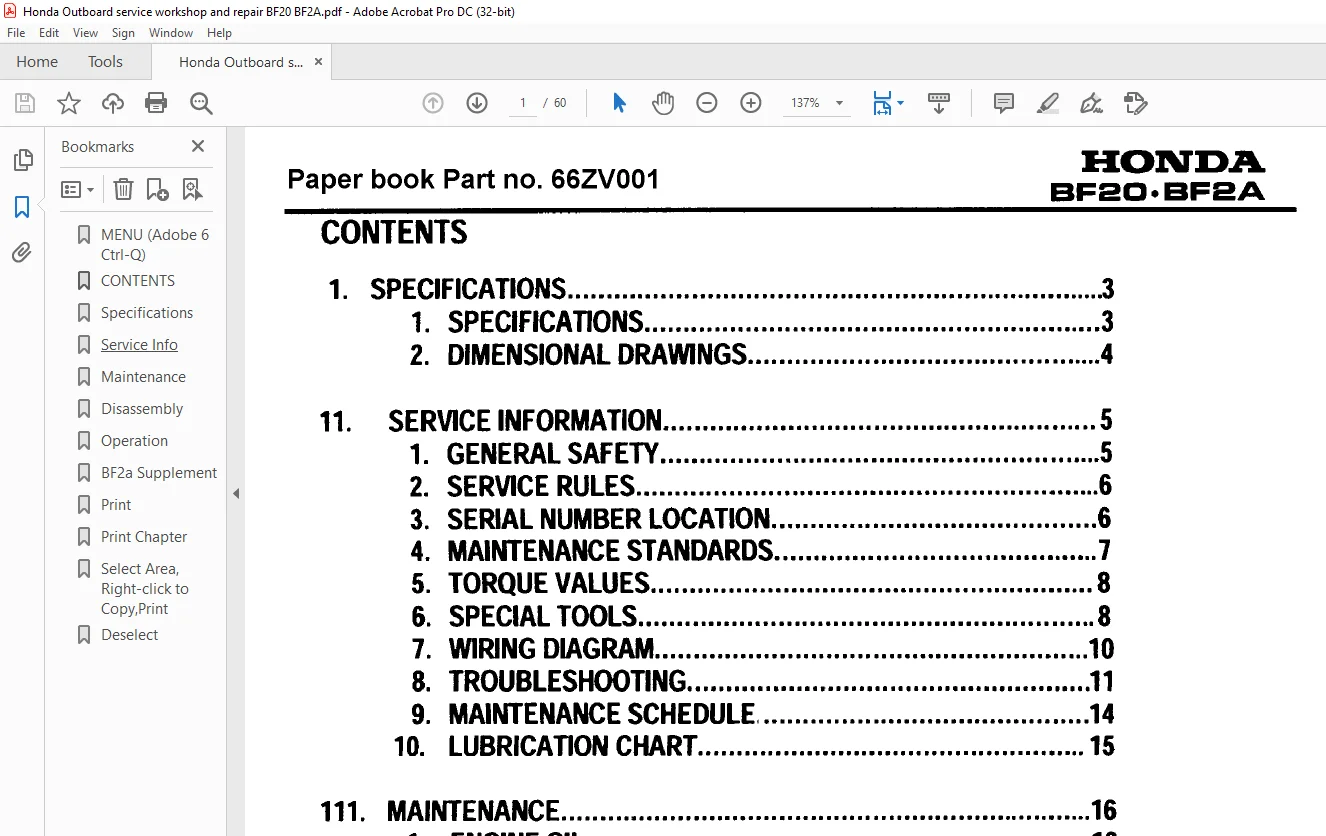

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Honda Outboard Motor BF20 BF2A Service Repair Manual 66ZV001 – PDF DOWNLOAD

PREFACE:

This manual covers construction, function and servicing procedures of Honda BF20· BF2A outboard motors. Careful observance of these instructions will result in better, safer service work.

SERVICE RULES:
1. Use genuine Honda or Honda-recommended parts and lubricants or their equivalents. Parts that do not meet Honda’s
design specifications may damage the unit.
2. Use the special tools designed for the product.
3. Install new gaskets, O-rings, etc. when reassembling.
4. When torquing bolts or nuts, begin with larger-diameter or inner bolts first and tighten to the specified torque diagonally,
unless a particular sequence is specified.
5. Clean parts in cleaning solvent upon disassembly. Lubricate any sliding surface before reassembly.
6. After reassembly, check all parts for proper installation and operation.
7. Many screws used in this machine are self-tapping. Be aware that cross-threading or overtightening these screws will strip
the female threads and ruin the hole.
8. Use only metric tools when servicing this unit. Metric bolts, nuts and screws are not interchangeable with nonmetric fasteners.
The use of incorrect tools and fasteners may damage the unit.

TABLE OF CONTENTS:

Honda Outboard Motor BF20 BF2A Service Repair Manual 66ZV001 – PDF DOWNLOAD

1 SPECIFICATIONS 3
1 SPECIFICATIONS 3
2 DIMENSIONAL DRAWINGS 4
11 SERVICE INFORMATION 5
1 GENERAL SAFETY 5
2 SERVICE RULES &
3 SERIAL NUMBER LOCATION 6
4 MAINTENANCE STANDARDS 7
5 TORQUE VALUES 8
6 SPECIAL TOOLS 8
7 WIRING DIAGRAM 10
8 TROUBLESHOOTING 11
9 MAINTENANCE SCHEDULE 14
10 LUBRICATION CHART 15
111 MAINTENANCE 16
1 ENGINE OIL 16
2 GEAR OIL 11 ·············································17
3 SPARK PLUG 11 ·······················································17
4 COMBUSTION CHAMBER 18
5 VALVE CLEARANCE 19
6 CARBURETOR 20
1V DISASSEMBLY AND SERVICE 21
1 DISASSEMBLY CHART 21
2 ENGINE COVER/RECOIL STARTER
STEERING HANDLE I I I I I I ■122
3 FUEL TANK , 125
4 THROTTLE CABLE / CHOKE ROD 26
5 FAN COVER / EXHAUST PIPE PROTECTOR 27
6 FL VWHEEL / IGNITION COIL 28
7 CARBURETOR 30
8 ENGINE AND LOWER UNIT 32
9 OIL PAN 11 ···································33
10 CYLINDER HEAD/ VALVES 34
11 PISTON / CRANKSHAFT/ CYLINDER 40
12 STERN BRAKET / EXTENSION CASE 46
13 GEAR CASE/ VERTICAL SHAFT WATER PUMP 48
V OPERATION ········· 1 ··51
1 TRANSISTORIZED IGNITION SYSTEM 51
2 EXHAUST SYSTEM 52
BF2 SUPPLEMENT 54 – 59
