HP DesignJet T730 / T830 MFP Service Manual PDF — Repair & Diagnostics

Description

HP DesignJet T730 / T830 MFP Service Manual Repair & Diagnostics PDF DOWNLOAD

Description

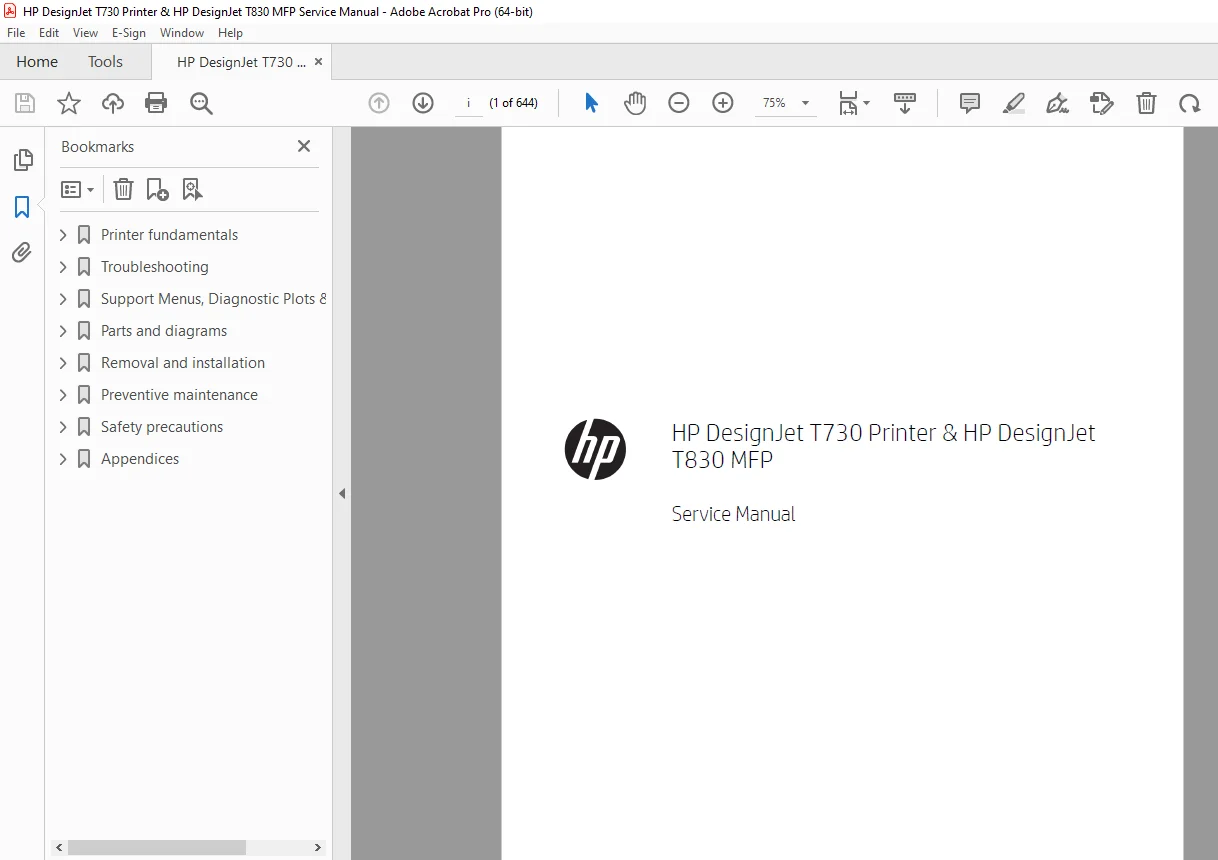

This official HP DesignJet T730 / T830 Service Manual (Edition 9 — Oct 2020, 643 pages) provides complete factory-level diagnostics, repair procedures, wiring references, and maintenance instructions for the HP T730 Printer and HP T830 Multifunction Printer (24-inch & 36-inch variants).

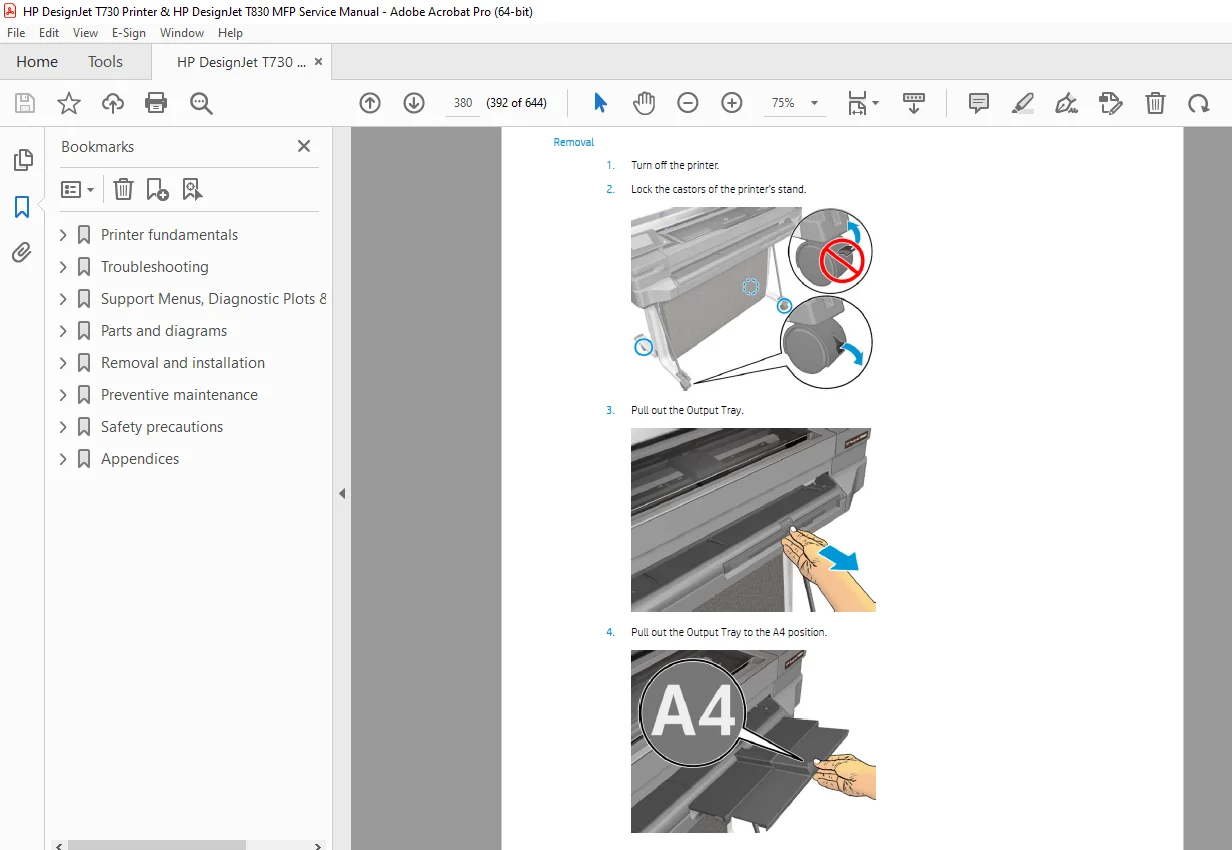

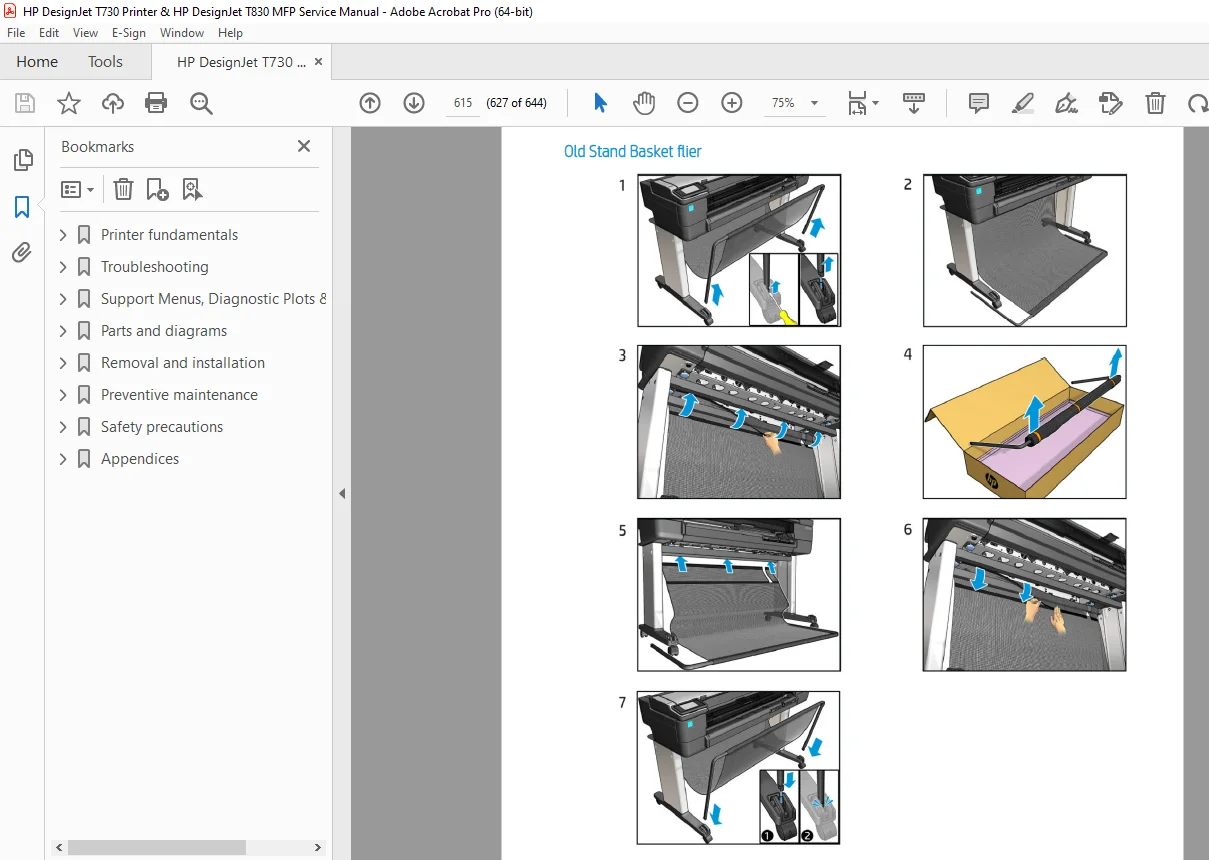

The manual includes detailed step-by-step procedures with diagrams, exploded assemblies, troubleshooting trees, and service part replacement instructions — essential for technicians, plotter repair shops, and large-format service engineers.

It covers:

• system overview & service approach

• diagnostic tests and service menus

• error messages & failure isolation

• disassembly / reassembly procedures

• firmware & NVM resets

• ink delivery system servicing

• carriage, belt & drive system repairs

• paper path & sensors

• formatter / electronics module

• preventive maintenance routines

For T830 MFP models, it also includes:

• scanner & CIS calibration

• ADF / scanner carriage service

• glass & encoder cleaning

• copy / scan path diagnostics

📑 Structured Table of Contents / Major Sections

1️⃣ Troubleshooting & Diagnostics

• Service utilities & test prints

• Error codes & failure lookup

• Power-on self-test procedures

2️⃣ System Error Messages

• Carriage & encoder errors

• Formatter / ESD failures

• Ink delivery & IDS failures

• Paper path / sensor faults

3️⃣ Service Procedures

• Removal & installation (step-by-step)

• Covers & chassis components

• Power supply & formatter board

• Control panel & UI module

4️⃣ Carriage & Drive System

• Carriage assembly replacement

• Belt service & alignment

• Encoder strip cleaning

• Printhead servicing

5️⃣ Ink Delivery System (IDS)

• Ink tube system

• Pump & pressure checks

• Priming & purging

6️⃣ Media & Paper Path

• Roll feed & spindle

• Cutter module

• Star wheels & path sensors

7️⃣ Scanner / ADF (T830 Only)

• Scanner disassembly

• CIS & lamp alignment

• ADF feeds & rollers

• Calibration procedures

8️⃣ Preventive Maintenance

• Service intervals

• Lubrication points

• Wear component checks

9️⃣ Parts & Assembly Information

• Exploded diagrams

• Replaceable FRUs

• Part references & naming
