HP PageWide Enterprise Color 765, MFP 780/785, E77650/60 Service Manual PDF

Description

HP PageWide Enterprise Color 765, MFP 780/785, E77650/60 Service Manual PDF DOWNLOAD

Description:

The Ultimate Repair Guide for Enterprise Printing

This is the definitive Service Manual: Repair for the entire HP PageWide Enterprise Color and Managed Color fleet. Covering over a dozen high-volume models, this 2,400-page document is the exact resource used by HP-certified field engineers to service, repair, and maintain these complex office multifunction printers.

Whether you are replacing a printhead wiper, servicing the inline finisher, or troubleshooting a paper jam in the duplex path, this manual provides the step-by-step instructions—often linked to instructional videos—to ensure the job is done correctly.

Comprehensive Service Coverage:

This manual is exhaustively detailed, covering every screw, sensor, and circuit board. Key sections include:

• Removal and Replacement Procedures (Base Printer)

  • Covers & Doors: Safe removal of Front, Rear, Left, and Right covers.

  • Internal Assemblies: Servicing the Main Drive, Power Supply, and Hard Disk Drive (HDD).

  • Paper Path: Pickup Roller, Separation Pad, and Feed Assembly replacement for Trays 2, 3, 4, and 5.

  • Print Bar & Ink System: Procedures for the Printhead Wiper, Service Sled, and Ink Cartridge latches.

• Finisher & Accessory Repair

  • Inline Finisher: Complete disassembly of the Upper Bin, Stapler unit, and Output Rollers.

  • Floor Standing Finisher: Servicing the stacker, booklet maker, and hole punch modules.

  • HCI (High Capacity Input): Repairing the 4000-sheet HCI feeders and lift motors.

• Parts & Diagrams

  • Exploded Views: Detailed visual breakdowns of the Scanner, ADF (Automatic Document Feeder), and Printer Base.

  • Part Numbers: Comprehensive lists for ordering specific gears, motors, cables, and PCAs.

• Sensors & Electronics

  • TBODD: Through-Beam Optical Drop Detect sensor replacement.

  • Motors: Servicing the Upper Bin Motor, Carriage Motor, and Lift Motors.

Key Features:

• Video Links: Includes URLs to official HP support videos for complex procedures.

• Multi-Model Coverage: One manual covers the entire 700-series PageWide family (Enterprise & Managed).

• Index: A massive, searchable index to instantly find components like “Top Lower Feed Assembly” or “Vertical Cable Cover.”

Product Details:

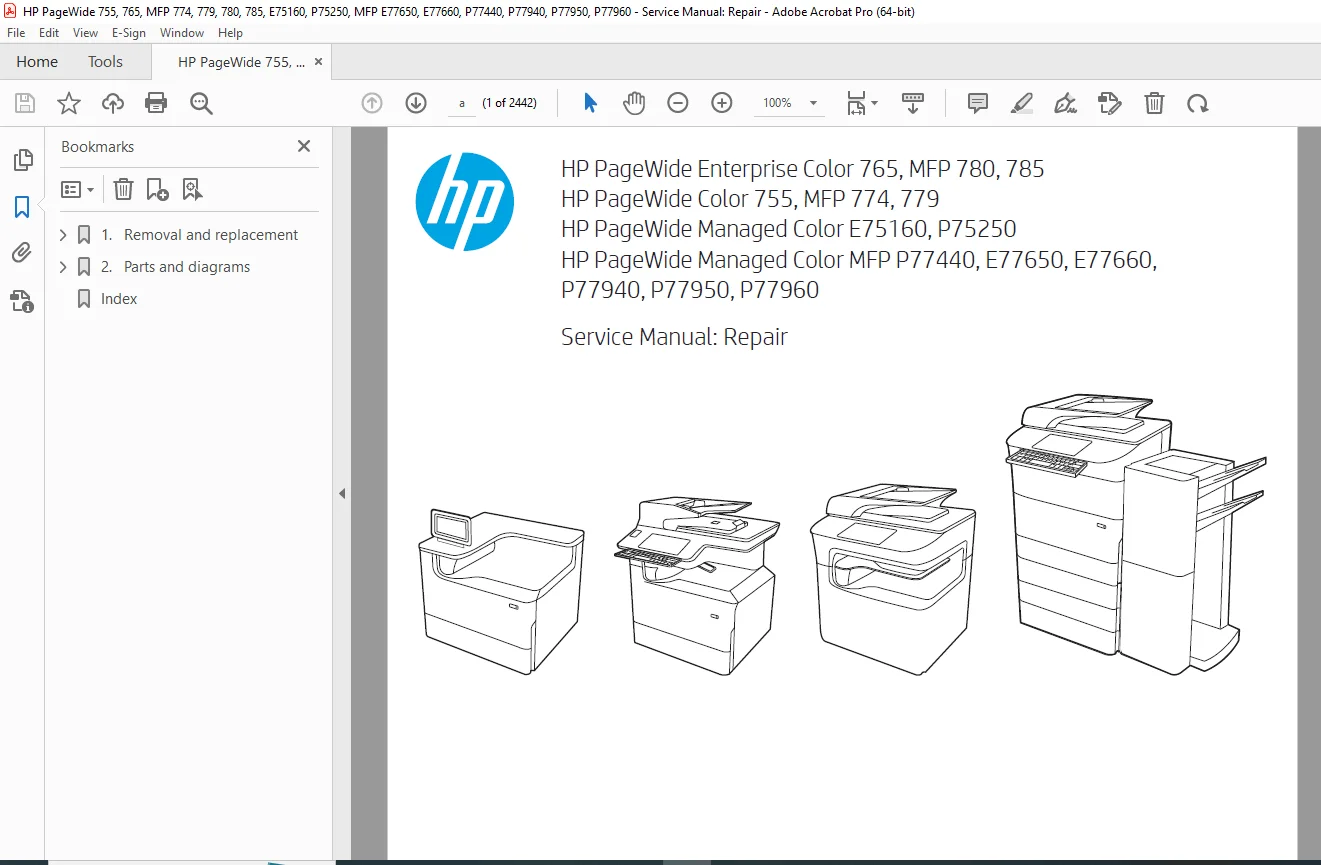

• Manual Name: HP PageWide Enterprise/Managed Color Service Manual: Repair

• Models Covered:

  • Enterprise: 765, MFP 780, MFP 785

  • Managed: E75160, P75250, MFP P77440, E77650, E77660, P77940, P77950, P77960, HP PageWide Color 755, MFP 774, 779

• Year: Modern (Current Generation)

• File Type: PDF (Portable Document Format)

• File Quality: High-Quality / Searchable Text

• Number of Pages: 2442 Pages

Don’t pay for an expensive service contract. Download this comprehensive master guide today and get the factory-level instructions you need to maintain your entire fleet of HP PageWide printers in-house!
