Husqvarna SC18 Sod Cutter Workshop Service Manual – PDF DOWNLOAD

Description

Husqvarna SC18 Sod Cutter Workshop Service Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:39
DOWNLOADABLE:YES
FILE TYPE:PDF

DESCRIPTION:

Husqvarna SC18 Sod Cutter Workshop Service Manual

GENERAL INFORMATION:

This information will assist you in the safe operation and proper maintenance of your Husqvarna equipment. Read it thoroughly before attempting to operate the machine. Do not hesitate to call your dealer or Husqvarna if additional information is required. This equipment should not be modified without the manufacturer’s prior written authorization. Doing so without our written permission may not only affect the equipment’s performance and durability, but also create safety hazards for the operator and the surroundings. Warranty will be void if changes are made to the equipment without the manufacturer’s prior written authorization.

SOD CUTTING:

Sod cutting cuts out existing sod by slicing a layer of soil with the grass and roots so it can be rolled up and removed. Some applications could be for replacing a type of grass, turf removal, adding a sidewalk or pathway, installing swimming pools or laying pipes or sprinklers. The usual cutting depth is about 1 1/2 inches but can be used as deep as 2 1/2 inches. This application is ideal for brick laying. The advantage in using a sod cutter is that it does not disturb the soil beneath the cut.

PRODUCT FEATURES:

Husgvarna’s Sod Cutter has a four-speed transmission (two for cutting) with power reverse. The cutting path is 18 inches wide. Low speed will cut 175 ft /min while second gear will cut 250 ft/min. The construction is of 7-gauge steel with l0-inch tractor tires and four-wheel drive. The unit comes fully assembled except for the handle.

TABLE OF CONTENTS:

Husqvarna SC18 Sod Cutter Workshop Service Manual

Introduction 3
Features & Controls 6
Operating Instructions, Safety & Maintenance 7
Specifications & Tools 13
Main Frame
1 Handle Attachment 14
2 Throttle Cable Adjustment 15
Power Train
1 Axle Sprocket Location 16
2 Belt Keeper 16
3 Chain Idler 16
4 Chain Routing & Adjustment 17
5 Engine Removal 17
6 Upper Pulley Location 18
7 Sprocket Location 18
8 Transmission Adjustment & Replacement 19
Blade Drive
1 Blade Drive Assembly 20
2 Belt Tension 20
3 Blade Arm Replacement 21
4 Lower Pulley 21
5 Bearing & Lock Collar 22
6 “T” Drive Replacement 23
Depth Control
1 Depth Control 30
Illustrated Parts Lists 31
Troubleshooting 35

HUSQVARNA SC18 SOD CUTTER WORKSHOP SERVICE MANUAL – PDF DOWNLOAD:

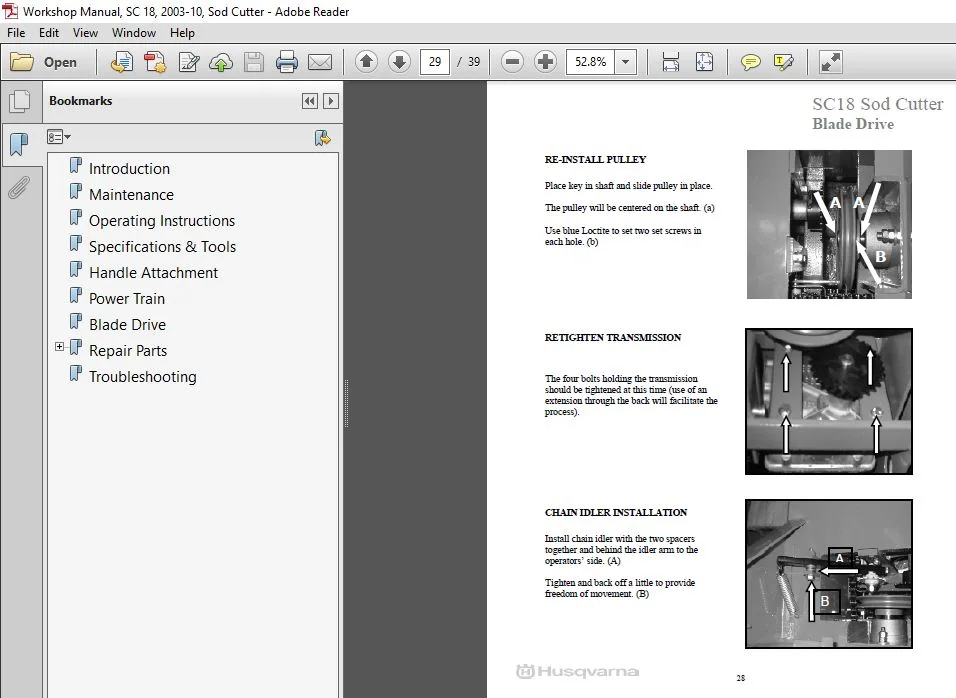

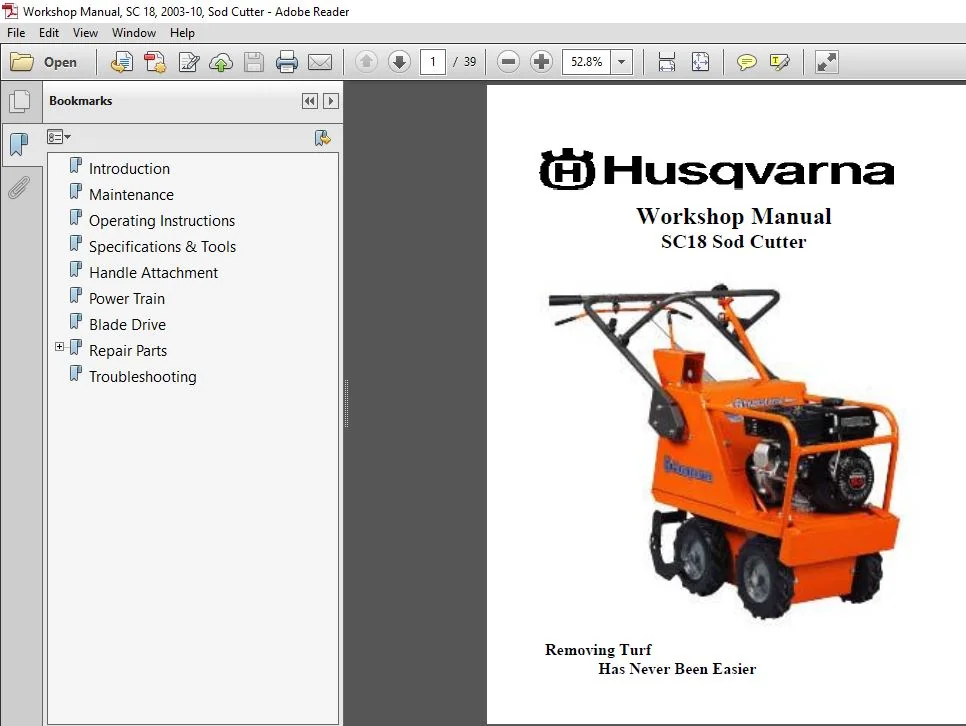

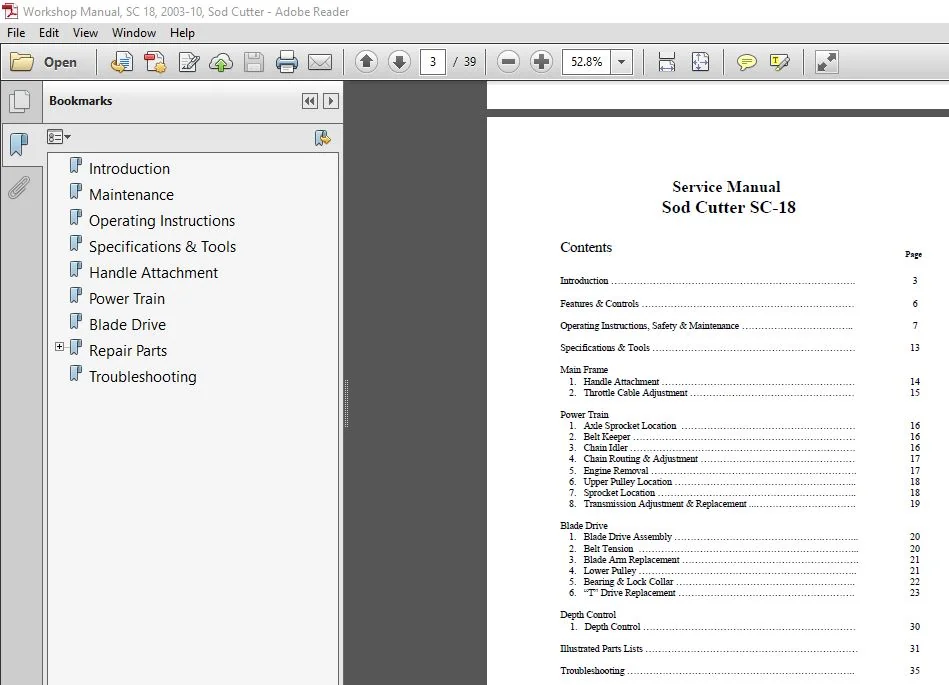

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
