Hypertherm Powermax30 XP Plasma Cutter Service Manual (808150) – PDF
Original price was: $95.00.$18.95Current price is: $18.95.
Complete Hypertherm Powermax30 XP Service Manual (Manual 808150, Rev 1, English). Includes specifications, power supply setup, torch setup (Duramax LT), operating procedures, detailed troubleshooting & system tests, step-by-step power supply and torch component replacement, parts lists, and wiring diagrams/schematics. Ideal for repair shops and serious DIY diagnostics.
Description

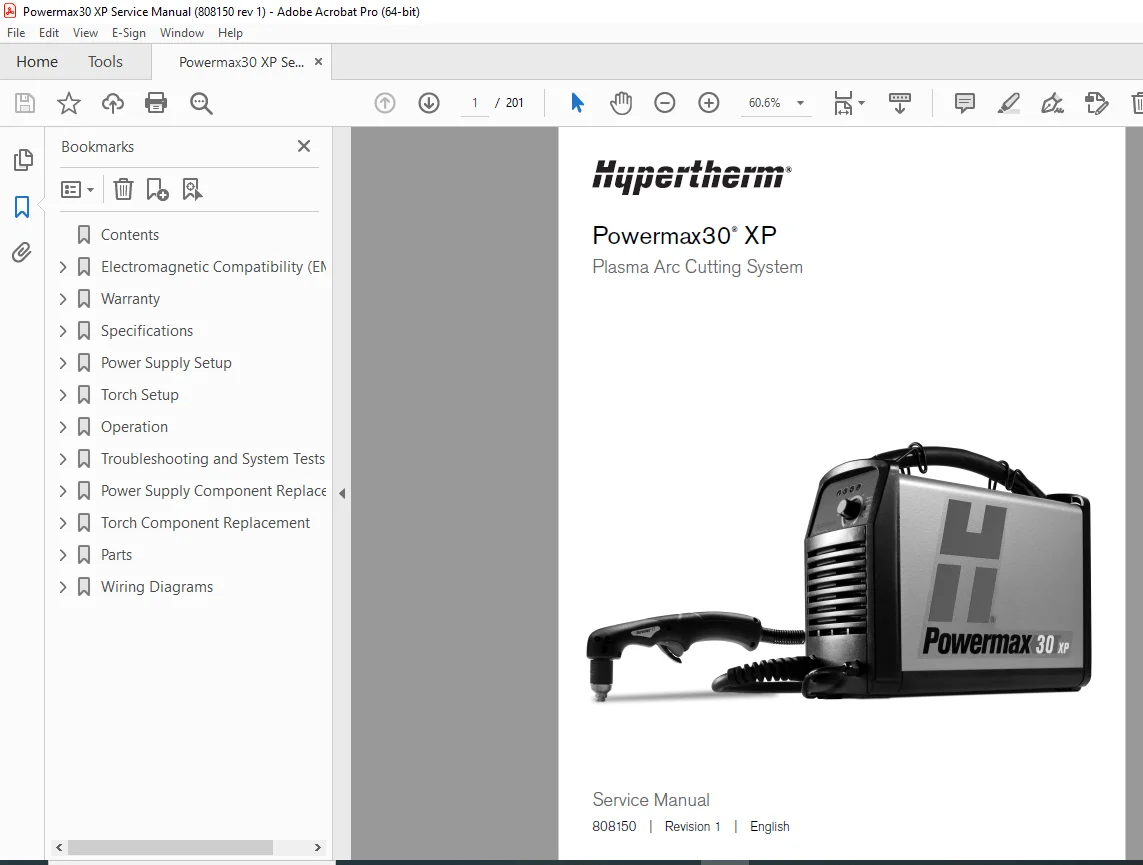

Hypertherm Powermax30 XP Plasma Cutter Service Manual (808150) – PDF DOWNLOAD
Description
If you’re repairing or diagnosing a Hypertherm Powermax30 XP plasma cutter, this is the manual you want on your bench. It’s a true service manual—loaded with specs, test procedures, indicator/LED guidance, teardown/replacement steps, parts lists, and wiring diagrams to get you from “faulty” to “fixed” fast.
✅ What This Manual Covers (Organized)
Section 1 – Specifications
System ratings, duty cycle, air/gas requirements
Cutting capability guidance and key dimensions
Section 2 – Power Supply Setup
Electrical setup and grounding requirements
Recommended extension cord/generator guidance
Air supply setup, filtration, and regulator notes
Section 3 – Torch Setup (Duramax LT)
Torch components overview
Consumable selection guidance (general-purpose vs FineCut)
Cut charts + tips for cleaner cuts and longer consumable life
Section 4 – Operation
Controls and indicator/LED behavior
Start-up, air flow checks, and setup tips
Ground clamp best practices
Section 5 – Troubleshooting and System Tests
Troubleshooting sequence and theory of operation
Control board LEDs and fault indicator behavior
Step-by-step system tests (input power checks, board tests, fan/solenoid checks, pressure-related checks, start circuit checks, etc.)

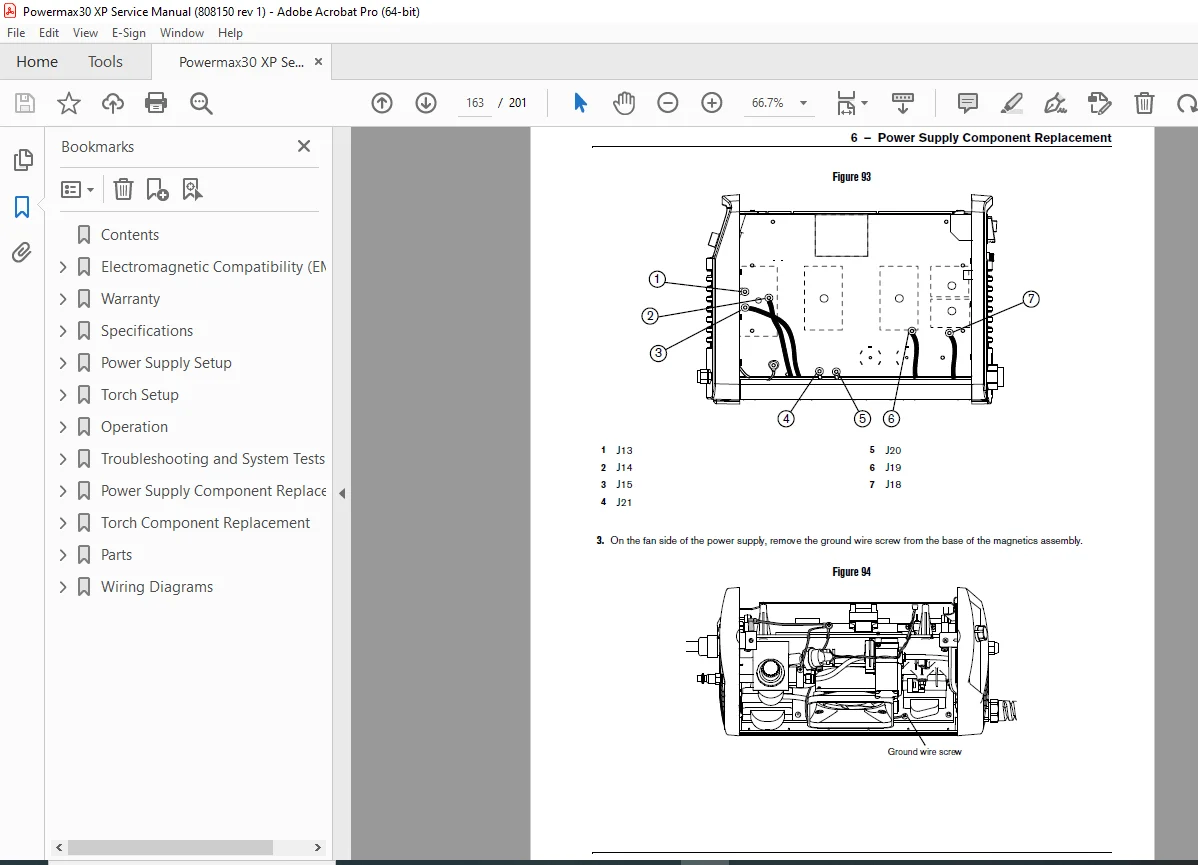

Section 6 – Power Supply Component Replacement
Covers/panels removal and access steps
Replacement procedures for key components such as:
Power cord/switch
Boards, fan, solenoid/regulator-related items
Work lead/ground clamp and internal assemblies
Section 7 – Torch Component Replacement
Handle, trigger, torch body components
Sensor/switch components and torch lead replacement basics
Section 8 – Parts
Power supply parts breakdown
Duramax LT torch parts and consumables
Accessory parts and recommended spares
Section 9 – Wiring Diagrams
Timing chart
Complete Powermax30 XP schematic / wiring diagrams
📋 File Details
| Item | Details |
|---|---|
| Manual Name | Hypertherm Powermax30 XP Service Manual |
| Models Covered | Powermax30 XP (Plasma Arc Cutting System) |
| Year | March 2014 (Revision 1) |
| PDF Quality | Clear service manual with diagrams/schematics |
| Pages | 201 |
⚠️ Quick Note (1–2 balanced negatives)
This is a service/repair manual (not just an operator quick-start).
Focused specifically on Powermax30 XP, not the entire Powermax lineup
Stop guessing—use proper test procedures, replacement steps, and schematics to repair it confidently. Instant download—start troubleshooting your Powermax30 XP today.
