Hyster C80ZHD (A282) C60ZHD (A373) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster C80ZHD (A282) C60ZHD (A373) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The callouts correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 7-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 7-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Supersession Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (FFigure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
TABLE OF CONTENTS:
Hyster C80ZHD (A282) C60ZHD (A373) Parts Manual – PDF DOWNLOAD
FRAME/DRIVE UNIT........................................... 13 TRACTION MOTOR INSTALLATION............................ 16 TRACTION MOTOR ASSEMBLY................................ 18 DRIVE WHEEL AND TIRE AND STATIC STRAP.................. 20 BATTERY RETENTION...................................... 21 BATTERY ROLLER ASSEMBLY................................ 22 COVERS AND FLOORMAT.................................... 24 DECALS................................................. 26 MASTER DRIVE UNIT ASSEMBLY AND ATTACHING PARTS......... 28 MASTER DRIVE UNIT STEERING PARTS....................... 29 MASTER DRIVE UNIT CARRIER.............................. 30 MASTER DRIVE UNIT HOUSING.............................. 31 MASTER DRIVE UNIT DRIVE................................ 32 MASTER DRIVE UNIT OUTPUT............................... 33 MASTER DRIVE UNIT TURNTABLE BEARING.................... 34 ELECTRICAL SYSTEM.......................................... 35 ELECTRICAL............................................. 38 DASH DISPLAY........................................... 40 HIGH SPEED FOOT PEDAL.................................. 42 BATTERY DISCONNECT..................................... 44 CONTROL MODULE AND ATTACHING HARDWARE.................. 45 EE CONTACTOR ASSEMBLY.................................. 46 WIRE HARNESS MAIN...................................... 48 WIRE HARNESS MAIN - ALTERNATE PART, PAGE 1 OF 2 ....... 52 WIRE HARNESS MAIN - ALTERNATE PART, PAGE 2 OF 2 ....... 54 WIRE HARNESS TILLER HANDLE............................. 56 WIRE HARNESS PUSH BUTTON............................... 58 WIRE HARNESS RF TERMINAL............................... 60 WIRE HARNESS STROBE LIGHT.............................. 62 WIRE HARNESS FOOT SWITCH............................... 63 JUMPER HARNESS PARK BRAKE SWITCH....................... 64 STEER HANDLE/BRAKE SYSTEM.................................. 65 TILLER HEAD ASSEMBLY................................... 68 PARKING BRAKE ASSEMBLY................................. 72 THROTTLE SWITCH ASSEMBLY............................... 74 TILLER HANDLE STANDARD - 17 INCH ...................... 76 TILLER HANDLE STANDARD - 25 INCH ...................... 77 TILLER HANDLE QUICK PICK - 17 INCH .................... 78 TILLER HANDLE QUICK PICK - 25 INCH .................... 79 TILLER ARM ASSEMBLY.................................... 80 BRAKE ASSEMBLY A282.................................... 82 BRAKE ASSEMBLY A373.................................... 83 LIFT LINKAGE AND FORKS..................................... 85 LIFT LINKAGE........................................... 88 LOAD WHEELS SINGLE WHEEL, TWO BEARINGS................. 91 LOAD WHEELS SINGLE WHEEL, TWO BEARINGS - SEALED ....... 92 LOAD WHEELS SINGLE WHEEL, FOUR BEARINGS................ 93 LOAD WHEELS SINGLE WHEEL, FOUR BEARINGS - SEALED ...... 94 LOAD WHEELS DUAL WHEEL, 2 BEARINGS..................... 95 LOAD WHEELS DUAL WHEEL, 4 BEARINGS..................... 96 LOAD WHEELS TANDEM ASSEMBLY, LUBED BEARING - A283 ..... 97 LOAD WHEELS TANDEM ASSEMBLY, SEALED BEARING - A283 .... 98 CASTER ASSEMBLY........................................100 ENTRY ROLLER...........................................102 FORK TIP SKID..........................................103 HYDRAULIC SYSTEM...........................................105 HYDRAULIC POWER UNIT...................................108 LIFT CYLINDER ASSEMBLY.................................110 OPTIONS....................................................111 RF TERMINAL............................................114 VISUAL ALARM...........................................116 AUDIBLE ALARM..........................................118 CONVENIENCE TRAY WITHOUT LOAD BACKREST EXTENSION.......119 OPERATOR TRAY..........................................120 PREMIUM BACK PAD.......................................122 NUMERICAL INDEX............................................125
HYSTER C80ZHD (A282) C60ZHD (A373) PARTS MANUAL – PDF DOWNLOAD:

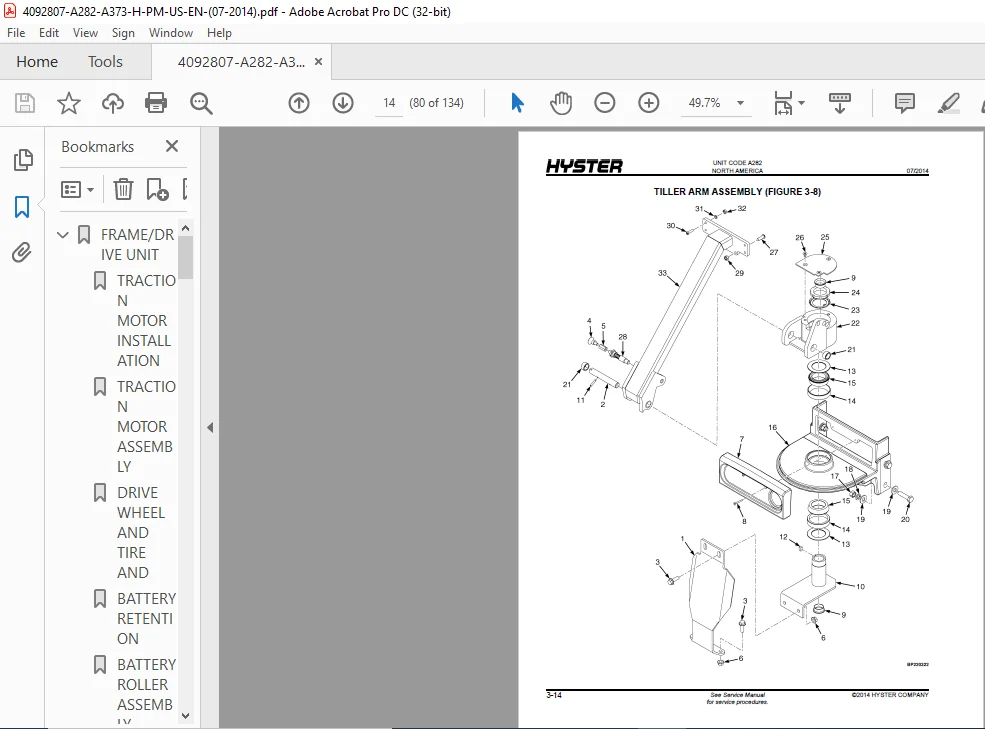

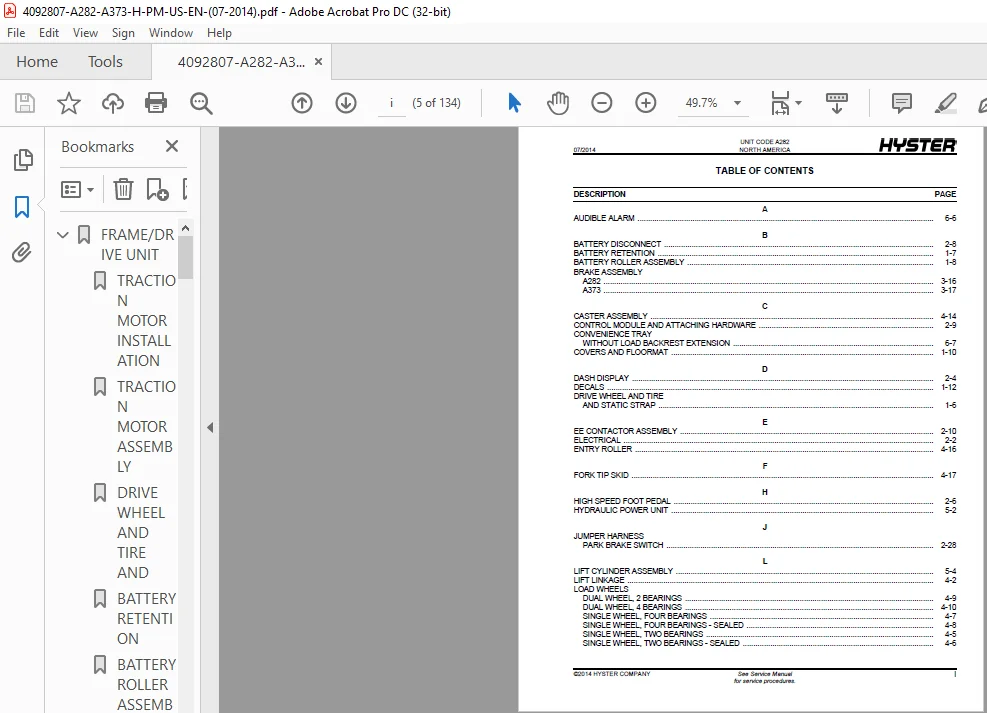

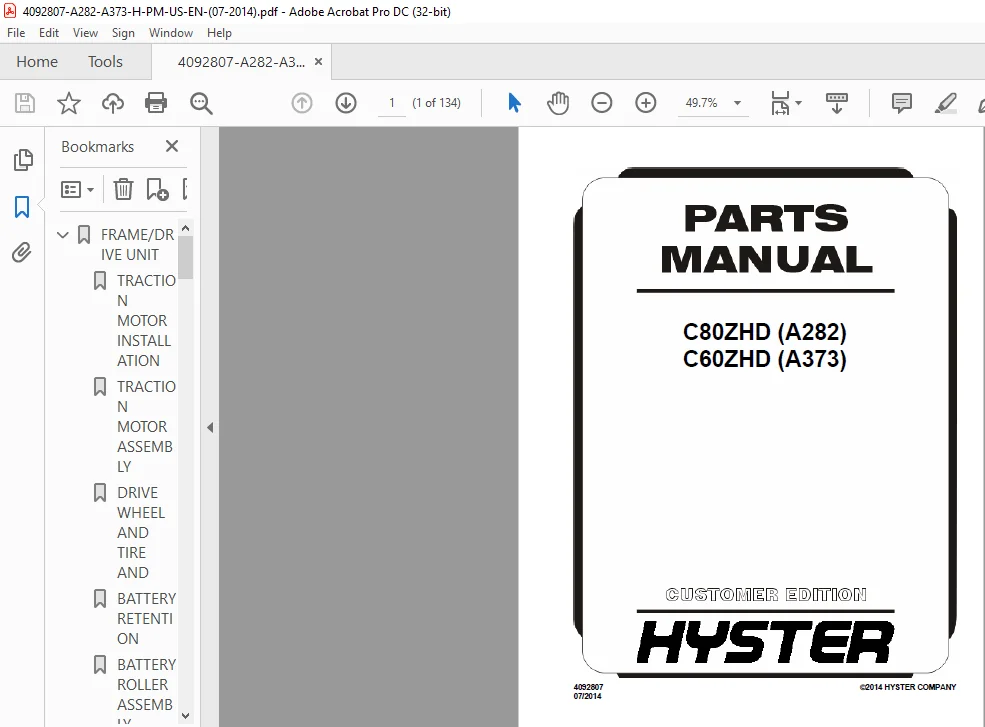

IMAGES PREVIEW OF THE MANUAL:
