Hyster CHALLENGER H135-155XL (F006) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster CHALLENGER H135-155XL (F006) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, sub-assemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The call outs correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 12-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 12-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Super session Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (Figure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
TABLE OF CONTENTS:
Hyster CHALLENGER H135-155XL (F006) Parts Manual – PDF DOWNLOAD
Frame............................................................................................................................ 21 GENERAL TRUCK................................................................................................................ 24 SEMI-SUSPENSION SEAT......................................................................................................... 26 FULL SUSPENSION SEAT SHEET 1 OF 2 (S/N F006D06224Y →) ...................................................................... 30 FULL SUSPENSION SEAT SHEET 2 OF 2 (S/N F006D06224Y →) ...................................................................... 34 HOOD......................................................................................................................... 36 COWL AND FLOOR PLATES........................................................................................................ 38 LABELS AND PAINT............................................................................................................. 42 OVERHEAD GUARD............................................................................................................... 46 OVERHEAD GUARD............................................................................................................... 48 COUNTERWEIGHT................................................................................................................ 50 LOAD BACKREST EXTENSION...................................................................................................... 52 ENGINE ASSEMBLY.................................................................................................................. 53 ENGINE MOUNT................................................................................................................. 58 ENGINE MOUNT................................................................................................................. 60 FLYWHEEL..................................................................................................................... 62 FLYWHEEL..................................................................................................................... 64 EXHAUST WITH CAB............................................................................................................. 66 EXHAUST WITHOUT CAB.......................................................................................................... 70 COOLING GASOLINE AND LPG (→ S/N F006D02202) ................................................................................ 74 COOLING GASOLINE AND LPG (S/N F006D02203 →) ................................................................................ 78 SERPENTINE BELT DRIVE GASOLINE AND LPG (S/N F006D02947 → INC. 2960, 2976 EXC. 2936) ........................................ 82 CYLINDER BLOCK GASOLINE AND LPG - 1986 THRU 1989 SERIES ENGINE .............................................................. 86 CYLINDER BLOCK GASOLINE AND LPG - 1990 THRU 1991 SERIES ENGINE (→ S/N F006A07082) ......................................... 90 CYLINDER BLOCK GASOLINE AND LPG - 2KM 1992 SERIES ENGINE (S/N F006A07083 →) ............................................... 94 CYLINDER BLOCK GASOLINE AND LPG - 3KM 1993 SERIES ENGINE .................................................................... 98 CYLINDER BLOCK GASOLINE AND LPG - 4LM 1994 SERIES ENGINE ....................................................................100 CYLINDER BLOCK GASOLINE AND LPG - 5LM 1995 SERIES ENGINE ....................................................................102 CYLINDER BLOCK GASOLINE AND LPG - 1996 THRU 1999 SERIES ENGINES .............................................................106 CYLINDER BLOCK GASOLINE AND LPG - 2000 SERIES ENGINE ........................................................................110 CYLINDER HEAD GASOLINE AND LPG - 1986 THRU 1989 SERIES ENGINE ...............................................................114 CYLINDER HEAD GASOLINE AND LPG - 1990 THRU 1991 SERIES ENGINE (→ S/N F006A07082) ..........................................118 CYLINDER HEAD GASOLINE AND LPG - 2KM 1992 SERIES ENGINE .....................................................................122 CYLINDER HEAD GASOLINE AND LPG - 3KM 1993 SERIES ENGINE .....................................................................126 CYLINDER HEAD GASOLINE AND LPG - 4LM 1994 SERIES ENGINE .....................................................................130 CYLINDER HEAD GASOLINE AND LPG - 5LM 1995 SERIES ENGINE .....................................................................132 CYLINDER HEAD GASOLINE AND LPG - 1996 THRU 1999 SERIES ENGINE ...............................................................134 CYLINDER HEAD GASOLINE AND LPG - 2000 SERIES ENGINE .........................................................................136 VALVE COVER AND INLET MANIFOLD GASOLINE AND LPG - 4LM 1994 SERIES ENGINE ....................................................138 VALVE COVER AND INLET MANIFOLD GASOLINE AND LPG - 5LM 1995 SERIES ENGINE ....................................................142 VALVE COVER AND INLET MANIFOLD GASOLINE AND LPG - 1996 THRU 1999 SERIES ENGINE ..............................................146 VALVE COVER AND INLET MANIFOLD GASOLINE AND LPG - 2000 SERIES ENGINE ........................................................150 CRANKSHAFT AND CAMSHAFT GASOLINE AND LPG - 1986 THRU 1989 SERIES ENGINE .....................................................154 CRANKSHAFT AND CAMSHAFT GASOLINE AND LPG - 1990 THRU 1991 SERIES ENGINE (→ S/N F006A07082) ................................158 CRANKSHAFT AND CAMSHAFT GASOLINE AND LPG - 2KM 1992 SERIES ENGINE (S/N F006A07083 →) ......................................162 CRANKSHAFT AND CAMSHAFT GASOLINE AND LPG - 3KM 1993 SERIES ENGINE ...........................................................166 CAMSHAFT AND OIL PAN GASOLINE AND LPG - 4LM 1994 SERIES ENGINE ..............................................................170 CAMSHAFT AND OIL PAN GASOLINE AND LPG - 5LM 1995 SERIES ENGINE ..............................................................172 CAMSHAFT AND OIL SUMP GASOLINE AND LPG - 1996 THRU 1999 SERIES ENGINE .......................................................174 CAMSHAFT AND OIL PAN GASOLINE AND LPG - 2000 SERIES ENGINE ..................................................................178 OIL PUMP GASOLINE AND LPG - 1986 THRU 1993 SERIES ENGINE ....................................................................182 OIL PUMP GASOLINE AND LPG - 1994 THRU 1995 SERIES ENGINE ....................................................................184 OIL PUMP GASOLINE AND LPG - 1996 THRU 2002 SERIES ENGINE ....................................................................186 COOLING DIESEL...............................................................................................................188 OIL FILTER DIESEL 4.248.2 (→ S/N F006A03039) ...............................................................................192 OIL FILTER DIESEL 1004.4 (S/N F006D01501 →) (S/N F006A03040 →) ............................................................194 CYLINDER BLOCK DIESEL 4.248.2 (→ S/N F006A03039) ...........................................................................196 CYLINDER BLOCK DIESEL 1004.4 (S/N F006A03040 →) (S/N F006D01501 ↔ S/N F006D04442) .........................................198 CYLINDER HEAD DIESEL 4.248.2 (→ S/N F006A03039) ............................................................................202 CYLINDER HEAD DIESEL 1004.4 (S/N F006A03040 →) (S/N F006D01501 ↔ S/N F006D04442) ..........................................204 CRANKSHAFT AND PISTON DIESEL 4.248.2 (→ S/N F006A03039) ....................................................................206 CRANKSHAFT AND PISTON DIESEL 1004.4 (S/N F006A03040 →) (S/N F006D01501 ↔ S/N F006D04442) ..................................208 TIMING GEAR DIESEL 4.248.2 (→ S/N F006A03039) ..............................................................................210 TIMING GEAR DIESEL 1004.4 (S/N F006D01501 →) (S/N F006A03040 ↔ S/N F006D04442) ............................................212 OIL PAN DIESEL 4.248.2 (→ S/N F006A03039) ..................................................................................214 OIL PAN DIESEL 1004.4 (S/N F006A03040 →) (S/N F006D01501 ↔ S/N F006D04442) ................................................218 VALVE COVER DIESEL 4.248.2 (→ S/N F006A03039) (→ S/N F006A01957) ..........................................................222 VALVE COVER DIESEL 4.248.2 (→ S/N F006A03039) (S/N F006D01501 →) (S/N F006A01958 →) ......................................224 VALVE COVER DIESEL 1004.4 (S/N F006A03040 →) (S/N F006D01501 ↔ S/N F006D04442) ............................................226 MANIFOLD DIESEL 4.248.2 (→ S/N F006A03039) .................................................................................230 MANIFOLD DIESEL 1004.4 (S/N F006A03040 →) (S/N F006D01501 ↔ S/N F006D04442) ...............................................232 COOLANT PUMP DIESEL 4.248.2 (→ S/N F006A03039) .............................................................................234 COOLANT PUMP DIESEL 1004.4 (S/N F006A03040 →) (S/N F006D01501 ↔ S/N F006D04442) ...........................................236 COOLANT PUMP DIESEL - WITH LOW EMISSIONS (→ S/N F006D04443) (→ U892125D) .................................................238 COOLANT PUMP DIESEL - WITH LOW EMISSIONS (S/N F006D04443 →) (U892126D →) .................................................240 CYLINDER BLOCK DIESEL - WITH LOW EMISSIONS (S/N F006D04443 →) .............................................................242 CYLINDER HEAD DIESEL - WITH LOW EMISSIONS (S/N F006D04443 →) ..............................................................244 CRANKSHAFT AND PISTON DIESEL - WITH LOW EMISSIONS (S/N F006D04443 →) ......................................................246 TIMING GEAR DIESEL - WITH LOW EMISSIONS (S/N F006D04443 →) ................................................................248 OIL PAN AND PUMP DIESEL - WITH LOW EMISSIONS (S/N F006D04443 →) ...........................................................250 VALVE COVER AND ROCKER ARM SHAFT DIESEL - WITH LOW EMISSIONS (S/N F006D04443 →) ...........................................254 MANIFOLD DIESEL - WITH LOW EMISSIONS (S/N F006D04443 →) ...................................................................256 AUXILIARY DRIVE..............................................................................................................258 FUEL SYSTEM......................................................................................................................259 FUEL SYSTEM LPG (→ S/N F006A07082) .........................................................................................264 FUEL SYSTEM LPG (S/N F006A07083 →) (S/N F006D01501 ↔ S/N F006D02947 INC. 2960, 2976 EXC. 2936) ............................268 FUEL SYSTEM LPG (S/N F006D02948 → INC. 2936 EXC. 2960, 2976) ...............................................................272 FUEL SYSTEM GASOLINE AND DIESEL (→ S/N F006A07082 (Gasoline)) ..............................................................276 FUEL SYSTEM GASOLINE (S/N F006A07083 →) (S/N F006D01501 →) ................................................................280 FUEL TANK LPG................................................................................................................284 FUEL TANK GASOLINE AND DIESEL (→ S/N F006A07082) ...........................................................................286 FUEL TANK GASOLINE (S/N F006D01501 →) (S/N F006A07083 →) ..................................................................290 FUEL TANK DIESEL.............................................................................................................294 CARBURETOR LPG (→ S/N F006D02947 INC. 2960, 2976 EXC. 2936) ................................................................296 CARBURETOR LPG (S/N F006D02948 → INC. 2936 EXC. 2960, 2976) ................................................................298 GOVERNOR.....................................................................................................................300 CARBURETOR GASOLINE (→ S/N F006A07082) .....................................................................................302 ELECTRIC CHOKE...............................................................................................................304 THROTTLE BODY INJECTOR.......................................................................................................306 LOCK-OFF FILTER LPG..........................................................................................................308 LPG CONVERTER................................................................................................................310 LPG CONVERTER................................................................................................................312 LPG CONVERTER................................................................................................................314 THROTTLE LINKAGE.............................................................................................................316 THROTTLE LINKAGE.............................................................................................................318 THROTTLE PEDAL OIL CLUTCH AND POWERSHIFT WITH FORWARD/REVERSE LEVER..........................................................320 THROTTLE PEDAL POWERSHIFT WITH MONOTROL PEDAL................................................................................322 AIR FILTER STANDARD (→ S/N F006A07082) .....................................................................................324 AIR FILTER STANDARD (S/N F006D01501 →) (S/N F006A07083 →) .................................................................326 AIR FILTER HEAVY DUTY - GASOLINE AND LPG (→ S/N F006D04442W) ..............................................................330 AIR FILTER HEAVY DUTY - GASOLINE AND LPG (S/N F006D04443W →) ..............................................................334 AIR FILTER HEAVY DUTY - DIESEL ..............................................................................................338 FUEL LINES DIESEL (→ S/N F006A03039) .......................................................................................342 FUEL LINES DIESEL (S/N F006A03040 →) (S/N F006D01501 ↔ S/N F006D04442) ....................................................346 FUEL INJECTION LOW PRESSURE - DIESEL WITH LOW EMISSIONS (S/N F006D04443 →) ................................................350 FUEL INJECTION DIESEL (→ S/N F006A03039) ...................................................................................354 FUEL INJECTION DIESEL (S/N F006A03040 →) (S/N F006D01501 ↔ S/N F006D04442) ................................................356 FUEL INJECTION AND PUMP HIGH PRESSURE WITH LOW EMISSIONS (S/N F006D04443 →) ................................................360 LIFT PUMP DIESEL (→ S/N F006D04442) ........................................................................................362 LIFT PUMP DIESEL - WITH LOW EMISSIONS (S/N F006D04443 →) ..................................................................364 WATER SEPARATOR AND FILTER DIESEL............................................................................................366 MONOTROL PEDAL...............................................................................................................368 ELECTRICAL SYSTEM................................................................................................................371 ELECTRICAL SYSTEM GASOLINE AND LPG (→ S/N F006A07082) ......................................................................376 ELECTRICAL SYSTEM GASOLINE AND LPG (S/N F006A07083 →) (S/N F006D01501 ↔ S/N F006D02947 INC. 2960, 2976 EXC. 2936) .........380 IGNITION WIRE ROUTING KIT....................................................................................................384 ELECTRICAL SYSTEM GASOLINE (S/N F006A07083 →) (S/N F006D01501 ↔ S/N F006D02947 INC. 2960, 2976 EXC. 2936) .................386 ELECTRICAL SYSTEM GASOLINE AND LPG (S/N F006D02948 ↔ S/N F006D04791 INC. 2936 EXC. 2960, 2976) .............................390 ELECTRICAL SYSTEM GASOLINE AND LPG (S/N F006D04792 →) ......................................................................394 ELECTRICAL LPG (S/N F006D04792 →) ..........................................................................................398 ELECTRICAL GASOLINE (S/N F006D04792V →) ....................................................................................402 ELECTRICAL CONTROL GASOLINE (S/N F006D02948 ↔ S/N F006D05319 INC. 2936 EXC. 2960, 2976) ....................................404 ELECTRICAL CONTROL GASOLINE (S/N F006D05320 →) .............................................................................406 ENGINE CONTROL GASOLINE (S/N F006D05320 →) .................................................................................408 ELECTRICAL SYSTEM LPG (S/N F006A07083 →) (S/N F006D01501 ↔ S/N F006D02947 INC. 2960, 2976 EXC. 2936) ......................410 ELECTRICAL CONTROL LPG (S/N F006D02948 → INC. 2936 EXC. 2960, 2976) ........................................................412 ELECTRICAL SYSTEM DIESEL (→ S/N F006D04442V) ...............................................................................414 ELECTRICAL SYSTEM DIESEL - WITH POWERSHIFT (S/N F006D04443V ↔ S/N F006V01611Y) ............................................418 ELECTRICAL SYSTEM DIESEL - WITH POWERSHIFT (S/N F006V01612Y →) ............................................................422 INSTRUMENT PANEL.............................................................................................................426 INSTRUMENT PANEL.............................................................................................................430 INSTRUMENT PANEL.............................................................................................................434 GAUGE CLUSTER................................................................................................................438 STARTER GASOLINE AND LPG (→ S/N F006D02739S) ...............................................................................440 STARTER GASOLINE AND LPG (S/N F006D02740S ↔ S/N F006D02947S) ...............................................................442 STARTER GASOLINE AND LPG (S/N F006D02948 → INC. 2936 EXC. 2960, 2976) ......................................................444 STARTER DIESEL...............................................................................................................446 STARTER DIESEL - OPTIONAL ...................................................................................................448 ALTERNATOR IDENTIFY BY "DELCO" (→ S/N F006D03768) ..........................................................................450 ALTERNATOR...................................................................................................................454 ALTERNATOR IDENTIFY BY "PRESTOLITE"..........................................................................................456 ALTERNATOR OPTIONAL..........................................................................................................460 ALTERNATOR MOUNTING DIESEL 1004.42 - WITH LOW EMISSIONS .....................................................................462 DISTRIBUTOR..................................................................................................................464 DISTRIBUTOR 2KM 1992, 3KM 1993, AND 5LM 1995 SERIES ENGINES..................................................................466 DISTRIBUTOR LM4 1994, LX6 1996, LX7 1997, LX8 1998, LX9 1999, AND 2000 SERIES ENGINES........................................468 WIRE HARNESS NEUTRAL START MONOTROL PEDAL (S/N F006A07083 →) (S/N F006D01501 →) ...........................................470 WIRE HARNESS MAIN - GASOLINE AND LPG (S/N F006D01501 →) (S/N F006A07083 →) ...............................................472 WIRE HARNESS MAIN - DIESEL (10/1991 →) ....................................................................................474 WIRE HARNESS DIESEL TIER II ENGINE (S/N F006V01612Y →) .....................................................................478 WIRE HARNESS LPG ENGINE (S/N F006A07083 →) (S/N F006D01501 ↔ S/N F006D02947 INC. 2960, 2976 EXC. 2936) ....................480 WIRE HARNESS LPG ENGINE (S/N F006D02948 ↔ S/N F006D04791 INC. 2936 EXC. 2960, 2976) ........................................484 WIRE HARNESS LPG ENGINE (S/N F006D04792 →) .................................................................................486 WIRE HARNESS NEUTRAL START - FORWARD/REVERSE LEVER (S/N F006D01501 →) (S/N F006A07083 →) .................................488 WIRE HARNESS GOVERNOR (S/N F006D01501 →) (S/N F006A07083 →) ...............................................................489 WIRE HARNESS GASOLINE ENGINE - SHEET 1 OF 2 (S/N F006D01501 →) (S/N F006A07083 →) ........................................490 WIRE HARNESS GASOLINE ENGINE - SHEET 2 OF 2 (S/N F006D01501 →) (S/N F006A07083 →) ........................................494 WIRE HARNESS GASOLINE ENGINE - SHEET 1 OF 2 (S/N F006D02948 ↔ S/N F006D05319 INC. 2936 EXC. 2960, 2976) ...................496 WIRE HARNESS GASOLINE ENGINE - SHEET 2 OF 2 (S/N F006D02948 ↔ S/N F006D05319 INC. 2936 EXC. 2960, 2976) ...................498 WIRE HARNESS GASOLINE ENGINE - SHEET 1 OF 2 .................................................................................500 WIRE HARNESS GASOLINE ENGINE - SHEET 2 OF 2 .................................................................................502 TRANSMISSION.....................................................................................................................505 TRANSMISSION OIL CLUTCH (→ S/N F006D03779) .................................................................................508 SPEED REDUCER OIL CLUTCH (→ S/N F006D03779) ................................................................................512 CLUTCH OIL CLUTCH (→ S/N F006D03779) .......................................................................................516 CONTROL LINKAGE OIL CLUTCH - FORWARD/REVERSE LEVER (→ S/N F006A03790) .....................................................518 CONTROL LINKAGE OIL CLUTCH - FORWARD/REVERSE LEVER (S/N F006A03791 →) (S/N F006D01501 ↔ S/N F006D03779) ..................520 CLUTCH LINKAGE OIL CLUTCH (→ S/N F006D03779) ...............................................................................522 TRANSMISSION POWERSHIFT......................................................................................................524 TRANSMISSION GEARS POWERSHIFT (→ S/N F006D06568Y) ..........................................................................528 TRANSMISSION GEARS POWERSHIFT (S/N F006D06569Y →) ..........................................................................530 CLUTCH PACKS POWERSHIFT (→ S/N F006D06568Y) ................................................................................532 CLUTCH PACK POWERSHIFT - INPUT (S/N F006D06569Y →) ........................................................................534 CLUTCH PACK POWERSHIFT - DIRECTIONAL (S/N F006D06569Y →) ..................................................................536 TRANSMISSION CONTROL VALVE POWERSHIFT........................................................................................538 TORQUE CONVERTER POWERSHIFT..................................................................................................542 CONTROL LINKAGE POWERSHIFT (→ S/N F006A03790) ..............................................................................544 CONTROL LINKAGE POWERSHIFT (S/N F006A03791 →) ..............................................................................548 DIRECTION SWITCH.............................................................................................................552 DRIVE AXLE...................................................................................................................554 AXLE HOUSING AND ATTACHING PARTS.............................................................................................557 DIFFERENTIAL AND CARRIER OIL CLUTCH (→ S/N F006A01704) .....................................................................558 DIFFERENTIAL AND CARRIER OIL CLUTCH (S/N F006A01705 →) (S/N F006D01501 ↔ S/N F006D03779) ..................................562 DIFFERENTIAL AND CARRIER POWERSHIFT (→ S/N F006A01754) .....................................................................566 DIFFERENTIAL AND CARRIER POWERSHIFT (S/N F006A01755 →) (S/N F006D01501 ↔ S/N F006D006397) .................................570 DIFFERENTIAL AND CARRIER POWERSHIFT (S/N F006D06398 →) .....................................................................574 DRIVE SHAFT ASSEMBLY.........................................................................................................577 STEERING SYSTEM..................................................................................................................579 STEERING COLUMN..............................................................................................................582 STEERING COLUMN..............................................................................................................584 STEERING COLUMN..............................................................................................................586 STEERING CONTROL UNIT........................................................................................................588 STEERING AXLE................................................................................................................590 STEERING AXLE................................................................................................................594 STEERING PUMP................................................................................................................598 STEERING PUMP................................................................................................................602 PUMP ADAPTER DIESEL..........................................................................................................604 STEERING PUMP HEAVY DUTY.....................................................................................................606 FLOW DIVIDER HEAVY DUTY......................................................................................................608 STEERING CYLINDER............................................................................................................610 BRAKE SYSTEM.....................................................................................................................613 PARK BRAKE...................................................................................................................616 BRAKE LINES..................................................................................................................618 BRAKE PEDAL LINKAGE OIL CLUTCH (→ S/N F006D03779) ..........................................................................620 BRAKE PEDAL LINKAGE POWERSHIFT...............................................................................................622 BRAKE........................................................................................................................626 BRAKE........................................................................................................................628 BRAKE........................................................................................................................630 ACTUATOR.....................................................................................................................632 MASTER CYLINDER..............................................................................................................634 HYDRAULIC SYSTEM.................................................................................................................637 HYDRAULIC SUPPLY AND RETURN OIL CLUTCH (→ S/N F006D03779) ..................................................................640 HYDRAULIC SUPPLY AND RETURN POWERSHIFT (→ S/N F006D05389) ..................................................................644 HYDRAULIC SUPPLY AND RETURN..................................................................................................648 STEERING HYDRAULIC...........................................................................................................652 TRANSMISSION COOLING.........................................................................................................656 HYDRAULIC TANK OIL CLUTCH (→ S/N F006D03779) (→ S/N F006D05389) ...........................................................658 HYDRAULIC TANK POWERSHIFT (→ S/N F006D05389) ...............................................................................660 STEERING HYDRAULIC HEAVY DUTY................................................................................................662 HYDRAULIC OIL FILTER.........................................................................................................664 CONTROL VALVE ATTACHING PARTS TWO FUNCTION (→ S/N F006D05327X 3 Way) (→ S/N F006D05655X 4 Way) ............................666 CONTROL VALVE WITH FITTINGS TWO FUNCTION (→ S/N F006D05627X 3 way) (→ S/N F006D05655X 4 way) ..............................668 CONTROL VALVE ATTACHING PARTS THREE FUNCTION (→ S/N F006D05627X 3 Way) (→ S/N F006D05655X 4 Way) ..........................672 CONTROL VALVE WITH FITTINGS THREE FUNCTION (→ S/N F006D05627X 3 Way) (→ S/N F006D05655X 4 Way) ............................676 CONTROL VALVE ATTACHING PARTS FOUR FUNCTION (→ S/N F006D05627X 3 Way) (→ S/N F006D05655X 4 Way) ...........................678 CONTROL VALVE WITH FITTINGS FOUR FUNCTION (→ S/N F006D05627X 3 Way) (→ S/N F006D05655X 4 Way) .............................682 CONTROL VALVE TWO AND THREE FUNCTION (S/N F006D05628X → 3 Way) (S/N F006D05656X → 4 Way) ..................................684 CONTROL VALVE FOUR FUNCTION (S/N F006D05628X → 3 Way) (S/N F006D05656X → 4 Way) ...........................................686 CONTROL VALVE ATTACHING PARTS WITH FITTINGS TWO AND THREE FUNCTION (S/N F006D05628X → 3 Way) (S/N F006D05656X → 4 Way) ....688 CONTROL VALVE ATTACHING PARTS WITH FITTINGS FOUR FUNCTION (S/N F006D05628X → 3 Way) (S/N F006D05656X → 4 Way) .............692 CONTROL VALVE ATTACHING TUBES................................................................................................694 HYDRAULIC PUMP...............................................................................................................696 TILT CYLINDER................................................................................................................698 DRIVE SHAFT..................................................................................................................700 Mast-Two Stage Limited Free-Lift.................................................................................................703 OUTER MAST TWO STAGE LIMITED FREE-LIFT (→ 2/2001) ..........................................................................706 OUTER MAST TWO STAGE LIMITED FREE-LIFT (2/2001 →) ..........................................................................708 INNER MAST TWO STAGE LIMITED FREE-LIFT (→ 2/2001) ..........................................................................710 INNER MAST TWO STAGE LIMITED FREE-LIFT (2/2001 →) ..........................................................................712 MAIN LIFT TWO STAGE LIMITED FREE-LIFT (→ 2/2001) ...........................................................................714 FREE-LIFT TWO STAGE LIMITED FREE-LIFT (2/2001 →) ...........................................................................718 MAIN LIFT CYLINDER TWO STAGE LIMITED FREE-LIFT (→ 2/2001) ..................................................................720 FREE LIFT CYLINDER ASSEMBLY TWO STAGE LIMITED FREE-LIFT (2/2001 →) .........................................................722 CARRIAGE PIN TYPE - TWO STAGE LIMITED FREE-LIFT .............................................................................724 HEADER HOSE TWO STAGE LIMITED FREE-LIFT......................................................................................728 Mast-Three Stage Full Free-Lift..................................................................................................731 OUTER MAST THREE STAGE FULL FREE-LIFT (→ 2/2001) ...........................................................................734 OUTER MAST THREE STAGE FULL FREE-LIFT (2/2001 →) ...........................................................................736 INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT (→ 2/2001) ....................................................................738 INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT (2/2001 →) ....................................................................740 INNER MAST THREE STAGE FULL FREE-LIFT (→ 2/2001) ...........................................................................742 INNER MAST THREE STAGE FULL FREE-LIFT (2/2001 →) ...........................................................................744 MAIN LIFT THREE STAGE FULL FREE-LIFT (→ 2/2001) ............................................................................746 MAIN LIFT THREE STAGE FULL FREE-LIFT (2/2001 →) ............................................................................750 FREE-LIFT THREE STAGE FULL FREE-LIFT (→ 2/2001) ............................................................................754 FREE-LIFT THREE STAGE FULL FREE-LIFT (2/2001 →) ............................................................................758 MAIN LIFT CYLINDER THREE STAGE FULL FREE-LIFT................................................................................762 FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT................................................................................766 CARRIAGE PIN TYPE - THREE STAGE FULL FREE-LIFT ..............................................................................768 HEADER HOSE THREE STAGE FULL FREE-LIFT.......................................................................................772 OPTIONS..........................................................................................................................775 CAB..........................................................................................................................778 CAB..........................................................................................................................782 FIRE EXTINGUISHER............................................................................................................786 HEATER.......................................................................................................................788 HEATER.......................................................................................................................792 WIPER AND FAN................................................................................................................794 FORK PIN TYPE................................................................................................................796 SIDE-SHIFT CARRIAGE 60.20-INCH...............................................................................................798 SIDE-SHIFT CARRIAGE 78.25-INCH - TWO STAGE LIMITED FREE-LIFT ................................................................802 SIDE-SHIFT CARRIAGE 78.25-INCH - THREE STAGE FULL FREE-LIFT .................................................................806 SIDE-SHIFT CYLINDER..........................................................................................................810 LIGHTS.......................................................................................................................812 LIGHTS.......................................................................................................................816 WORK LIGHT F006A OPTION (11/1998 →) ........................................................................................820 STROBE LIGHT WIRING HARNESS..................................................................................................822 STROBE LIGHT MEDIUM INTENSITY................................................................................................824 STROBE LIGHT HIGH INTENSITY..................................................................................................826 WINDOW FRONT (S/N F006A03758 →) (S/N F006D01501 →) ........................................................................828 WINDOW SIDE (S/N F006D01501 →) (S/N F006A03758 →) .........................................................................830 CAB GLASS....................................................................................................................832 TIRE AND WHEEL DRIVE.........................................................................................................834 TIRE AND WHEEL STEERING......................................................................................................836 BACK-UP ALARM POWERSHIFT.....................................................................................................838 BACK-UP ALARM OIL CLUTCH (→ S/N F006D03779) ................................................................................840 NUMERICAL INDEX..................................................................................................................843

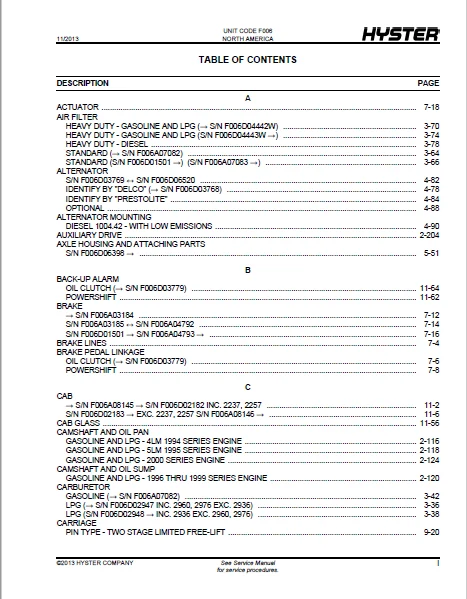

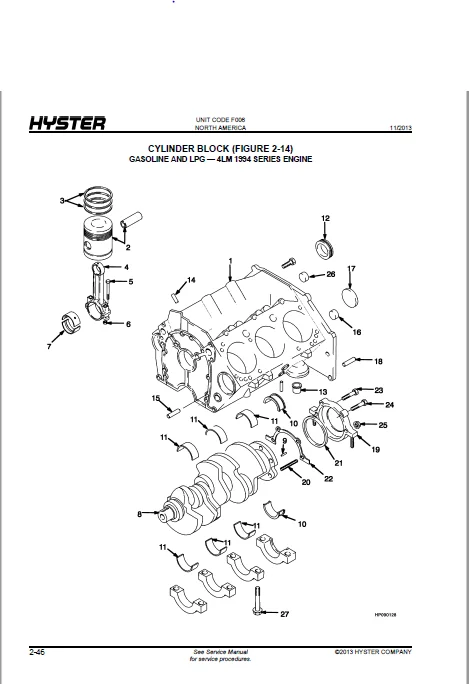

IMAGES PREVIEW OF THE MANUAL:
