Hyster Challenger H360-450H(A214) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster Challenger H360-450H(A214) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :

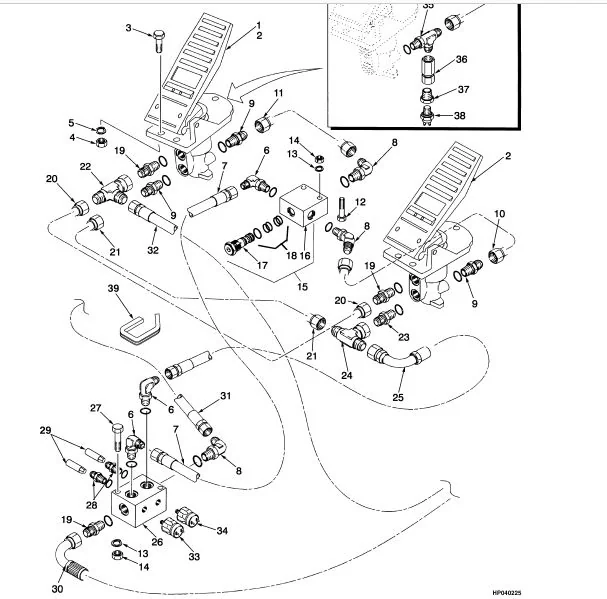

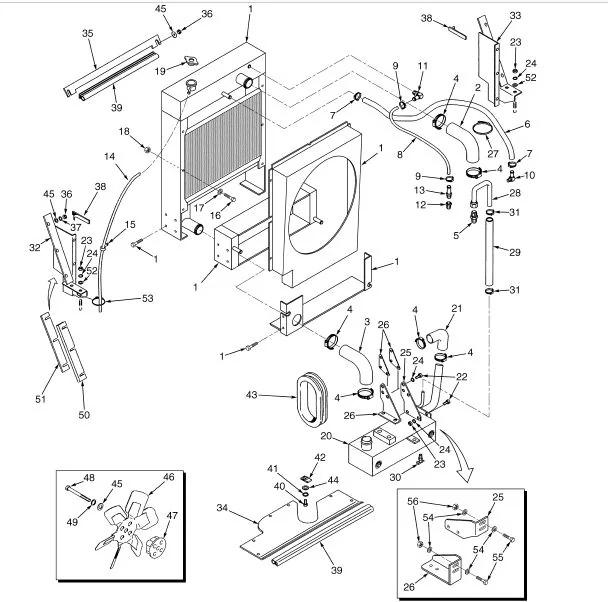

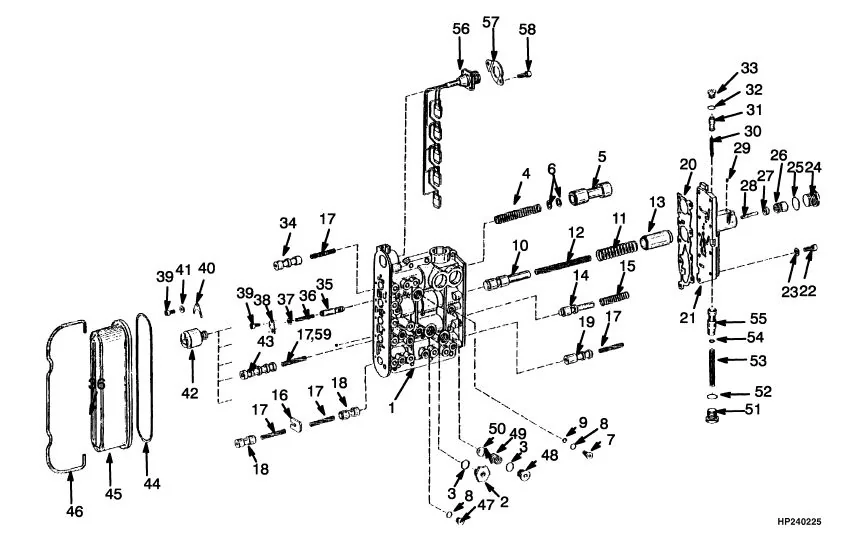

- This parts manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The callouts correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT
HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part
required. Turn to the Sections Page. Choose the
general area of reference most likely to include the
part.
2. Turn to the section you chose. Use the Section
Table of Contents to determine the assembly
which would normally contain the part required.
Then locate the part on the assembly breakdown
page.
WHEN THE PART NUMBER IS NOT KNOWN
AND THE NEXT HIGHER ASSEMBLY IS
KNOWN:
3. Determine the assembly the required part is used
on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on
and turn to the page indicated for that assembly.
Then locate the part on the assembly breakdown
page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 13-1) to find the
part number. Turn to the page listed and locate the
part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers,
descriptions, quantities required, keys and
footnotes to help in selecting correct parts.
6. Parts Supersession Information. Part numbers that
have this history will be displayed in the parts list
in the order that they were superseded (from oldest
to newest). The superseded part numbers will be
shown with a line through them.
TABLE OF CONTENTS:
Hyster Challenger H360-450H(A214) Parts Manual – PDF DOWNLOAD
Frame......................................................................................................................... 23 GENERAL TRUCK............................................................................................................. 26 FLOOR PLATES AND COVERS EMPTY CONTAINER HANDLER........................................................................... 28 FLOOR PLATES AND COVERS FORK LIFT TRUCK - SHEET 1 OF 2 ................................................................... 32 FLOOR PLATES AND COVERS FORK LIFT TRUCK - SHEET 2 OF 2 ................................................................... 36 OPERATOR COMPARTMENT WITHOUT CAB.......................................................................................... 40 OPERATOR COMPARTMENT WITH CAB - SHEET 1 OF 3 ............................................................................. 42 OPERATOR COMPARTMENT WITH CAB - SHEET 2 OF 3 ............................................................................. 44 OPERATOR COMPARTMENT WITH CAB - SHEET 3 OF 3 ............................................................................. 48 DOORS..................................................................................................................... 50 COVERS EMPTY CONTAINER HANDLER............................................................................................ 52 COVERS FORK LIFT TRUCK.................................................................................................... 54 HOOD EMPTY CONTAINER HANDLER.............................................................................................. 58 HOOD FORK LIFT TRUCK...................................................................................................... 60 HEATER.................................................................................................................... 64 HEATER CONTROL............................................................................................................ 68 WINDSHIELD WASHER......................................................................................................... 70 COUNTERWEIGHTS............................................................................................................ 72 FENDERS EMPTY CONTAINER HANDLER........................................................................................... 76 SEAT HIGH BACK - KAB (→ S/N A214E02193C) ............................................................................... 78 SEAT ASSEMBLY HIGH BACK - KAB (S/N A214E02194C →) ...................................................................... 80 SUSPENSION SEAT GRAMMER HIGH BACK - SHEET 1 OF 2 ......................................................................... 82 SUSPENSION SEAT GRAMMER HIGH BACK - SHEET 2 OF 2 ......................................................................... 86 LABELS INTERIOR........................................................................................................... 88 LABELS EXTERIOR - EMPTY CONTAINER HANDLER ................................................................................ 90 LABELS EXTERIOR - FORK LIFT TRUCK ........................................................................................ 92 ENGINE ASSEMBLY............................................................................................................... 95 ENGINE ASSEMBLY...........................................................................................................100 CYLINDER BLOCK TIER II ENGINE (S/N A214E01951A →) .......................................................................102 CYLINDER HEAD TIER II ENGINE (S/N A214E01951A →) ........................................................................104 PISTON AND CONNECTING ROD TIER II ENGINE (S/N A214E01951A →) ............................................................106 CRANKSHAFT AND MAIN BEARINGS TIER II ENGINE (S/N A214E01951A →) .........................................................108 ROCKER LEVERS TIER II ENGINE (S/N A214E01951A →) ........................................................................112 CAMSHAFT TIER II ENGINE (S/N A214E01951A →) .............................................................................114 INJECTOR TIER II ENGINE (S/N A214E01951A →) .............................................................................116 VALVE TAPPET TIER II ENGINE (S/N A214E01951A →) .........................................................................118 ENGINE CONTROL SYSTEM TIER II ENGINE (S/N A214E01951A →) ................................................................120 VIBRATION DAMPER TIER II ENGINE (S/N A214E01951A →) .....................................................................122 FRONT GEAR TRAIN COVER TIER II ENGINE (S/N A214E01951A →) ...............................................................123 FLYWHEEL HOUSING TIER II ENGINE (S/N A214E01951A →) .....................................................................124 BREATHER PLUMBING TIER II ENGINE (S/N A214E01951A →) ....................................................................126 OIL PAN TIER II ENGINE (S/N A214E01951A →) ..............................................................................128 OIL LEVEL GAUGE TIER II ENGINE (S/N A214E01951A →) ......................................................................130 OIL PUMP TIER II ENGINE (S/N A214E01951A →) .............................................................................132 CRANKCASE BREATHER TIER II ENGINE (S/N A214E01951A →) ...................................................................133 FLYWHEEL TIER II ENGINE (S/N A214E01951A →) .............................................................................134 THERMOSTAT TIER II ENGINE (S/N A214E01951A →) ...........................................................................135 AIR COMPRESSOR PLUMBING TIER II ENGINE (S/N A214E01951A →) ..............................................................136 ALTERNATOR MOUNTING TIER II ENGINE (S/N A214E01951A →) ..................................................................137 FAN DRIVE TIER II ENGINE (S/N A214E01951A →) ............................................................................139 WATER SEPARATOR TIER II ENGINE (S/N A214E01951A →) ......................................................................140 FUEL FILTER PLUMBING TIER II ENGINE (S/N A214E01951A →) .................................................................142 FUEL INJECTION PUMP TIER II ENGINE (S/N A214E01951A →) ..................................................................143 FUEL PUMP MOUNT TIER II ENGINE (S/N A214E01951A →) ......................................................................144 LIFT PUMP TIER II ENGINE (S/N A214E01951A →) ............................................................................146 LIFT PUMP PLUMBING TIER II ENGINE (S/N A214E01951A →) ...................................................................147 FRONT GEAR COVER TIER II ENGINE (S/N A214E01951A →) .....................................................................148 GEAR HOUSING TIER II ENGINE (S/N A214E01951A →) .........................................................................149 AIR INTAKE CONNECTION TIER II ENGINE (S/N A214E01951A →) ................................................................150 AIR INTAKE HOSE TIER II ENGINE (S/N A214E01951A →) ......................................................................152 AIR TRANSFER CONNECTION TIER II ENGINE (S/N A214E01951A →) ..............................................................153 LIFTING BRACKET TIER II ENGINE (S/N A214E01951A →) ......................................................................154 ENGINE OIL COOLER TIER II ENGINE (S/N A214E01951A →) ....................................................................155 OIL FILLER ARRANGEMENT TIER II ENGINE (S/N A214E01951A →) ...............................................................156 OIL FILTER TIER II ENGINE (S/N A214E01951A →) ...........................................................................158 TURBOCHARGER TIER II ENGINE (S/N A214E01951A →) .........................................................................159 RADIATOR PLUMBING TIER II ENGINE (S/N A214E01951A →) ....................................................................161 STARTER MOTOR TIER II ENGINE (S/N A214E01951A →) ........................................................................162 FAN PILOT SPACER TIER II ENGINE (S/N A214E01951A →) .....................................................................163 EXHAUST MANIFOLD TIER II ENGINE (S/N A214E01951A →) .....................................................................164 TORQUE CONVERTER OIL COOLER TIER II ENGINE (S/N A214E01951A →) ..........................................................165 TURBOCHARGER PLUMBING TIER II ENGINE (S/N A214E01951A →) ................................................................168 VALVE COVER TIER II ENGINE (S/N A214E01951A →) ..........................................................................170 WATER INLET CONNECTION TIER II ENGINE (S/N A214E01951A →) ...............................................................172 WATER OUTLET CONNECTION TIER II ENGINE (S/N A214E01951A →) ..............................................................174 WATER PUMP TIER II ENGINE (S/N A214E01951A →) ...........................................................................175 TENSIONER TIER II ENGINE (S/N A214E01951A →) ............................................................................176 WIRING ACCESSORIES TIER II ENGINE (S/N A214E01951A →) ...................................................................177 AIR FILTER TIER I ENGINE..................................................................................................178 AIR FILTER TIER I ENGINE (S/N A214E01843Z →) ............................................................................180 AIR FILTER EMPTY CONTAINER HANDLER - TIER II ENGINE (S/N A214E01849Z →) ................................................182 AIR FILTER ASSEMBLY.......................................................................................................184 PRE-CLEANER ASSEMBLY......................................................................................................185 COOLING TIER I ENGINE.....................................................................................................186 COOLING FORK LIFT TRUCK - TIER II ENGINE (S/N A214E01843Z →) ...........................................................190 COOLING EMPTY CONTAINER HANDLER - TIER II ENGINE (S/N A214E01849Z →) ...................................................194 ENGINE MOUNT..............................................................................................................198 EXHAUST EMPTY CONTAINER HANDLER - TIER I ENGINE ..........................................................................200 EXHAUST EMPTY CONTAINER HANDLER - TIER II ENGINE .........................................................................202 EXHAUST FORK LIFT TRUCK...................................................................................................204 FUEL SYSTEM...................................................................................................................207 FUEL SYSTEM TIER I ENGINE.................................................................................................210 FUEL SYSTEM TIER II ENGINE................................................................................................214 THROTTLE TIER I ENGINE....................................................................................................216 ELECTRONIC FOOT PEDAL MOUNT TIER II ENGINE................................................................................220 THROTTLE PEDAL TIER I ENGINE (→ 11/2002) ................................................................................222 THROTTLE PEDAL TIER I ENGINE (12/2002 →) ................................................................................224 ELECTRICAL SYSTEM.............................................................................................................227 ELECTRICAL CHASSIS TIER I ENGINE - SHEET 1 OF 3 ..........................................................................232 ELECTRICAL CHASSIS TIER I ENGINE - SHEET 2 OF 3 ..........................................................................234 ELECTRICAL CHASSIS TIER I ENGINE - SHEET 3 OF 3 ..........................................................................236 ELECTRICAL CHASSIS (TIER II ENGINE) - SHEET 1 OF 4 .......................................................................240 ELECTRICAL CHASSIS (TIER II ENGINE) - SHEET 2 OF 4 .......................................................................242 ELECTRICAL CHASSIS (TIER II ENGINE) - SHEET 3 OF 4 .......................................................................246 ELECTRICAL CHASSIS (TIER II ENGINE) - SHEET 4 OF 4 .......................................................................250 INSTRUMENT PANEL SHEET 1 OF 2.............................................................................................252 INSTRUMENT PANEL SHEET 2 OF 2.............................................................................................256 CONTROL PANEL.............................................................................................................258 CONTROL PANEL.............................................................................................................260 LIGHT CONTROLS............................................................................................................262 LIGHTS EMPTY CONTAINER HANDLER............................................................................................264 LIGHTS FORK LIFT TRUCK....................................................................................................268 LIGHTS ROTATING BEACON....................................................................................................272 WIRE HARNESS ATTACHMENT CONTROL - SHEET 1 OF 2 (→ S/N A214E01650) ......................................................274 WIRE HARNESS ATTACHMENT CONTROL - SHEET 2 OF 2 (→ S/N A214E01650) ......................................................276 WIRE HARNESS ATTACHMENT CONTROL (→ S/N A214E01806) ......................................................................278 WIRE HARNESS ATTACHMENT CONTROL SWITCH (S/N A214E01807 →) ...............................................................280 WIRE HARNESS ATTACHMENT CONTROL SWITCH (S/N A214E02078B ↔ S/N A214E02194C) ..............................................282 WIRE HARNESS ATTACHMENT CONTROL SWITCH (S/N A214E02194C →) ..............................................................284 WIRE HARNESS ATTACHMENT LIGHTS (S/N A214E01807 →) .......................................................................286 WIRE HARNESS CAB (→ S/N A214E01797) .....................................................................................288 WIRE HARNESS CAB (S/N A214E01798 →) .....................................................................................290 WIRE HARNESS CARRIAGE CONTROL SWITCH......................................................................................292 WIRE HARNESS CHASSIS - EMPTY CONTAINER HANDLER ...........................................................................294 WIRE HARNESS CHASSIS - FORK LIFT TRUCK ...................................................................................296 WIRE HARNESS ENGINE (→ S/N A214E01718) ..................................................................................298 WIRE HARNESS ENGINE (S/N A214E01719 →) ..................................................................................300 WIRE HARNESS ENGINE - TIER II (S/N A214E01950A →) ......................................................................302 WIRE HARNESS FRONT END EQUIPMENT - EMPTY CONTAINER HANDLER (→ S/N A214E01806) ..........................................304 WIRE HARNESS FRONT END EQUIPMENT - EMPTY CONTAINER HANDLER (S/N A214E01807 ↔ S/N A214E02077B) ..........................306 WIRE HARNESS FRONT END EQUIPMENT (S/N A214E02078B →) ....................................................................308 WIRE HARNESS FRONT END EQUIPMENT - FORK LIFT TRUCK .......................................................................310 WIRE HARNESS FRONT LIGHTS.................................................................................................311 WIRE HARNESS HYDRAULIC - EMPTY CONTAINER HANDLER (S/N A214E01651 ↔ S/N A214E01806) .....................................312 WIRE HARNESS HYDRAULIC - EMPTY CONTAINER HANDLER (S/N A214E01807 →) ....................................................314 WIRE HARNESS HYDRAULIC - FORK LIFT TRUCK (→ S/N A214E01806Y) ...........................................................316 WIRE HARNESS HYDRAULIC - FORK LIFT TRUCK (S/N A214E01807Y →) ...........................................................318 WIRE HARNESS MODULE (→ S/N A214E01797) ..................................................................................319 WIRE HARNESS MODULE (S/N A214E01798 →) ..................................................................................320 WIRE HARNESS OPERATOR COMPARTMENT (TIER I) - SHEET 1 OF 2 ................................................................322 WIRE HARNESS OPERATOR COMPARTMENT (TIER I) - SHEET 2 OF 2 ................................................................324 WIRE HARNESS OPERATOR COMPARTMENT (TIER II) - SHEET 1 0F 2 (S/N A214E01849Z → (ECH)) (S/N A214E01843Z → (FLT)) ........326 WIRE HARNESS OPERATOR COMPARTMENT (TIER II) - SHEET 2 OF 2 (S/N A214E01843Z → (FLT)) (S/N A214E01849Z → (ECH)) ........328 WIRE HARNESS OPERATOR COMPARTMENT TO MAST LIGHT JUMPER....................................................................330 WIRE HARNESS REAR LIGHT...................................................................................................331 WIRE HARNESS ROTATING BEACON..............................................................................................332 WIRE HARNESS STEERING POD.................................................................................................334 WIRE HARNESS SWITCH LIGHTS................................................................................................336 WIRE HARNESS SWITCH - WARNING ............................................................................................337 WIRE HARNESS TRANSMISSION.................................................................................................338 WIRE HARNESS TRANSMISSION (→ S/N A214E01615) ............................................................................340 WIRE HARNESS TRANSMISSION (S/N A214E01616 ↔ S/N A214E002193C) ...........................................................342 WIRE HARNESS TRANSMISSION CONTROL (S/N A214E02194C →) ...................................................................344 WIRE HARNESS TURN SIGNAL..................................................................................................346 WIRE HARNESS WINDSHIELD WASHER............................................................................................347 WIRE HARNESS WORK LIGHTS..................................................................................................348 WIRE HARNESS WORK LIGHTS - EMPTY CONTAINER HANDLER .......................................................................349 WIRE HARNESS WORK LIGHTS - FORK LIFT TRUCK ...............................................................................350 WIRE HARNESS WORK LIGHTS EXTENSION - FORK LIFT TRUCK .....................................................................351 WIRE HARNESS SELECTOR VALVE...............................................................................................352 WIRE HARNESS HYDRAULIC OIL COOLER.........................................................................................354 LIGHT BAR AND MOUNT TWISTLOCK MODULE - CAB ...............................................................................356 TRANSMISSION..................................................................................................................359 TRANSMISSION ATTACHING PARTS SHEET 1 OF 3.................................................................................362 TRANSMISSION ATTACHING PARTS SHEET 2 OF 3 - INCLUDES MOUNTING ............................................................366 TRANSMISSION ATTACHING PARTS SHEET 3 OF 3 - OIL FILTER ...................................................................368 TRANSMISSION HYDRAULIC LINES..............................................................................................370 TRANSMISSION HYDRAULIC LINES..............................................................................................372 TRANSMISSION INPUT SHAFT..................................................................................................374 TRANSMISSION TORQUE CONVERTER.............................................................................................377 TRANSMISSION CONTROL VALVE ATTACHING PARTS................................................................................378 TRANSMISSION CONTROL VALVE (→ S/N A214E01615) ...........................................................................380 TRANSMISSION CONTROL VALVE (S/N A214E01616 →) ...........................................................................384 TRANSMISSION REVERSE AND FIRST CLUTCH - SHEET 1 OF 3 .....................................................................388 TRANSMISSION FORWARD AND SECOND SPEED CLUTCH - SHEET 2 OF 3 ..............................................................392 TRANSMISSION THIRD SPEED CLUTCH - SHEET 3 OF 3 ...........................................................................396 TRANSMISSION SHIFT LEVER..................................................................................................400 Drive Axle....................................................................................................................403 DRIVE AXLE................................................................................................................406 DRIVE AXLE................................................................................................................410 DIFFERENTIAL ASSEMBLY.....................................................................................................414 DIFFERENTIAL ASSEMBLY.....................................................................................................418 PARK BRAKE................................................................................................................422 BRAKE ASSEMBLY DISC (S/N A214E02034A → (H360-400H FLT)) (S/N A214E01995B → (H450H)(FLT)) (S/N A214E02001B → (ECH)) ....424 UNIVERSAL SHAFT...........................................................................................................426 STEERING SYSTEM...............................................................................................................429 STEERING HOUSING AND CONTROL..............................................................................................432 STEERING HYDRAULICS EMPTY CONTAINER HANDLER...............................................................................436 STEERING HYDRAULICS FORK LIFT TRUCK.......................................................................................438 STEERING CYLINDER.........................................................................................................440 STEERING CYLINDER OPTIONAL................................................................................................442 STEERING PUMP.............................................................................................................444 STEERING CONTROL BLOCK VALVE (→ 10/2003) ................................................................................446 STEERING AXLE.............................................................................................................448 BRAKE SYSTEM..................................................................................................................451 BRAKE LINES EMPTY CONTAINER HANDLER (→ S/N A214E01572) ..................................................................454 BRAKE LINES EMPTY CONTAINER HANDLER (S/N A214E01573 →) ..................................................................456 BRAKE LINES FORK LIFT TRUCK (→ S/N A214E01572) ..........................................................................460 BRAKE LINES FORK LIFT TRUCK (S/N A214E01573 ↔ S/N A214E01765Y) ..........................................................462 BRAKE LINES FORK LIFT TRUCK (S/N A214E01766Y →) .........................................................................466 BRAKE PEDAL LINKAGE EMPTY CONTAINER HANDLER...............................................................................470 BRAKE PEDAL LINKAGE FORK LIFT TRUCK (→ S/N A214E01765Y) .................................................................474 BRAKE PEDAL LINKAGE FORK LIFT TRUCK (S/N A214E01766Y →) .................................................................478 BRAKE CHECK VALVE EMPTY CONTAINER HANDLER (→ S/N A214E01572) ............................................................482 BRAKE CHECK VALVE FORK LIFT TRUCK (→ S/N A214E01572) ....................................................................484 BRAKE SYSTEM POWER BRAKE VALVE............................................................................................486 BRAKE VALVE (WET BRAKE)...................................................................................................490 HYDRAULIC SYSTEM..............................................................................................................493 HYDRAULIC SUPPLY AND RETURN EMPTY CONTAINER HANDLER (→ S/N A214E01534) ..................................................496 HYDRAULIC SUPPLY AND RETURN EMPTY CONTAINER HANDLER (S/N A214E01535 →) ..................................................498 HYDRAULIC SUPPLY AND RETURN FORK LIFT TRUCK (→ 12/2002) .................................................................502 HYDRAULIC SUPPLY AND RETURN FORK LIFT TRUCK (1/2003 →) ..................................................................504 OIL COOLER AND ATTACHING PARTS EMPTY CONTAINER HANDLER - TIER II ENGINE ..................................................508 OIL COOLER AND ATTACHING PARTS FORK LIFT TRUCK - TIER II ENGINE ..........................................................510 HYDRAULIC LINES CONTROL VALVE (→ S/N A214E01806) ........................................................................514 HYDRAULIC LINES CONTROL VALVE - SHEET 1 OF 2 (S/N A214E01807 →) ........................................................516 HYDRAULIC LINES CONTROL VALVE - SHEET 2 OF 2 .............................................................................518 HYDRAULIC LINES AUXILIARY - FORK LIFT TRUCK ..............................................................................521 HYDRAULIC LINES LIFT - FORK LIFT TRUCK ...................................................................................522 HYDRAULIC CONTROL.........................................................................................................524 HYDRAULIC CONTROL.........................................................................................................528 HYDRAULIC CONTROL VALVE ATTACHING PARTS...................................................................................532 HYDRAULIC CONTROL VALVE MAIN..............................................................................................534 HYDRAULIC DIRECTIONAL CONTROL VALVE EMPTY CONTAINER HANDLER...............................................................538 HYDRAULIC SOLENOID VALVE ATTACHING PARTS LIFT AND LOWERING INTERRUPT - EMPTY CONTAINER HANDLER (S/N A214E01752X →) .....540 HYDRAULIC SOLENOID VALVE LIFT AND LOWERING INTERRUPT - EMPTY CONTAINER HANDLER (S/N A214E01752X →) .....................542 HYDRAULIC PILOT CONTROL VALVE.............................................................................................544 HYDRAULIC PILOT CONTROL SUPPLY VALVE......................................................................................546 HYDRAULIC RELIEF VALVE TILT (→ 4/2003) ..................................................................................548 HYDRAULIC PUMP............................................................................................................550 HYDRAULIC PUMP............................................................................................................552 HYDRAULIC TANK............................................................................................................554 HYDRAULIC TANK............................................................................................................556 BRAKE COOLING SYSTEM EMPTY CONTAINER HANDLER (→ S/N A214E01751) .........................................................558 BRAKE COOLING SYSTEM EMPTY CONTAINER HANDLER (S/N A214E01752 →) .........................................................560 BRAKE COOLING SYSTEM FORK LIFT TRUCK (→ S/N A214E01751) .................................................................562 BRAKE COOLING SYSTEM FORK LIFT TRUCK (S/N A214E01752 →) .................................................................564 BRAKE COOLING SYSTEM ACCUMULATOR..........................................................................................566 HYDRAULIC SYSTEM TILT CYLINDER - EMPTY CONTAINER HANDLER .................................................................568 HYDRAULIC SYSTEM TILT CYLINDER - FORK LIFT TRUCK .........................................................................570 TILT CYLINDER EMPTY CONTAINER HANDLER.....................................................................................572 TILT CYLINDER FORK LIFT TRUCK.............................................................................................574 MAST-TWO STAGE VISTA..........................................................................................................577 OUTER MAST TWO STAGE VISTA................................................................................................580 INNER MAST TWO STAGE VISTA................................................................................................584 MAIN LIFT TWO STAGE VISTA - SHEET 1 OF 2 .................................................................................588 MAIN LIFT TWO STAGE VISTA - SHEET 2 OF 2 .................................................................................592 LIFT CYLINDER H360-400H - TWO STAGE VISTA (→ 9/2004) ...................................................................596 LIFT CYLINDER H360-400H - TWO STAGE VISTA (9/2004 →) ...................................................................598 LIFT CYLINDER H450H - TWO STAGE VISTA (→ 9/2004) .......................................................................602 LIFT CYLINDER H450H - TWO STAGE VISTA (9/2004 →) .......................................................................606 HEADER HOSE TWO STAGE VISTA...............................................................................................610 MAST INSTALLATION TWO STAGE VISTA.........................................................................................614 CARRIAGE TWO STAGE VISTA..................................................................................................616 CARRIAGE WITH QUICK DISCONNECT - TWO STAGE VISTA .........................................................................618 CARRIAGE HYDRAULIC SYSTEM - TWO STAGE VISTA ..............................................................................620 FORK POSITIONER SIDE-SHIFT CYLINDER - HOOK TYPE - TWO STAGE VISTA ........................................................622 SOLENOID VALVE TWO STAGE VISTA............................................................................................624 WIRE HARNESS FRONT END EQUIPMENT - HEADER HOSES, MAST REAR ...............................................................626 WIRE HARNESS FRONT END EQUIPMENT - HEADER HOSES, MAST FRONT ..............................................................628 MAST WITH EMPTY CONTAINER HANDLER.............................................................................................631 OUTER MAST EMPTY CONTAINER HANDLER........................................................................................634 INNER MAST EMPTY CONTAINER HANDLER........................................................................................638 MAIN LIFT EMPTY CONTAINER HANDLER (→ S/N A214E01654) ....................................................................642 MAIN LIFT EMPTY CONTAINER HANDLER (S/N A214E01655 →) ....................................................................646 LIFT CYLINDER EMPTY CONTAINER HANDLER.....................................................................................650 LIFT CYLINDER ATTACHING PARTS EMPTY CONTAINER HANDLER (→ S/N A214E02236D) ...............................................654 LIFT CYLINDER ATTACHING PARTS EMPTY CONTAINER HANDLER (S/N A214E02237D →) ...............................................656 WEAR PLATES EMPTY CONTAINER HANDLER (→ S/N A214E01806) ..................................................................660 VERTICAL END BEAM EMPTY CONTAINER HANDLER (→ S/N A214E01806) ............................................................662 HYDRAULIC SYSTEM EMPTY CONTAINER HANDLER - SHEET 1 OF 2 (→ S/N A214E01806) .............................................664 HYDRAULIC SYSTEM EMPTY CONTAINER HANDLER - SHEET 2 OF 2 (→ S/N A214E01806) .............................................666 TWIST LOCK CYLINDER EMPTY CONTAINER HANDLER (→ S/N A214E01806) ..........................................................668 EXTENSION CYLINDER EMPTY CONTAINER HANDLER (→ S/N A214E01806) ...........................................................670 SIDE-SHIFT CYLINDER EMPTY CONTAINER HANDLER (→ S/N A214E01806) ..........................................................672 HEADER HOSE EMPTY CONTAINER HANDLER (→ S/N A214E01578) ..................................................................674 HEADER HOSE EMPTY CONTAINER HANDLER (S/N A214E01579 ↔ S/N A214E001962A) .................................................678 HEADER HOSE EMPTY CONTAINER HANDLER (S/N A214E01963A ↔ S/N A214E02077B) .................................................682 HEADER HOSE EMPTY CONTAINER HANDLER (S/N A214E02078B →) .................................................................686 AUXILIARY ATTACHMENTS EMPTY CONTAINER HANDLER.............................................................................690 MAST INSTALLATION EMPTY CONTAINER HANDLER.................................................................................692 WIRE HARNESS EMPTY CONTAINER HANDLER (→ S/N A214E01806) .................................................................694 WIRE HARNESS TWIST LOCK (S/N A214E01807 ↔ S/N A214E01962A) ..............................................................696 WIRE HARNESS HOOK ATTACHMENT (S/N A214E01807 ↔ S/N A214E01962A) .........................................................697 WIRE HARNESS MAST (→ S/N A214E02077B) ...................................................................................698 WIRE HARNESS MAST (S/N A214E02078B →) ...................................................................................700 WIRE HARNESS FRONT END EQUIPMENT - HEADER HOSES, EMPTY CONTAINER HANDLER (S/N A214E01963A →) ...........................702 OPTIONS.......................................................................................................................705 WHEEL AND TIRE BIAS TIRE..................................................................................................708 WHEEL AND TIRE BIAS TIRE - SIMEX AND GOODYEAR TIRES ......................................................................710 WHEEL AND TIRE RADIAL TIRE................................................................................................711 WHEEL AND TIRE SOLID TIRE WITH TREAD......................................................................................713 WHEEL AND TIRE SOLID TIRE - SMOOTH .......................................................................................714 FORK PIN TYPE.............................................................................................................716 FORK HOOK TYPE............................................................................................................718 NUMERICAL INDEX...............................................................................................................721
HYSTER CHALLENGER H360-450H(A214) PARTS MANUAL – PDF DOWNLOAD:

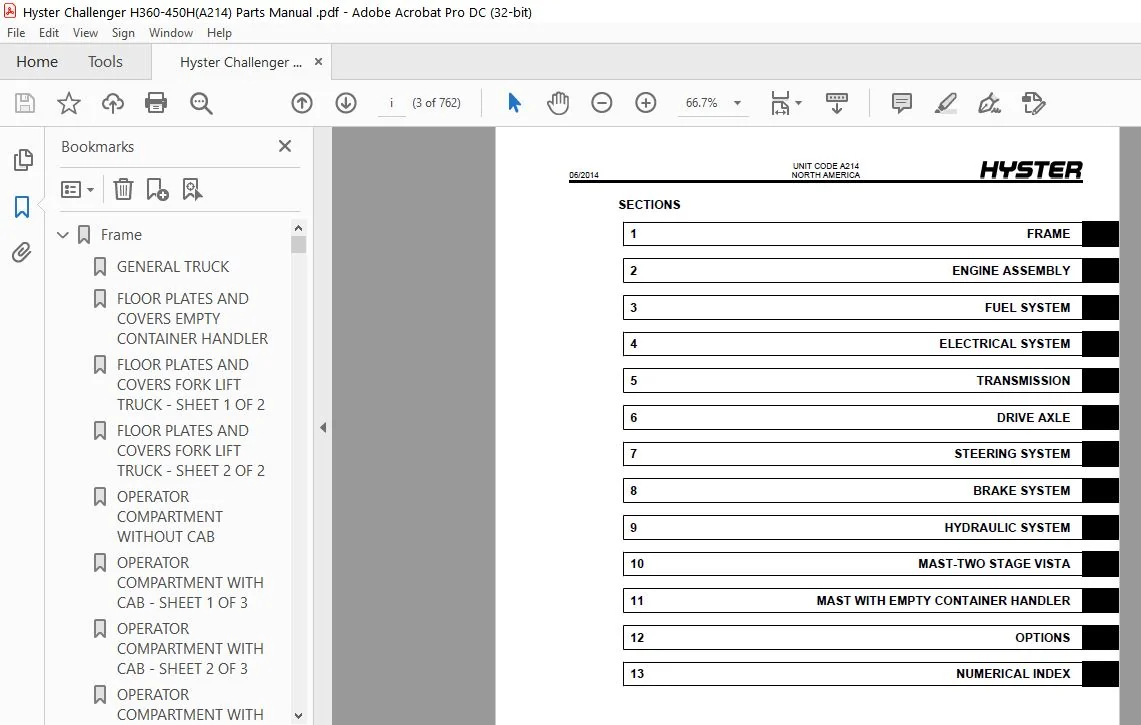

IMAGES PREVIEW OF THE MANUAL:
