Hyster ELECTRIC E25XM2 E30XM2 E35XM2 E40SMS2 (D114) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster ELECTRIC E25XM2 E30XM2 E35XM2 E40SMS2 (D114) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, sub-assemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The call outs correspond to descriptions found on the next page.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 11-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Super session Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (Figure 10)
TABLE OF CONTENTS:
Hyster ELECTRIC E25XM2 E30XM2 E35XM2 E40SMS2 (D114) Parts Manual – PDF DOWNLOAD
FRAME
2 ELECTRICAL SYSTEM
3 DRIVE UNIT
4 STEERING SYSTEM
5 BRAKE/ACCELERATOR SYSTEM
6 HYDRAULIC SYSTEM
7 MAST-TWO STAGE LIMITED FREE-LIFT
8 MAST-THREE STAGE FULL FREE-LIFT
9 MAST-TWO STAGE FULL FREE-LIFT
10 OPTIONS
11 NUMERICAL INDEX
A
ACCELERATOR 5-16
ACCELERATOR PEDAL 5-18
B
BACK-UP ALARM 10-27
BATTERY CONNECTOR 2-26
BATTERY SLIDE AND ROLLER TRAY 10-18
BRAKE ASSEMBLY 5-6
BRAKE PEDAL LINKAGE 5-2
BRAKE/BACK-UP LIGHT
12 VOLT 10-20
C
CARRIAGE
THREE STAGE FULL FREE-LIFT 8-18
TWO STAGE FULL FREE-LIFT 9-16
TWO STAGE LIMITED FREE-LIFT 7-12
CONTACTOR 2-22
1A AND RB 2-20
CONTACTOR PANEL
CONTACTOR HYDRAULIC 2-16
CONTROL 2-14
CONTACTOR STEERING 2-18
CONTROL PANEL
CONTACTOR HYDRAULIC 2-10
TRANSISTOR HYDRAULIC 2-12
CONTROL VALVE
FOUR FUNCTION 6-54
THREE FUNCTION 6-50
CONTROL VALVE ATTACHING PARTS 6-42
COUNTERWEIGHT 1-14
COVERS 1-6
COWL ELECTRICAL 2-24
D

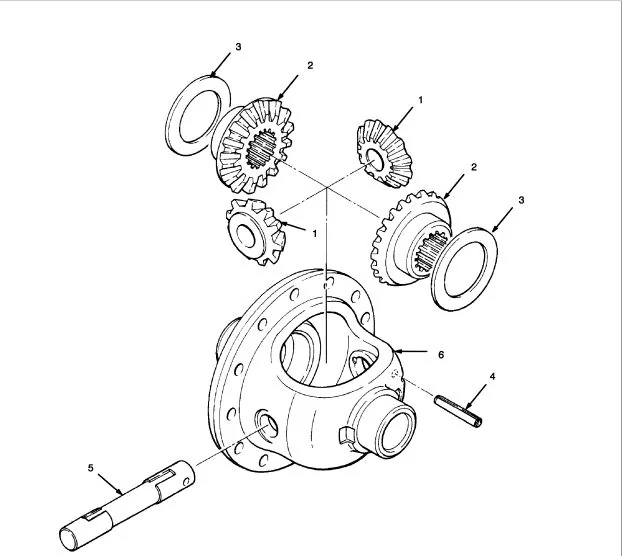

DIFFERENTIAL 3-6
DRIVE AND REAR LIGHTS 10-22
DRIVE AXLE 3-2
DRIVE MOTOR MOUNT 6-6
E
E/EE/ES AND CRE/FRE INSTALLATION 3-8

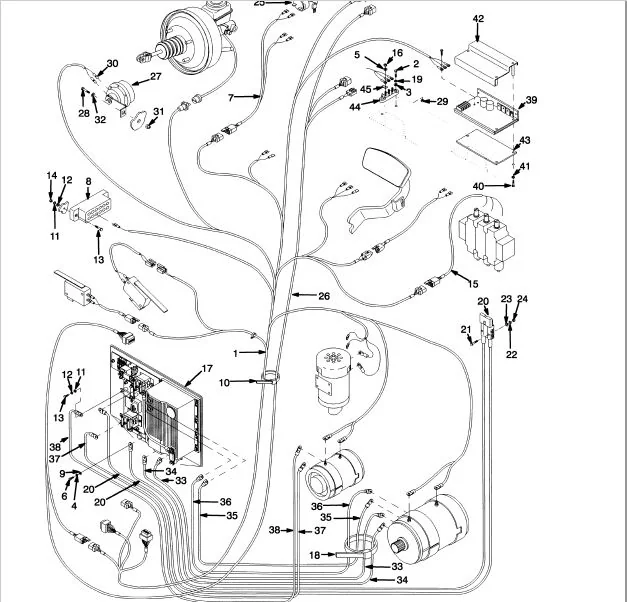

ELECTRICAL SYSTEM
CONTACTOR HYDRAULIC 2-2
TRANSISTOR HYDRAULIC 2-6
F
FORK
THREE STAGE FULL FREE-LIFT 8-28
TWO STAGE FULL FREE-LIFT 9-27
TWO STAGE LIMITED FREE-LIFT 7-22
FRAME 1-2
FREE-LIFT
THREE STAGE FULL FREE-LIFT 8-10
TWO STAGE FULL FREE-LIFT 9-8
FREE-LIFT CYLINDER
THREE STAGE FULL FREE-LIFT 8-16
TWO STAGE FULL FREE-LIFT 9-14
FULL SUSPENSION SEAT
SHEET 1 OF 2 1-22
SHEET 2 OF 2 1-24
G
GEAR PUMP 4-14
OPTIONAL 4-16
H
HAND LEVER 6-46
HEADER HOSE
THREE STAGE FULL FREE-LIFT
FOUR FUNCTION 8-26
THREE FUNCTION 8-24
TWO STAGE FULL FREE-LIFT
FOUR FUNCTION 9-24
THREE FUNCTION 9-22
TWO STAGE LIMITED FREE-LIFT
FOUR FUNCTION 7-20
THREE FUNCTION 7-18
HOOD 1-8
HYDRAULIC 6-2
HYDRAULIC MOTOR
CLOSED CONSTRUCTION
S/N PENDING PER ECN 73755Β 6-38
ECONOMY TRUCK WITH BWI
Β D/B 01/2000 6-24
D/B 01/2000 Β 6-26
OPTIONAL
Β S/N PENDING PER ECN 73755 6-28
ECONOMY TRUCK WITHOUT BWI
Β D/B 01/2000 6-20
D/B 01/2000 Β 6-22
OPEN CONSTRUCTION
S/N PENDING PER ECN 73755Β 6-34
PREMIUM TRUCK
CLOSED CONSTRUCTION
Β S/N PENDING PER ECN 73755 6-36
OPEN CONSTRUCTION 6-30
PREMIUM TRUCK OPEN CONSTRUCTION
OPTIONAL
Β S/N PENDING PER ECN 73755 6-32
HYDRAULIC PUMP
12 CC SINGLE GEAR PUMP 6-8
OPTIONAL 6-10
19 CC
OPTIONAL 6-18
19 CC DOUBLE GEAR PUMP 6-14
LOW NOISE 6-16
OPTIONAL 6-12
HYDRAULIC TANK 6-58
I
INNER MAST
THREE STAGE FULL FREE-LIFT 8-6
TWO STAGE FULL FREE-LIFT 9-4
TWO STAGE LIMITED FREE-LIFT 7-4
INTEGRAL
HYDRAULIC HOSES
TWO STAGE FULL FREE-LIFT, THREE STAGE FULL FREE-LIFT 10-17
TWO STAGE LIMITED FREE-LIFT 10-16
INTEGRAL SIDE-SHIFT CARRIAGE
TWO AND THREE STAGE FULL FREE-LIFT 10-12
TWO STAGE LIMITED FREE-LIFT 10-10
INTEGRAL SIDE-SHIFT CYLINDER 10-14
INTERMEDIATE MAST
THREE STAGE FULL FREE-LIFT 8-4
L
LABELS 1-27
LIFT
TWO STAGE LIMITED FREE-LIFT 7-6
LIFT CYLINDER
TWO STAGE LIMITED FREE-LIFT
LEFT HAND 7-8
RIGHT HAND 7-10
LOAD BACKREST EXTENSION
THREE STAGE FULL FREE-LIFT 8-20
TWO STAGE FULL FREE-LIFT 9-18
TWO STAGE LIMITED FREE-LIFT 7-14
M
MAIN LIFT
THREE STAGE FULL FREE-LIFT 8-8
TWO STAGE FULL FREE-LIFT 9-6
MAIN LIFT CYLINDER
THREE STAGE FULL FREE-LIFT
LEFT HAND 8-12
RIGHT HAND 8-14
TWO STAGE FULL FREE-LIFT
LEFT HAND 9-10
RIGHT HAND 9-12
MAST INSTALLATION
THREE STAGE FULL FREE-LIFT 8-22
TWO STAGE FULL FREE-LIFT 9-20
TWO STAGE LIMITED FREE-LIFT 7-16
MASTER CYLINDER 5-4
N
NON-SUSPENSION SEAT 1-16
O
OUTER MAST
THREE STAGE FULL FREE-LIFT 8-2
TWO STAGE FULL FREE-LIFT 9-2
TWO STAGE LIMITED FREE-LIFT 7-2
OVERHEAD GUARD 1-12
P
PARK BRAKE
LEVER ACTUATED 5-8
SEAT ACTUATED 5-14
PARK BRAKE LINKAGE
SEAT ACTUATED 5-12
S
SHIFT LEVER 4-6
SIDE-SHIFT CARRIAGE 10-6
SIDE-SHIFT CYLINDER 10-8
SPOT LIGHT 10-26
STEERING AXLE 4-22
STEERING CONTROL UNIT 4-8
STEERING CYLINDER 4-12
STEERING HYDRAULIC 4-10
STEERING MOTOR
WITH BWI 4-18
WITHOUT BWI 4-20
STEERING POD 4-2
STROBE LIGHT 10-24
SUSPENSION SEAT 1-18
T
TILT CYLINDER 6-40
TIRE AND WHEEL
DRIVE WHEEL 10-4
STEER WHEEL 10-2
TRACTION MOTOR
HIGH SPEED WITH BWI 3-10
HIGH SPEED WITHOUT BWI 3-12
LOW SPEED WITH BWI 3-14
TRANSMISSION 3-4
W
WIRE HARNESS
CONTROL VALVE SWITCH 2-32
DASH 2-27
LIGHT 2-28
MAIN 2-30
REAR LIGHT
Β S/N D114V-5262 10-28
S/N D114V-5263 Β 10-30

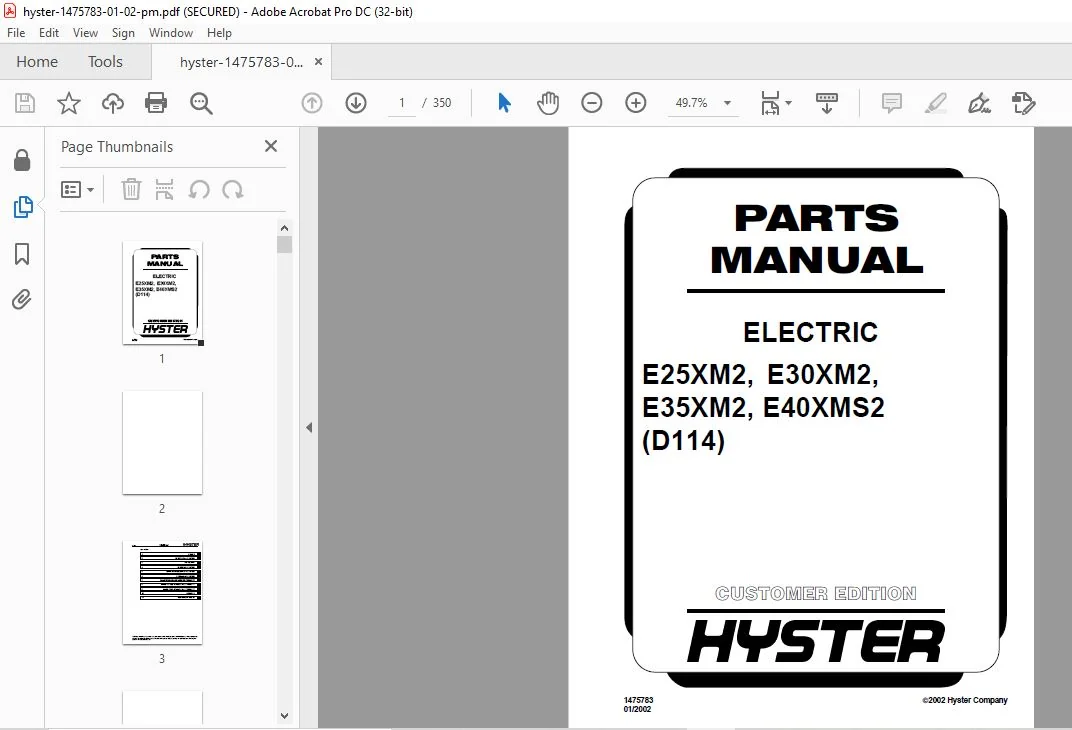

IMAGES PREVIEW OF THE MANUAL:
