Hyster ELECTRIC FORTIS® S40-70FT S55FTS (F187) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster ELECTRIC FORTIS® S40-70FT S55FTS (F187) Parts Manual – PDF DOWNLOAD

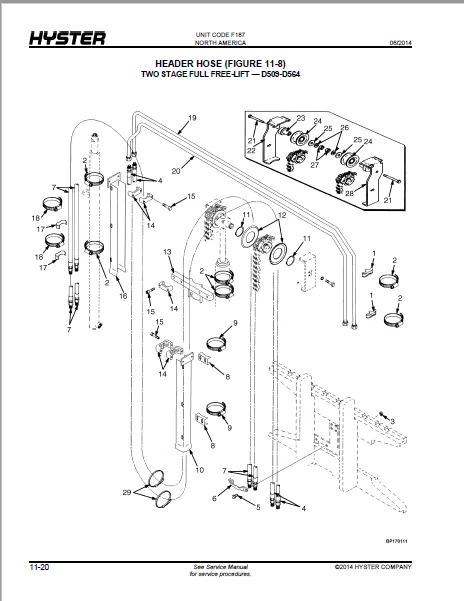

HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, sub-assemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The call outs correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 16-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 16-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Super session Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (Figure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.

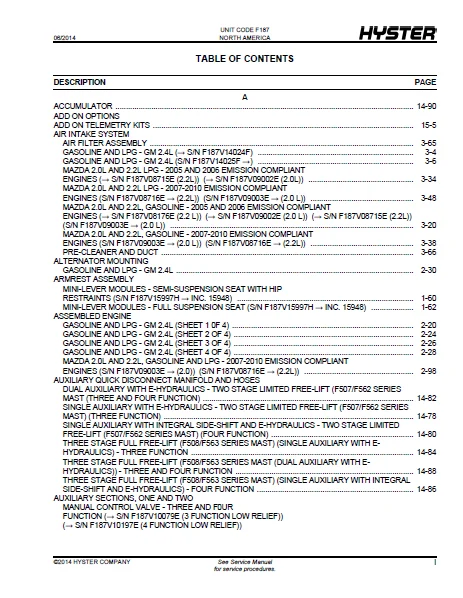

TABLE OF CONTENTS:
Hyster ELECTRIC FORTIS® S40-70FT S55FTS (F187) Parts Manual – PDF DOWNLOAD
Frame....................................................................................................................................................................................................................................................................................................................................... 27 HOOD.................................................................................................................................................................................................................................................................................................................................... 32 HOOD.................................................................................................................................................................................................................................................................................................................................... 34 FLOORPLATES AND COVERS.................................................................................................................................................................................................................................................................................................................. 38 FLOORPLATES AND COVERS.................................................................................................................................................................................................................................................................................................................. 42 FENDERS................................................................................................................................................................................................................................................................................................................................. 45 COWL MOUNT.............................................................................................................................................................................................................................................................................................................................. 46 COUNTERWEIGHT........................................................................................................................................................................................................................................................................................................................... 48 COUNTERWEIGHT........................................................................................................................................................................................................................................................................................................................... 50 OVERHEAD GUARD.......................................................................................................................................................................................................................................................................................................................... 52 NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS (→ S/N F187V15997H) ................................................................................................................................................................................................................................................................... 54 NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS (S/N F187V15997H → INC. 15948) ........................................................................................................................................................................................................................................................ 56 NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS - OPTIONAL ............................................................................................................................................................................................................................................................................. 58 SEMI SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (→ 7/2006) .................................................................................................................................................................................................................................................................. 60 SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (7/2006 ↔ S/N F187V15996H) .................................................................................................................................................................................................................................................. 62 SEMI-SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (S/N F187V15997H → INC. 15948) .............................................................................................................................................................................................................................................. 66 FULL SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (→ 7/2005) .................................................................................................................................................................................................................................................................. 68 FULL SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (7/2005 ↔ S/N F187V05858D) .................................................................................................................................................................................................................................................. 70 FULL SUSPENSION SEAT WITH AND WITHOUT ELECTRONIC CONTROLS - WITH LIMITED BACK TILT (S/N F187V05859D ↔ S/N F187V15996H EXC. 15948) .................................................................................................................................................................................................... 72 FULL SUSPENSION SWIVEL SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (→ 7/2006) ........................................................................................................................................................................................................................................................... 74 FULL SUSPENSION SWIVEL SEAT WITH AND WITHOUT ELECTRONIC CONTROLS (7/2006 ↔ S/N F187V15996H) ........................................................................................................................................................................................................................................... 76 FULL SUSPENSION SWIVEL SEAT WITH LIMITED BACK TILT (S/N F187V05859D ↔ S/N F187V15996H EXC. 15948) ..................................................................................................................................................................................................................................... 78 FULL SUSPENSION SEAT MANUAL AND ELECTRO-HYDRAULIC — SWIVEL AND NON SWIVEL - SHEET 1 OF 4 (S/N F187V15997H → INC. 15948) .............................................................................................................................................................................................................. 80 FULL SUSPENSION SEAT SERVICE KITS FOR NON SWIVEL AND SWIVEL - SHEET 2 OF 4 (S/N F187V15997H →) ....................................................................................................................................................................................................................................... 82 FULL SUSPENSION SEAT RECLINER AND DAMPER KITS - SHEET 3 OF 4 (S/N F187V15997H → INC. 15948) .......................................................................................................................................................................................................................................... 84 SEAT ATTACHING PARTS NOT INCLUDED WITH SEAT - SHEET 4 OF 4 (S/N F187V15997H → INC. 15948) ............................................................................................................................................................................................................................................ 86 ARMREST ASSEMBLY MINI-LEVER MODULES - SEMI-SUSPENSION SEAT WITH HIP RESTRAINTS (S/N F187V15997H → INC. 15948) ........................................................................................................................................................................................................................ 88 ARMREST ASSEMBLY MINI-LEVER MODULES - FULL SUSPENSION SEAT (S/N F187V15997H → INC. 15948) ............................................................................................................................................................................................................................................ 90 PLATES AND LABELS....................................................................................................................................................................................................................................................................................................................... 92 ELECTRONIC LEVER LABELS AUXILIARY SINGLE FUNCTION....................................................................................................................................................................................................................................................................................... 96 ELECTRONIC LEVER LABELS AUXILIARY DUAL FUNCTION......................................................................................................................................................................................................................................................................................... 98 MINI LEVER MODULE LABELS HYDRAULIC CONTROL FUNCTIONS.................................................................................................................................................................................................................................................................................... 100 FORKS................................................................................................................................................................................................................................................................................................................................... 102 FORK OPTIONAL........................................................................................................................................................................................................................................................................................................................... 104 FORKS OPTIONAL.......................................................................................................................................................................................................................................................................................................................... 106 LOAD BACKREST EXTENSION................................................................................................................................................................................................................................................................................................................. 108 LABELS HYDRAULIC CONTROL LABELS - CONTROL LEVER ........................................................................................................................................................................................................................................................................................ 110 ENGINES..................................................................................................................................................................................................................................................................................................................................... 113 ENGINE MOUNT GASOLINE AND LPG - GM 2.4L ................................................................................................................................................................................................................................................................................................ 118 COOLING SYSTEM GASOLINE AND LPG - GM 2.4L (→ S/N F187V08135D) ........................................................................................................................................................................................................................................................................ 120 COOLING SYSTEM GASOLINE AND LPG - GM 2.4L (S/N F187V08136D →) ........................................................................................................................................................................................................................................................................ 122 COOLING MANIFOLD AND ATTACHING PARTS GASOLINE AND LPG - GM 2.4L ........................................................................................................................................................................................................................................................................ 125 EXHAUST SYSTEM GM 2.4L GASOLINE AND LPG................................................................................................................................................................................................................................................................................................. 126 EXHAUST SYSTEM GM 2.4L GASOLINE AND LPG - 2010 SERIES .................................................................................................................................................................................................................................................................................. 128 FLYWHEEL AND HOUSING GM 2.4L, GASOLINE AND LPG (→ S/N F187V13502F) .................................................................................................................................................................................................................................................................... 130 FLYWHEEL AND HOUSING GM 2.4L, GASOLINE AND LPG (S/N F187V13502F →) .................................................................................................................................................................................................................................................................... 132 ASSEMBLED ENGINE GASOLINE AND LPG - GM 2.4L (SHEET 1 0F 4) ............................................................................................................................................................................................................................................................................. 134 ASSEMBLED ENGINE GASOLINE AND LPG - GM 2.4L (SHEET 2 OF 4) ............................................................................................................................................................................................................................................................................. 138 ASSEMBLED ENGINE GASOLINE AND LPG - GM 2.4L (SHEET 3 OF 4) ............................................................................................................................................................................................................................................................................. 140 ASSEMBLED ENGINE GASOLINE AND LPG - GM 2.4L (SHEET 4 OF 4) ............................................................................................................................................................................................................................................................................. 142 ALTERNATOR MOUNTING GASOLINE AND LPG - GM 2.4L ......................................................................................................................................................................................................................................................................................... 144 REMOTE OIL FILTER GASOLINE AND LPG - GM 2.4L ........................................................................................................................................................................................................................................................................................... 145 CRANKSHAFT, PISTONS AND OIL PAN GM 2.4L ENGINE.......................................................................................................................................................................................................................................................................................... 148 CAMSHAFT, CYLINDER HEAD AND MANIFOLDS GM 2.4L (→ S/N F187V06059D) ..................................................................................................................................................................................................................................................................... 152 CAMSHAFT, CYLINDER HEAD AND MANIFOLDS GM 2.4L ENGINE (S/N F187V06060D →) .............................................................................................................................................................................................................................................................. 156 CAM POSITION SENSOR GM 2.4L GASOLINE AND LPG - 2010 SERIES ............................................................................................................................................................................................................................................................................. 159 ENGINE MOUNT GASOLINE AND LPG - MAZDA 2.0L AND 2.2L .................................................................................................................................................................................................................................................................................... 160 FLYWHEEL AND HOUSING GASOLINE AND LPG - MAZDA 2.0 L AND 2.2 L (→ S/N F187V07304D) .................................................................................................................................................................................................................................................... 162 FLYWHEEL AND HOUSING GASOLINE AND LPG - MAZDA 2.0 L AND 2.2 L (S/N F187V07305D →) .................................................................................................................................................................................................................................................... 164 COOLING SYSTEM GASOLINE AND LPG - MAZDA 2.0L AND 2.2L (→ S/N F187V08135D) ............................................................................................................................................................................................................................................................ 166 COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (S/N F187V08135D ↔ S/N F187V09002E 2.0L) (S/N F187V08136D ↔ S/N F187V08715E 2.2L) ................................................................................................................................................... 170 COOLING SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0L)) (S/N F187V08716E → (2.2L)) .................................................................................................................................................................................. 174 EXHAUST MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V09002E (2.0L)) (→ S/N F187V08715E (2.2L)) ...................................................................................................................................................................................... 178 EXHAUST MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0L)) (S/N F187V08716E → (2.2L)) ......................................................................................................................................................................................... 180 CYLINDER HEAD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V09002E) (→ S/N F187V08715E 2.2L) ......................................................................................................................................................................................... 182 CYLINDER BLOCK MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ............................................................................................................................................................................... 184 CAMSHAFT AND VALVES MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) .......................................................................................................................................................................... 186 CRANKSHAFT AND PISTONS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ....................................................................................................................................................................... 188 ENGINE COOLING MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ............................................................................................................................................................................... 192 INTAKE AND EXHAUST MANIFOLDS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V09002E (2.0L)) (→ S/N F187V08715E (2.2L)) ................................................................................................................................................................. 196 TIMING GEAR COVER AND OIL PAN MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ................................................................................................................................................................ 198 OIL PUMP AND FILTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) .......................................................................................................................................................................... 200 ENGINE FUEL SYSTEM AND INTAKE MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ............................................................................................................................................................... 202 EMISSION LINES MAZDA 2.0L AND 2.2L, GASOLINE - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ....................................................................................................................................................................................... 204 ENGINE FUEL SYSTEM AND EMISSION CONTROL MAZDA 2.0L AND 2.2L LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) .................................................................................................................................................................... 206 CARBURETOR MAZDA 2.0L AND 2.2L LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ................................................................................................................................................................................................. 208 DELAY VALVE MAZDA 2.0L AND 2.2L LPG - 2005-2006 SERIES ENGINE (S/N F187V07282D ↔ S/N F187V08715E) .................................................................................................................................................................................................................................... 210 ASSEMBLED ENGINE MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0)) (S/N F187V08716E → (2.2L)) ................................................................................................................................................................................. 212 CYLINDER HEAD AND COVER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → (2.2L)) (S/N F187V09003E → (2.0L)) ......................................................................................................................................................................... 214 CYLINDER BLOCK MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → (2.2L)) (S/N F187V09003E → (2.0L)) .................................................................................................................................................................................. 216 CAMSHAFT AND VALVES MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) ............................................................................................................................................................................ 218 CRANKSHAFT AND PISTONS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V18716E → (2.2 L)) ........................................................................................................................................................................ 220 ENGINE COOLING MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → (2.2L)) (S/N F187V09003E → (2.0L)) .................................................................................................................................................................................. 224 OIL PUMP AND FILTER MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) ............................................................................................................................................................................ 228 TIMING GEAR COVER AND OIL PAN MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) .................................................................................................................................................................. 230 EXHAUST MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0L)) (S/N F187V08716E → (2.2L)) ................................................................................................................................................................................ 232 INTAKE MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE - 2007 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0L)) (S/N F187V08716E → (2.2L)) ............................................................................................................................................................................................... 234 INTAKE MANIFOLD MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0L)) (S/N F187V08716E → (2.2L)) ............................................................................................................................................................................................... 236 EMISSION CONTROL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E →) (S/N F187V08716E → (2.2L)) ........................................................................................................................................................................................ 238 EMISSION CONTROL SYSTEM MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0L)) (S/N F187V08716E → (2.2L)) ....................................................................................................................................................................................... 240 ENGINE FUEL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0L)) (S/N F187V08716E → (2.2L)) .............................................................................................................................................................................. 242 FUEL SYSTEM................................................................................................................................................................................................................................................................................................................................. 245 AIR INTAKE SYSTEM GASOLINE AND LPG - GM 2.4L (→ S/N F187V14024F) ..................................................................................................................................................................................................................................................................... 250 AIR INTAKE SYSTEM GASOLINE AND LPG - GM 2.4L (S/N F187V14025F →) ..................................................................................................................................................................................................................................................................... 252 FUEL SYSTEM GASOLINE - GM 2.4L ......................................................................................................................................................................................................................................................................................................... 254 FUEL SYSTEM LPG - GM 2.4L .............................................................................................................................................................................................................................................................................................................. 256 FUEL REGULATOR LPG - GM 2.4L ........................................................................................................................................................................................................................................................................................................... 260 THROTTLE BODY AND ATTACHING PARTS GM 2.4L GASOLINE AND LPG.............................................................................................................................................................................................................................................................................. 262 THROTTLE BODY AND ATTACHING PARTS GM 2.4L GASOLINE AND LPG - 2010 SERIES ............................................................................................................................................................................................................................................................... 264 AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08176E (2.2 L)) (→ S/N F187V09002E (2.0 L)) (→ S/N F187V08715E (2.2L)) (S/N F187V09003E → (2.0 L)) ......................................................................................................................... 266 FUEL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) .......................................................................................................................................................................................... 268 ENGINE FUEL SYSTEM AND INTAKE MANIFOLD MAZDA 2.0L AND 2.2L, GASOLINE - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ............................................................................................................................................................... 270 EMISSION LINES MAZDA 2.0L AND 2.2L, GASOLINE - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ....................................................................................................................................................................................... 272 ENGINE FUEL SYSTEM AND EMISSION CONTROL MAZDA 2.0L AND 2.2L LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) .................................................................................................................................................................... 274 FUEL SYSTEM MAZDA 2.0L AND 2.2L LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ................................................................................................................................................................................................ 276 AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) .......................................................................................................................................................................................... 280 CARBURETOR MAZDA 2.0L AND 2.2L LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) ................................................................................................................................................................................................. 282 AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) ...................................................................................................................................................................................... 284 FUEL SUPPLY SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) ..................................................................................................................................................................................... 286 FUEL SUPPLY SYSTEM MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → (2.2L)) (S/N F187V09003E → (2.0 L)) ........................................................................................................................................................................................... 288 FUEL PUMP AND SENDER MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) ................................................................................................................................................................................... 290 FUEL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → (2.2L)) (S/N F187V09003E → (2.0 L)) ............................................................................................................................................................................................ 292 THROTTLE BODY AND ATTACHING PARTS MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → (2.2L)) (S/N F187V09003E → (2.0 L)) ...................................................................................................................................................................... 293 AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → (2.2L)) (S/N F187V09003E → (2.0 L)) ............................................................................................................................................................................................ 294 FUEL SYSTEM MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → (2.2L)) (S/N F187V09003E → (2.0 L)) .................................................................................................................................................................................................. 296 FUEL SYSTEM HOSES AND ATTACHING PARTS MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES .................................................................................................................................................................................................................................. 298 MIXER AND THROTTLE BODY ASSEMBLY MAZDA 2.0L AND 2.2L LPG - 2007 EMISSION COMPLIANT ENGINES (S/N F187V08716E ↔ 2/2008 (2.2L)) (S/N F187V09003E ↔ 2/2008 (2.0 L)) ..................................................................................................................................................................... 300 MIXER AND THROTTLE BODY ASSEMBLY MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (2/2008 → (2.2L)) (2/2008 → (2.0 L)) ............................................................................................................................................................................................... 302 ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG - 2007 EMISSION COMPLIANT ENGINES (S/N F187V08716E ↔ 2/2008 (2.2L)) (S/N F187V09003E ↔ 2/2008 (2.0 L)) ............................................................................................................................................................... 304 ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (2/2008 ↔ 2/2012) ............................................................................................................................................................................................................. 306 ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG (2/2012 →) ............................................................................................................................................................................................................................................................. 308 ELECTRONIC PRESSURE REGULATOR KIT MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → (2.2L)) (S/N F187V09003E → (2.0 L)) ............................................................................................................................................................................ 310 AIR INTAKE SYSTEM AIR FILTER ASSEMBLY................................................................................................................................................................................................................................................................................................... 311 AIR INTAKE SYSTEM PRE-CLEANER AND DUCT.................................................................................................................................................................................................................................................................................................. 312 LPG TANK BRACKET SWING OUT.............................................................................................................................................................................................................................................................................................................. 314 LPG TANK SHORT BRACKET SWING OUT........................................................................................................................................................................................................................................................................................................ 316 LPG TANK BRACKET SWING OUT/DROP DOWN.................................................................................................................................................................................................................................................................................................... 320 LPG TANK BRACKET SWING OUT, DROP DOWN - ALTERNATE PART ................................................................................................................................................................................................................................................................................. 324 THROTTLE LINKAGE GASOLINE............................................................................................................................................................................................................................................................................................................... 327 THROTTLE LINKAGE LPG.................................................................................................................................................................................................................................................................................................................... 328 THROTTLE PEDAL AND ATTACHING PARTS MONOTROL PEDAL (→ S/N F187V21728K) ................................................................................................................................................................................................................................................................. 330 MONOTROL PEDAL ASSEMBLY................................................................................................................................................................................................................................................................................................................. 332 THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS STANDARD PEDAL.............................................................................................................................................................................................................................................................................. 334 THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS MONOTROL (S/N F187V21729K →) .............................................................................................................................................................................................................................................................. 336 ELECTRICAL SYSTEM........................................................................................................................................................................................................................................................................................................................... 339 ELECTRICAL SYSTEM CHASSIS............................................................................................................................................................................................................................................................................................................... 344 IMPACT SENSOR........................................................................................................................................................................................................................................................................................................................... 348 GM ENGINE ELECTRICAL GASOLINE AND LPG/GS AND LPS 2.4L (→ S/N F187V13146F EXC. 04157) .................................................................................................................................................................................................................................................. 350 GM ENGINE ELECTRICAL GASOLINE AND LPG/GS AND LPS 2.4L (S/N F187V13147F → INC. 04157) .................................................................................................................................................................................................................................................. 352 ENGINE ELECTRICAL COMPONETS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2005 AND 2006 EMISSION COMPLIANT ENGINES (→ S/N F187V08715E (2.2L)) (→ S/N F187V09002E (2.0L)) .................................................................................................................................................................. 354 ENGINE ELECTRICAL COMPONENTS MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) ................................................................................................................................................................... 358 ENGINE ELECTRICAL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE, SHEET 1 OF 2.................................................................................................................................................................................................................................................................... 360 ENGINE ELECTRICAL SYSTEM MAZDA 2.0L AND 2.2L LPG, SHEET 1 OF 2.......................................................................................................................................................................................................................................................................... 364 ENGINE ELECTRICAL SYSTEM MAZDA 2.0L AND 2.2L, GASOLINE AND LPG, SHEET 2 OF 2 - 2007 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → 2.2L) ................................................................................................................................................................. 368 ENGINE CONTROL MODULE MAZDA 2.0L AND 2.2L, GASOLINE..................................................................................................................................................................................................................................................................................... 371 ENGINE CONTROL MODULE MAZDA 2.0L AND 2.2L LPG........................................................................................................................................................................................................................................................................................... 372 DISTRIBUTOR MAZDA 2.0L AND 2.2L, GASOLINE AND LPG....................................................................................................................................................................................................................................................................................... 373 FUEL SYSTEM SENSORS MAZDA 2.0L AND 2.2L, GASOLINE - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) .................................................................................................................................................................................... 374 FUEL SYSTEM SENSORS MAZDA 2.0L AND 2.2L LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) .......................................................................................................................................................................................... 375 ENGINE SAFETY ELECTRICAL MAZDA 2.0L AND 2.2L............................................................................................................................................................................................................................................................................................ 376 COWL ELECTRICAL......................................................................................................................................................................................................................................................................................................................... 380 COWL ELECTRICAL MANUAL HYDRAULIC - WITH OPERATOR PRESENCE SYSTEM ....................................................................................................................................................................................................................................................................... 382 POWER DISTRIBUTION MODULE............................................................................................................................................................................................................................................................................................................... 384 POWER DISTRIBUTION MODULE............................................................................................................................................................................................................................................................................................................... 386 INSTRUMENT CLUSTER...................................................................................................................................................................................................................................................................................................................... 388 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULES - DATE CODE 0724 .......................................................................................................................................................................................................................................................................... 390 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULES (THREE FUNCTION) - DATE CODE 0725 THRU 0743 ............................................................................................................................................................................................................................................... 392 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULE (FOUR FUNCTION) - DATE CODE 0725 THRU 0743 ................................................................................................................................................................................................................................................. 394 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULES (THREE FUNCTION) - DATE CODE 0744 ......................................................................................................................................................................................................................................................... 396 ELECTRONIC CONTROL LEVERS MINI-LEVER MODULE (FOUR FUNCTION) - DATE CODE 0744 ........................................................................................................................................................................................................................................................... 400 MINI-LEVER CONTROLS WITH ARMREST - THREE FUNCTION (S/N F187V15997H →) ................................................................................................................................................................................................................................................................ 402 MINI-LEVER CONTROLS WITH ARMREST - FOUR FUNCTION (S/N F187V15997H →) ................................................................................................................................................................................................................................................................. 404 TRANSMISSION ELECTRICAL SYSTEM.......................................................................................................................................................................................................................................................................................................... 406 TRANSMISSION ELECTRICAL SYSTEM.......................................................................................................................................................................................................................................................................................................... 408 MAST ELECTRICAL......................................................................................................................................................................................................................................................................................................................... 409 LOAD WEIGH ELECTRICAL................................................................................................................................................................................................................................................................................................................... 410 WORK, REAR DRIVE, AND BRAKE/TAIL LIGHTS................................................................................................................................................................................................................................................................................................. 412 WIRE HARNESS CHASSIS - MAZDA 2.0L AND 2.2L (→ S/N F187V07304D) ....................................................................................................................................................................................................................................................................... 414 WIRE HARNESS (CHASSIS) MAZDA 2.0L AND 2.2L, GASOLINE AND LPG (S/N F187V07305D ↔ S/N F187V09002E 2.0L) (S/N F187V07305D ↔ S/N F187V08715E 2.2L) ....................................................................................................................................................................................... 420 WIRE HARNESS (CHASSIS) MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007-2010 EMISSION COMPLIANT ENGINES (S/N F187V08716E → 2.2L) (S/N F187V09003E → 2.0L) .............................................................................................................................................................................. 426 WIRE HARNESS CHASSIS - MAZDA, WITH ANTI-STALL (→ S/N F187V15996H EXC. 15948) ......................................................................................................................................................................................................................................................... 432 WIRE HARNESS CHASSIS - MAZDA (S/N F187V15997H → INC. 15948) .......................................................................................................................................................................................................................................................................... 438 WIRE HARNESS CHASSIS - MAZDA-WITHOUT SEAT BELT SEQUENCE MODULE (1/2013 →) ............................................................................................................................................................................................................................................................ 444 WIRE HARNESS CHASSIS - MAZDA-WITH SEAT BELT SEQUENCE MODULE ............................................................................................................................................................................................................................................................................ 450 WIRE HARNESS CHASSIS - GM 2.4L (→ S/N F187V07304D) ................................................................................................................................................................................................................................................................................... 456 WIRE HARNESS CHASSIS - GM 2.4L (S/N F187V07305D ↔ S/N F187V08649D) ................................................................................................................................................................................................................................................................... 462 WIRE HARNESS CHASSIS - GM 2.4L (S/N F187V08650D → EXC. 7239-7240, 8630) .............................................................................................................................................................................................................................................................. 468 WIRE HARNESS CHASSIS - GM, WITH ANTI-STALL (→ S/N F187V15996H EXC. 15948) ............................................................................................................................................................................................................................................................ 474 WIRE HARNESS CHASSIS - GM 2.4L (S/N F187V15997H → INC. 15948) ........................................................................................................................................................................................................................................................................ 480 WIRE HARNESS CHASSIS - GM 2.4L-WITHOUT SEAT BELT SEQUENCE MODULE (1/2013 →) .......................................................................................................................................................................................................................................................... 486 WIRE HARNESS CHASSIS - GM 2.4L-WITH SEAT BELT SEQUENCE MODULE .......................................................................................................................................................................................................................................................................... 492 WIRE HARNESS SEAT JUMPER (→ S/N F187V15996H EXC. 15948) ............................................................................................................................................................................................................................................................................... 498 WIRE HARNESS COWL WITH MONOTROL PEDAL - WITH RETURN TO SET TILT (→ S/N F187V16129H) .................................................................................................................................................................................................................................................. 500 WIRE HARNESS COWL WITH MONOTROL PEDAL - WITH RETURN TO SET TILT (S/N F187V16130H →) .................................................................................................................................................................................................................................................. 504 WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER - WITHOUT RETURN TO SET TILT (→ S/N F187V16129H) ........................................................................................................................................................................................................................................ 508 WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER - WITHOUT RETURN TO SET TILT (S/N F187V16130H →) ........................................................................................................................................................................................................................................ 512 WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER - WITH HYDRAULIC PUMP SOLENOID (→ S/N F187V16129H) ...................................................................................................................................................................................................................................... 516 WIRE HARNESS COWL WITH FORWARD/REVERSE LEVER - WITH HYDRAULIC PUMP SOLENOID (S/N F187V16130H →) ...................................................................................................................................................................................................................................... 520 WIRE HARNESS COWL WITH MONOTROL PEDAL - WITH HYDRAULIC PUMP SOLENOID (→ S/N F187V16129H) ............................................................................................................................................................................................................................................. 524 WIRE HARNESS COWL WITH MONOTROL PEDAL - WITH HYDRAULIC PUMP SOLENOID (S/N F187V16130H →) ............................................................................................................................................................................................................................................. 528 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L, GASOLINE (→ S/N F187V07304D) ............................................................................................................................................................................................................................................................... 532 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L, GASOLINE (S/N F187V07305D ↔ S/N F187V08715E 2.2L) (S/N F187V07305D ↔ S/N F187V09002E 2.0L) ................................................................................................................................................................................................ 536 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L, GASOLINE - 2007 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) ........................................................................................................................................................................................ 540 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L, GASOLINE - 2010 SERIES ...................................................................................................................................................................................................................................................................... 546 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L LPG (→ S/N F187V07304D) ..................................................................................................................................................................................................................................................................... 550 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L LPG (S/N F187V07305D ↔ S/N F187V8715E 2.2L) (S/N F187V07305D ↔ S/N F187V09002E 2.0L) ....................................................................................................................................................................................................... 552 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L LPG - 2007-2009 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) ......................................................................................................................................................................................... 554 WIRE HARNESS (ENGINE) MAZDA 2.0L AND 2.2L LPG - 2010 SERIES ............................................................................................................................................................................................................................................................................ 560 WIRE HARNESS (SEALED ALTERNATOR) MAZDA 2.0L AND 2.2L, GASOLINE AND LPG - 2007 EMISSION COMPLIANT ENGINES (S/N F187V09003E → (2.0 L)) (S/N F187V08716E → (2.2L)) ..................................................................................................................................................................... 566 WIRE HARNESS SEALED ALTERNATOR - GM 2,4L ............................................................................................................................................................................................................................................................................................... 568 WIRE HARNESS GM 2.4L ENGINE - LPG (→ S/N F187V08649E INC. 8630 EXC. 7239-7240) ....................................................................................................................................................................................................................................................... 570 WIRE HARNESS GM 2.4L ENGINE - LPG (S/N F187V08650E → INC. 7239-7240 EXC. 8630) ....................................................................................................................................................................................................................................................... 574 WIRE HARNESS GM 2.4L ENGINE, LPG - 2010 SERIES ......................................................................................................................................................................................................................................................................................... 578 WIRE HARNESS GM 2.4L ENGINE, LPG - WITH LOW FUEL SENSOR ................................................................................................................................................................................................................................................................................ 582 WIRE HARNESS GM 2.4L ENGINE, GASOLINE (→ S/N F187V08649E INC. 8630 EXC. 7239-7240) .................................................................................................................................................................................................................................................... 586 WIRE HARNESS GM 2.4L ENGINE, GASOLINE (S/N F187V08650E → INC. 7239-7240 EXC. 8630) .................................................................................................................................................................................................................................................... 590 WIRE HARNESS GM 2.4L ENGINE, GASOLINE - 2010 SERIES .................................................................................................................................................................................................................................................................................... 594 WIRE HARNESS ELECTRONIC CONTROL VALVE - 3 FUNCTION ..................................................................................................................................................................................................................................................................................... 598 WIRE HARNESS ELECTRONIC CONTROL VALVE - 4 FUNCTION ..................................................................................................................................................................................................................................................................................... 600 WIRE HARNESS TRANSMISSION - SINGLE SPEED (→ S/N F187V07304D) ......................................................................................................................................................................................................................................................................... 602 WIRE HARNESS TRANSMISSION - SINGLE SPEED (GM) (S/N F187V07305D →) .................................................................................................................................................................................................................................................................... 604 WIRE HARNESS TRANSMISSION - SINGLE SPEED (MAZDA) ....................................................................................................................................................................................................................................................................................... 606 WIRE HARNESS LIGHTS (→ S/N F187V07342D) ............................................................................................................................................................................................................................................................................................... 608 WIRE HARNESS LIGHTS (S/N F187V07343D ↔ 6/2007) ........................................................................................................................................................................................................................................................................................ 610 WIRE HARNESS LIGHTS (6/2007 →) ........................................................................................................................................................................................................................................................................................................ 612 WIRE HARNESS HYDRAULIC OIL COOLER - THREE OR FOUR FUNCTION (OPTIONAL) .................................................................................................................................................................................................................................................................. 614 WIRE HARNESS ADAPTER LOW FUEL PRESSURE.................................................................................................................................................................................................................................................................................................. 616 WIRE HARNESS FUSED STARTER - GM 2.4L 2010 SERIES ....................................................................................................................................................................................................................................................................................... 617 TRANSMISSION................................................................................................................................................................................................................................................................................................................................ 619 TRANSMISSION MOUNT...................................................................................................................................................................................................................................................................................................................... 622 TRANSMISSION MOUNT...................................................................................................................................................................................................................................................................................................................... 623 TRANSMISSION MOUNT...................................................................................................................................................................................................................................................................................................................... 626 TRANSMISSION MOUNT SINGLE SPEED - ALUMINUM CHAIN DRIVE (2/2011 →) .................................................................................................................................................................................................................................................................... 628 TORQUE CONVERTER GASOLINE AND LPG - MAZDA (2.0L AND 2.2L) .............................................................................................................................................................................................................................................................................. 629 TORQUE CONVERTER GASOLINE AND LPG - GM 2.4L ............................................................................................................................................................................................................................................................................................ 630 TRANSMISSION COOLING WITHOUT AIR OIL COOLER - MAZDA 2.0L, 2.2L (→ S/N F187V14228F) ................................................................................................................................................................................................................................................... 631 TRANSMISSION COOLING WITHOUT AIR OIL COOLER - MAZDA 2.0L AND 2.2L (S/N F187V14229F →) ................................................................................................................................................................................................................................................ 634 TRANSMISSION COOLING WITH AIR OIL COOLER - MAZDA 2.0L, 2.2L, AND GM 2.4L (→ S/N F187V14228F) ......................................................................................................................................................................................................................................... 636 TRANSMISSION COOLING WITH AIR OIL COOLER - MAZDA 2.0L, 2.2L, AND GM 2.4L (S/N F187V14229F →) ......................................................................................................................................................................................................................................... 638 TRANSMISSION SINGLE SPEED - SHEET 1 OF 2 (→ S/N F187V06785D INC. 6830-6831) (→ T117M016844) ......................................................................................................................................................................................................................................... 640 TRANSMISSION SINGLE SPEED - SHEET 2 OF 2 (→ S/N F187V06785D INC. 6830-6831) (→ T117M016844) ......................................................................................................................................................................................................................................... 644 TRANSMISSION SINGLE SPEED - SHEET 1 OF 2 (S/N F187V06786D ↔ S/N F187V08503E) (T117M016845 →) ........................................................................................................................................................................................................................................ 646 TRANSMISSION SINGLE SPEED - SHEET 2 OF 2 (S/N F187V06786D ↔ S/N F187V08503E) (T117M016845 →) ........................................................................................................................................................................................................................................ 650 TRANSMISSION SINGLE SPEED - SHEET 1 OF 2 (S/N T133M0001501 → (Dry Brake)) (S/N F187V08504E →) ....................................................................................................................................................................................................................................... 652 TRANSMISSION SINGLE SPEED - SHEET 2 OF 2 (S/N T133M0001501 → (Dry Brake)) (S/N F187V08504E →) ....................................................................................................................................................................................................................................... 654 TRANSMISSION HOUSING AND ASSEMBLY SINGLE SPEED (S/N T141M001501 →) .................................................................................................................................................................................................................................................................... 658 TORQUE CONVERTER HOUSING AND ATTACHING PARTS SINGLE SPEED (S/N T141M001501 →) ......................................................................................................................................................................................................................................................... 662 TRANSMISSION HOUSING AND ASSEMBLY SINGLE SPEED - ALUMINUM CHAIN DRIVE (2/2011 →) ..................................................................................................................................................................................................................................................... 664 TORQUE CONVERTER HOUSING AND ATTACHING PARTS SINGLE SPEED - ALUMINUM CHAIN DRIVE (2/2011 →) .......................................................................................................................................................................................................................................... 668 STATOR SUPPORT HOUSING.................................................................................................................................................................................................................................................................................................................. 670 FORWARD CLUTCH SINGLE SPEED TRANSMISSION (→ S/N F187V08503E) .......................................................................................................................................................................................................................................................................... 672 FORWARD CLUTCH SINGLE SPEED TRANSMISSION (S/N F187V08504E → (T133M)) .................................................................................................................................................................................................................................................................. 674 FORWARD CLUTCH SINGLE SPEED TRANSMISSION (S/N T141M001501 →) (S/N T148M001501 →) ..................................................................................................................................................................................................................................................... 676 REVERSE CLUTCH SINGLE SPEED TRANSMISSION (→ S/N F187V08503E) .......................................................................................................................................................................................................................................................................... 678 REVERSE CLUTCH SINGLE SPEED TRANSMISSION (S/N F187V08504E → (T133M)) .................................................................................................................................................................................................................................................................. 680 REVERSE CLUTCH SINGLE SPEED TRANSMISSION (S/N T141M001501 →) (S/N T148M001501 →) ..................................................................................................................................................................................................................................................... 682 CONTROL VALVE TRANSMISSION (→ 9/2007) ................................................................................................................................................................................................................................................................................................. 684 CONTROL VALVE ASSEMBLY.................................................................................................................................................................................................................................................................................................................. 686 Drive Axle.................................................................................................................................................................................................................................................................................................................................. 687 DRIVE AXLE.............................................................................................................................................................................................................................................................................................................................. 690 DRIVE TIRES AND WHEELS S40-50FT......................................................................................................................................................................................................................................................................................................... 693 DRIVE TIRES AND WHEELS S55-60FT......................................................................................................................................................................................................................................................................................................... 694 DRIVE TIRES AND WHEELS S70FT............................................................................................................................................................................................................................................................................................................ 695 STEERING SYSTEM............................................................................................................................................................................................................................................................................................................................. 697 STEERING SYSTEM......................................................................................................................................................................................................................................................................................................................... 700 STEERING COLUMN ASSEMBLY................................................................................................................................................................................................................................................................................................................ 702 STEERING COLUMN ASSEMBLY ISOLATED, DIESEL............................................................................................................................................................................................................................................................................................... 704 STEERING CONTROL UNIT................................................................................................................................................................................................................................................................................................................... 706 STEERING AXLE........................................................................................................................................................................................................................................................................................................................... 708 STEERING CYLINDER....................................................................................................................................................................................................................................................................................................................... 710 STEER TIRES AND WHEELS.................................................................................................................................................................................................................................................................................................................. 711 BRAKE SYSTEM................................................................................................................................................................................................................................................................................................................................ 713 BRAKE LINKAGE SINGLE PEDAL (→ S/N F187V16129H) ........................................................................................................................................................................................................................................................................................ 716 BRAKE LINKAGE SINGLE PEDAL (S/N F187V16130H →) ........................................................................................................................................................................................................................................................................................ 718 BRAKE LINKAGE DUAL PEDAL (→ S/N F187V16129H) .......................................................................................................................................................................................................................................................................................... 720 BRAKE LINKAGE DUAL PEDAL (S/N F187V16130H →) .......................................................................................................................................................................................................................................................................................... 724 PARK BRAKE.............................................................................................................................................................................................................................................................................................................................. 726 PARK BRAKE.............................................................................................................................................................................................................................................................................................................................. 728 MASTER CYLINDER......................................................................................................................................................................................................................................................................................................................... 730 BRAKE ASSEMBLY.......................................................................................................................................................................................................................................................................................................................... 732 HYDRAULIC SYSTEM............................................................................................................................................................................................................................................................................................................................ 735 HYDRAULIC SUPPLY AND RETURN WITH IRON TRANSMISSION...................................................................................................................................................................................................................................................................................... 740 HYDRAULIC SUPPLY AND RETURN WITH ALUMINUM TRANSMISSION - WITH GEAR DRIVE ............................................................................................................................................................................................................................................................... 742 HYDRAULIC SUPPLY AND RETURN WITH ALUMINUM TRANSMISSION - WITH CHAIN DRIVE .............................................................................................................................................................................................................................................................. 744 GEAR PUMP ASSEMBLY LOW PRESSURE - GEAR DRIVE OPTION .................................................................................................................................................................................................................................................................................... 746 GEAR PUMP ASSEMBLY LOW PRESSURE - CHAIN DRIVE OPTION ................................................................................................................................................................................................................................................................................... 748 GEAR PUMP ASSEMBLY HIGH PRESSURE........................................................................................................................................................................................................................................................................................................ 750 HYDRAULIC FILTER........................................................................................................................................................................................................................................................................................................................ 752 HYDRAULIC FILTER........................................................................................................................................................................................................................................................................................................................ 754 TILT/HOIST AND AUXILIARY HOSES.......................................................................................................................................................................................................................................................................................................... 756 AUXILLIARY HOSES THREE STAGE FULL FREE LIFT - TWO STAGE LIMITED FREE-LIFT ............................................................................................................................................................................................................................................................. 759 HAND LEVERS THREE FUNCTION - WITHOUT DETENTED LEVERS ................................................................................................................................................................................................................................................................................... 762 HAND LEVERS THREE FUNCTION - WITH DETENTED LEVERS ...................................................................................................................................................................................................................................................................................... 764 HAND LEVERS FOUR FUNCTION - WITHOUT DETENTED LEVERS .................................................................................................................................................................................................................................................................................... 768 HAND LEVERS FOUR FUNCTION - WITH DETENTED LEVERS ....................................................................................................................................................................................................................................................................................... 770 CONTROL VALVE ASSEMBLY MANUAL CONTROL - THREE AND FOUR FUNCTION ........................................................................................................................................................................................................................................................................ 774 CONTROL VALVE LOCKOUT GROUP MANUAL CONTROL VALVE........................................................................................................................................................................................................................................................................................ 778 VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE - THREE AND F0UR FUNCTION (→ S/N F187V10079E (3 Function Low Relief)) (→ S/N F187V10197E (4 Function Low Relief)) (→ S/N F187V10696E (4 Function High Relief)) (→ S/N F187V10354E (3 Function High Relief)) .................................................................... 780 VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE - THREE AND FOUR FUNCTION (S/N F187V10080E ↔ S/N F187V15456G (3 Function Low Relief)) (S/N F187V10198E ↔ S/N F187V15350G (4 Function Low Relief)) (S/N F187V10697E ↔ S/N F187V15314G (4 Function High Relief)) (S/N F187V10354E ↔ S/N F187V15293G (3 Function High Relief)) .... 782 VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE - THREE AND FOUR FUNCTION (S/N F187V15457G → (3 Function Low Relief)) (S/N F187V15351G → (4 Function Low Relief)) (S/N F187V15315G → (4 Function High Relief)) (S/N F187V15294G → (3 Function High Relief)) .................................................................... 784 AUXILIARY SECTIONS, ONE AND TWO MANUAL CONTROL VALVE - THREE AND F0UR FUNCTION (→ S/N F187V10079E (3 Function Low Relief)) (→ S/N F187V10197E (4 Function Low Relief)) (→ S/N F187V10354E (3 Function High Relief)) (→ S/N F187V10696E (4 Function High Relief)) .................................................................. 786 AUXILIARY SECTIONS, ONE AND TWO MANUAL CONTROL VALVE - THREE AND FOUR FUNCTION (S/N F187V10080E → (3 Function Low Relief)) (S/N F187V10198E → (4 Function Low Relief)) (S/N F187V10354E → (3 Function High Relief)) (S/N F187V10697E → (4 Function High Relief)) .................................................................. 788 OUTLET SECTION MANUAL CONTROL VALVE - THREE AND F0UR FUNCTION .......................................................................................................................................................................................................................................................................... 790 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE ASSEMBLY - THREE AND FOUR FUNCTION (→ S/N F187V09717E 4 Function, Low Relief) (→ S/N F187V10074E 4 Function, High Relief) (→ S/N F187V09787E 3 Function, Low Relief) (→ S/N F187V10402E 3 Function, Hight Relief3 Function, Height Relief) ............................................... 792 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE ASSEMBLY - THREE AND FOUR FUNCTION (S/N F187V09718E → 4 Function, Low Relief) (S/N F187V10075E → 4 Function, High Relief) (S/N F187V09788E → 3 Function, Low Relief) (S/N F187V10403E → 3 Function, High Relief) ......................................................................... 794 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE INLET SECTION - THREE AND FOUR FUNCTION (→ S/N F187V09787E (3 Function Low Relief)) (→ S/N F187V09717E (4 Function Low Relief)) (→ S/N F187V10074E (4 Function High Relief)) (→ S/N F187V10402E (3 Function Low Relief)) ................................................................. 798 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE INLET SECTION - THREE AND FOUR FUNCTION (S/N F187V10403E → (3 Function High Relief)) (S/N F187V09718E → (4 Function Low Relief)) (S/N F187V09788E → (3 Function Low Relief)) (S/N F187V10075E → (4 Function High Relief)) ................................................................ 800 HYDRAULIC CONTROL VALVE ELECTRO HYDRAULIC POPPET VALVES - LIFT AND LOWER ............................................................................................................................................................................................................................................................... 802 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE TILT SECTION - THREE AND FOUR FUNCTION ........................................................................................................................................................................................................................................................ 804 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE AUXILIARY ONE SECTION - THREE AND FOUR FUNCTION ............................................................................................................................................................................................................................................... 806 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE AUXILIARY TWO SECTION - FOUR FUNCTION ......................................................................................................................................................................................................................................................... 808 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE OUTLET SECTION - THREE AND FOUR FUNCTION ...................................................................................................................................................................................................................................................... 810 HYDRAULIC CONTROL VALVE ELECTRONIC VALVE OUTLET SECTION (7/2009 →) .................................................................................................................................................................................................................................................................... 812 TILT CYLINDER AND MAST INSTALLATION..................................................................................................................................................................................................................................................................................................... 814 TILT CYLINDERS S40-55FT................................................................................................................................................................................................................................................................................................................. 816 TILT CYLINDERS S60-70FT................................................................................................................................................................................................................................................................................................................. 818 Mast-Two Stage Limited Free-Lift............................................................................................................................................................................................................................................................................................................ 821 OUTER MAST TWO STAGE LIMITED FREE-LIFT - D507/D562 ..................................................................................................................................................................................................................................................................................... 824 INNER MAST TWO STAGE LIMITED FREE-LIFT - D507/D562 ..................................................................................................................................................................................................................................................................................... 826 MAIN LIFT TWO STAGE LIMITED FREE-LIFT - D507/D562 ...................................................................................................................................................................................................................................................................................... 828 MAIN LIFT CYLINDERS TWO STAGE LIMITED FREE-LIFT - D507/D562 ............................................................................................................................................................................................................................................................................ 830 CARRIAGE TWO STAGE LIMITED FREE-LIFT - D507/D562 ....................................................................................................................................................................................................................................................................................... 834 HEADER HOSE TWO STAGE LIMITED FREE-LIFT - D507/D562 .................................................................................................................................................................................................................................................................................... 836 OUTER MAST TWO STAGE LIMITED FREE-LIFT - F507-F562 ..................................................................................................................................................................................................................................................................................... 840 INNER MAST TWO STAGE LIMITED FREE LIFT - F507-F562 ..................................................................................................................................................................................................................................................................................... 842 MAIN LIFT TWO STAGE LIMITED FREE LIFT - F507-F562 ...................................................................................................................................................................................................................................................................................... 844 MAIN LIFT CYLINDER TWO STAGE LIMITED FREE LIFT - F507-F562 ............................................................................................................................................................................................................................................................................. 846 HEADER HOSE AND ATTACHING PARTS TWO STAGE LIMITED FREE-LIFT - F507-F562 ................................................................................................................................................................................................................................................................ 850 CARRIAGE TWO STAGE LIMITED FREE-LIFT - F507-F562 ....................................................................................................................................................................................................................................................................................... 854 Mast-Two Stage Full Free-Lift............................................................................................................................................................................................................................................................................................................... 857 OUTER MAST TWO STAGE FULL FREE-LIFT - D509-D564 ........................................................................................................................................................................................................................................................................................ 860 INNER MAST TWO STAGE FULL FREE-LIFT - D509-D564 ........................................................................................................................................................................................................................................................................................ 862 MAIN LIFT TWO STAGE FULL FREE-LIFT - D509-D564 ......................................................................................................................................................................................................................................................................................... 864 MAIN LIFT CYLINDER RIGHT HAND - TWO STAGE FULL FREE-LIFT (D509-D564) ................................................................................................................................................................................................................................................................... 866 MAIN LIFT CYLINDER LEFT HAND - TWO STAGE FULL FREE-LIFT (D509-D564) .................................................................................................................................................................................................................................................................... 868 FREE-LIFT TWO STAGE FULL FREE-LIFT - D509-D564 ......................................................................................................................................................................................................................................................................................... 870 FREE-LIFT CYLINDERS TWO STAGE FULL FREE-LIFT - D509-D564 ............................................................................................................................................................................................................................................................................... 874 HEADER HOSE TWO STAGE FULL FREE-LIFT - D509-D564 ....................................................................................................................................................................................................................................................................................... 878 OUTER MAST TWO STAGE FULL FREE LIFT - E509-E564 ........................................................................................................................................................................................................................................................................................ 882 INNER MAST TWO STAGE FULL FREE- LIFT - E509-E564 ....................................................................................................................................................................................................................................................................................... 884 MAIN LIFT TWO STAGE FULL FREE- LIFT - E509-E564 ........................................................................................................................................................................................................................................................................................ 886 MAIN LIFT CYLINDER - RH TWO STAGE FULL FREE- LIFT - E509-E564 .......................................................................................................................................................................................................................................................................... 888 MAIN LIFT CYLINDER - LH TWO STAGE FULL FREE- LIFT - E509-E564 .......................................................................................................................................................................................................................................................................... 892 FREE-LIFT TWO STAGE FULL FREE- LIFT - E509-E564 ........................................................................................................................................................................................................................................................................................ 896 FREE-LIFT CYLINDER TWO STAGE FULL FREE- LIFT - E509-E564 ............................................................................................................................................................................................................................................................................... 900 HEADER HOSES TWO STAGE FULL FREE-LIFT - E509-E564 ...................................................................................................................................................................................................................................................................................... 904 CARRIAGE TWO STAGE FULL FREE-LIFT....................................................................................................................................................................................................................................................................................................... 908 CARRIAGE HEAVY DUTY - TWO STAGE FULL FREE-LIFT ......................................................................................................................................................................................................................................................................................... 910 Mast-Three Stage Full Free-Lift............................................................................................................................................................................................................................................................................................................. 913 OUTER MAST THREE STAGE FULL FREE-LIFT - D508/D563 ...................................................................................................................................................................................................................................................................................... 916 INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT - D508/D563 ............................................................................................................................................................................................................................................................................... 918 INNER MAST THREE STAGE FULL FREE-LIFT - D508/D563 ...................................................................................................................................................................................................................................................................................... 922 MAIN LIFT THREE STAGE FULL FREE-LIFT - D508/D563 ....................................................................................................................................................................................................................................................................................... 924 MAIN LIFT CYLINDERS THREE STAGE FULL FREE-LIFT - D508/D563 ............................................................................................................................................................................................................................................................................. 928 FREE-LIFT THREE STAGE FULL FREE-LIFT - D508/D563 ....................................................................................................................................................................................................................................................................................... 932 FREE-LIFT CYLINDERS THREE STAGE FULL FREE-LIFT - D508/D563 ............................................................................................................................................................................................................................................................................. 936 CARRIAGE THREE STAGE FULL FREE-LIFT - D508/D563 ........................................................................................................................................................................................................................................................................................ 940 CARRIAGE HEAVY DUTY - THREE STAGE FULL FREE-LIFT (D508/D563) ........................................................................................................................................................................................................................................................................... 942 HEADER HOSES THREE STAGE FULL FREE-LIFT - D508/D563 (→ S/N D508V27872H) (→ S/N D563V11658H) ......................................................................................................................................................................................................................................... 944 HEADER HOSES THREE STAGE FULL FREE-LIFT - D508/D563 (S/N D508V27873H →) (S/N D563V11659H →) ......................................................................................................................................................................................................................................... 948 OUTER MAST THREE STAGE FULL FREE LIFT - F508-F563 ...................................................................................................................................................................................................................................................................................... 952 INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT - F508-F563 .............................................................................................................................................................................................................................................................................. 956 INNER MAST THREE STAGE FULL FREE-LIFT - F508-F563 ..................................................................................................................................................................................................................................................................................... 958 FREE-LIFT CYLINDER AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT - F508-F563 ......................................................................................................................................................................................................................................................... 960 MAIN LIFT CYLINDER AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT - F508-F563 ......................................................................................................................................................................................................................................................... 964 MAIN LIFT CYLINDER THREE STAGE FULL FREE-LIFT - F508-F563 ............................................................................................................................................................................................................................................................................. 968 FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT - F508-F563 ............................................................................................................................................................................................................................................................................. 972 HEADER HOSES AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT - F508/F563 ............................................................................................................................................................................................................................................................... 976 CARRIAGE THREE STAGE FULL FREE-LIFT - F508/F563 ........................................................................................................................................................................................................................................................................................ 980 CARRIAGE HEAVY DUTY - THREE STAGE FULL FREE-LIFT (F508/F563) ........................................................................................................................................................................................................................................................................... 982 MAST-FOUR STAGE FULL FREE-LIFT.............................................................................................................................................................................................................................................................................................................. 985 OUTER MAST FOUR STAGE FULL FREE-LIFT.................................................................................................................................................................................................................................................................................................... 988 INTERMEDIATE 1 MAST FOUR STAGE FULL FREE-LIFT........................................................................................................................................................................................................................................................................................... 990 INTERMEDIATE 2 MAST FOUR STAGE FULL FREE-LIFT........................................................................................................................................................................................................................................................................................... 992 INNER MAST FOUR STAGE FULL FREE-LIFT.................................................................................................................................................................................................................................................................................................... 994 MAIN LIFT FOUR STAGE FULL FREE-LIFT..................................................................................................................................................................................................................................................................................................... 996 MAIN LIFT CYLINDER LEFT HAND - FOUR STAGE FULL FREE-LIFT ............................................................................................................................................................................................................................................................................... 998 MAIN LIFT CYLINDER RIGHT HAND - FOUR STAGE FULL FREE-LIFT ..............................................................................................................................................................................................................................................................................1000 FREE-LIFT FOUR STAGE FULL FREE-LIFT.....................................................................................................................................................................................................................................................................................................1002 FREE-LIFT CYLINDERS FOUR STAGE FULL FREE-LIFT...........................................................................................................................................................................................................................................................................................1004 CARRIAGE FOUR STAGE FULL FREE-LIFT......................................................................................................................................................................................................................................................................................................1006 CARRIAGE HEAVY DUTY - FOUR STAGE FULL FREE-LIFT ........................................................................................................................................................................................................................................................................................1008 HEADER HOSE FOUR STAGE FULL FREE-LIFT - WITH FLOATING SHEAVE ...........................................................................................................................................................................................................................................................................1010 HEADER HOSE FOUR STAGE FULL FREE-LIFT - WITH HOSE CHANNELS .............................................................................................................................................................................................................................................................................1014 HOSE CHANNELS HEADER HOSE - FOUR STAGE FULL FREE-LIFT ..................................................................................................................................................................................................................................................................................1018 OPTIONS.....................................................................................................................................................................................................................................................................................................................................1021 STROBE LIGHT............................................................................................................................................................................................................................................................................................................................1026 STROBE LIGHT LED (S/N F187V09897E →) ..................................................................................................................................................................................................................................................................................................1028 BACK-UP ALARM...........................................................................................................................................................................................................................................................................................................................1030 WIRE HARNESS BACK-UP ALARM..............................................................................................................................................................................................................................................................................................................1032 MIRRORS.................................................................................................................................................................................................................................................................................................................................1033 FIRE EXTINGUISHER.......................................................................................................................................................................................................................................................................................................................1034 RED SEAT BELT RETRACTOR AND BUCKLE......................................................................................................................................................................................................................................................................................................1035 INTEGRAL SIDE-SHIFT CARRIAGE TWO STAGE LIMITED FREE-LIFT - D507/D562 ...................................................................................................................................................................................................................................................................1036 INTEGRAL SIDE-SHIFT CARRIAGE TWO STAGE LIMITED FREE-LIFT - F507/F562 ...................................................................................................................................................................................................................................................................1038 INTEGRAL SIDE-SHIFT CARRIAGE TWO STAGE FULL FREE-LIFT - D509/E509 and D564/E564 ........................................................................................................................................................................................................................................................1040 INTEGRAL SIDE-SHIFT CARRIAGE THREE AND FOUR STAGE FULL FREE-LIFT - D508, D563, D515 ....................................................................................................................................................................................................................................................1042 INTEGRAL SIDE-SHIFT CARRIAGE THREE STAGE FULL FREE-LIFT - F508/F563 ....................................................................................................................................................................................................................................................................1044 INTEGRAL SIDE-SHIFT FORK POSITIONER - THREE STAGE FULL FREE-LIFT (D508/D563) ...........................................................................................................................................................................................................................................................1046 INTEGRAL SIDE-SHIFT FORK POSITIONER (F507-F562) - TWO STAGE LIMITED FREE-LIFT ..........................................................................................................................................................................................................................................................1048 INTEGRAL SIDE-SHIFT FORK POSITIONER (F508-F563) - THREE STAGE FULL FREE-LIFT ...........................................................................................................................................................................................................................................................1050 FORK POSITIONER ASSEMBLY................................................................................................................................................................................................................................................................................................................1052 INTEGRAL SIDE-SHIFT CYLINDER............................................................................................................................................................................................................................................................................................................1054 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES - TWO STAGE LIMITED FREE-LIFT (D507, D562) .........................................................................................................................................................................................................................................................1056 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO STAGE LIMITED FREE-LIFT - F507/F562 ............................................................................................................................................................................................................................................................1057 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES - THREE STAGE FULL FREE-LIFT (D508/D563) ...........................................................................................................................................................................................................................................................1058 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES THREE STAGE FULL FREE LIFT - F508/F563 .............................................................................................................................................................................................................................................................1059 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO STAGE FULL FREE LIFT - D509/E509 and D564/E564 .................................................................................................................................................................................................................................................1060 INTEGRAL SIDE-SHIFT HYDRAULIC HOSES FOUR STAGE FULL FREE-LIFT...........................................................................................................................................................................................................................................................................1061 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT (→ S/N D507V02972H) (→ S/N D562V02053H) ........................................................................................................................................................................................................................................1062 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - WITHOUT QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) ...................................................................................................................................................................................................1064 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - MANUAL HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) ....................................................................................................................................................................................1066 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) .........................................................................................................................................................................................1068 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - WITH ISS CARRIAGE AND WITHOUT QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) .............................................................................................................................................................................1070 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - WITH ISS CARRIAGE AND MANUAL HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) ..............................................................................................................................................................1072 AUXILIARY TUBE EXTENSIONS TWO STAGE LIMITED FREE-LIFT - WITH ISS CARRIAGE AND E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D507V02973H →) (S/N D562V02054H →) ...................................................................................................................................................................1074 AUXILIARY TUBE EXTENSIONS TWO AND THREE STAGE FULL FREE-LIFT (→ S/N D508V27242H) (→ S/N D509V02103H) (→ S/N D563V11350H) (→ S/N D564V02121H) .......................................................................................................................................................................................1076 AUXILIARY TUBE EXTENSIONS TWO AND THREE STAGE FULL FREE-LIFT (S/N D509V02104H →) (S/N D563V11351H →) (S/N D564V02122H →) (S/N D508V27243H →) .......................................................................................................................................................................................1080 AUXILIARY TUBE EXTENSIONS TWO AND THREE STAGE FULL FREE-LIFT - E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D508V27243H →) (S/N D509V02104H →) (S/N D563V11351H →) (S/N D564V02122H →) ........................................................................................................................................1082 AUXILIARY TUBE EXTENSIONS FOUR STAGE FULL FREE-LIFT (→ S/N D515V05514H) ...............................................................................................................................................................................................................................................................1086 AUXILIARY TUBE EXTENSIONS FOUR STAGE FULL FREE-LIFT (S/N D515V05515H →) ...............................................................................................................................................................................................................................................................1088 AUXILIARY TUBE EXTENSIONS FOUR STAGE FULL FREE-LIFT - E-HYDRAULICS WITH QUICK DISCONNECT FITTINGS (S/N D515V05515H →) ................................................................................................................................................................................................................1090 AUXILIARY TUBES TWO STAGE LIMITED FREE LIFT (F507/F562 Series Mast - WITH MANUAL AND E-HYDRAULICS VALVE WITHOUT QUICK DISCONNECT .......................................................................................................................................................................................................1092 AUXILIARY TUBES TWO STAGE LIMITED FREE LIFT (F507/F562 Series Mast - MANUAL AND E-HYDRAULIC VALVE WITH QUICK DISCONNECT ................................................................................................................................................................................................................1094 AUXILIARY TUBES THREE STAGE FULL FREE-LIFT (F508/F563 Series Mast) - MANUAL AND E-HYDRAULICS VALVE WITH QUICK DISCONNECT ...............................................................................................................................................................................................................1096 AUXILIARY TUBES THREE STAGE FULL FREE-LIFT (F508/F563 Series Mast) - MANUAL AND E-HYDRAULICS VALVE WITHOUT QUICK DISCONNECT ............................................................................................................................................................................................................1098 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES SINGLE AUXILIARY WITH E-HYDRAULICS - TWO STAGE LIMITED FREE-LIFT (F507/F562 Series Mast) (THREE FUNCTION) ................................................................................................................................................................................1100 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES SINGLE AUXILIARY WITH INTEGRAL SIDE-SHIFT AND E-HYDRAULICS - TWO STAGE LIMITED FREE-LIFT (F507/F562 Series Mast) (FOUR FUNCTION) .........................................................................................................................................................1102 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES DUAL AUXILIARY WITH E-HYDRAULICS - TWO STAGE LIMITED FREE-LIFT (F507/F562 Series Mast (THREE AND FOUR FUNCTION) .........................................................................................................................................................................1104 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES THREE STAGE FULL FREE-LIFT (F508/F563 Series Mast) (SINGLE AUXILIARY WITH E-HYDRAULICS) - THREE FUNCTION ................................................................................................................................................................................1106 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES THREE STAGE FULL FREE-LIFT (F508/F563 Series Mast) (SINGLE AUXILIARY WITH INTEGRAL SIDE-SHIFT AND E-HYDRAULICS) - FOUR FUNCTION ..........................................................................................................................................................1108 AUXILIARY QUICK DISCONNECT MANIFOLD AND HOSES THREE STAGE FULL FREE-LIFT (F508/F563 SERIES MAST (DUAL AUXILIARY WITH E-HYDRAULICS)) - THREE AND FOUR FUNCTION ..........................................................................................................................................................................1110 ACCUMULATOR.............................................................................................................................................................................................................................................................................................................................1112 FIELD CONVERSION KITS.......................................................................................................................................................................................................................................................................................................................1115 SEAT CONVERSION KITS....................................................................................................................................................................................................................................................................................................................1118 FIELD KITS LIGHTS.......................................................................................................................................................................................................................................................................................................................1118 MISCELLANEOUS KITS......................................................................................................................................................................................................................................................................................................................1118 MISCELLANEOUS CONVERSION KITS...........................................................................................................................................................................................................................................................................................................1119 E-HYDRAULIC CONVERSION KITS.............................................................................................................................................................................................................................................................................................................1120 E-HYDRAULIC CONTROL CONVERSION KITS.....................................................................................................................................................................................................................................................................................................1120 HYDRAULIC CONTROLS MANUAL HYDRAULICS....................................................................................................................................................................................................................................................................................................1120 RETURN TO SET TILT KITS.................................................................................................................................................................................................................................................................................................................1121 ADD ON OPTIONS FORK POSITIONER..........................................................................................................................................................................................................................................................................................................1121 ADD ON TELEMETRY KITS...................................................................................................................................................................................................................................................................................................................1121 AUXILIARY TUBE EXTENSION KIT For D Series Masts Only....................................................................................................................................................................................................................................................................................1122 HEADER HOSE CONVERSION KITS TWO STAGE LIMITED FREE-LIFT - D507/D562 ....................................................................................................................................................................................................................................................................1124 HEADER HOSE CONVERSION KITS TWO STAGE FULL FREE-LIFT - D509/D564 and E509/E564 .........................................................................................................................................................................................................................................................1125 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT - D508, S40-55FT (→ S/N D508V27872H) ..........................................................................................................................................................................................................................................1126 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT - D563, S60-70FT (→ S/N D563V11658H) ..........................................................................................................................................................................................................................................1127 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE LIFT - D508, S40-55FT (S/N D508V27873H →) ..........................................................................................................................................................................................................................................1128 HEADER HOSE CONVERSION KITS THREE STAGE FULL FREE-LIFT - D563, S60-70FT (S/N D563V11659H →) .........................................................................................................................................................................................................................................1129 HEADER HOSE CONVERSION KITS FOUR STAGE FULL FREE-LIFT - WITH FLOATING SHEAVE ...........................................................................................................................................................................................................................................................1130 HEADER HOSE CONVERSION KIT FOUR STAGE FULL FREE-LIFT - WITH HOSE CHANNELS ..............................................................................................................................................................................................................................................................1131 HYDRAULIC OIL COOLER KITS...............................................................................................................................................................................................................................................................................................................1131 FORK ASSEMBLY KITS......................................................................................................................................................................................................................................................................................................................1131 REPLACEMENT KITS........................................................................................................................................................................................................................................................................................................................1131 NUMERICAL INDEX.............................................................................................................................................................................................................................................................................................................................1133
