Hyster Forklift W25 30ZA B495 service manual – PDF DOWNLOAD

Description

Hyster Forklift W25 30ZA B495 service manual

File Details:

Hyster Forklift W25 30ZA B495 service manual

Language : English
Pages : 367
Size : 17.5 MB
Downloadable : Yes
Format : PDF

HYSTER FORKLIFT W25 30ZA B495 SERVICE MANUAL – PDF DOWNLOAD:

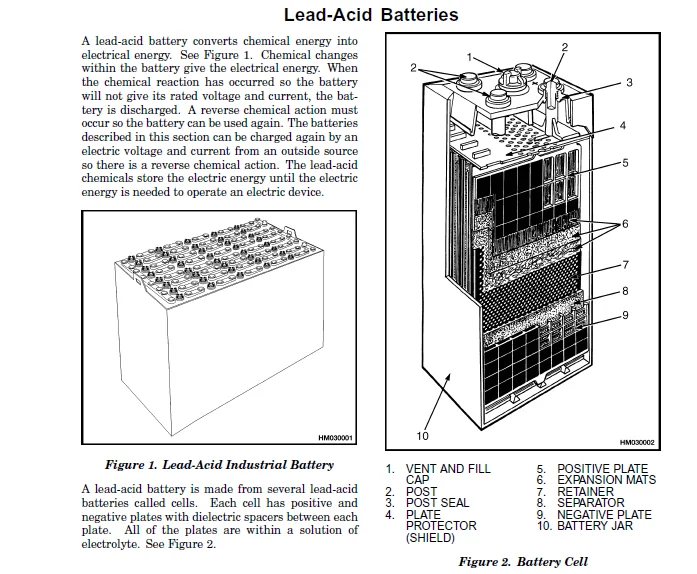

Image Preview:

Description:

Hyster Forklift W25 30ZA B495 service manual

• If the connector is not completely free, it can reconnect. Tag the connector: DO NOT CONNECT. This section has the description and repair procedures for the electric brake on the W20ZA, W25ZA, W25ZA2, W30ZA2, W40Z, W45Z, and W50Z lift trucks. Brake assemblies may vary in appearance. Although some assemblies may APPEAR to be adjustable, brake assemblies used on these trucks ARE NOT ADJUSTABLE. Friction between parts inside the brake will produce brake dust, squeaking, and extreme heat under normal operating conditions.
• Brake assemblies can generate surface temperatures up to 130 C (266 F) and odors during heavy operation. Functions of the brake assembly depend on a dry and clean environment. Small amounts of oil or grease on the friction surfaces of the brake can seriously compromise the brakes ability to function. Description Motorized hand trucks have three methods of braking: 1. Regenerative (Neutral) braking 2. Controlled plugging 3. Application of the spring-applied/electrically released friction brake
• NOTE: The preferredmethod of stopping the truck is: Regenerative (Neutral) braking or Controlled plugging Regenerative (Neutral) braking applies a retarding force to the drive wheel through the traction motor, allowing the unit to slow to a gradual stop. It is applied by returning the speed/direction control to the NEUTRAL position or by placing the hand brake lever(s) in the first stage position. Controlled plugging is reversing the speed/direction control while traveling, causing the unit to slow to a stop.
• Return the speed/direction control to the NEUTRAL position to remain stopped. If the speed/direction control is not returned to the NEUTRAL position after the truck is stopped, the lift truck will accelerate in the direction the handle is being turned.

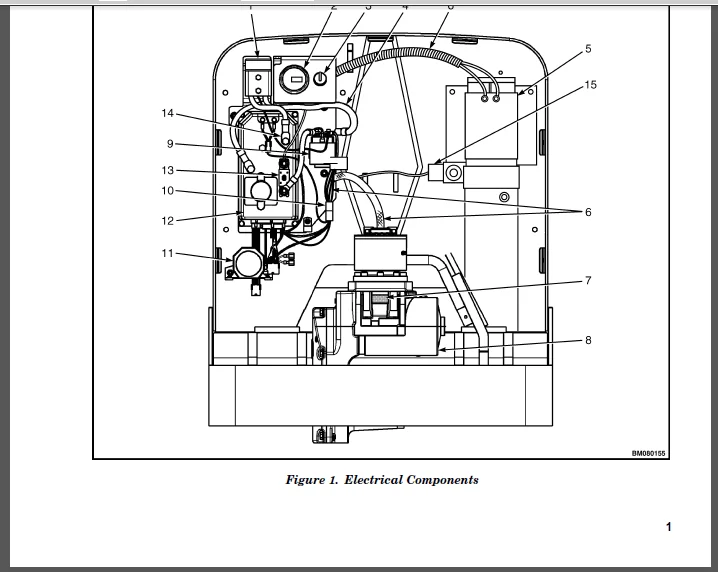

• Controlled plugging should stop the truck within a few feet, depending on speed and load. The parking brake is a spring-applied, electrically released friction brake mounted to the drive motor. When the parking brake is applied, springs inside the brake assembly compress a rotating friction disk against two stationary plates. To release the brake: 1. Connect the battery. 2. Turn the key switch to the ON position. 3. Lower the control handle arm to the operating or BRAKE OFF position. Refer to Figure 1. 4. Rotate direction/speed control (butterfly knobs) in the direction of travel. 1

Table of Contents:

Hyster Forklift W25 30ZA B495 service manual

General …………………………………………………………………………………………………………………………………………… 1
Description ……………………………………………………………………………………………………………………………………… 1
Special Precautions………………………………………………………………………………………………………………………….. 2
Brake Assembly Repair ……………………………………………………………………………………………………………………. 3
Brake Override ……………………………………………………………………………………………………………………………. 3
Remove ……………………………………………………………………………………………………………………………………….. 4
Repair …………………………………………………………………………………………………………………………………………. 6
Install …………………………………………………………………………………………………………………………………………. 7
Troubleshooting……………………………………………………………………………………………………………………………….. 8
