Hyster H400HD-EC H450HD-EC H450HDS-EC H500HD-EC (C214) Parts Manual – PDF DOWNLOAD
Original price was: $89.95.$31.95Current price is: $31.95.
Hyster H400HD-EC H450HD-EC H450HDS-EC H500HD-EC (C214) Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Hyster H400HD-EC H450HD-EC H450HDS-EC H500HD-EC (C214) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster H400HD-EC H450HD-EC H450HDS-EC H500HD-EC (C214) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, sub-assemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The call outs correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 13-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 13-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Super session Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (Figure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.
TABLE OF CONTENTS:
Hyster H400HD-EC H450HD-EC H450HDS-EC H500HD-EC (C214) Parts Manual – PDF DOWNLOAD
Frame............................................................................................................. 25 CAB PAGE 1 OF 2............................................................................................... 30 CAB PAGE 2 OF 2............................................................................................... 32 HANDRAILS AND FENDERS......................................................................................... 34 HOODS AND COVERS.............................................................................................. 38 COUNTERWEIGHT................................................................................................. 41 OVERHEAD GUARD WIRE MESH...................................................................................... 42 CAB ATTACHING PARTS........................................................................................... 44 DASH ASSEMBLY................................................................................................. 46 WINDOW WIPER SYSTEM WASHER BOTTLE KIT......................................................................... 48 WINDOW WIPER SYSTEM REAR AND ROOF WIPER KITS - AND FRONT WIPER OPTIONS ....................................... 50 CAB WINDOWS INSTALLATION...................................................................................... 52 CAB SUNSHADE - TOP CAB WITH AIRCO - OPTIONAL FOR CAB WITHOUT AIRCO ........................................... 54 CAB SUNSHADE - REAR CAB WITH AIRCO - OPTIONAL FOR CAB WITHOUT AIRCO .......................................... 56 CAB FLOORMATS................................................................................................. 58 CAB TILT AND LATCH ASSEMBLY................................................................................... 60 CAB TILT PUMP ASSEMBLY........................................................................................ 62 CAB TILT ELECTRIC PUMP........................................................................................ 64 CAB TILT HAND PUMP............................................................................................ 66 CAB TILT CYLINDER............................................................................................. 68 CAB DOOR LEFT HAND............................................................................................ 70 CAB DOOR RIGHT HAND........................................................................................... 72 CAB MAIN DOOR WINDOW RIGHT AND LEFT HAND...................................................................... 74 AIR HORN...................................................................................................... 76 MUDFLAPS...................................................................................................... 78 REAR VIEW MIRRORS............................................................................................. 79 HEATER AND AIR CONDITIONER HOSES TIER III ENGINE.............................................................. 80 HEATER AND AIR CONDITIONER HOSES TIER IV INTERIM ENGINE....................................................... 82 HEATER AND AIR CONDITIONER HOSES TIER IV INTERIM ENGINE - ALTERNATE CONFIGURATION ............................ 84 COMPRESSOR ASSEMBLY........................................................................................... 86 AIR CONDITIONING SYSTEM....................................................................................... 88 CONDENSER ASSEMBLY............................................................................................ 90 AIR DUCT ASSEMBLY AIR CONDITIONING............................................................................ 92 AIR CONDITIONER AND CONTROL PANEL ASSEMBLIES.................................................................. 94 AIR CONDITIONER ASSEMBLY...................................................................................... 96 AIR CONDITIONER ASSEMBLY...................................................................................... 98 CONTROL PANEL ASSEMBLY AIR CONDITIONER (→ 12/2012) ..........................................................100 CONTROL PANEL ASSEMBLY AIR CONDITIONER (12/2012 →) ..........................................................101 HEATER AND AIR DUCT...........................................................................................102 AIR DUCT ASSEMBLY HEATER......................................................................................104 HEATER AND CONTROL PANEL ASSEMBLIES...........................................................................106 CONTROL PANEL ASSEMBLY HEATER.................................................................................107 HEATER ASSEMBLY...............................................................................................108 AIR CONDITIONER FILTER AND COVER ASSEMBLY.....................................................................110 SEAT ASSEMBLY SUSPENSION - WITH FABRIC COVER (→ 3/2010) ....................................................112 SEAT ASSEMBLY SUSPENSION - WITH FABRIC COVER (3/2010 →) ....................................................116 SEAT ASSEMBLY SUSPENSION - WITH VINYL COVER ..................................................................120 SEAT ASSEMBLY AIR SUSPENSION..................................................................................124 SEAT ASSEMBLY MECHANICAL SUSPENSION...........................................................................128 SEAT ASSEMBLY MECHANICAL AND AIR SUSPENSION...................................................................131 SEAT ASSEMBLY DELUXE SUSPENSION...............................................................................134 SUSPENSION KIT ASSEMBLY.......................................................................................136 SEAT ASSEMBLY CLIMATE CONTROL CAB.............................................................................138 ARMREST ASSEMBLY JOYSTICK.....................................................................................140 ARMREST ASSEMBLY HYDRAULIC LEVERS.............................................................................142 PIVOT ARM ASSEMBLY............................................................................................144 CLIMATE CONTROL SYSTEM........................................................................................146 HEATED TOP WINDOW CLIMATE CONTROL CAB.........................................................................148 INSULATION MATS AND AIR DUCT CLIMATE CONTROL CAB..............................................................150 AIR DUCT ASSEMBLY LOUVER, CLIMATE CONTROL CAB.................................................................152 AIR CONDITIONER SYSTEM CLIMATE CONTROL CAB....................................................................154 AIR CONDITIONER ASSEMBLY CLIMATE CONTROL CAB..................................................................156 LABELS HYDRAULIC CONTROLS.....................................................................................158 LABELS INTERIOR...............................................................................................160 LABELS EXTERIOR...............................................................................................162 RADIO CONSOLE AND ATTACHING PARTS.............................................................................164 ENGINE ASSEMBLY...................................................................................................167 ENGINE MOUNTS TIER III AND TIER IV INTERIM ENGINE.............................................................173 EXHAUST SYSTEM TIER III ENGINE................................................................................174 EXAUST SYSTEM TIER IV INTERIM ENGINE..........................................................................176 COOLING SYSTEM TIER III ENGINE................................................................................178 COOLING SYSTEM TIER III ENGINE - ALTERNATE CONFIGURATION .....................................................180 COOLING SYSTEM TIER IV INTERIM ENGINE.........................................................................182 COOLING SYSTEM TIER IV INTERIM ENGINE - ALTERNATE CONFIGURATION ..............................................186 AIR HEATER STARTING AID TIER III ENGINE.......................................................................189 AIR INTAKE CONNECTION TIER III ENGINE.........................................................................190 AIR INTAKE HOSE TIER III ENGINE...............................................................................191 AIR INTAKE MANIFOLD TIER III ENGINE...........................................................................192 AIR TRANSFER CONNECTION TIER III ENGINE.......................................................................193 BELT TENSIONER TIER III ENGINE................................................................................194 CAB HEATER PLUMBING TIER III ENGINE...........................................................................195 CAMSHAFT TIER III ENGINE......................................................................................196 CONNECTING RODS AND PISTONS TIER III ENGINE...................................................................198 COOLANT HEATER STARTING AID TIER III ENGINE...................................................................200 CRANKCASE BREATHER TIER III ENGINE............................................................................201 CRANKSHAFT AND BEARINGS TIER III ENGINE.......................................................................202 CYLINDER BLOCK TIER III ENGINE................................................................................204 CYLINDER HEAD TIER III ENGINE.................................................................................206 ENGINE COOLANT VENT TIER III ENGINE...........................................................................208 ENGINE OIL COOLER TIER III ENGINE.............................................................................210 EXHAUST MANIFOLD TIER III ENGINE..............................................................................212 FAN DRIVE AND MOUNTING TIER III ENGINE........................................................................213 FAN SPACER TIER III ENGINE....................................................................................214 FLYWHEEL AND MOUNTING TIER III ENGINE.........................................................................215 FLYWHEEL HOUSING TIER III ENGINE..............................................................................216 FRONT GEAR COVER TIER III ENGINE..............................................................................218 LIFTING BRACKETS AND MOUNTING TIER III ENGINE.................................................................219 LUBRICATING OIL PUMP TIER III ENGINE..........................................................................220 OIL FILLER TIER III ENGINE....................................................................................221 OIL LEVEL GAUGE TIER III ENGINE...............................................................................222 OIL PAN TIER III ENGINE.......................................................................................224 RADIATOR AND COOLER ASSEMBLY TIER III ENGINE..................................................................226 REAR GEAR HOUSING TIER III ENGINE.............................................................................228 REAR GEAR TRAIN ACCESSORY MOUNTING COVER TIER III ENGINE......................................................229 REMOTE OIL FILTER TIER III ENGINE.............................................................................230 ROCKER LEVERS TIER III ENGINE.................................................................................232 STARTER MOTOR AND MOUNTING TIER III ENGINE....................................................................234 THERMOSTAT TIER III ENGINE....................................................................................235 TORQUE CONVERTER COOLER PLUGS TIER III ENGINE.................................................................236 TURBOCHARGER TIER III ENGINE..................................................................................237 TURBOCHARGER PLUMBING TIER III ENGINE.........................................................................238 VALVE COVER TIER III ENGINE...................................................................................240 VALVE TAPPETS TIER III ENGINE.................................................................................241 VIBRATION DAMPER TIER III ENGINE..............................................................................242 WATER PUMP TIER III ENGINE....................................................................................243 WATER PUMP DRIVE TIER III ENGINE..............................................................................244 WATER OUTLET CONNECTION TIER III ENGINE.......................................................................245 AIR INTAKE CONNECTION TIER IV INTERIM ENGINE..................................................................246 AIR INTAKE MANIFOLD TIER IV INTERIM ENGINE....................................................................248 AIR TRANSFER CONNECTION TIER IV INTERIM ENGINE................................................................249 BELT TENSIONER TIER IV INTERIM ENGINE.........................................................................250 BREATHER PLUMBING TIER IV INTERIM ENGINE......................................................................251 CRANKCASE BREATHER TIER IV INTERIM ENGINE.....................................................................252 DIPSTICK AND TUBE TIER IV INTERIM ENGINE......................................................................254 ENGINE COOLANT VENT TIER IV INTERIM ENGINE....................................................................255 ENGINE OIL COOLER TIER IV INTERIM ENGINE......................................................................256 EXHAUST MANIFOLD AND MOUNTING TIER IV INTERIM ENGINE..........................................................258 EXHAUST MANIFOLD RECIRCULATION AIR - TIER IV INTERIM ENGINE ..................................................259 EXHAUST MANIFOLD RECIRCULATION WATER - TIER IV INTERIM ENGINE ................................................260 FAN DRIVE TIER IV INTERIM ENGINE..............................................................................262 FAN DRIVE MOUNTING TIER IV INTERIM ENGINE.....................................................................263 FLYWHEEL TIER IV INTERIM ENGINE...............................................................................264 FLYWHEEL HOUSING TIER IV INTERIM ENGINE.......................................................................266 FLYWHEEL MOUNTING TIER IV INTERIM ENGINE......................................................................268 FRONT GEAR COVER TIER IV INTERIM ENGINE.......................................................................269 HEAT SHIELD TIER IV INTERIM ENGINE............................................................................270 LIFTING BRACKETS TIER IV INTERIM ENGINE.......................................................................271 LIFTING EYES TIER IV INTERIM ENGINE...........................................................................272 LUBRICATING OIL PUMP TIER IV INTERIM ENGINE...................................................................273 OIL FILTER TIER IV INTERIM ENGINE.............................................................................274 OIL PAN TIER IV INTERIM ENGINE (→ PENDING PER ECN 68614-51) .................................................276 OIL PAN TIER IV INTERIM ENGINE (PENDING PER ECN 68614-51 →) .................................................278 RADIATOR AND COOLER ASSEMBLY TIER IV INTERIM ENGINE...........................................................280 REAR GEAR HOUSING TIER IV INTERIM ENGINE......................................................................282 REAR GEAR TRAIN ACCESSORY MOUNTING COVER TIER IV INTERIM ENGINE...............................................283 STARTER MOTOR AND MOUNTING TIER IV INTERIM ENGINE.............................................................284 STUD GROUNDING TIER IV INTERIM ENGINE.........................................................................285 THERMOSTAT TIER IV INTERIM ENGINE.............................................................................286 V-BELT TIER IV INTERIM ENGINE.................................................................................287 VALVE COVER TIER IV INTERIM ENGINE............................................................................288 WATER INTAKE CONNECTION TIER IV INTERIM ENGINE................................................................290 WATER OUTLET CONNECTION TIER IV INTERIM ENGINE................................................................291 WATER PUMP TIER IV INTERIM ENGINE.............................................................................292 VIBRATION DAMPER TIER IV INTERIM ENGINE.......................................................................293 EXHAUST OUTLET ELBOW TIER IV INTERIM ENGINE...................................................................294 TURBOCHARGER TIER IV INTERIM ENGINE...........................................................................295 TURBOCHARGER PLUMBING TIER IV INTERIM ENGINE..................................................................296 DIESEL PARTICULATE FILTER AFTERTREATMENT MODULE DEVICE - TIER IV INTERIM ENGINE ..............................298 EXHAUST RECIRCULATION TIER IV INTERIM ENGINE..................................................................300 FUEL SYSTEM.......................................................................................................303 MONOTROL PEDAL LINKAGE........................................................................................306 MONOTROL PEDAL ASSEMBLY.......................................................................................308 THROTTLE PEDAL LINKAGE........................................................................................310 AIR INTAKE SYSTEM TIER III ENGINE.............................................................................312 AIR INTAKE SYSTEM TIER IV INTERIM ENGINE......................................................................314 FUEL FILTER TIER III ENGINE...................................................................................315 FUEL FILTER PLUMBING TIER III ENGINE..........................................................................316 FUEL INJECTION PUMP TIER III ENGINE...........................................................................318 FUEL INJECTOR PLUMBING TIER III ENGINE........................................................................320 FUEL INJECTORS TIER III ENGINE................................................................................322 FUEL INLET FITTING TIER III ENGINE............................................................................323 FUEL PLUMBING TIER III ENGINE.................................................................................324 FUEL SYSTEM ACCESSORIES TIER III ENGINE.......................................................................326 FUEL TANK TIER III ENGINE.....................................................................................328 FUEL FILTER MOUNTING TIER IV INTERIM ENGINE...................................................................330 FUEL FILTER PLUMBING TIER IV INTERIM ENGINE...................................................................331 FUEL SUPPLY PLUMBING TIER IV INTERIM ENGINE...................................................................332 FUEL DRAIN PLUMBING TIER IV INTERIM ENGINE....................................................................333 FUEL TANK TIER IV INTERIM ENGINE..............................................................................334 FUEL PUMP TIER IV INTERIM ENGINE..............................................................................336 FUEL FILTER TIER IV INTERIM ENGINE (→ PENDING PER ECN 68614-51) .............................................338 FUEL FILTER TIER IV INTERIM ENGINE (PENDING PER ECN 68614-51 →) .............................................340 FUEL FILTER WITH WATER SEPARATOR TIER IV INTERIM ENGINE.......................................................341 FUEL INLET FITTING TIER IV INTERIM ENGINE.....................................................................342 THROTTLE AND INCHING SENSORS..................................................................................344 ELECTRICAL SYSTEM.................................................................................................347 ELECTRICAL SYSTEM TIER III ENGINE.............................................................................352 ELECTRICAL SYSTEM TIER IV INTERIM ENGINE......................................................................356 ALTERNATOR AND MOUNTING TIER III ENGINE.......................................................................359 ALTERNATOR SUPPORT AND WATER INLET TIER III ENGINE............................................................360 ENGINE CONTROL MODULE TIER III ENGINE.........................................................................362 ETR MODULE WIRING TIER III ENGINE.............................................................................364 LOCKOUT LEVER.................................................................................................365 TRANSMISSION CONTROLLER AND SHIFT LEVER.......................................................................366 DC-DC CONVERTER AND ATTACHING PARTS...........................................................................368 SECOND 12V SOCKET OPTION CLIMATE CONTROL CAB..................................................................369 LIGHT BAR AND MOUNT TWISTLOCK MODULE..........................................................................370 LIGHTS REAR AND BACKUP ALARM..................................................................................372 LIGHTS DIRECTIONAL AND MARKER.................................................................................374 LIGHTS WORK - HALOGEN ........................................................................................375 LIGHTS WORK - HID ............................................................................................376 STROBE LIGHT..................................................................................................377 SWITCHES......................................................................................................378 PROXIMITY SWITCH ASSEMBLY.....................................................................................379 INDICATOR DISPLAY AND CONTROLS................................................................................380 WIRE HARNESS ARM REST.........................................................................................382 WIRE HARNESS CAB..............................................................................................386 WIRE HARNESS CAB - ALTERNATE PART ............................................................................389 WIRE HARNESS CAB LIGHTS.......................................................................................392 WIRE HARNESS CAB SIDE CONSOLE, PAGE 1 OF 2 - TIER III ENGINE (→ PENDING PER ECN 68653) .....................394 WIRE HARNESS CAB SIDE CONSOLE, PAGE 2 OF 2 - TIER III ENGINE (→ PENDING PER ECN 68653) .....................400 RELAYS AND FUSES OPERATOR COMPARTMENT - TIER III ENGINE (→ PENDING PER ECN 68653) ..........................404 WIRE HARNESS CAB SIDE CONSOLE, PAGE 1 OF 3 - TIER III ENGINE (PENDING PER ECN 68653 →) .....................408 WIRE HARNESS CAB SIDE CONSOLE, PAGE 2 OF 3 - TIER III ENGINE (PENDING PER ECN 68653 →) .....................412 WIRE HARNESS CAB SIDE CONSOLE, PAGE 3 OF 3 - TIER III ENGINE (PENDING PER ECN 68653 →) .....................416 RELAYS AND FUSES OPERATOR COMPARTMENT - TIER III ENGINE (PENDING PER ECN 68653 →) ..........................418 WIRE HARNESS CAB SIDE CONSOLE, PAGE 1 OF 3 - TIER IV INTERIM ENGINE (→ PENDING PER ECN 68653) ..............422 WIRE HARNESS CAB SIDE CONSOLE, PAGE 2 OF 3 - TIER IV INTERIM ENGINE (→ PENDING PER ECN 68653) ..............426 WIRE HARNESS CAB SIDE CONSOLE, PAGE 3 OF 3 - TIER IV INTERIM ENGINE (→ PENDING PER ECN 68653) ..............430 RELAYS AND FUSES OPERATOR COMPARTMENT - TIER IV INTERIM ENGINE (→ PENDING PER ECN 68653) ...................432 WIRE HARNESS CAB SIDE CONSOLE, PAGE 1 OF 3 - TIER IV INTERIM ENGINE (PENDING PER ECN 68653 →) ..............436 WIRE HARNESS CAB SIDE CONSOLE, PAGE 2 OF 3 - TIER IV INTERIM ENGINE (PENDING PER ECN 68653 →) ..............440 WIRE HARNESS CAB SIDE CONSOLE, PAGE 3 OF 3 - TIER IV INTERIM ENGINE (PENDING PER ECN 68653 →) ..............444 RELAYS AND FUSES OPERATOR COMPARTMENT - TIER IV INTERIM ENGINE (PENDING PER ECN 68653 →) ...................446 WIRE HARNESS CAB UNDERFLOOR - TIER III ENGINE ................................................................450 WIRE HARNESS CAB UNDERFLOOR - TIER IV INTERIM ENGINE .........................................................452 WIRE HARNESS (CHASSIS) PAGE 1 OF 2 - TIER III ENGINE (→ PENDING PER ECN 68653) .............................454 WIRE HARNESS (CHASSIS) PAGE 2 OF 2 - TIER III ENGINE (→ PENDING PER ECN 68653) .............................458 WIRE HARNESS (CHASSIS) PAGE 1 OF 2 - TIER IV INTERIM ENGINE (→ PENDING PER ECN 68653) ......................462 WIRE HARNESS (CHASSIS) PAGE 2 OF 2 - TIER IV INTERIM ENGINE (→ PENDING PER ECN 68653) ......................468 WIRE HARNESS (CHASSIS) PAGE 1 OF 2 - TIER IV INTERIM ENGINE (H400HD-H450HDEC) (PENDING PER ECN 68653 →) ....472 WIRE HARNESS (CHASSIS) PAGE 2 OF 2 - TIER IV INTERIM ENGINE (H400HD-H450HDEC) (PENDING PER ECN 68653 →) ....478 WIRE HARNESS (CHASSIS) PAGE 1 OF 2 - TIER III ENGINE (H400HD-H450HDEC) (PENDING PER ECN 68653 →) ...........482 WIRE HARNESS (CHASSIS) PAGE 2 OF 2 - TIER III ENGINE (H400HD-H450HDEC) (PENDING PER ECN 68653 →) ...........488 WIRE HARNESS (CHASSIS) PAGE 1 OF 2 - TIER IV INTERIM ENGINE (H500HDEC) (PENDING PER ECN 68653 →) ...........492 WIRE HARNESS (CHASSIS) PAGE 2 OF 2 - TIER IV INTERIM ENGINE (H500HDEC) (PENDING PER ECN 68653 →) ...........498 WIRE HARNESS (CHASSIS) PAGE 1 OF 2 - TIER III ENGINE (H500HDEC) (PENDING PER ECN 68653 →) ..................502 WIRE HARNESS (CHASSIS) PAGE 2 OF 2 - TIER III ENGINE (H500HDEC) (PENDING PER ECN 68653 →) ..................508 WIRE HARNESS DPF..............................................................................................511 WIRE HARNESS FRONT LIGHTS.....................................................................................512 WIRE HARNESS HYDRAULIC RELAYS.................................................................................513 WIRE HARNESS LIFT INTERRUPT BYPASS............................................................................514 WIRE HARNESS OIL COOLER.......................................................................................515 WIRE HARNESS POWERED CAB TILT.................................................................................517 WIRE HARNESS PRESSURE SWITCH BASE - AUTOMATIC GREASING SYSTEM ................................................518 WIRE HARNESS PUMP BASE - AUTOMATIC GREASING SYSTEM ...........................................................519 WIRE HARNESS REAR WIPER EXTENSION.............................................................................520 WIRE HARNESS REAR WIPER EXTENSION - ALTERNATE PART ...........................................................521 WIRE HARNESS SIDE INDICATOR...................................................................................522 WIRE HARNESS SIDE AND INDICATOR LIGHTS - ALTERNATE PART ......................................................523 WIRE HARNESS SPEED LIMITER....................................................................................524 WIRE HARNESS STEERING COLUMN - TIER III ENGINE ...............................................................526 WIRE HARNESS STEERING COLUMN - TIER IV INTERIM ENGINE ........................................................527 WIRE HARNESS TWIN FRONT FENDER WORK LIGHTS....................................................................528 WIRE HARNESS WIF EXTENSION....................................................................................529 WIRE HARNESS WINDOW WASH PUMPS................................................................................530 WIRE HARNESS WINDOW WASH PUMPS - ALTERNATE PART ..............................................................531 WIRE HARNESS AND SWITCH ASSEMBLY MONOTROL PEDAL...............................................................532 ALTERNATOR AND MOUNTING TIER IV INTERIM ENGINE................................................................534 ENGINE CONTROL MODULE TIER IV INTERIM ENGINE..................................................................536 ECM MODULE WIRING TIER IV INTERIM ENGINE......................................................................538 FRONT FENDER LIGHTS...........................................................................................540 TRANSMISSION......................................................................................................543 TRANSMISSION MOUNTING.........................................................................................546 CONVERTER HOUSING.............................................................................................548 CONVERTER HOUSING.............................................................................................550 TORQUE CONVERTER..............................................................................................552 DRIVE PLATES..................................................................................................553 TRANSMISSION HOSES AND ATTACHING PARTS........................................................................554 INPUT SHAFT AND FIRST CLUTCH..................................................................................556 GEARS.........................................................................................................558 FORWARD AND THIRD SHAFT.......................................................................................560 REVERSE AND SECOND CLUTCH.....................................................................................562 PUMP DRIVE....................................................................................................564 CHARGING PUMP.................................................................................................566 OUTPUT SHAFT..................................................................................................568 OUTPUT SHAFT..................................................................................................569 CONTROL VALVE ATTACHING PARTS.................................................................................570 CONTROL VALVE ATTACHING PARTS.................................................................................572 CONTROL VALVE ATTACHING PARTS.................................................................................574 CONTROL VALVE ASSEMBLY........................................................................................575 CONTROL VALVE ASSEMBLY........................................................................................576 CONTROL VALVE ASSEMBLY........................................................................................577 REGULATOR VALVE ASSEMBLY......................................................................................578 REGULATOR VALVE ASSEMBLY......................................................................................580 MODULATOR VALVE ASSEMBLY......................................................................................582 MODULATOR VALVE ASSEMBLY......................................................................................584 FULL FLOW VALVE ASSEMBLY......................................................................................586 CASE AND REAR COVER...........................................................................................588 CASE AND REAR COVER...........................................................................................590 FLUID INDICATOR AND ATTACHING PARTS TIER III ENGINE...........................................................592 FLUID INDICATOR AND ATTACHING PARTS TIER IV INTERIM ENGINE....................................................593 UNIVERSAL SHAFT...............................................................................................594 Drive Axle........................................................................................................595 DRIVE AXLE ASSEMBLY...........................................................................................598 DIFFERENTIAL CARRIER..........................................................................................602 PARK BRAKE ASSEMBLY...........................................................................................606 WET BRAKE ASSEMBLY............................................................................................608 WHEEL HUB ASSEMBLY HYSTER TIRE SAVER DRIVE AXLE...............................................................610 DRIVE TIRE AND WHEEL MICHELIN.................................................................................612 DRIVE TIRE AND WHEEL TRELLEBORG - SOLID TIRE .................................................................614 DRIVE TIRE AND WHEEL TRELLEBORG...............................................................................615 DRIVE TIRE AND WHEEL TRELLEBORG TR900.........................................................................617 STEERING SYSTEM...................................................................................................619 STEERING HOSES AND ATTACHING PARTS............................................................................622 STEER AXLE ASSEMBLY...........................................................................................624 STEER CYLINDER................................................................................................628 STEER TIRE AND WHEEL MICHELIN.................................................................................630 STEER TIRE AND WHEEL TRELLEBORG - SOLID TIRE .................................................................631 STEER TIRE AND WHEEL TRELLEBORG...............................................................................632 STEER TIRE AND WHEEL TRELLEBORG TR900.........................................................................633 STEER COLUMN ASSEMBLY.........................................................................................634 STEER PUMP ASSEMBLY...........................................................................................636 STEER COLUMN..................................................................................................638 STEERING CONTROL UNIT ASSEMBLY................................................................................640 STEER COLUMN AND ATTACHING PARTS..............................................................................642 BRAKE SYSTEM......................................................................................................645 BRAKE HOSES AND ATTACHING PARTS PAGE 1 OF 2...................................................................648 BRAKE HOSES AND ATTACHING PARTS PAGE 2 OF 2...................................................................652 BRAKE PEDAL AND LINKAGE.......................................................................................654 BRAKE VALVE AND ATTACHING PARTS...............................................................................656 BRAKE PEDAL ASSEMBLY..........................................................................................658 HYDRAULIC SYSTEM..................................................................................................661 HYDRAULIC SUPPLY AND RETURN...................................................................................666 MAST SUPPLY AND RETURN........................................................................................668 CAB HOSES AND ATTACHING PARTS.................................................................................670 HYDRAULIC OIL COOLER..........................................................................................672 HYDRAULIC TANK AND ATTACHING PARTS............................................................................674 LIFT ACCUMULATOR SYSTEM.......................................................................................676 MAIN VALVE HOSES..............................................................................................678 HYDRAULIC VALVES AND ATTACHING PARTS..........................................................................680 COMBINATION VALVE.............................................................................................684 CONTROL VALVE.................................................................................................686 CONTROL VALVE MID-INLET SECTION...............................................................................688 CONTROL VALVE OUTLET SECTION..................................................................................689 CONTROL VALVE TILT SPOOL SECTION..............................................................................690 CONTROL VALVE LIFT SPOOL SECTION - 1A AND 1B .................................................................692 CONTROL VALVE LIFT SPOOL SECTION - 4A AND 4B .................................................................694 CONTROL VALVE AUXILIARY SPOOL SECTION.........................................................................696 HYDRAULIC LEVERS..............................................................................................698 HYDRAULIC HOSE ASSEMBLY LEVERS................................................................................700 PILOT SUPPLY VALVE ASSEMBLY LEVERS............................................................................701 PILOT SUPPLY VALVE ASSEMBLY JOYSTICK..........................................................................702 JOINT MECHANISM ASSEMBLY LEVERS...............................................................................703 JOINT MECHANISM ASSEMBLY JOYSTICK.............................................................................704 JOYSTICK CONTROL..............................................................................................706 JOYSTICK CONTROL ALTERNATE MOUNTING...........................................................................708 JOYSTICK ASSEMBLY.............................................................................................710 JOYSTICK ASSEMBLY ALTERNATE ASSEMBLY..........................................................................712 HYDRAULIC HOSE ASSEMBLY JOYSTICK..............................................................................714 CAPSULE ASSEMBLY RAISE AND LOWER - JOYSTICK AND LEVERS .......................................................716 CAPSULE ASSEMBLY TILT - JOYSTICK AND LEVERS ..................................................................718 SOLENOID VALVE TIER IV INTERIM ENGINE.........................................................................720 AUTOMATIC GREASING PUMP.......................................................................................722 AUTOMATIC GREASING PUMP.......................................................................................724 AUTOMATIC GREASING SYSTEM PAGE 1 OF 3.........................................................................726 AUTOMATIC GREASING SYSTEM PAGE 2 OF 3.........................................................................728 AUTOMATIC GREASING SYSTEM PAGE 3 OF 3.........................................................................730 BLOCK ASSEMBLY, TWIN 4-PORT WITH METERING UNITS NUMBER 3 AND 10...............................................732 BLOCK ASSEMBLY, TWIN 4-PORT WITH METERING UNIT NUMBER 8.......................................................733 BLOCK ASSEMBLY, TWIN 12-PORT WITH METERING UNITS NUMBER 3, 4, AND 8...........................................734 AUTOMATIC GREASING SYSTEM HOSE SUPPORT........................................................................736 GEAR PUMP.....................................................................................................738 MAST WITH EMPTY CONTAINER HANDLER.................................................................................741 MAST INSTALLATION.............................................................................................744 OUTER MAST....................................................................................................746 INNER MAST....................................................................................................748 MAIN LIFT.....................................................................................................750 MAIN LIFT CYLINDERS...........................................................................................754 HEADER HOSES..................................................................................................756 TILT CYLINDER HYDRAULICS......................................................................................760 TILT CYLINDERS................................................................................................762 OPTIONS...........................................................................................................765 OPTIONAL MOUNTING EQUIPMENT (HANDLE)..........................................................................768 MAP READING LIGHT.............................................................................................769 START AID.....................................................................................................770 EMPTY SEAT ENGINE SHUTDOWN....................................................................................771 TRAINING SEAT.................................................................................................772 CAB RECIRCULATING FAN CLOSED CAB ONLY.........................................................................773 ENGINE BLOCK HEATER...........................................................................................774 CONDITIONAL SPEED LIMITER LIFT AND TILT.......................................................................776 THREE-POINT SEAT BELT.........................................................................................778 MIRRORS.......................................................................................................779 EMPTY CONTAINER HANDLER BEARING BLOCKS AND SHIMS - CARRIAGE ..................................................780 FIELD CONVERSION KITS.............................................................................................781 LOUVER - HEAVY DUTY AIRCO.....................................................................................784 PARK BRAKE KITS...............................................................................................784 TELEMETRY KITS................................................................................................784 NUMERICAL INDEX...................................................................................................785

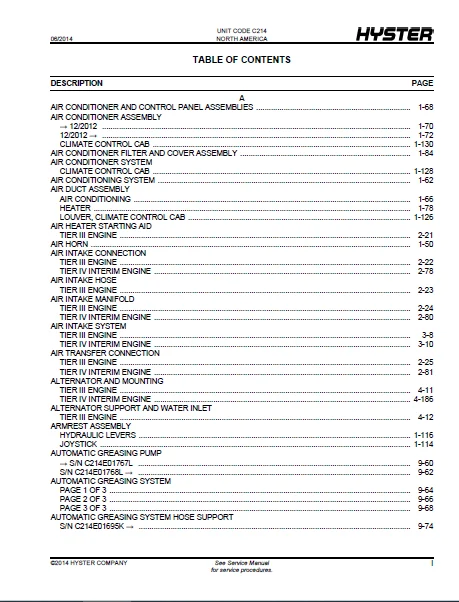

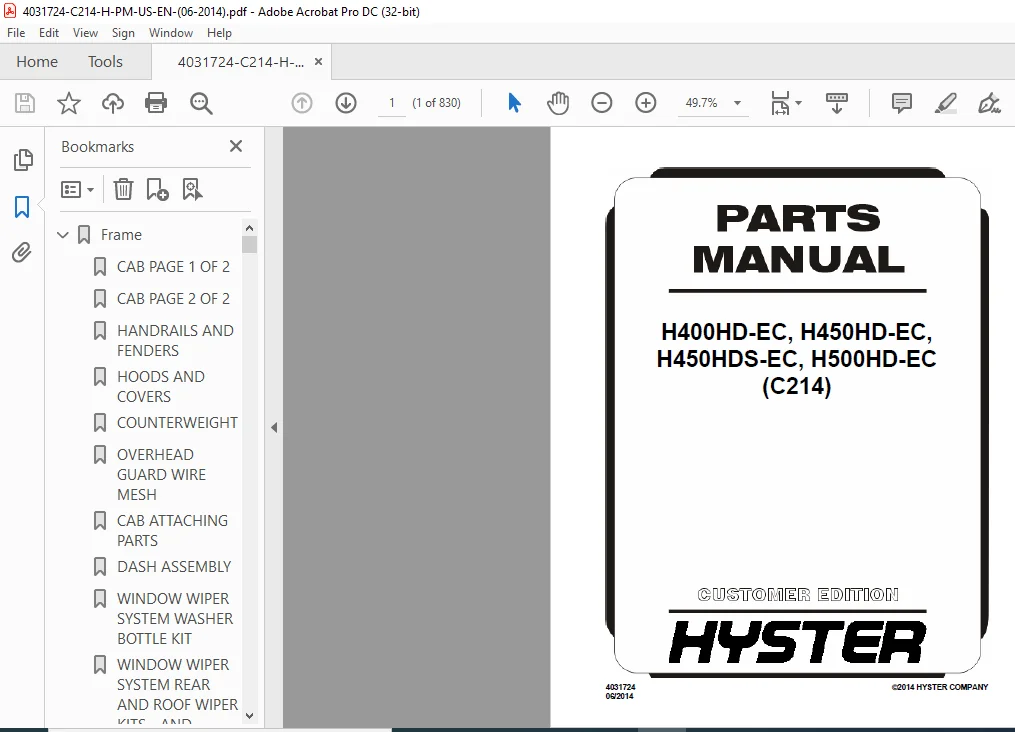

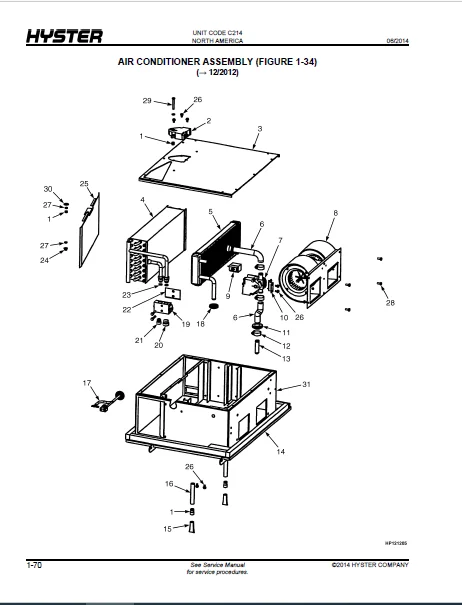

IMAGES PREVIEW OF THE MANUAL:
