Hyster W20XTA W30XTA W40XTA (A453) W20XTR W30XTR (A455) Parts Manual – PDF DOWNLOAD
Original price was: $98.95.$28.95Current price is: $28.95.
Hyster W20XTA W30XTA W40XTA (A453) W20XTR W30XTR (A455) Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Hyster W20XTA W30XTA W40XTA (A453) W20XTR W30XTR (A455) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Hyster W20XTA W30XTA W40XTA (A453) W20XTR W30XTR (A455) Parts Manual – PDF DOWNLOAD
HOW TO USE THE ILLUSTRATED PARTS MANUAL :
- This parts manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement.
- The different constructions are indicated by keys and footnotes. The callouts correspond to descriptions found on the next page.
HOW TO FIND THE DESIRED PART NUMBER
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
WHEN THE PART NUMBER IS NOT KNOWN AND THE NEXT HIGHER ASSEMBLY IS KNOWN:
3. Determine the assembly the required part is used on. Turn to the Table of Contents (Page i).
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 10-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
WHEN THE PART NUMBER IS KNOWN:
5. Use the Numerical Index (Page 10-1) to find the part number. Turn to the page listed and locate the part as indicated by the item number.
GENERAL:
The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Parts Supersession Information. Part numbers that have this history will be displayed in the parts list in the order that they were superseded (from oldest to newest). The superseded part numbers will be shown with a line through them.
- Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a figure number in the DESCRIPTION column (FFigure 10)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly.

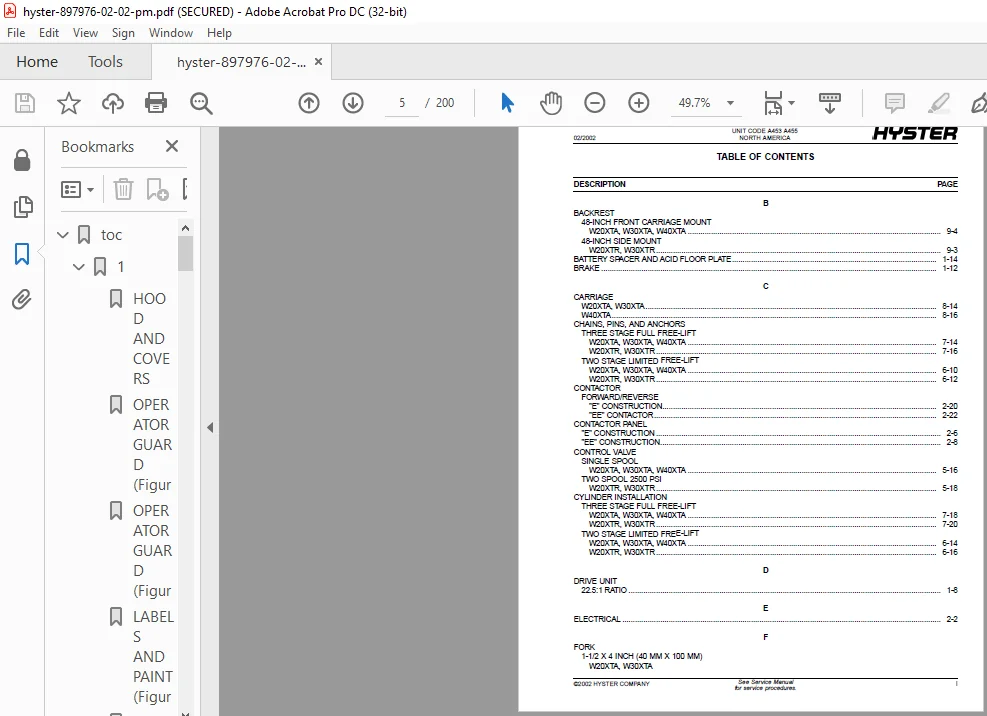

TABLE OF CONTENTS:
Hyster W20XTA W30XTA W40XTA (A453) W20XTR W30XTR (A455) Parts Manual – PDF DOWNLOAD
toc......................................................... 1 1....................................................... 15 HOOD AND COVERS (Figure 1-1)........................ 18 OPERATOR GUARD (Figure 1-2)......................... 19 OPERATOR GUARD (Figure 1-3)......................... 20 LABELS AND PAINT (Figure 1-4)....................... 22 DRIVE UNIT (Figure 1-5)............................. 24 BRAKE (Figure 1-6).................................. 28 BATTERY SPACER AND ACID FLOOR PLATE (Figure 1-7).... 30 2....................................................... 31 ELECTRICAL (Figure 2-1)............................. 34 CONTACTOR PANEL (Figure 2-2)........................ 38 CONTACTOR PANEL (Figure 2-3)........................ 40 TRACTION MOTOR (Figure 2-4)......................... 44 TRACTION MOTOR (Figure 2-5)......................... 46 TRACTION MOTOR (Figure 2-6)......................... 50 CONTACTOR (Figure 2-7).............................. 52 CONTACTOR (Figure 2-8).............................. 54 3....................................................... 57 STEER HANDLE HEAD (Figure 3-1)...................... 60 STEER HANDLE MOUNTING (Figure 3-2).................. 64 4....................................................... 67 LOAD WHEEL (Figure 4-1)............................. 70 5....................................................... 73 HYDRAULIC SYSTEM (Figure 5-1)....................... 76 HYDRAULIC SYSTEM (Figure 5-2)....................... 80 HYDRAULIC PUMP AND MOTOR (Figure 5-3)............... 84 HYDRAULIC PUMP (Figure 5-4)......................... 86 HYDRAULIC PUMP (Figure 5-5)......................... 87 HYDRAULIC MOTOR (Figure 5-6)........................ 88 CONTROL VALVE (Figure 5-7).......................... 90 CONTROL VALVE (Figure 5-8).......................... 92 HYDRAULIC SYSTEM (Figure 5-9)....................... 94 HYDRAULIC SYSTEM (Figure 5-10)...................... 96 6....................................................... 99 OUTER AND INNER MAST (Figure 6-1)...................102 LIFT (Figure 6-2)...................................105 LIFT (Figure 6-3)...................................106 CHAINS, PINS, AND ANCHORS (Figure 6-4)..............110 CHAINS, PINS, AND ANCHORS (Figure 6-5)..............112 CYLINDER INSTALLATION (Figure 6-6)..................114 CYLINDER INSTALLATION (Figure 6-7)..................116 LIFT CYLINDER (Figure 6-8)..........................118 LIFT CYLINDER (Figure 6-9)..........................120 7.......................................................123 OUTER, INTERMEDIATE, AND INNER MAST (Figure 7-1)....126 HEADER HOSE (Figure 7-2)............................130 HEADER HOSE (Figure 7-3)............................132 MAIN FREE-LIFT (Figure 7-4).........................134 MAIN FREE-LIFT (Figure 7-5).........................136 CHAINS, PINS, AND ANCHORS (Figure 7-6)..............138 CHAINS, PINS, AND ANCHORS (Figure 7-7)..............140 CYLINDER INSTALLATION (Figure 7-8)..................142 CYLINDER INSTALLATION (Figure 7-9)..................144 MAIN LIFT CYLINDER (Figure 7-10)....................146 MAIN LIFT CYLINDER (Figure 7-11)....................148 FREE-LIFT CYLINDER (Figure 7-12)....................149 8.......................................................151 OUTER FRAME CARRIAGE (Figure 8-1)...................154 SCISSOR CARRIAGE (Figure 8-2).......................156 INNER FRAME CARRIAGE (Figure 8-3)...................158 REACH CYLINDER (Figure 8-4).........................162 TILT CYLINDER (Figure 8-5)..........................164 CARRIAGE (Figure 8-6)...............................166 CARRIAGE (Figure 8-7)...............................168 9.......................................................171 HOURMETER/BATTERY GAUGE (Figure 9-1)................174 BACKREST (Figure 9-2)...............................175 BACKREST (Figure 9-3)...............................176 FORK (Figure 9-4)...................................177 FORKS (Figure 9-5)..................................178 FORK (Figure 9-6)...................................179 FORK (Figure 9-7)...................................180 SIDE-SHIFT CARRIAGE (Figure 9-8)....................182 SIDE-SHIFT CYLINDER (Figure 9-9)....................184
HYSTER W20XTA W30XTA W40XTA (A453) W20XTR W30XTR (A455) PARTS MANUAL – PDF DOWNLOAD:

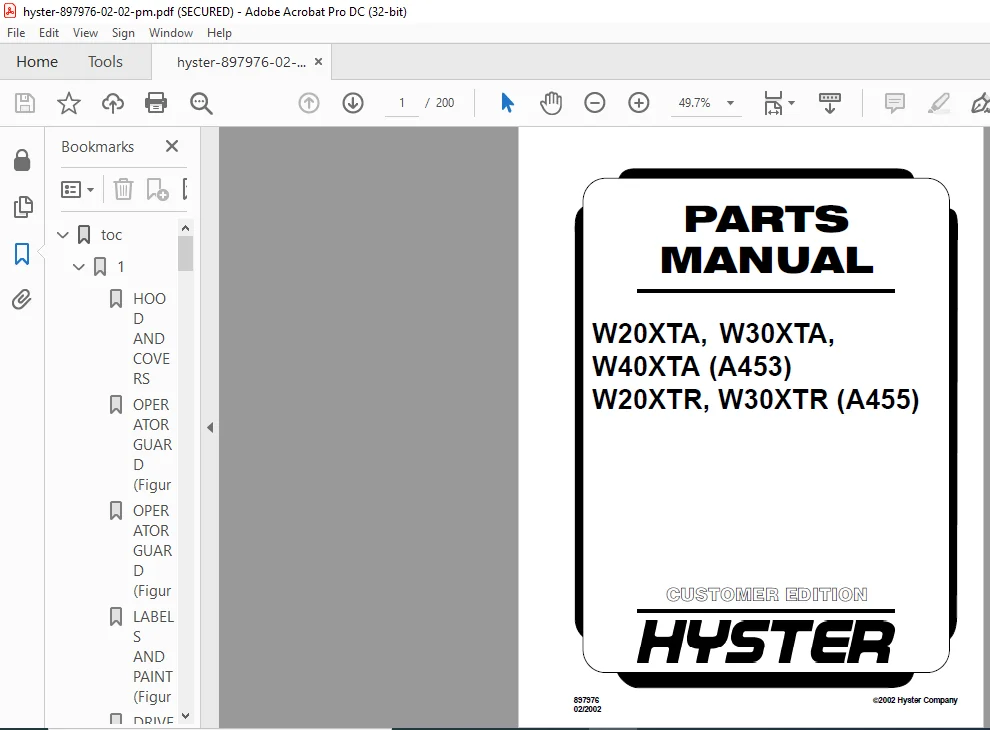

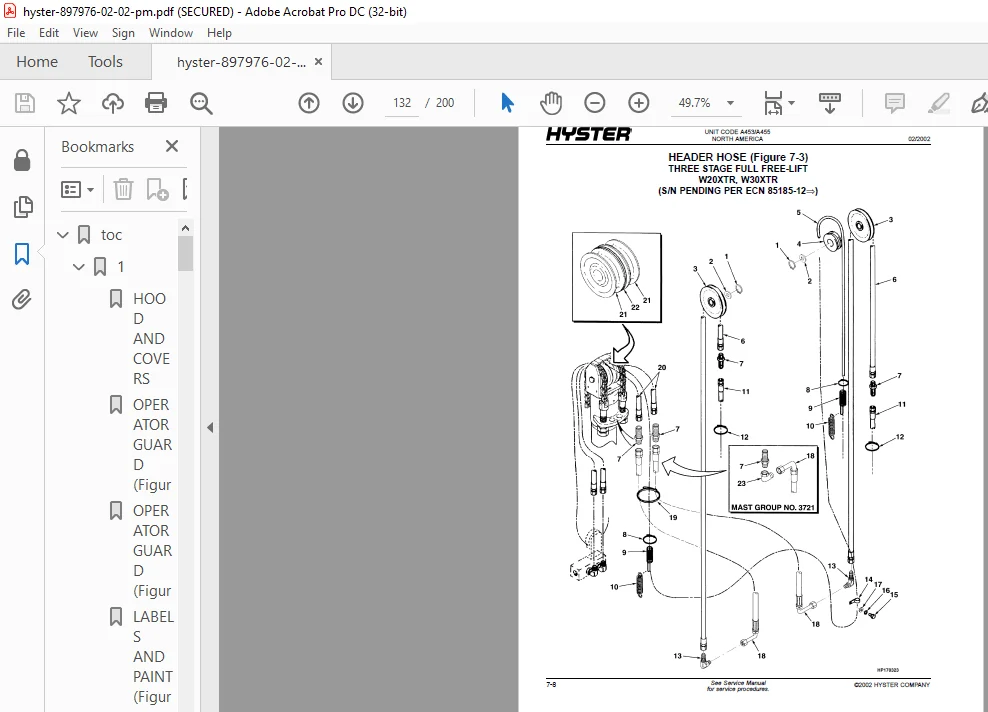

IMAGES PREVIEW OF THE MANUAL:
