Hyster W30ZA W40ZA (B453) W20ZR W30ZR (B455) Parts Manual PDF
Original price was: $95.00.$28.95Current price is: $28.95.
Get the official Hyster Illustrated Parts Manual (IPC) for W30ZA / W40ZA (B453) and W20ZR / W30ZR (B455). Includes exploded diagrams, part numbers, quantities, serial-number breaks, options, and conversion kits across all major systems—frame/drive, electrical, steer handle & brake, load wheel, hydraulics, masts (2-stage & 3-stage), carriage, and more.
Description
Hyster W30ZA W40ZA (B453) W20ZR W30ZR (B455) Parts Manual PDF DOWNLOAD
Description
🔧 Hyster W30ZA / W40ZA (B453) & W20ZR / W30ZR (B455) – Parts Manual PDF

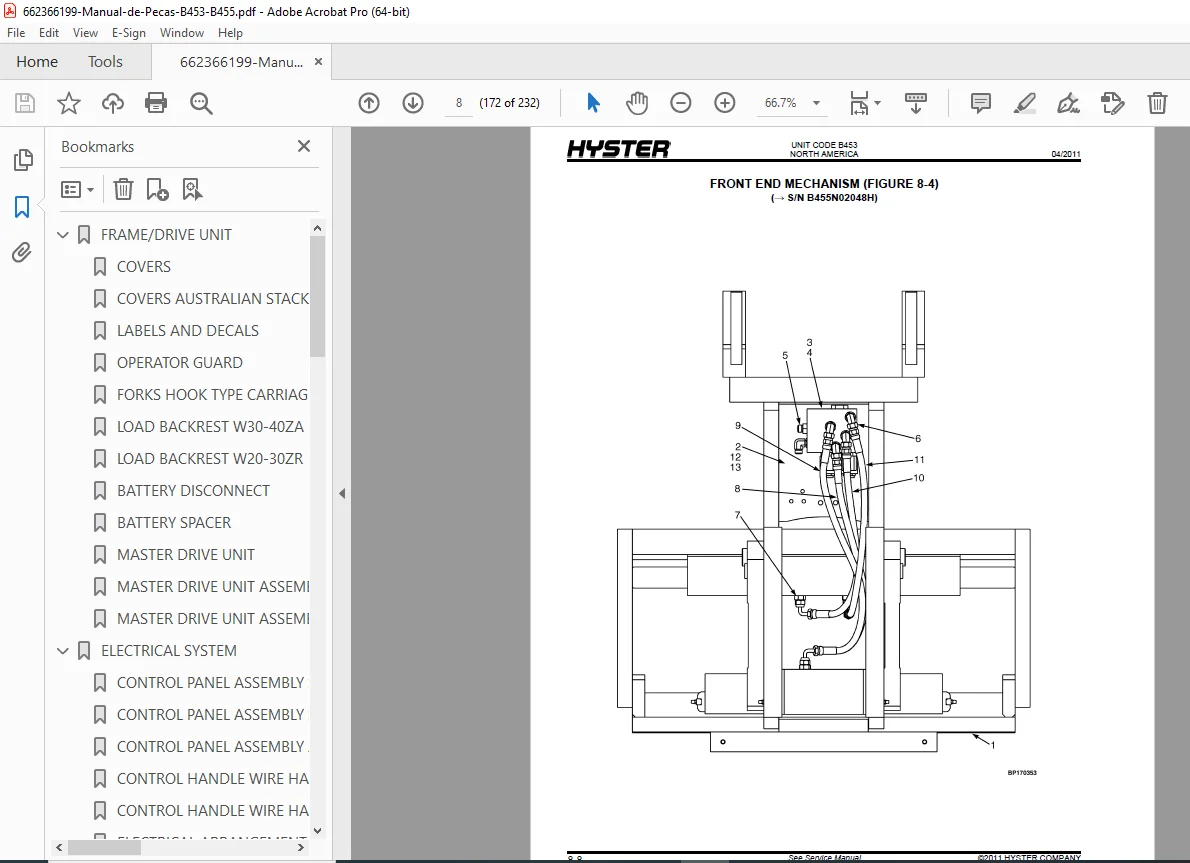

This is a factory illustrated parts catalog designed to help you identify and order the correct replacement parts quickly. It contains exploded views, part numbers, descriptions, quantities, and serial number break information—perfect for workshops, fleet maintenance teams, and equipment owners who want accurate parts lookup.
✅ Ideal for:
Correct part identification before ordering
Fast component breakdown by section tabs
Matching parts to serial-number ranges and configurations
Verifying options and field conversion kits
✅ Models Covered
Hyster W30ZA, W40ZA (Unit Code B453)
Hyster W20ZR, W30ZR (Unit Code B455)

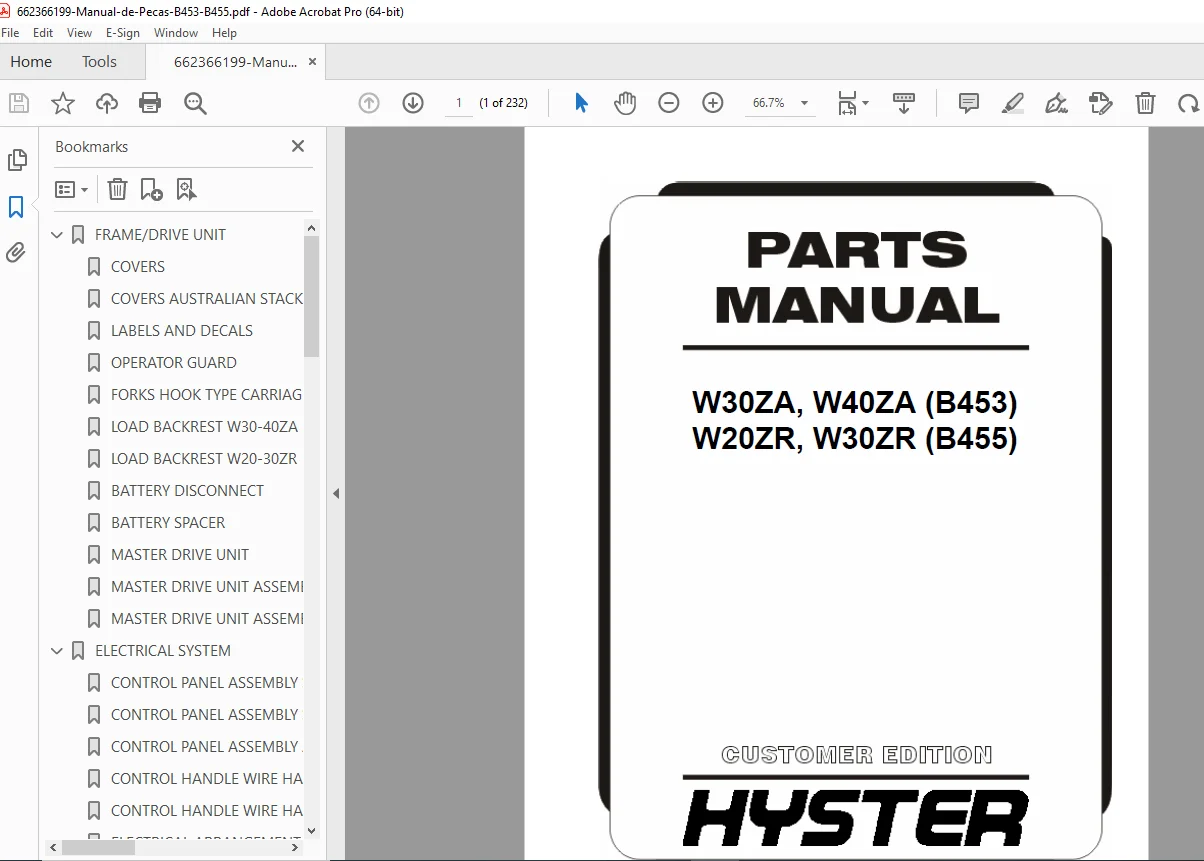

📚 What’s Inside (Table of Contents / Bookmarks)
1 — Frame / Drive Unit
Covers & panels
Labels & decals
Operator guard
Forks (hook type carriage)
Load backrest (W30–40ZA / W20–30ZR)
Battery disconnect & spacer
Master drive unit (with serial-number break variations)
2 — Electrical System
Control panel assembly (standard / straddle with auxiliary / Australian stacker)
Control handle wire harness (B453 / B455)
Electrical arrangement (standard & Australian stacker)
Traction motor
Main wire harness (with variations)
3 — Steer Handle / Brake System
Electric brake
Tiller handle arm & tiller head assemblies (composite / metal versions)
Steering handle components & related hardware
4 — Load Wheel
Load wheel assemblies and service replacement breakdowns
5 — Hydraulic System
Mast hose connections
Hydraulic power unit (with/without auxiliary; straddle & reach)
Hydraulic system assemblies and components
6 — Mast (Two Stage Limited Free-Lift)
Outer & inner mast
Chains, pins & anchors
Cylinder installation
Lift cylinder assembly and related components
7 — Mast (Three Stage Full Free-Lift)
Outer, intermediate & inner mast
Header hose
Free-lift assembly / cylinders
Main lift cylinder
Reach carriage lift cylinder installation (where applicable)
8 — Carriage
Single reach assembly & arms
Reach control valve
Reach hydraulics & reach cylinder assembly
Inner frame carriage
Carriage configurations by model
9 — Options
Operator guard (2-stage / 3-stage)
Side-shift carriage (serial-number break versions)
Side-shift cylinder
Integral side-shift assembly
Integral tilt assembly
ZAPI handset kit / Windows laptop-PC kit (where equipped)
10 — Field Conversion Kits
Handle upgrade kit and related conversion components
11 — Numerical Index
Fast lookup by part number
📄 File Details
| Item | Details |
|---|---|
| Manual Name | Hyster Illustrated Parts Manual (IPC) – W30ZA/W40ZA & W20ZR/W30ZR |
| Models Covered | W30ZA, W40ZA (B453) / W20ZR, W30ZR (B455) |
| Year | 2011 |
| PDF Quality | Illustrated factory manual (exploded diagrams + part lists) |
| Pages | 217 pages |
Order the right part the first time—this factory illustrated parts manual gives you the exact diagrams and part numbers in seconds. Download instantly and keep it ready on your phone or workshop computer.
