Hyundai Forklift 22/25/30/33D-9S Service Manual 2023 - PDF DOWNLOAD

Hyundai Forklift 22/25/30/33D-9S Service Manual 2023 – PDF DOWNLOAD

Name: Hyundai Forklift 22/25/30/33D-9S Service Manual 2023 - PDF DOWNLOAD
SKU: 673008
Price: 28.95 USD
Availability: InStock

$28.95

The Hyundai Forklift 22/25/30/33D-9S Service Manual 2023 offers comprehensive guidance for maintenance, repair, and troubleshooting of Hyundai 22/25/30/33D-9S forklift models. It includes detailed procedures, diagrams, and specifications for efficient servicing. Available for PDF download.

Category: HYUNDAI Tags: Vendor: Excavator Docs

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description

Description

Hyundai Forklift 22/25/30/33D-9S Service Manual 2023 – PDF DOWNLOAD

The Hyundai Forklift 22/25/30/33D-9S Service Manual 2023 in PDF format offers comprehensive guidance for maintenance, troubleshooting, and repair of Hyundai’s 22/25/30/33D-9S forklift models, aiding efficient operations and ensuring safety compliance.

FILE DETAILS:

Hyundai Forklift 22/25/30/33D-9S Service Manual 2023 – PDF DOWNLOAD

Language : English
Pages : 260
Downloadable : Yes
File Type : PDF

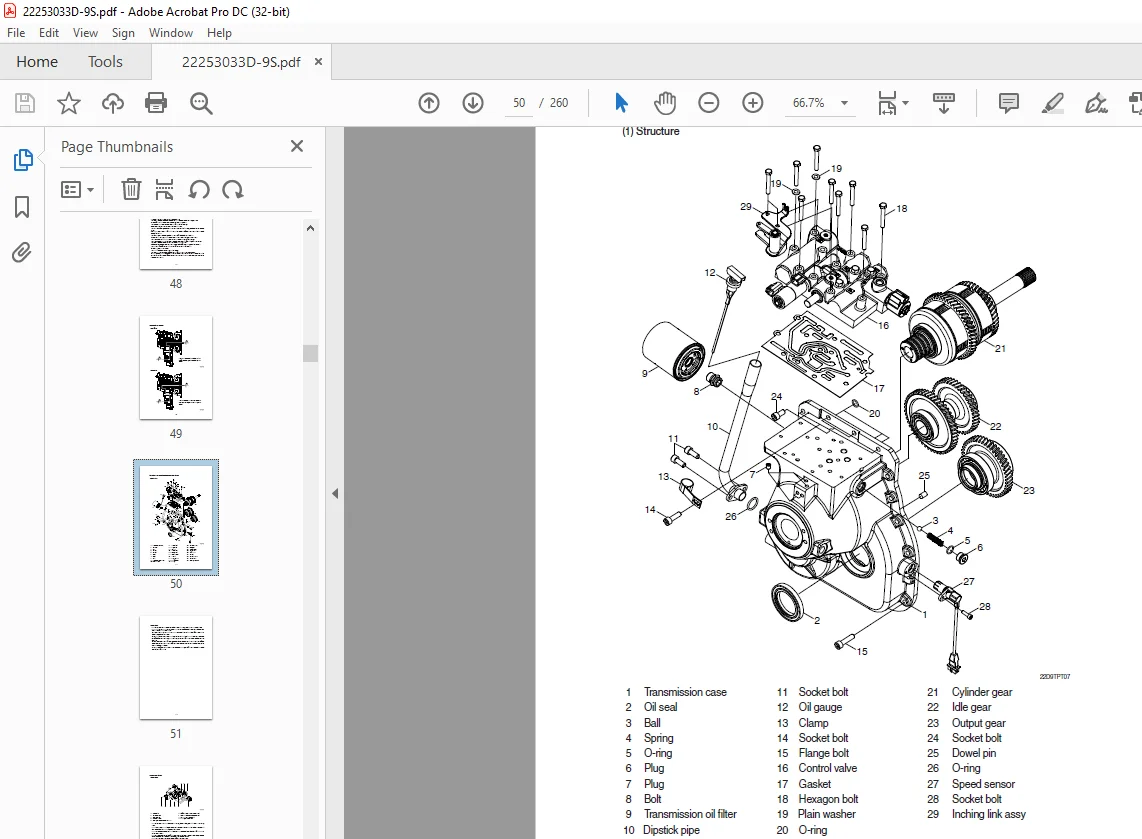

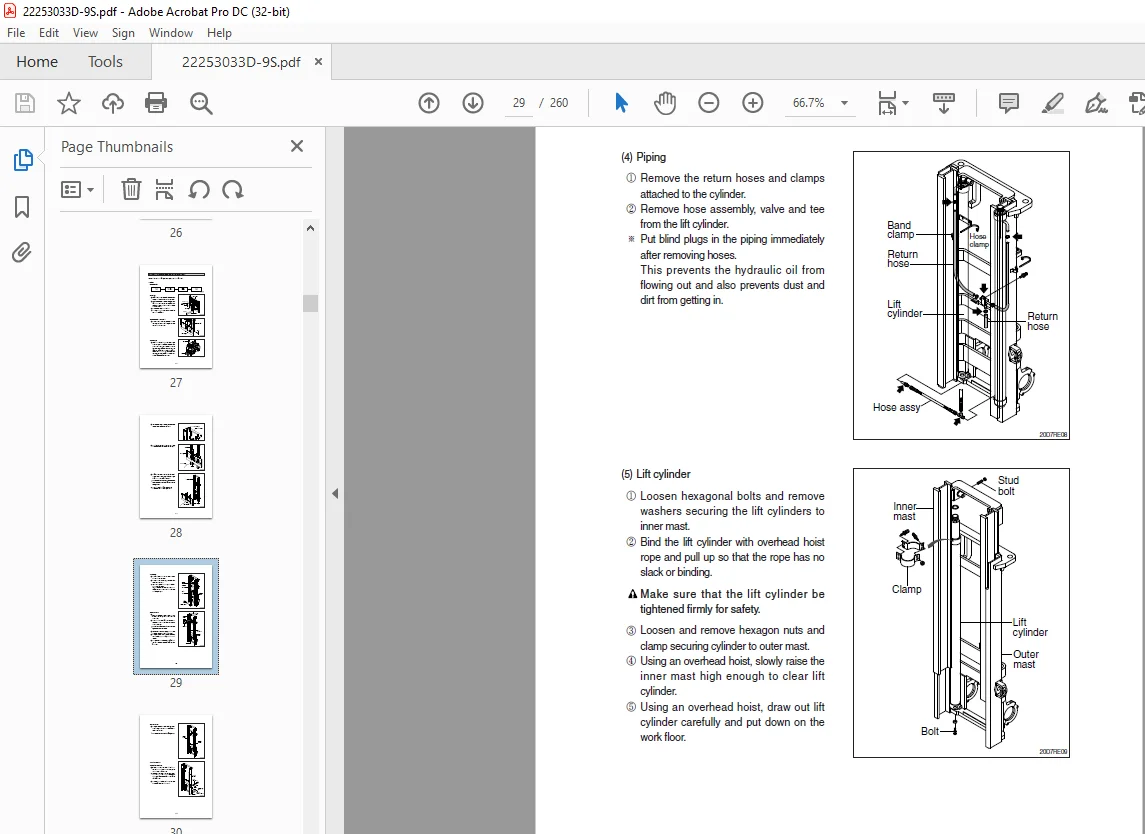

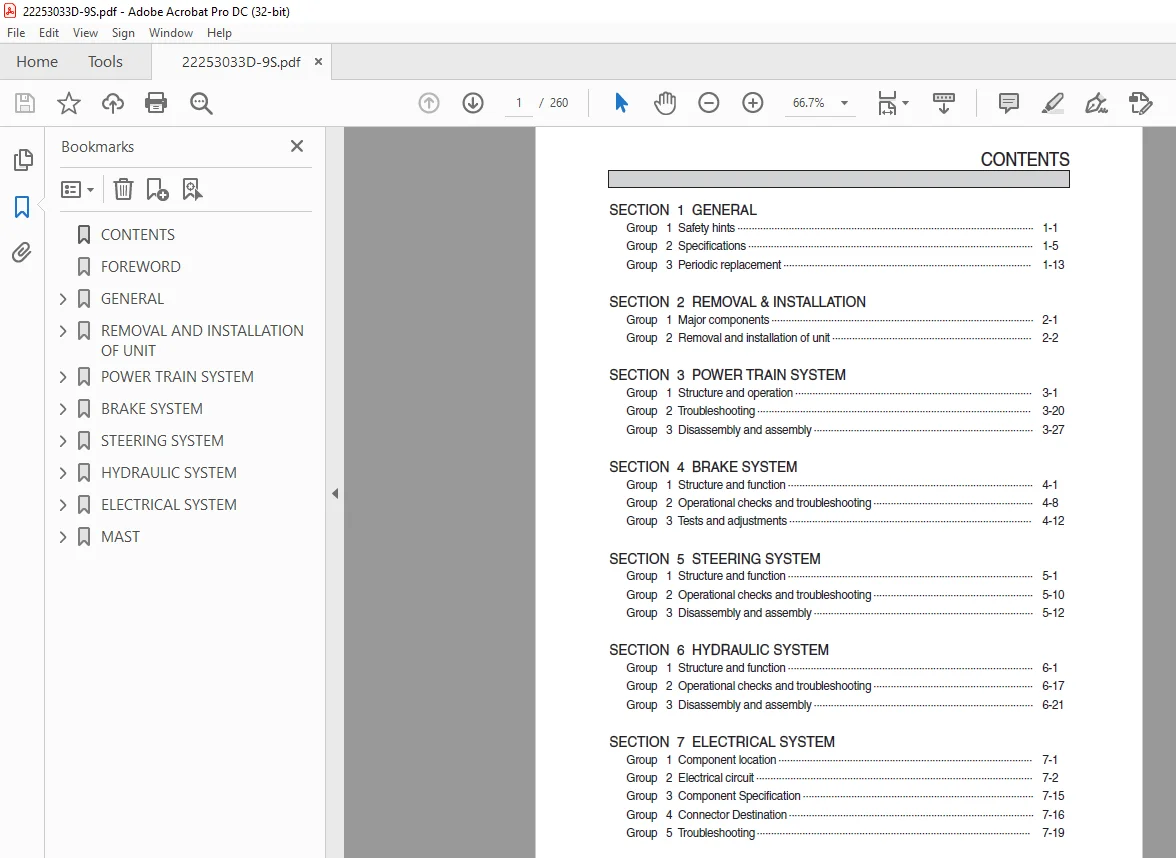

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Hyundai Forklift 22/25/30/33D-9S Service Manual 2023 – PDF DOWNLOAD

This service manual has been prepared as an aid to improve the quality of repairs by giving the serviceman an accurate understanding of the product and by showing him the correct way to perform repairs and make judgments. Make sure you understand the contents of this manual and use it to full effect at every opportunity. This service manual mainly contains the necessary technical information for operations performed in a service workshop. For ease of understanding, the manual is divided into the following sections:

**SECTION 1: GENERAL**

This section gives the general information of the machine and explains the safety hints for maintenance.

**SECTION 2: REMOVAL & INSTALLATION OF UNIT**

This section explains the procedures and techniques of removal and installation of each component.

**SECTION 3: POWER TRAIN SYSTEM**

This section explains the structure of the transmission as well as control valve and drive axle.

**SECTION 4: BRAKE SYSTEM**

This section explains the brake piping, each component, and operation.

**SECTION 5: STEERING SYSTEM**

This section explains the structure of the steering unit, priority valve, trail axle as well as steering circuit and operation.

**SECTION 6: HYDRAULIC SYSTEM**

This section explains the structure of the gear pump, main control valve as well as work equipment circuit, each component, and operation.

**SECTION 7: ELECTRICAL SYSTEM**

This section explains the electrical circuit and each component. It serves not only to give an understanding electrical system but also serves as reference material for troubleshooting.

**SECTION 8: MAST**

This section explains the structure of the mast, carriage, backrest, and forks.

The specifications contained in this service manual are subject to change at any time and without any advance notice. Contact your HYUNDAI distributor for the latest information.

TABLE OF CONTENTS:

Hyundai Forklift 22/25/30/33D-9S Service Manual 2023 – PDF DOWNLOAD

FOREWORD

1.GENERAL

1. Safety hints

2. Specifications

3. Periodic replacement

2.REMOVAL & INSTALLATION

1. Structure

2. Removal and installation of unit

3.POWER TRAIN SYSTEM

1. Structure and operation

2. Troubleshooting

3. Disassembly and assembly

4.BRAKE SYSTEM

1. Structure and function

2. Operational checks and troubleshooting

3. Test and adjustments

5.STEERING SYSTEM

1. Structure and function

2. Operational checks and troubleshooting

3. Disassembly and assembly

6.HYDRAULIC SYSTEM

1. Structure and function

2. Operational checks and troubleshooting

3. Disassembly and assembly

7.ELECTRICAL SYSTEM

1. Component location

2. Electrical circuit

3. Component specification

4. Connector destination

5. Troubleshooting

8.MAST

1. Structure

2. Operational checks and troubleshooting

3. Adjustment

4. Removal and installation

Contact us: [email protected]

S.S 03/24
