Hyundai Forklift HDF50-3 HDF70-3 Service Manual – PDF DOWNLOAD

Description

Hyundai Forklift HDF50-3 HDF70-3 Service Manual – PDF DOWNLOAD

FILE DETAILS:

Hyundai Forklift HDF50-3 HDF70-3 Service Manual – PDF DOWNLOAD

Language : English
Pages : 301
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Hyundai Forklift HDF50-3 HDF70-3 Service Manual – PDF DOWNLOAD

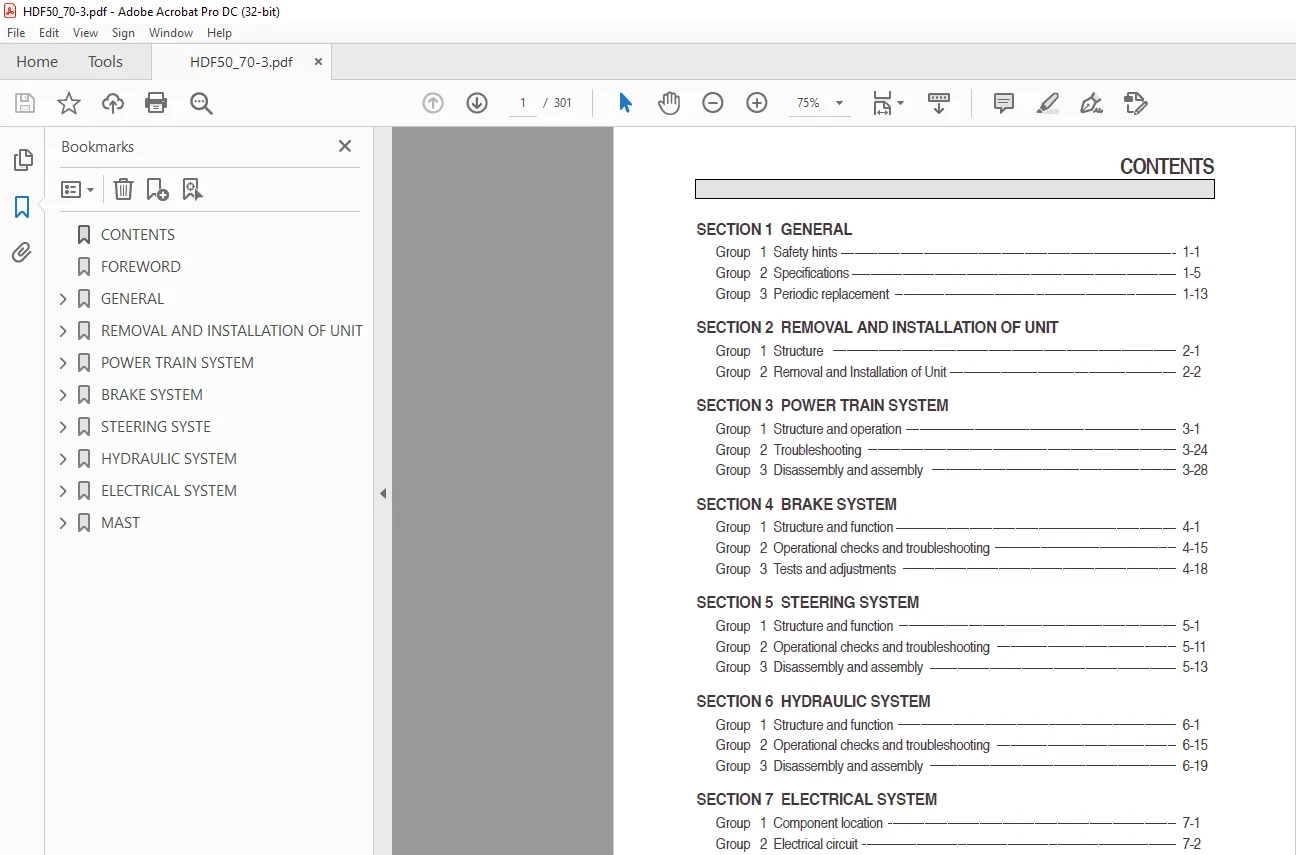

CONTENTS.........................................  1
FOREWORD.........................................  3
GENERAL.......................................... 11
	1. SAFETY HINTS.............................. 12
	2. SPECIFICATIONS............................ 16
	3. PERIODIC REPLACEMENT...................... 24
REMOVAL AND INSTALLATION OF UNIT................. 25
	1. STRUCTURE................................. 26
	2. REMOVAL AND INSTALLATION OF UNIT.......... 27
POWER TRAIN SYSTEM............................... 45
	1. STRUCTURE AND OPERATION................... 46
	2. TROUBLESHOOTING........................... 69
	3. DISASSEMBLY AND ASSEMBLY.................. 73
BRAKE SYSTEM.....................................153
	1. STRUCTURE AND FUNCTION....................154
	2. OPERATIONAL CHECKS AND TROUBLESHOOTING....168
	3. TESTS AND ADJUSTMENTS.....................171
STEERING SYSTE...................................173
	1. STRUCTURE AND FUNCTION....................174
	2. OPERATIONAL CHECKS AND TROUBLES...........184
	3. DISASSEMBLY AND ASSEMBLY..................186
HYDRAULIC SYSTEM.................................215
	1. STRUCTURE AND FUNCTION....................216
	2. OPERATIONAL CHECKS AND TROUBLESHOOTING....230
	3. DISASSEMBLY AND ASSEMBLY..................234
ELECTRICAL SYSTEM................................253
	1. COMPONENT LOCATION........................254
	2. ELECTRICAL CIRCUIT........................255
	3. COMPONENT SPECIFICATION...................264
	4. CONNECTOR DESTINATION.....................265
	5. TROUBLESHOOTING...........................267
MAST.............................................283
	1. STRUCTURE.................................284
	2. OPERATIONAL CHECKS AND TROUBLESHOOTING....288
	3. ADJUSTMENT................................291
	4. REMOVAL AND INSTALLATION..................293

DESCRIPTION:

Hyundai Forklift HDF50-3 HDF70-3 Service Manual – PDF DOWNLOAD

STRUCTURE

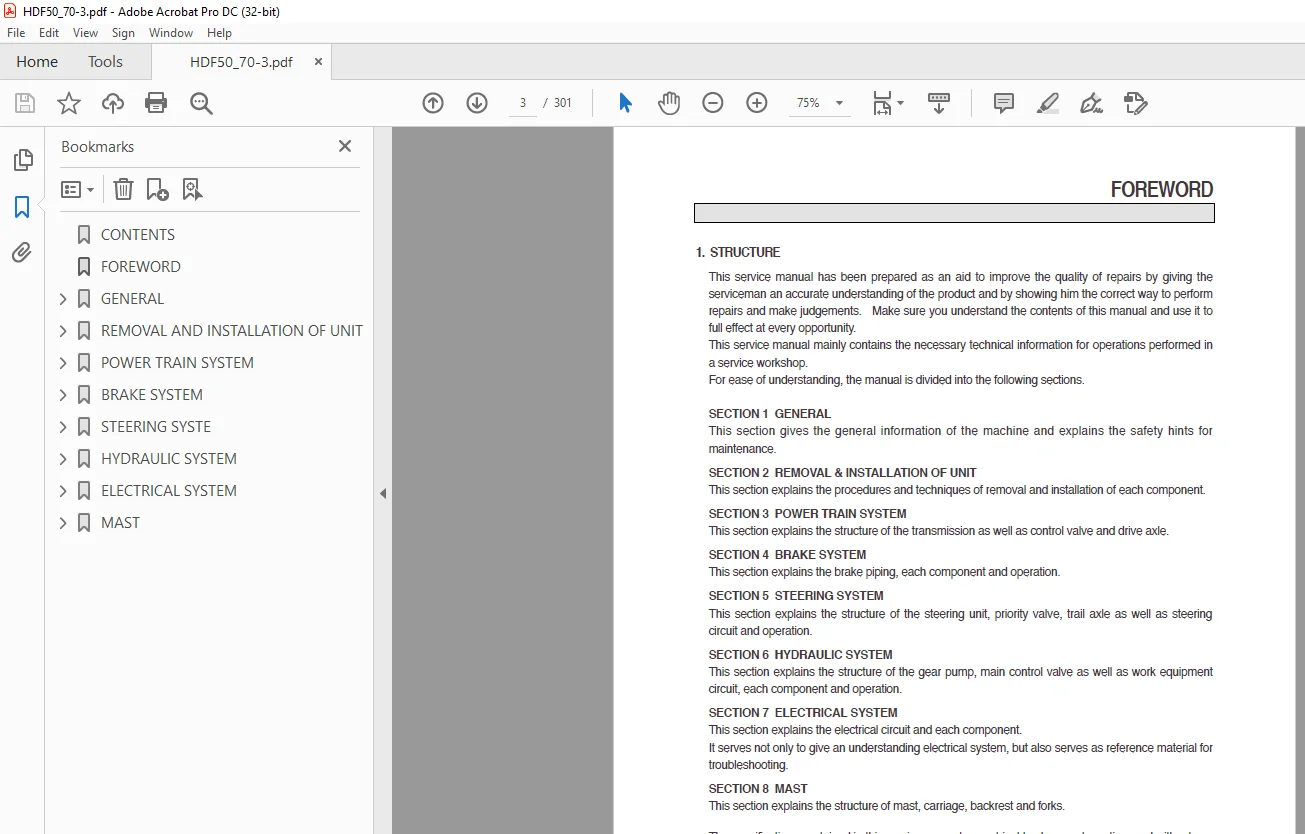

This service manual has been prepared as an aid to improve the quality of repairs by giving the serviceman an accurate understanding of the product and by showing him the correct way to perform repairs and make judgements. Make sure you understand the contents of this manual and use it to full effect at every opportunity.
This service manual mainly contains the necessary technical information for operations performed in a service workshop.
For ease of understanding, the manual is divided into the following sections.
SECTION 1 GENERAL
This section gives the general information of the machine and explains the safety hints for maintenance.
SECTION 2 REMOVAL & INSTALLATION OF UNIT
This section explains the procedures and techniques of removal and installation of each component.
SECTION 3 POWER TRAIN SYSTEM
This section explains the structure of the transmission as well as control valve and drive axle.
SECTION 4 BRAKE SYSTEM
This section explains the brake piping, each component and operation.
SECTION 5 STEERING SYSTEM
This section explains the structure of the steering unit, priority valve, trail axle as well as steering circuit and operation.
SECTION 6 HYDRAULIC SYSTEM
This section explains the structure of the gear pump, main control valve as well as work equipment circuit, each component and operation.
SECTION 7 ELECTRICAL SYSTEM
This section explains the electrical circuit and each component. It serves not only to give an understanding electrical system, but also serves as reference material for troubleshooting.
SECTION 8 MAST
This section explains the structure of mast, carriage, backrest and forks.

HYUNDAI FORKLIFT HDF50-3 HDF70-3 SERVICE MANUAL – PDF DOWNLOAD:

S.S 16/02/2025
