Hyundai HL770 (#1171~) Wheel Loader Service Manual 2023 – PDF DOWNLOAD
$30.95
The Hyundai HL770 (#1171~) Wheel Loader Service Manual 2023 in PDF is essential for maintenance and repairs. Downloadable for easy access, it provides detailed instructions for optimal performance, ensuring efficient and reliable operation of the equipment.
Description
Hyundai HL770 (#1171~) Wheel Loader Service Manual 2023 – PDF DOWNLOAD
The Hyundai HL770 (#1171~) Wheel Loader Service Manual 2023 in PDF is essential for maintenance and repairs. Downloadable for easy access, it provides detailed instructions for optimal performance, ensuring efficient and reliable operation of the equipment.
FILE DETAILS:
Hyundai HL770 (#1171~) Wheel Loader Service Manual 2023 – PDF DOWNLOAD
Language : English
Pages : 540
Downloadable : Yes
File Type : PDF

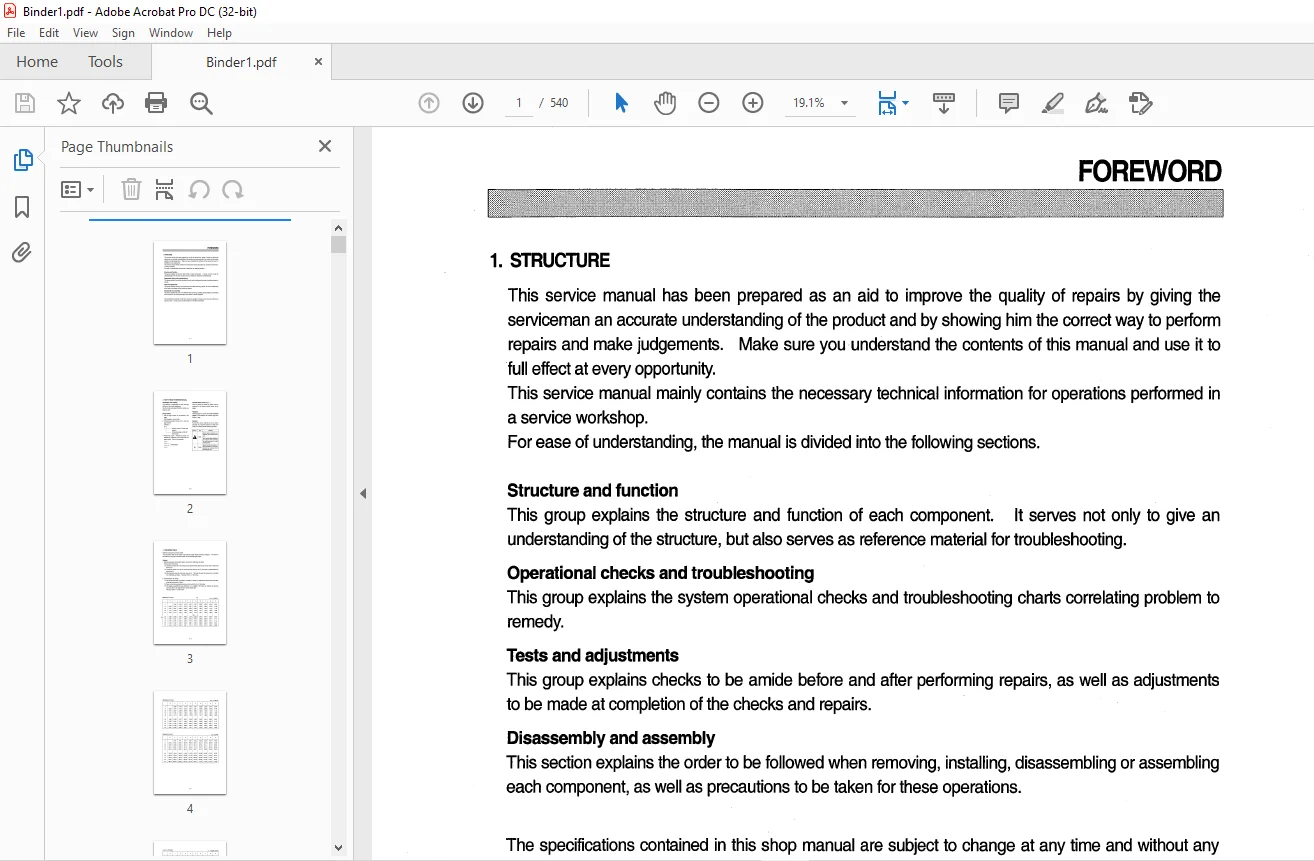

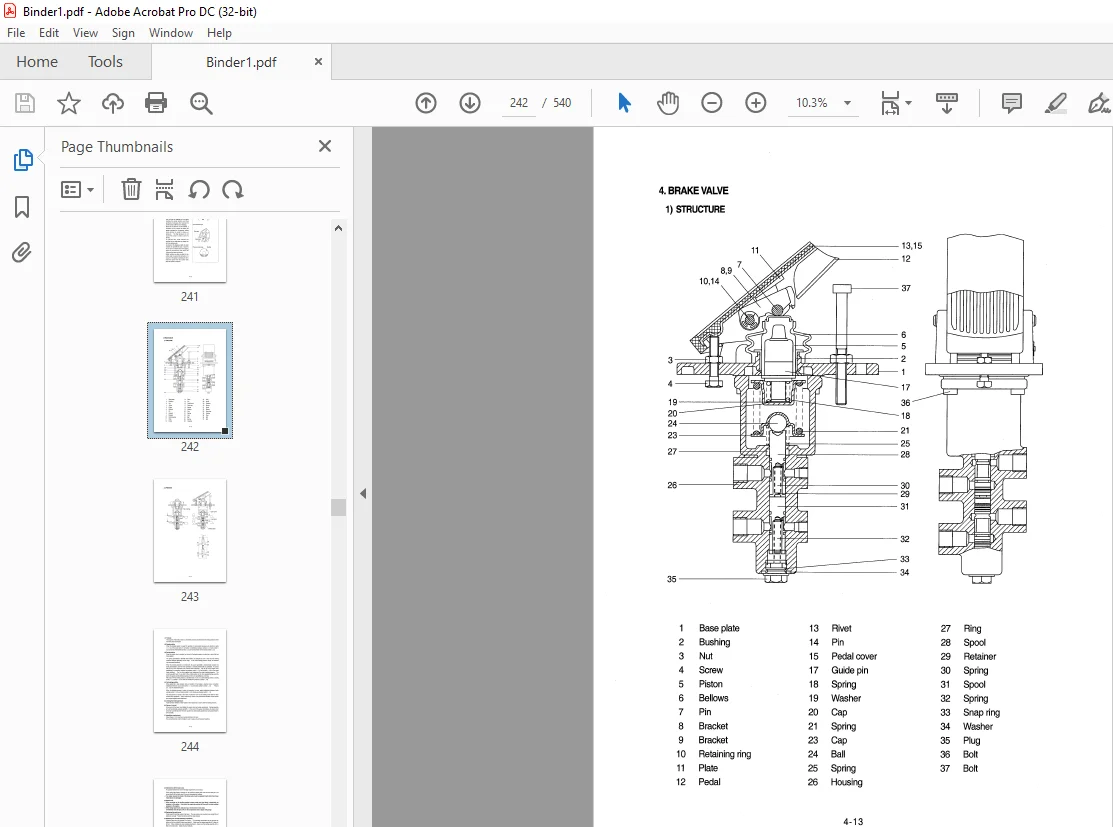

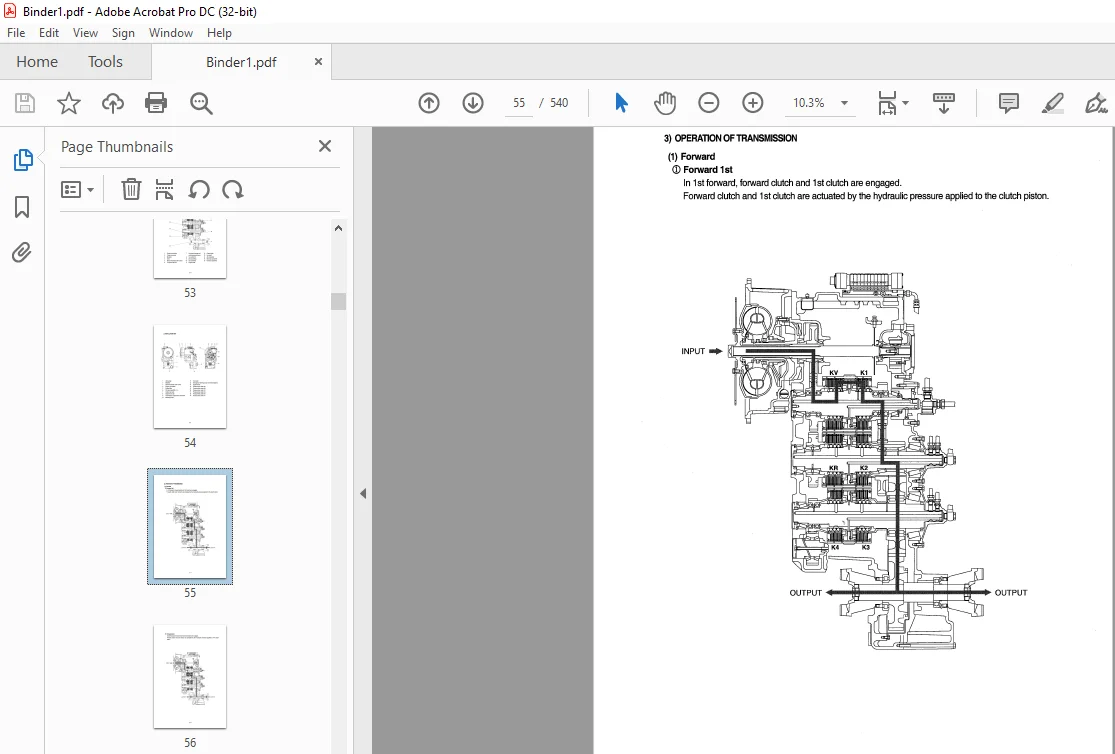

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Hyundai HL770 (#1171~) Wheel Loader Service Manual 2023 – PDF DOWNLOAD
SECTION 1 GENERAL
Group 1 Safety Hints 1 1
Group 2 Specifications 1 10
Group 3 Operational Checkout Record Sheet 1 22
SECTION 2 ENGINE
Group 1 Structure and Function 2 1
SECTION 3 POWER TRAIN SYSTEM
Group 1 Structure and Function 3 1
Group 2 Operational Checks and Troubleshooting 3 59
Group 3 Test and Adjustments 3 71
Group 4 Disassembly and Assembly 3 7 4
SECTION 4 BRAKE SYSTEM
Group 1 Structure and Function 4 1
Group 2 Operational Checks and Troubleshooting 4 29
Group 3 Tests and Adjustments 4 37
Group 4 Disassembly and Assembly 4 39
SECTION 5 STEERING SYSTEM
Group 1 Structure and Function 5 1
Group 2 Operational Checks and Troubleshooting 5 18
Group 3 Tests and Adjustments 5 28
Group 4 Disassembly and Assembly 5 36
SECTION 6 WORK EQUIPMENT
Group 1 Structure and Function 6 1
Group 2 Operational Checks and Troubleshooting 6 35
Group 3 Tests and Adjustments 6 46
Group 4 Disassembly and Assembly 6 62
SECTION 7 ELECTRICAL SYSTEM
Group 1 Component Location 7 1
Group 2 Electrical Circuit 7 3
Group 3 Monitoring System ~ 7 23
Group 4 Electrical Component Specification 7 35
Group 5 Connectors 7 44
Group 6 Troubleshooting 7 61
DESCRIPTION:
Hyundai HL770 (#1171~) Wheel Loader Service Manual 2023 – PDF DOWNLOAD
FOREWORD:
1. STRUCTURE:
This service manual has been prepared as an aid to improve the quality of repairs by giving the
serviceman an accurate understanding of the product and by showing him the correct way to perform
repairs and make judgements. Make sure you understand the contents of this manual and use it to
full effect at every opportunity.
This service manual mainly contains the necessary technical information for operations performed in
a service workshop.
For ease of understanding, the manual is divided into the following sections.
Structure and function:
This group explains the structure and function of each component. It serves not only to give an
understanding of the structure, but also serves as reference material for troubleshooting.
Operational checks and troubleshooting:
This group explains the system operational checks and troubleshooting charts correlating problem to
remedy.
Tests and adjustments:
This group explains checks to be amide before and after performing repairs, as well as adjustments
to be made at completion of the checks and repairs.
Disassembly and assembly:
This section explains the order to be followed when removing, installing, disassembling or assembling
each component, as well as precautions to be taken for these operations.
The specifications contained in this shop manual are subject to change at any time and without any
advance notice. Contact your Hyundai distributor for the latest information.
Customer Support: [email protected]
S.V 02/24
