Hyundai HX230L Crawler Excavator Factory Service & Shop Manual - PDF DOWNLOAD

Hyundai HX230L Crawler Excavator Factory Service & Shop Manual - PDF DOWNLOAD - Image 2

Hyundai HX230L Crawler Excavator Factory Service & Shop Manual - PDF DOWNLOAD - Image 3

Hyundai HX230L Crawler Excavator Factory Service & Shop Manual – PDF DOWNLOAD

Name: Hyundai HX230L Crawler Excavator Factory Service &amp; Shop Manual - PDF DOWNLOAD
SKU: 1012503
Availability: InStock

Original price was: $79.00.Current price is: $29.95.

This official HD Construction Equipment HX230L factory service manual provides complete repair and maintenance information for the track excavator, including detailed hydraulic schematics, electrical wiring diagrams, engine diagnostics (DX05 common rail), DPF/SCR aftertreatment procedures, EPOS error codes, and step-by-step removal/installation instructions with torque values. Download the same manual used by dealer technicians to troubleshoot, rebuild, and maintain your HX230L with confidence.

Categories: HYUNDAI, Hyundai Tags: HX230L Excavator repair manual, HX230L Excavator service manual, HX230L shop manual download, HX230L workshop manual PDF Vendor: Excavator Docs

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description

Description

Factory Service Manual
Track Excavator

Hyundai HX230L Crawler Excavator Factory Service & Shop Manual – PDF DOWNLOAD

Complete Shop Manual — Official Dealer Edition

📄 HX230L (EN)_SM.pdf

~550Pages

PDFFormat

ENLanguage

⚡Instant Download

🛠

What You Get

The same manual used by HD Construction Equipment dealership technicians

✓Step-by-step repair procedures for every system

✓Full specifications, tolerances & torque values

✓300+ EPOS & engine fault codes with pin references

✓Color-coded hydraulic schematics (3 fold-out sheets)

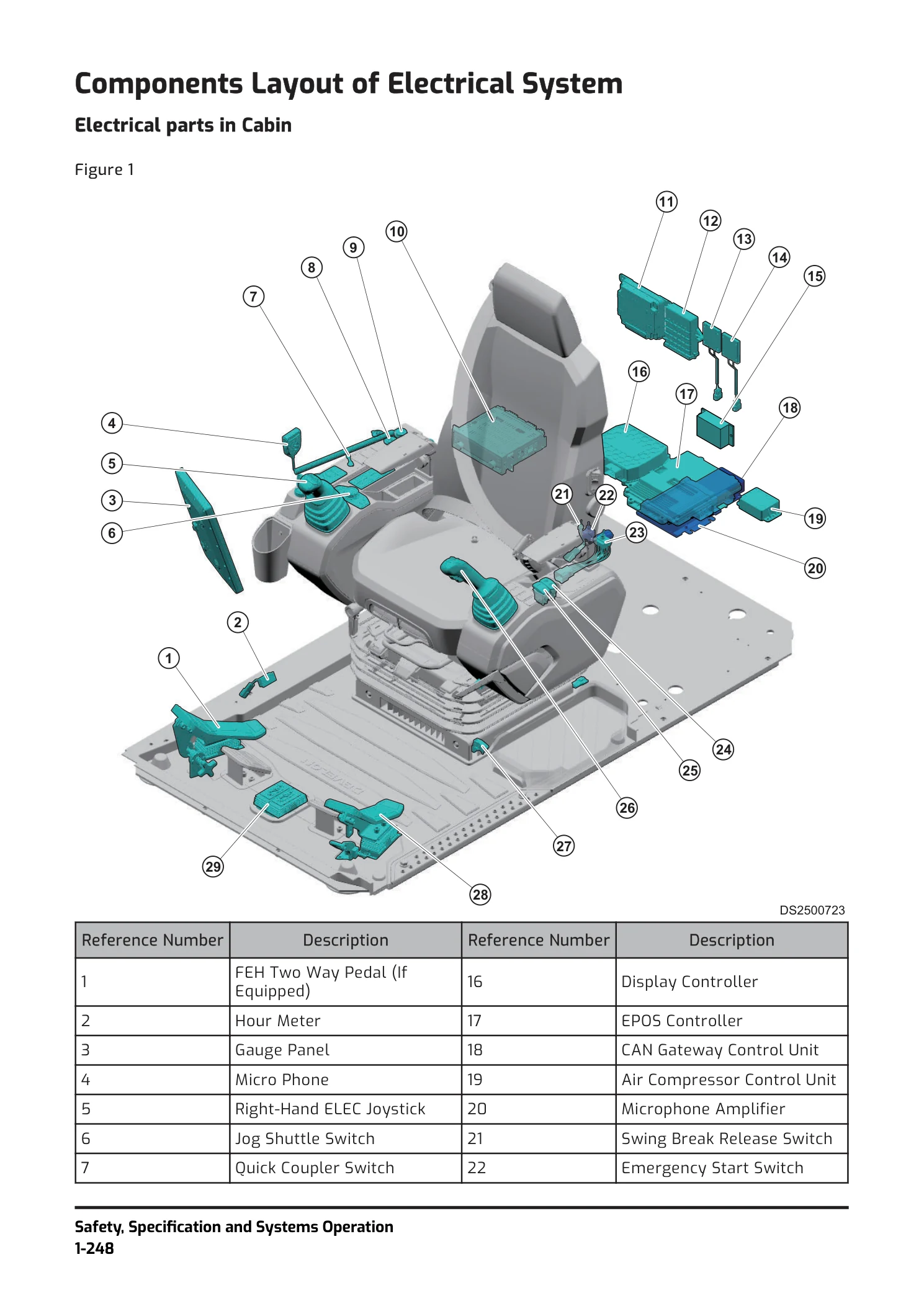

✓Full electrical wiring diagrams (3 sheets + 11 harness sheets)

✓Searchable text layer — printable, no DRM

🏗

Models & Configurations Covered

All option packages included in one document

Component	Options / Variants
Base Model	HX230L — all serial ranges
Boom	STD 5,700 mm \| ARTI (two-piece) 5,850 mm \| SLR 8,500 mm \| HD 5,700 mm
Arm	STD 2,900 mm \| Short 2,400 mm \| Long 3,500 mm \| HD 2,900 mm \| ARTI 2,400 & 2,900 mm \| SLR 6,200 mm
Bucket (SAE)	0.39 / 0.45 / 0.51 / 0.81 / 0.92 / 1.05 / 1.17 / 1.28 m³ — plus H-Class, Ditch & Slope types
Track Shoes	600 mm \| 700 mm \| 800 mm \| 900 mm
Counterweight	4,900 kg (STD) \| 5,300 kg (SLR configuration)
Dozer Blade	2,990 mm – 3,190 mm (varies by shoe width)

✓ Covers all configurations above

✗ Does NOT cover HX210L, HX260L, or wheeled excavators

🔩

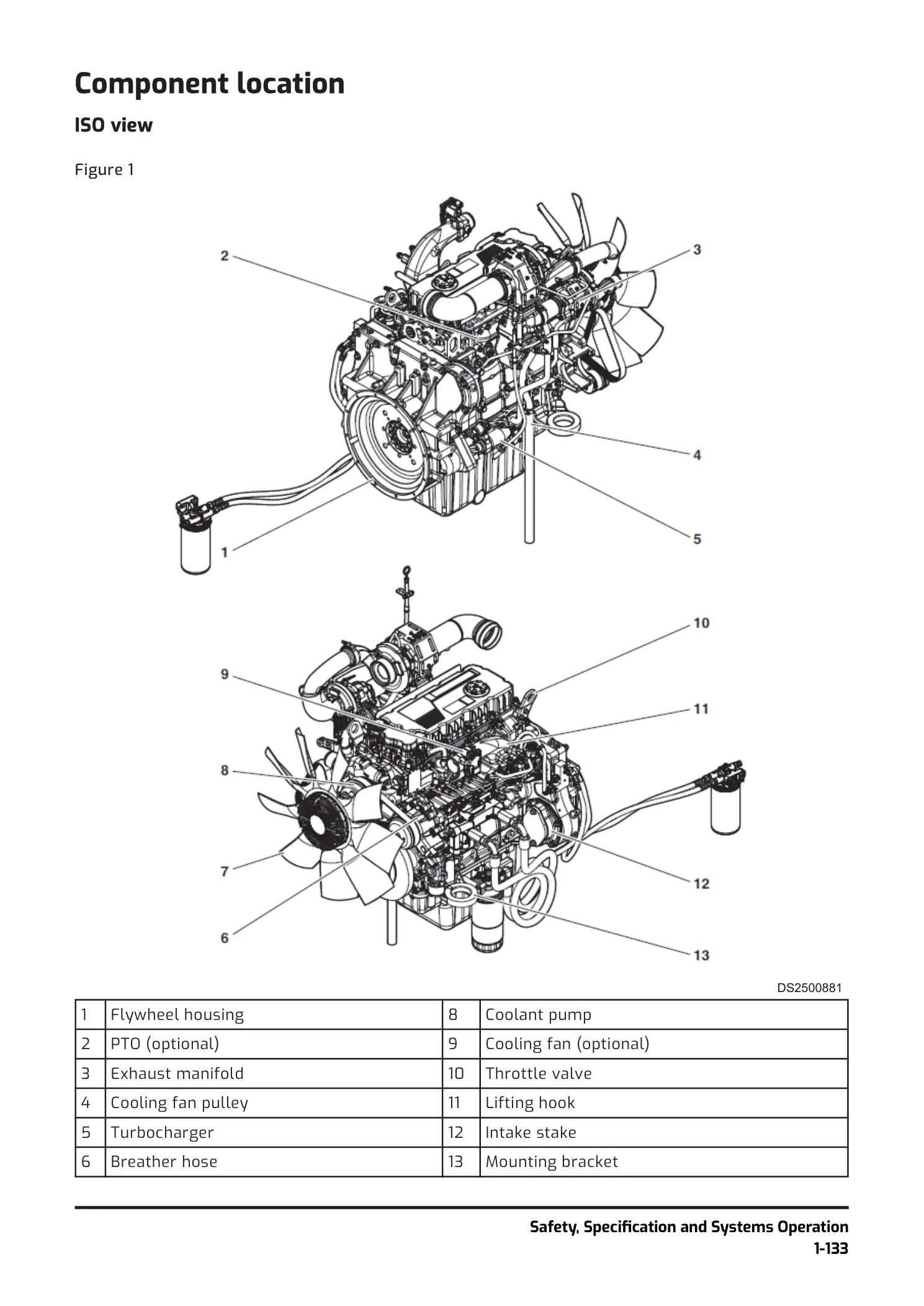

Engine — DX05
