Hyundai R140lc 7a Crawler Excavator Service Manual – PDF Download

Description

Hyundai R140lc 7a Crawler Excavator Service Manual

FILE DETAILS:

• Hyundai R140lc 7a Crawler Excavator Service Manual

FILE TYPE:PDF
DOWNLOADABLE:YES
MANUAL LANGUAGE:ENGLISH
SIZE:19.7 MB
NUMBER OF PAGES:496 pages

DESCRIPTION:

This service manual has been prepared as an aid to improve the quafity of repairs by giving the serviceman an accurate understanding of the prochct and by showing him the correct way to perform repairs and make judgements. Make sure you understand the contents of this manual and use it to full effect at every opportunity. This service mama] mainly contains the necessary technical information for operations performed in a service workshop. For ease of understandng, the manual is drvided into the following sections

TABLE OF CONTENTS:

• Hyundai R140lc 7a Crawler Excavator Service Manual

SECTION1 GENERAL
Group 1 Safety Hints
Group 2 Specifications
SECTION 2 STRUCTURE AND FUNCTION
Group 1 Pump Device
Group 2 Main Control Valve
Group 3 Swing Device
Group 4 Travel Device
Group 5 RCV Lever
Group 6 RCV Pedal
SECTION 3 HYDRAULIC SYSTEM
Group 1 Hydraulic Circuit
Group 2 Main Circuit
Group 3 Pilot Circuit
Group 4 Single Operation
Group 5 Combined Operation
SECTION 4 ELECTRICAL SYSTEM
Group 1 Component Location
Group 2 Electrical Clroult
Group 3 Electrical Component Specification
Group 4 Connectors
SECTION 5 MECHATRONICS SYSTEM
Group 1 Outline
Group 2 Mode Selection System
Group 3 Automatic Deceleration System
Group 4 Power Boost System
Group 5 Travel Speed Control System
Group 6 Automatic Warming Up Function
Group 7 Engine Ovemeat Prevention Function
Group 8 Anti-Restart System
Group 9 Self-Diagnostic System
Group 10 Engine Control System
Group 11 EPPR(EIectro Proportional Pressure Reducing) Valve
Group 12 Monitoring System
Group 13 Fuel Warmer System
SECTION 6 TROUBLESHOOTING
Group 1 Before Trobleshooting
Group 2 Hydraulic and Mechanical System
Group 3 Electrical System
Group 4 Mechatronlcs System
SECTION 7 MAINTENANCE STANDARD
Group 1 Operational Performance Test
Group 2 Major Components
Group 3 Track and Work Equipment
SECTION 8 DISASSEMBLY AND ASSEMBLY
Group 1 Precautlon
Group 2 lightening Torque
Group 3 Pump Device
Group 4 Main Control Valve
Group 5 Swing Device
Group 6 Travel Device
Group 7 RCV Lever
Group 8 Tuming Joint
Group 9 Boom, Arm and Bucket Cylinder
Group 10 Undercarriage
Group 11 Work Equipment
SECTION 9 COMPONENT MOUNTING TORQUE
Group 1 Introduction Guide
Group 2 Engine System
Group 3 Electric System
Group 4 Hydraulic System
Group 5 Undercarriage
Group 6 Structure
Group 7 Work Equipment

HYUNDAI R140LC 7A CRAWLER EXCAVATOR SERVICE MANUAL – PDF DOWNLOAD:

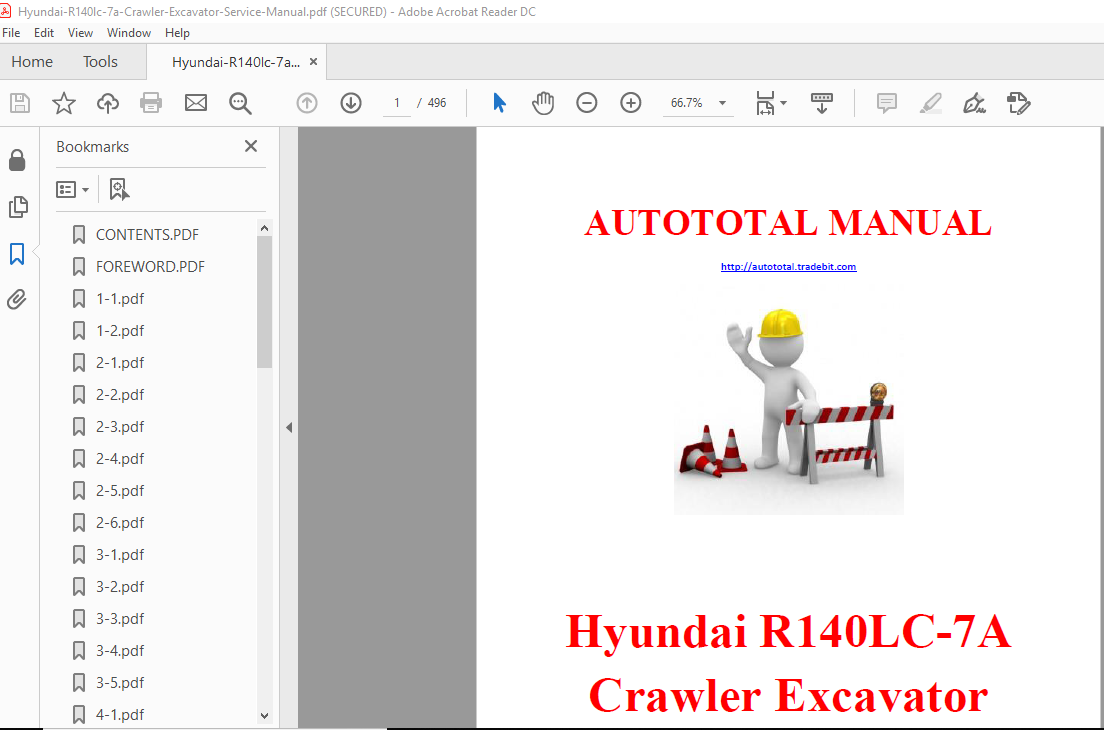

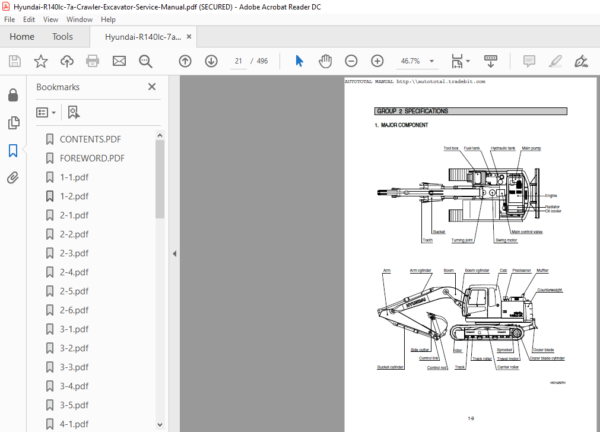

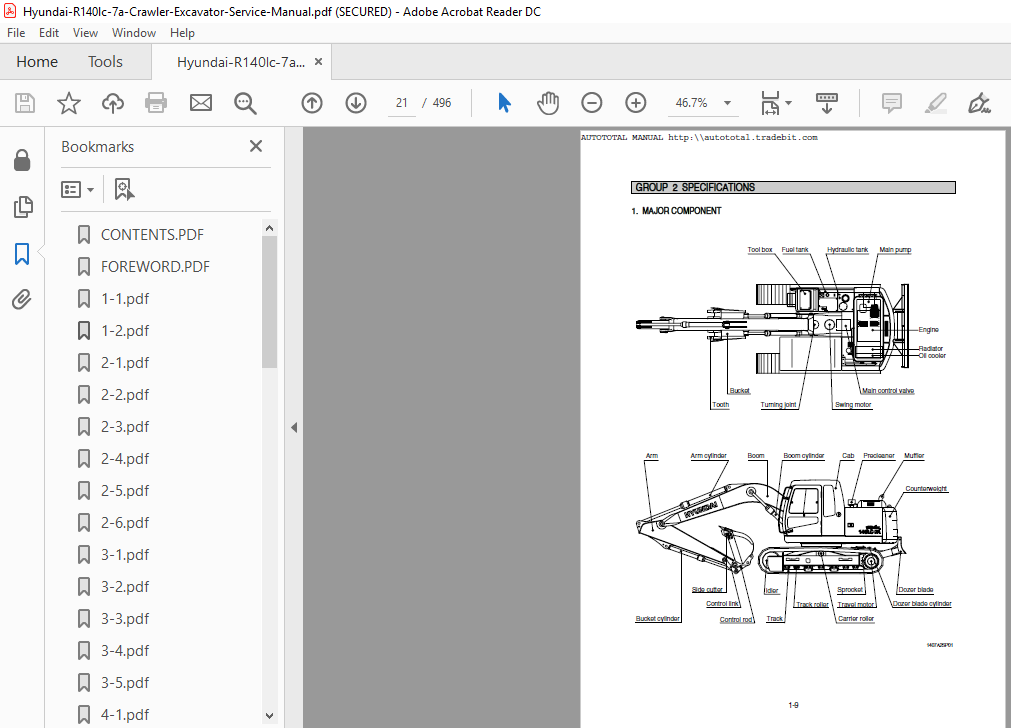

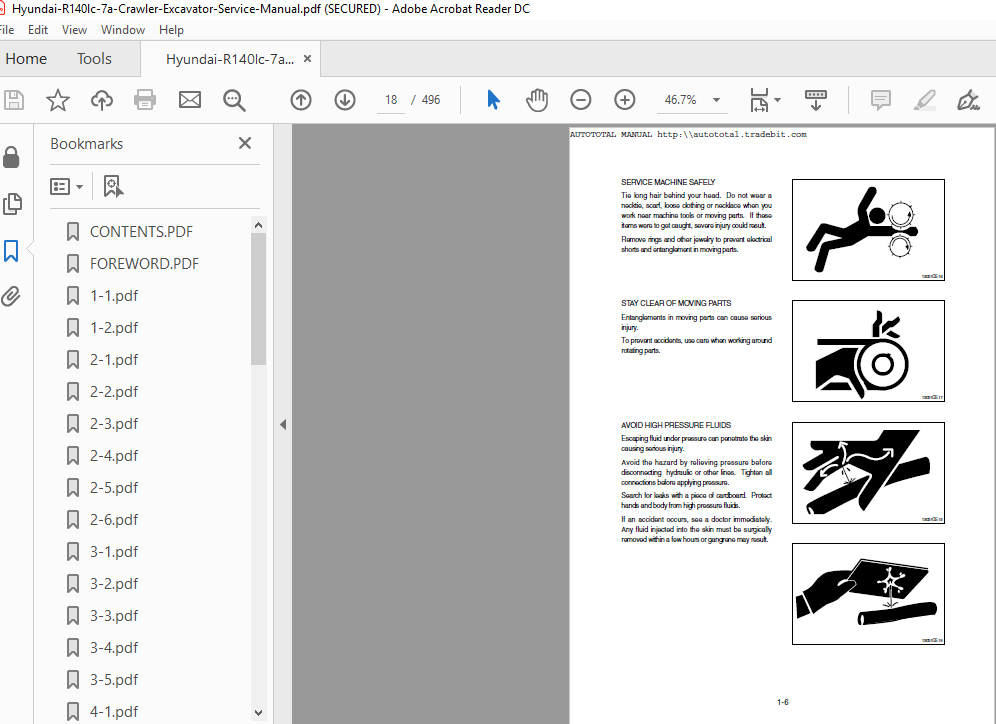

SCREENSHOT OF THE MANUAL:
