IGT Game King Plus 19″ Upright Service & Maintenance Manual PDF

Description

IGT Game King Plus 19″ Upright Service & Maintenance Manual PDF DOWNLOAD

Description

Equip your workshop or casino floor with the official IGT Game King Plus 19″ Upright manual. Designed for certified technicians and slot mechanics, this highly detailed document covers all major mechanical and electronic Game King Plus maintenance procedures for the 19-inch Upright cabinet.

Stop relying on guesswork and start repairing with confidence. This comprehensive IGT slot machine repair guide includes exhaustive instructions for replacing and servicing critical components like the video monitor, hoppers, coin-in handling systems, bill acceptors (JCM WBA and Mars MEI), and the logic module. Need to swap out a player panel switch or align a door optic sensor? This IGT Game King service manual PDF gives you the exact factory specifications required to do the job safely and correctly.

This manual also details complex procedures such as machine denomination changes, processor board component identification, slot handle mechanism teardowns, and precise Game King Plus touchscreen calibration to ensure your gaming equipment operates flawlessly.

File Details

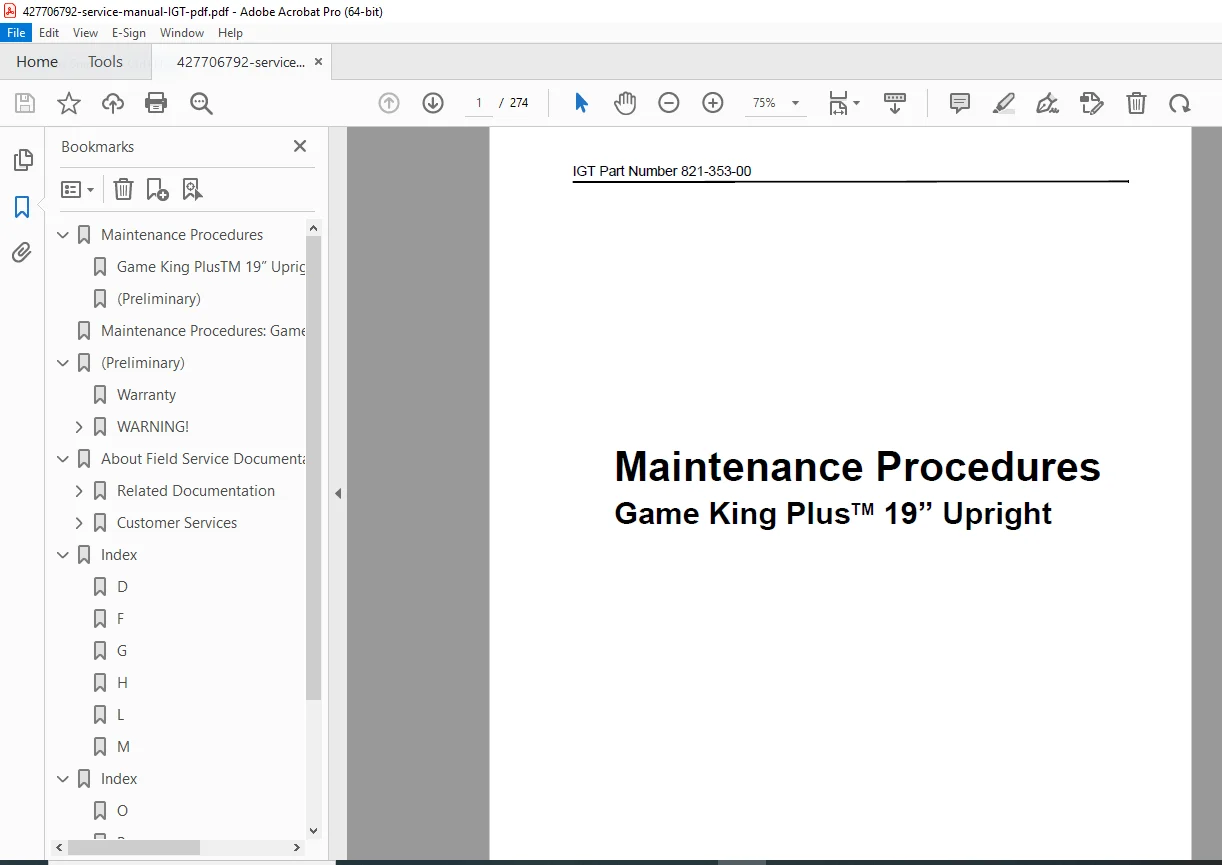

• Manual Name: Maintenance Procedures: Game King Plus 19″ Upright (Part Number 821-353-00)

• Models Covered: IGT Game King Plus 19″ Upright

• Year: 2001

• Manual PDF Quality: Exceptional (Original, fully searchable digital PDF)

• Number of Pages: 140+ Pages (Complete Service Manual)

Table of Contents & Key Bookmarks

This manual is meticulously categorized for rapid technical navigation. Below is an extracted and neatly formatted list of the primary contents:

1. Introduction & Machine Enclosure

• Machine Components & Identification

• Machine Enclosure (Locking Bar, Power Switch, Service Lamp)

• Machine Door (Ticket/Coin Tray, Belly Door, Monitor Mask)

• Optic Door-Open Sensor (Removal, Alignment, and Functional Verification)

2. Player Controls & Coin Handling

• Lorenzo Player Panel Switches (Routine Maintenance, Adjustments, Disassembly)

• Coin-In Handling (Electronic Comparitor, Diverter Solenoid)

• Optic Coin Encoder Assembly

• Denomination Change Adjustments (Coin Channel Replacement)

3. Bill Acceptors & Hoppers

• JCM WBA Series Bill Acceptor (Sensor/Transport Assembly, Cash Box/Stacker)

• Mars (MEI) Bill Acceptors (Clearing Jams, Routine Maintenance)

• Side Eject Pinwheel Hopper (Probe Installation, Motor Removal, Bowl Disassembly)

• Side Eject Holeywheel Hopper (Chassis Disassembly, Routine Maintenance)

4. Electronics, Video & Sound

• Power Supply and Distribution (AC Module, Auxiliary Power Circuit Boards, Top Box Power)

• Logic Module (Processor Tray, Motherboard, Door I/O Trays)

• Video Monitor and Touchscreen (Color/Size Adjustments, Touchscreen Replacement, Calibration)

• Sound System (Top Box/Enclosure Speakers, Multimedia Board, Amplifier Assembly)

• Fluorescent Lighting (Belly Door, 9-inch Square, 16-inch Square, and Arch Top Box Lighting)

5. Hardware & Accessories

• Machine Glass (Belly Glass and Top Box Glass Replacement)

• Slot Handle Mechanism (Inner/Outer Chassis Plate Disassembly, Spring Placement)

• Mechanical Meters & Fans

• Service Light (Candle) and Bell Installation
