Factory service manual for the IMPCO-certified 2.0L LPG & bi-fuel engine used on NACCO/Hyster-Yale lift trucks. Covers fuel (LPG & gasoline), EPR regulator, mixer, DBW throttle, ignition, cooling, diagnostics with DST, wiring schematics, DTCs, and step-by-step repair. Includes full maintenance schedules and safety procedures
Description
IMPCO 2.0L LPG & Bi-Fuel Engine β Service Manual (2007β2009, Rev. A/June 2009) – PDF DOWNLOAD
description
Looking for the complete guide to the IMPCO 2.0L emission-certified engine? This official service manual (Revision A, June 2009) is the definitive reference for technicians working on NACCO/Hyster-Yale forklifts powered by the IMPCO 2.0L LPG or bi-fuel setup. It blends clear system descriptions with real-world diagnostics, wiring, and repair proceduresβideal for field service, overhauls, or troubleshooting stubborn faults.
Whatβs inside
General Information β engine identification, safety, fuel quality (HD-5/HD-10), cautions/warnings, tool conventions.
Maintenance β service intervals, serpentine belt inspection, cooling system care, oil specs/capacity (approx. 4.0 L), electrical checks, plug/wire replacement, leak checks.
LPG Fuel System (Operation & Components) β tank, service line, inline fuel filter, LPG shut-off valve, Electronic Pressure Regulator (EPR), air-fuel mixer, drive-by-wire throttle, HEGO sensors, catalyst, ECM logic (closed-loop control).
LPG System Diagnosis β pressure specs (primary 2.0β4.0 psi; secondary in inches WC), test setups, decision tables, ignition checks, mixer air-valve verification, adaptive fuel trim checks under load.
LPG Symptom Diagnostics β no-start, hard start, misfire/surge, intermittent MIL, restricted exhaust checksβeach with visual/physical checks and DST snapshots.
Gasoline (Bi-Fuel) Sections β gasoline fuel system overview, diagnosis, and symptom tables for bi-fuel configurations.
Electrical & Scan Tool β ECM I/O, DST (Diagnostic Scan Tool) usage, blink-code basics, adaptive fuel correction windows, fault tree logic.
Wire Schematic & Harness Repair β engine wiring diagram, connector locking, harness repair procedures, grounds/fuses.
Diagnostic Trouble Codes (DTCs) β code lists tied to application/schematics; HEGO/TP/ECT/TMAP logic, causes & fixes.
Servicing the Fuel System β step-by-step remove/replace for fuel components; EPR oil (βheavy endsβ) draining procedure.

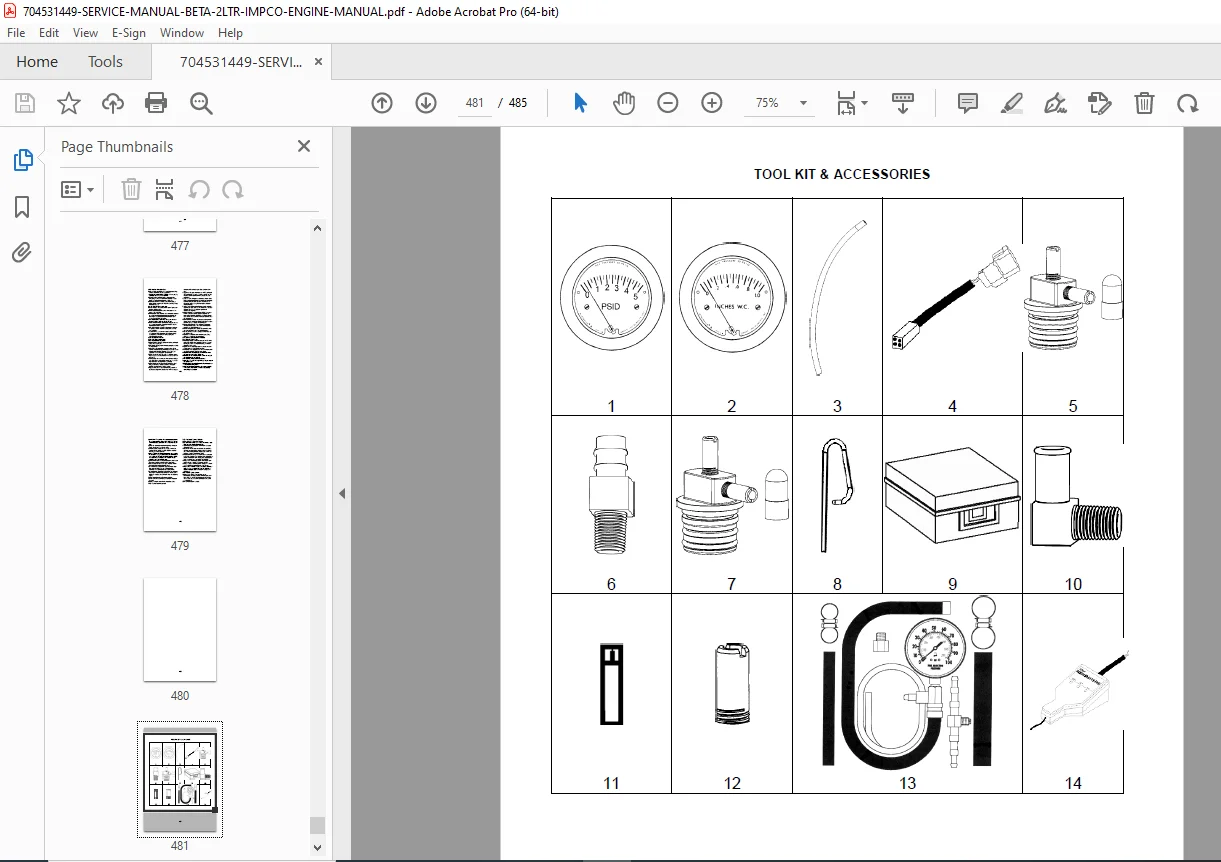

Definitions, Tool Kit & Accessories, Appendix β glossary, special tools, Altitude vs. Barometric Pressure and ignition specs.
Technician highlights (why this manual is valuable)
Exact test specs: Primary/secondary pressure targets, adaptive fuel trim windows (-15% to +15%), and DST screens you can mirror on-site.
EPR & mixer guidance: Correct drain/repair/replace decisions, tamper-proof mixer notes, and silicone-contamination cautions for HEGO.
Bi-fuel coverage: End-to-end gasoline subsystem diagnostics for fleets running dual fuel.
File details
| Field | Info |
|---|---|
| Manual name | IMPCO 2.0L LPG & Bi-Fuel Engine Service Manual (NACCO/Hyster-Yale) β Rev. A/June 2009 |
| Models covered | IMPCO-certified 2.0 L LPG & bi-fuel engines used on NACCO/Hyster-Yale lift trucks (2007β2009 emission certification) |
| Year/Edition | 2007β2009 coverage; Revision A (June 2009) |
| PDF quality | Clear text + diagrams; bookmarked sections & tables of contents |
| No. of pages | ~485 pages (Appendix around p. 483) |
