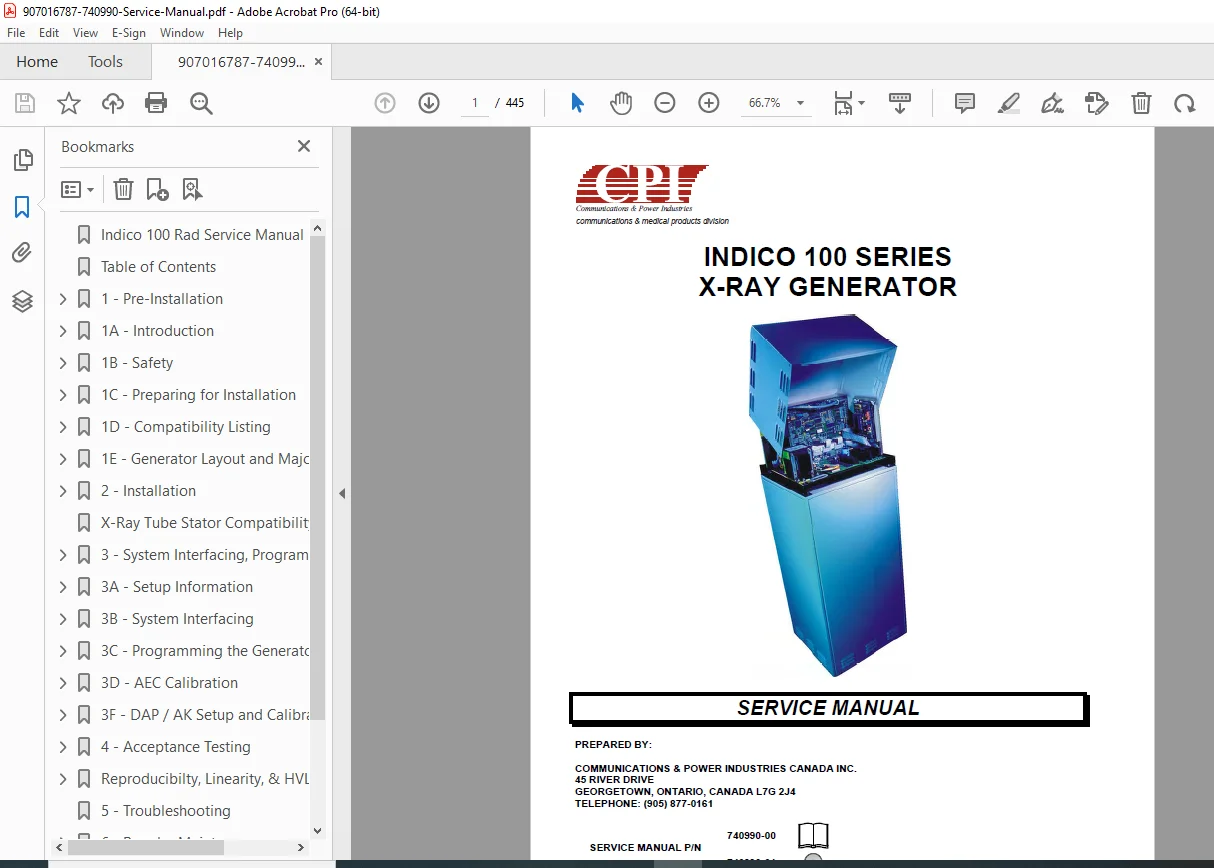

Indico 100 Series X-Ray Generator Service Manual – PDF DOWNLOAD

Description

Indico 100 Series X-Ray Generator Service Manual – PDF DOWNLOAD

Description

This essential Indico 100 series X-ray generator service manual from Communications & Power Industries (CPI) Canada Inc. provides detailed Indico 100 installation and maintenance instructions for the entire family of high frequency X-ray generators. Designed for service technicians and installers, it covers everything from pre-installation planning to advanced troubleshooting, ensuring optimal performance in radiographic and fluoroscopic applications. Key features include high frequency X-ray generator troubleshooting guides, rotor control configurations for low or dual speed starters, auxiliary power outputs specifications, and X-ray tube calibration procedures tailored to Indico 100 models. The manual emphasizes safety, compatibility, and regulatory compliance for CPI X-ray equipment, including environmental standards, EMC, and RoHS adherence.

The document is structured for easy navigation, with proprietary information protected under CPI’s copyright (2007). It includes physical specifications, generator outlines, and technique factor definitions to support seamless integration with X-ray tubes, Buckys, tables, and digital systems. For those dealing with high frequency X-ray generator troubleshooting, it offers repetitive self-checks, error logs, and diagnostic tools via console or laptop. Applications span RAD systems (e.g., Bucky table radiography, tomography) and R&F systems (e.g., fluoroscopy, spot film), with options like AEC, ABS, and Dose-Area Product display.

Extracted Table of Contents (Main Manual Structure):

• Pre-Installation (Chapter 1)
• Installation (Chapter 2)
• Configuration Programming (Chapter 3)
• Acceptance Test (Chapter 4)
• Troubleshooting (Chapter 5)
• Regular Maintenance (Chapter 6)
• Theory of Operation (Chapter 7)
• Spares (Chapter 8)
• Schematics (Chapter 9)

Detailed Contents from Chapter 1 (Pre-Installation):

Detailed Contents from Chapter 1A (Introduction):

• 1A.1.0: Introduction (Page 1A-2)
  • 1A.1.1: Purpose (Page 1A-2)
• 1A.2.0: Generator Description (Page 1A-2)
• 1A.3.0: Physical Specifications (Page 1A-3)
• 1A.4.0: Applications (Page 1A-5)
• 1A.5.0: Features (Page 1A-5)
• 1A.6.0: Rotor Control (Page 1A-6)
• 1A.7.0: Auxiliary Power Outputs (Page 1A-6)
• 1A.8.0: System Documentation (Page 1A-7)
• 1A.9.0: Regulatories and Design Standards (Page 1A-7)
  • 1A.9.1: Environmental Specifications (Page 1A-7)
  • 1A.9.2: Applicable Standards (Page 1A-7)
  • 1A.9.3: Electromagnetic Compatibility (EMC) (Page 1A-11)
  • 1A.9.4: RoHS Compliance (Page 1A-11)
• 1A.10.0: Technique Factors Definitions (Page 1A-12)
• 1A.11.0: Runtime License Agreement (Touchscreen Console) (Page 1A-12)

Key Highlights and Features (Incorporating Long Tail Keywords):

• Generator Description: Covers power supply, control systems, consoles, and interconnecting cables for Indico 100 series X-ray generator service.
• Physical Specs: Includes outline drawings with dimensions in inches/mm, optional line-adjusting transformer, and wiring channels.
• Applications: Supports Bucky table/off-table radiography, vertical Bucky/cassette radiography, conventional tomography, fluoroscopic/spot film apps, and optional high-level fluoro for therapy simulators.
• Features: High frequency design, one/two tube operation, single/dual filament supplies, low/dual speed stator supply, optimal tube matching via PROMs, optional AEC/ABS, remote fluoro control, DAP display, and X-ray tube protection limits (mA, kV, kW, filament current, anode heat alarms).
• Rotor Control Details: Low speed starter (5 consecutive boosts max, 10s wait) or dual speed (32 tube types, 50/60 Hz low, 150/180 Hz high, dynamic braking).
• Auxiliary Power Outputs: 24 VDC (4A), 120 VAC (2.5A), 240 VAC (1.5A) – not simultaneous at full load; incompatible with certain lamps or inductive loads.
• Calibration and Diagnostics: Automated mA calibration, microprocessor-based, error messages, 200-error log, service info via laptop.
• Technique Ranges: kV (40-150 rad, 40-125 fluoro), mA (10-1000 rad depending on kW, 0.5-20 fluoro), mAs (up to 1000), time (1-6300 ms rad, 0-10 min fluoro).
• Regulatories: Compliant with safety standards, EMC, RoHS; environmental specs for operation/storage.

This manual is crucial for ensuring regulatory compliance for CPI X-ray equipment and efficient Indico 100 installation and maintenance. No index is present in the provided excerpt, but the structured chapters facilitate quick reference.

Short File Details

• Manual Name: Indico 100 Series X-Ray Generator Service Manual (P/N 740990-00 / 740990-01)
• Models Covered: Indico 100 family (all models, including RAD and R&F configurations)
• Year: 2007 (copyright; original draft 2002)

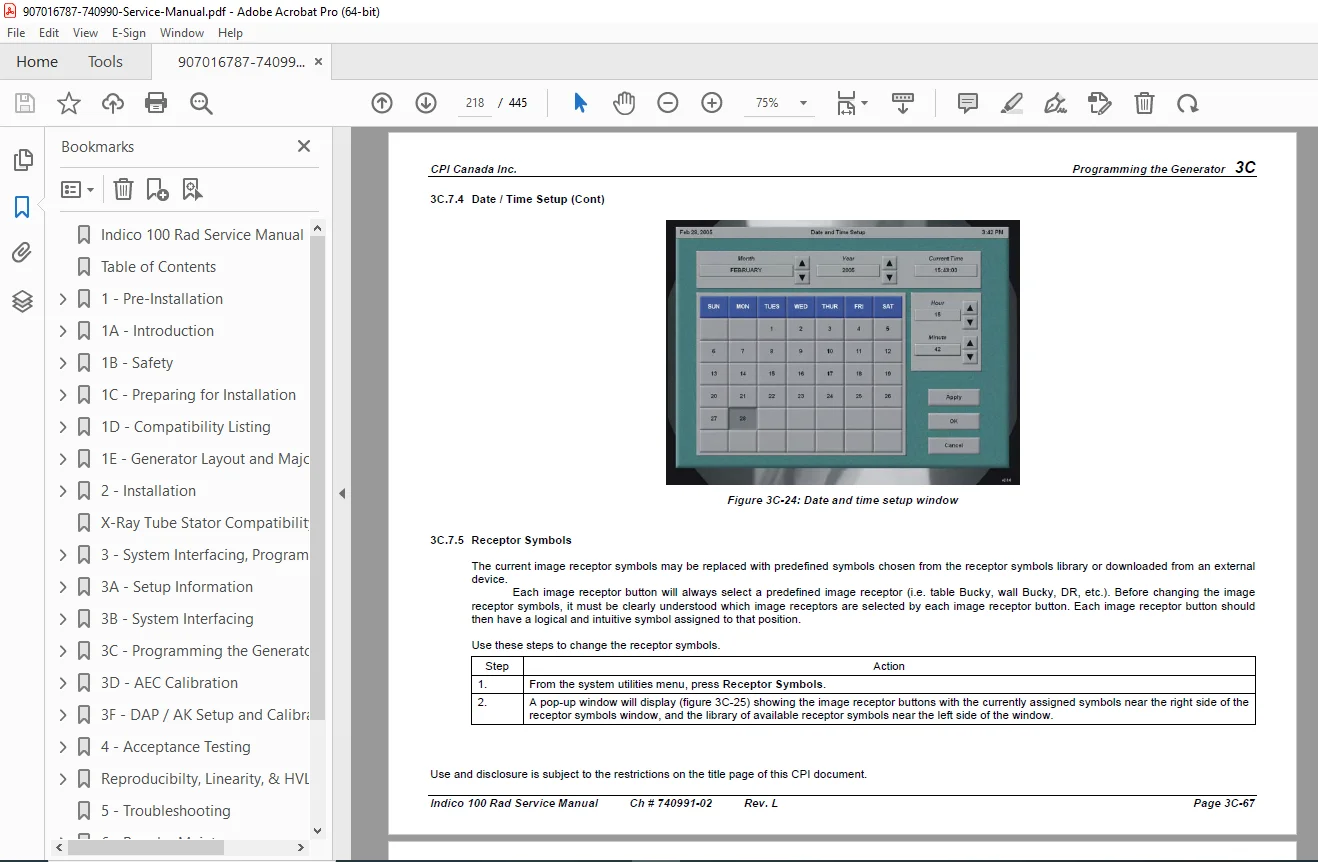

• Manual PDF Quality: High-quality digital/scanned document with clear text, diagrams, and tables; no distortions visible
• No of Pages: 445
