Ingersoll Rand T-708J Tow Tractor Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Ingersoll Rand T-708J Tow Tractor Parts Manual – PDF DOWNLOAD
- When the Comm. it is not Known – Use the Word Index: Ingersoll-Rand’s Word Index will make this item easy to locate. The Word Index is found in the very back of the book. The items listed are in alphabetical order and may be repeated several itmes depending on their functional descriptions.
- Let’s assume you need to replace the PRIMARY AIR CLEANER FILTER ELEMENT.
- Use any of the functional words in the item description to locate the desired item. Example: The first listing for the Primary Air Cleaner Filter Element in the Word Index is: Air Cleaner Primary Element. The index shows the component will be found on page 0-65 that is the Part List page number for the Air Cleaner And Exhaust Installation.
– The item is also listed as:
- Element. Air Cleaner Primary Filter
- Filter Element. Air Cleaner Primary
- Primary Fitter Element. Air Cleaner
Using the Pans Identification Pages:
- – The PARTS IDENTIFICATION PAGES consist of the PARTS ILLUSTRATION (even numbered pages) and the PARTS LIST (odd numbered pages). –
- The Parts Illustration shows the assembly with its component parts identified by Item Numbers. –
- On the Parts List. the components are listed in Item Number order as found in the ITEM column. Other ‘information provided by the Parts List is the Comm. Number which will be required to order Ingersoll Rand Replacement Paris. a functional description. the quantity required to assemble one complete assembly. and any additional notes! dimensions required to help place your parts order.
- For the example: The Air Cleaner Primary Element is listed under the Air Cleaner (Item 1). Comm. Number 59155119. Quantity of I.
TABLE OF CONTENTS:
Ingersoll Rand T-708J Tow Tractor Parts Manual – PDF DOWNLOAD
AIR CLEAN ER AND EXHAUST INST ALMTION
Adjustable Lever Latch
Air Clearer
Air Cleaner Primary Filter Element.
Air Cleaner Secondary Filter Element ..
Air Cleaner Service Indicator Kit
ENGINE AND TRANSMISSION MOUNTING INSTALLATION
ENGINE AMEMBLY
2WD TRANSMISSIONI’DRIVELINE INSTALLAIION
TRANSMISSION [13-581114)- INTERNAL BREAKDOWN “a
5WD TRANSMISSIONI’DRIVELINE INSTALLATION
TRANSMIION (13-131 122) – INTERNAL BREAKDOWNWN
FENDER INSTALLATION
HOOD INSTALLATION
STEPINSTALLATION
COUNTERWEIGHT INSTALLATION
MAST PIVOT INSTALLATION
DRIVEAXLEINSTALLATION
DRNEAXLE(59251660)-INTERNALBREAKDOWN
2WDSTEERINGAXLEINSTALLATION.
AXLE-Z-Wl-IEEL DRIVE STEERING (5925167B)-INTERNAL BREAKDOWN.
4WDSTEERINGDRIVEAXLEINSTALLATION
AXLE (4WD STEERING) (59251652)-INTERNAL BREAKDOWN
SERVICEBRAKEINSTALLATION.
PARKINGBRAKEINSTALLATION
ENGINE AND TRANSMISSION MOUNTING INSTALLATION .
ENGINEASSEMBLY.
2WD TRANSMISSIONJ’DRIVELINE INSTALLATION
TRANSMISSION (13481114)- INTERNAL BREAKDOWN .
4WD TRANSMISSIONIDRIVELINE INSTALLATION
TRANSMISSION (13481122) – INTERNAL BREAKDOWN .
AIR CLEANER AND EXHAUST INSTALLATION
EXHAUSTINSTALLATION
THROTTLEINSTALLATION
FUELTANKINSTALLATION
RADIATORINSTALLATION
BLOCKHEATERINSTALLATION
OVERHEADCANOPYINSTALLATION
CONSOLEASSEMBLY
SWITCHPANELASSEMBLY
DECKINSTALLATION
MANUALPOUCHINSTALLATION
SEATINSTALLATION
SUSPENSION SEAT (59156901)-INTERNAL BREAKDOWN-
SUPPORTINSTALLATION
GAUGEPANELINSTALLATION
INSTRUMENTPANELASSEMBLY
STEERINGWHEELINSTALLATION
STEERING ORBITAL (59223073) – INTERNAL BREAKDOWN
CABASSEMBLY|
MAIN WIRING HARNESS INSTALLATION.
BATTERYINSTALLATION
HORNINSTALLATION
WORKIROAD UGHT INSTALLATION
BACKUP ALARM INSTALLATION
2WDI4WD CONTROL INSTALLATION
SENDER INSTALLATION
HULL LIFI’ BALL HITCH MAST ASSEMBLY
DECAL INSTALLATION
HYDRAULICSUPPLYAND RETURN INSTALLATION
CONTROLVALVEINSTALLATION
THREE SECTION DIRECTIONAL VALVE (59240655) – INTERNAL BREAKDOWN

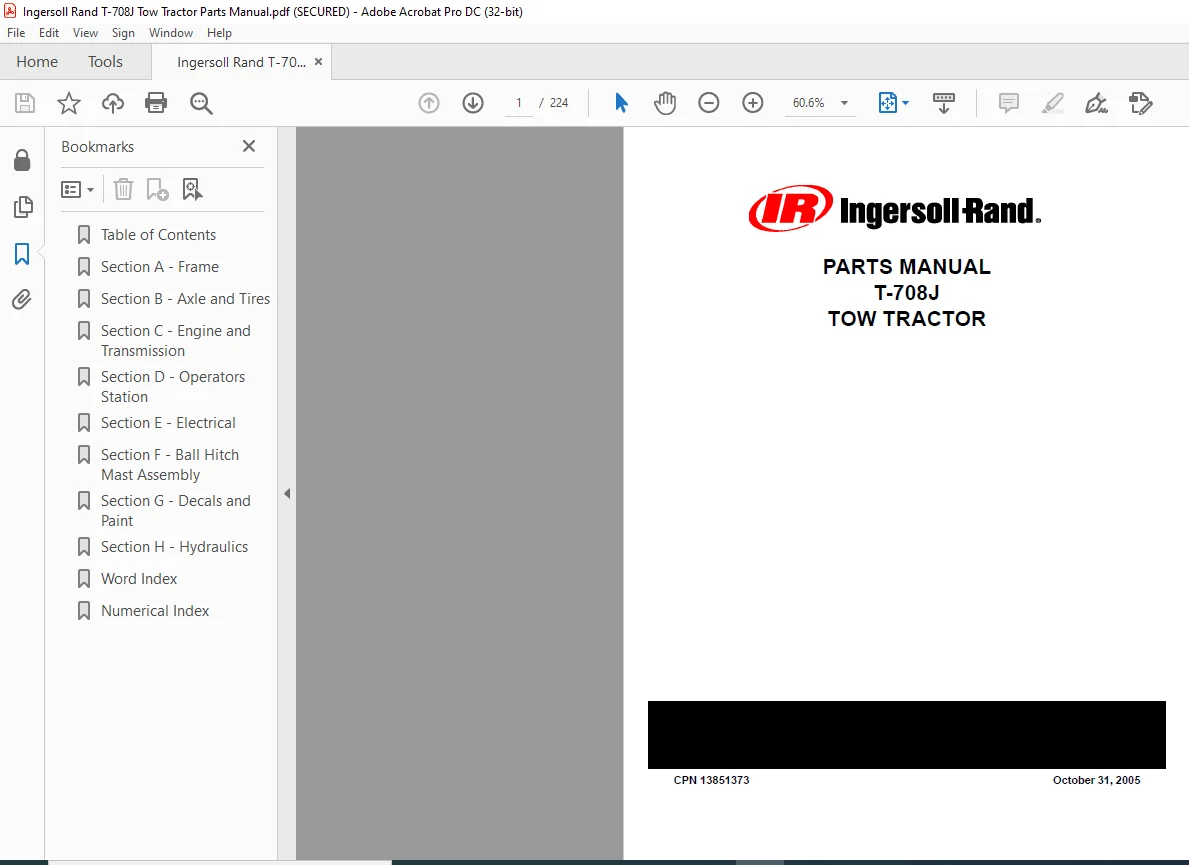

VIDEO PREVIEW OF THE MANUAL:

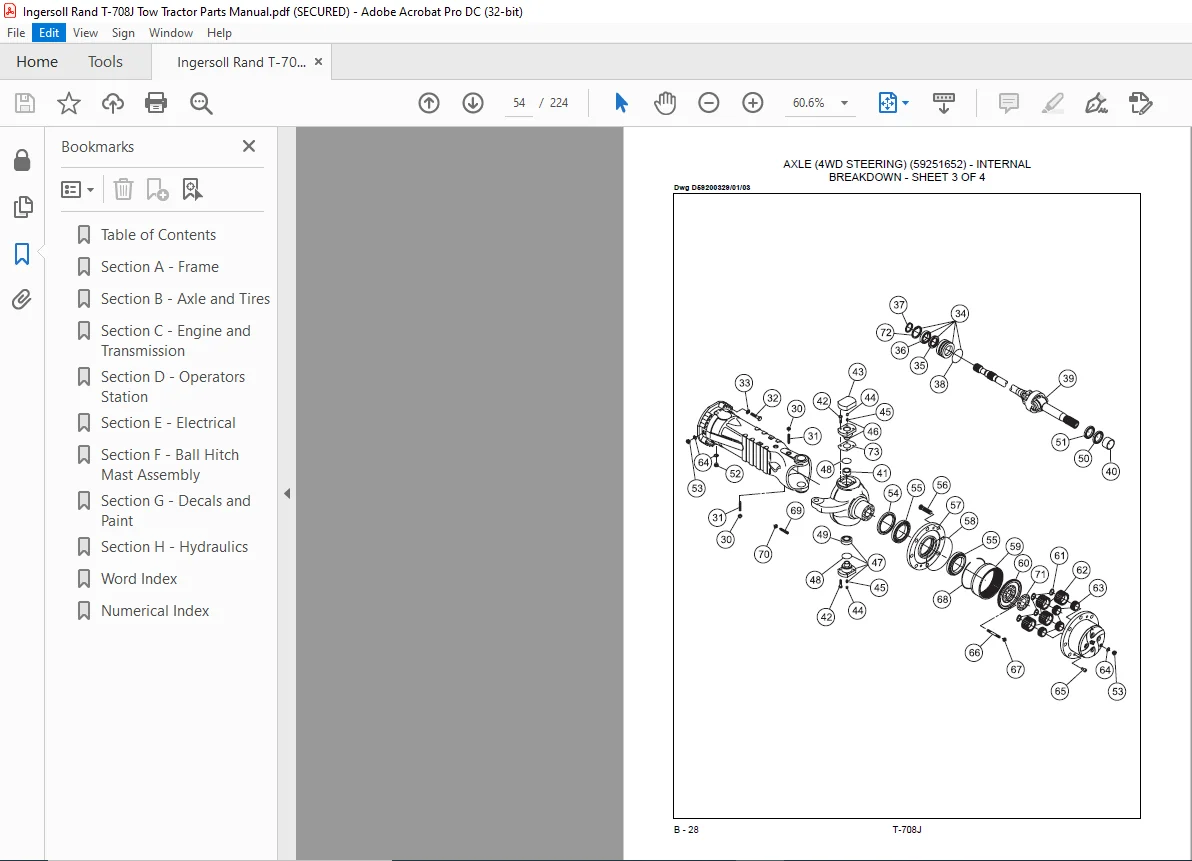

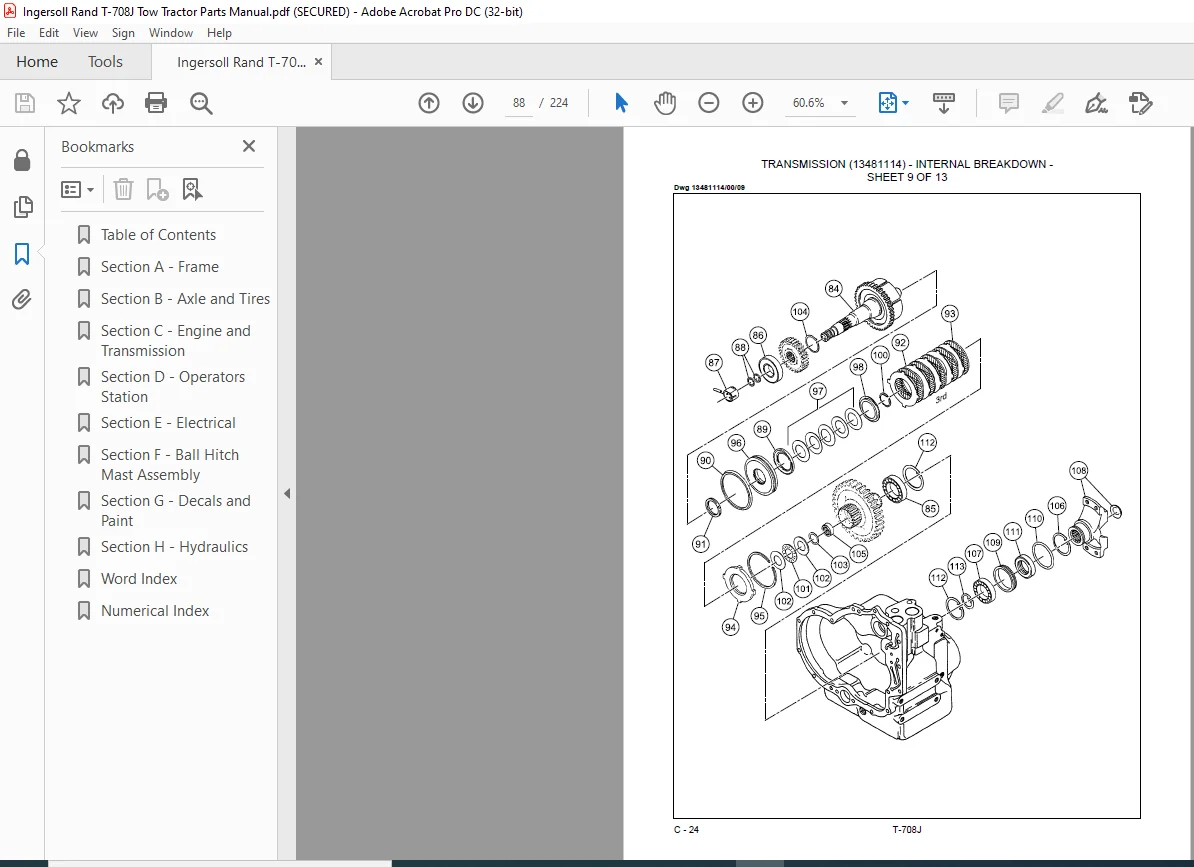

IMAGES PREVIEW OF THE MANUAL:
