Iseki Power Tiller KS650 Parts Catalog Manual – PDF DOWNLOAD

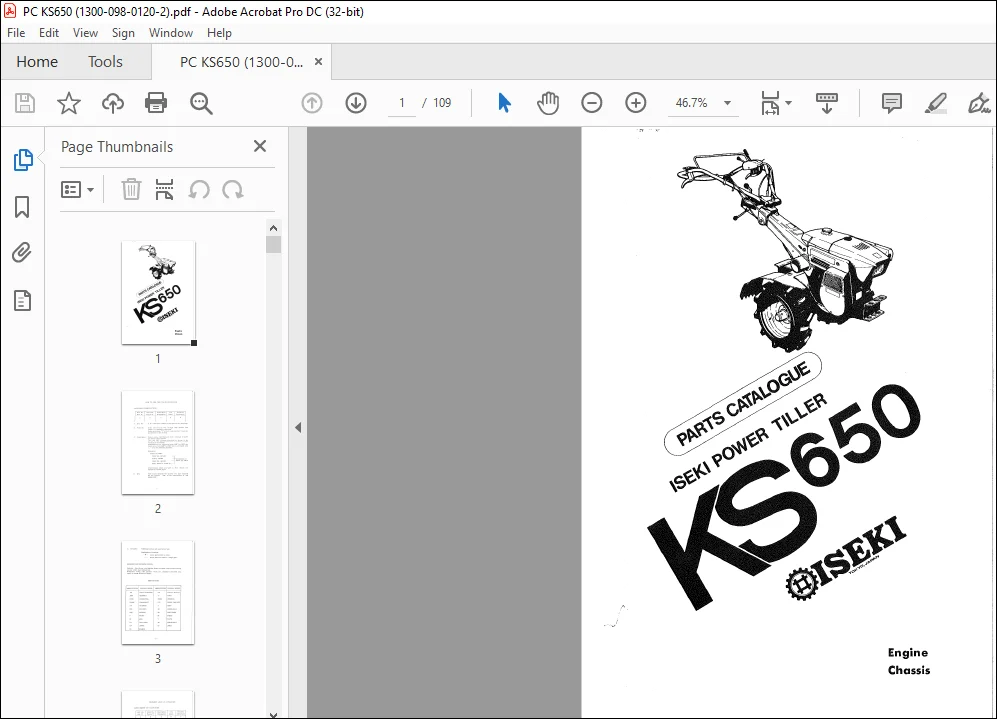

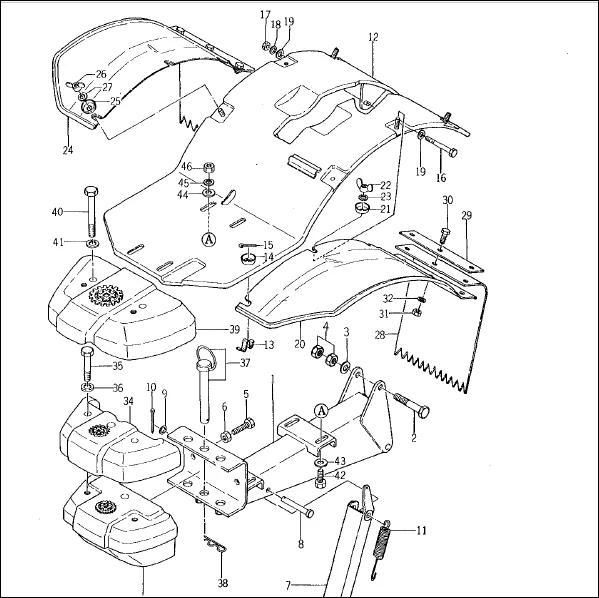

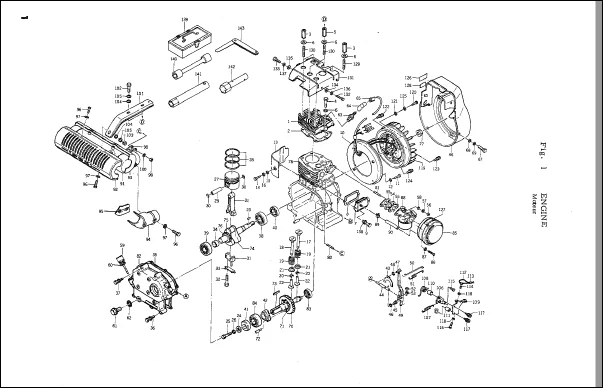

IMAGES PREVIEW OF THE MANUAL:
FILE DETAILS:
Iseki Power Tiller KS650 Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :109
Downloadable : Yes
File Type : PDF
Size: 2.13 MB
DESCRIPTION:
Iseki Power Tiller KS650 Parts Catalog Manual – PDF DOWNLOAD
HOW TO USE THIS PARTS CATALOGUE
- CATALOGUE CONSTRUCTION Ref. No. Parts No. Description Q’ty Remarks Réf. N° Référence Quantité Description Remarques A B C I D E A. Ref. No. B. Parts No. C. Description: D. Q’ty: It is a reference number used to locate parts in the drawings.
- Every part has its own 12-digit code number which is computer-controlled. Parts with “TRV” in their code number are available for purchase in the market. Names, sizes, functions, and other meanings of parts are found in this column. “LH” and “RH” of parts are given by facing the tractor-moving-forward direction or looking at them mounted on the tractor.
- Components of an assembled part (ASS’Y or SET) are listed with ” . ” after the ASS’Y or SET name, as in the following example: (Example) JOINT (A) ASS’Y YOKE (A), SPLINE ~ JOINT, CROSS Components of YOKE (B), SPLINE JOINT (A) ASS’Y RING, SNAP/C TYPE 20
- Abbreviations used in this column are explained in Table page 2.
- This column specifies the quantity of a part required for one tractor. “AR” is the abbreviation of “AS REQUIRED”.
- E. Remarks: Additional notices are included here if any.
- Explanation of symbols: II * 11 shows parts made to order. II £.:>. II shows parts not sold as a single part.
- REQUESTS ON ORDERING PARTS: Code No., Part Name, and Quantity should be typed clearly and correctly on your order sheet without fail. Especially wrong code numbers, which are computer-controlled, may result in wrong delivery of parts.
TABLE OF CONTENTS:
Iseki Power Tiller KS650 Parts Catalog Manual – PDF DOWNLOAD
ENGINE
MAGNETO
DECANTEUR
MAGNETO
DECANTEUR
CHASSIS
SUB TRANSMISSION 29
BAITE DE VITESSES SUB.
FRAME AND FENDER
LONGERON & GARDE-BOUE
BONNET AND FUEL TANK
RESERVOIR & CAPO!
TRANSMISSION GEAR
REDUCTEUR
SUB TRANSMISSION 29
BAITE DE VITESSES SUB.
FRAME AND FENDER
LONGERON & GARDE-BOUE
BONNET AND FUEL TANK
RESERVOIR & CAPO!
TRANSMISSION GEAR
REDUCTEUR
MAIN GEAR CASE
BOITIER DE REDUCTEUR
SHIFTER
FOURCHETTES
BOITIER DE REDUCTEUR
SHIFTER
FOURCHETTES
TENSION AND BRAKE SYSTEM
EMBRAYAGE & FREIN
EMBRAYAGE & FREIN
HANDLE FRAME
MANCHERONS
MANCHERONS
CONTROL LEVER
GORNMANDES
GORNMANDES
RECOIL STARTER
LANCEUR
LANCEUR
WHEEL
ROUES
ROUES
COUNTER CHAIN CASE
CHAINE INTERMEDIAIRE
CHAINE INTERMEDIAIRE
ROTARY CHAIN CASE
TRANSMISSION DE ROTOBINEUSE
TRANSMISSION DE ROTOBINEUSE
ROTARY FRAME
ENVELOPPE DE ROTOBINEUSES
ENVELOPPE DE ROTOBINEUSES
ROTARY PIPE
FRAISE
FRAISE
REAR WHEEL
ROUE DE PROFONDEUR
ROUE DE PROFONDEUR
TOOLS
OUTILS
OUTILS
ROTARY BELT DRIVE
COURROIE INTERMEDIATRE
COURROIE INTERMEDIATRE
BACKPROOF DEVICE
MECANISME DE SECURITE
MECANISME DE SECURITE
ROTARY SHIFTER
EMBRAYAGE DE ROTOBINEUSE
EMBRAYAGE DE ROTOBINEUSE
ROTARY PIPE
FRAISE
FRAISE
ROTARY FRAME
ENVELOPPE DE ROTOBINEUSES
ENVELOPPE DE ROTOBINEUSES
