Iseki SCMA40 Mower & SBC400X Collector Parts Catalog Manual PDF Download

Description

ISEKI SCMA40 Mower & SBC400X Collector Parts Manual – PDF DOWNLOAD

FILE DETAILS:

ISEKI SCMA40 Mower & SBC400X Collector Parts Manual – PDF DOWNLOAD

Language : English
Pages : 50
Downloadable : Yes
File Type : PDF

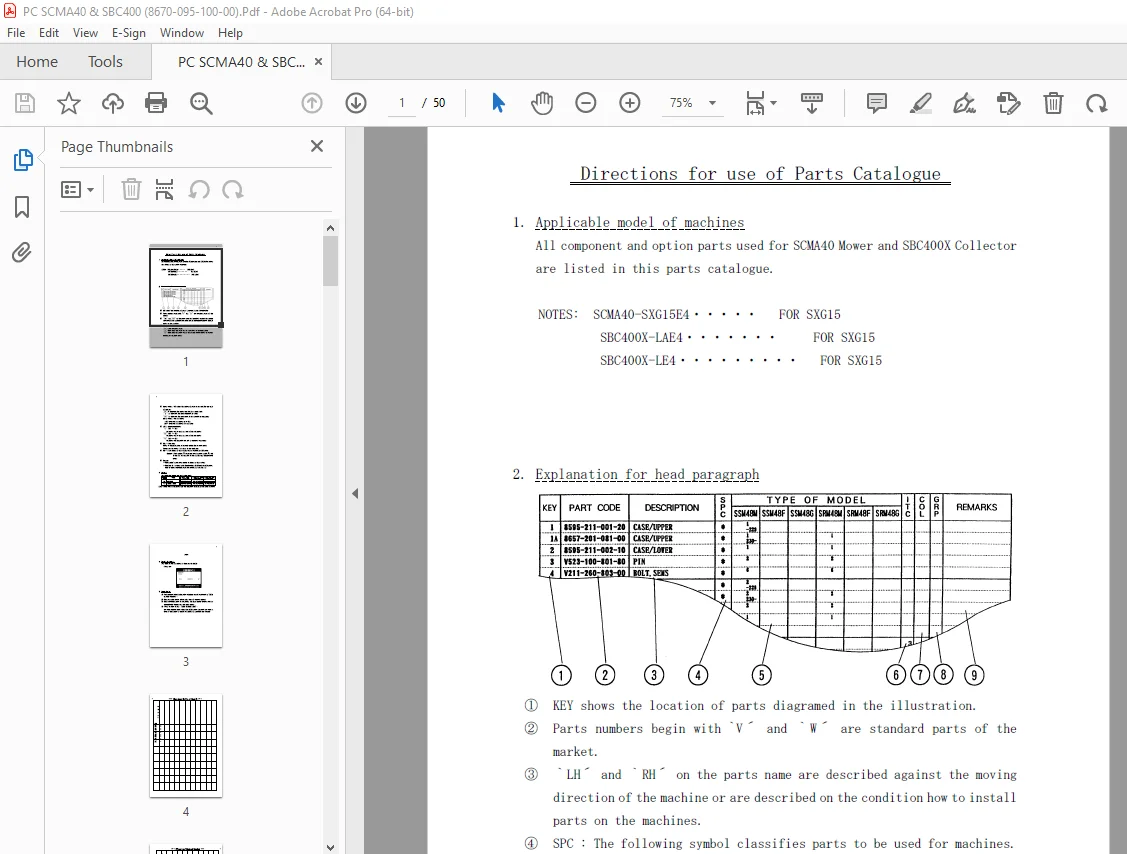

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

ISEKI SCMA40 Mower & SBC400X Collector Parts Manual – PDF DOWNLOAD

SCMA40-SXG15E4・・・・・ FOR SXG15
SBC400X-LAE4・・・・・・・ FOR SXG15
SBC400X-LE4・・・・・・・・・ FOR SXG15

SCMA40
JOINT(UNIVERSAL) SYSTEM Fig 101
CASE(BEVEL) SYSTEM Fig 201
COLLAR(BLADE) SYSTEM Fig 301
BLADE SYSTEM Fig 302
DECK(MOWER) SYSTEM Fig 401
COVER(DISCHARGE) SYSTEM Fig 402
COVER SYSTEM Fig 403
WHEEL(GAUGE) SYSTEM Fig 501
LINK(LIFT) SYSTEM Fig 601
LABEL Fig 901
PIN(SAFETY) Fig 902
COMPONENT PARTS
COMPONENT PARTS
FRAME SYSTEM(L TYPE) Fig 101
LIFT SYSTEM(L TYPE) Fig 102
FRAME SYSTEM(LA TYPE) Fig 103
LIFT SYSTEM(LA TYPE) Fig 104
CONTAINER SYSTEM(L TYPE)(1/2)(2/2) Fig 301
CONTAINER SYSTEM(LA TYPE)(1/2)(2/2) Fig 302
CLEANER SYSTEM Fig 601
LEVER(CLEANER) SYSTEM Fig 602
HARNESS(SENSOR) SYSTEM Fig 603
HARNESS SYSTEM(LA TYPE) Fig 604
ORNAMENT&LABEL(L TYPE) Fig 901
ORNAMENT&LABEL(LA TYPE) Fig 902
OPTIONAL PARTS
LIFT(CYLINDER)SET(L TYPE) (OPTION)(1/2)(2/2) Fig P01

S.V 08/24
