Iseki SFH220 SFH240 Riding Mower Parts Manual – PDF DOWNLOAD

Description

Iseki SFH220 SFH240 Riding Mower Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Iseki SFH220 SFH240 Riding Mower Parts Manual – PDF DOWNLOAD

Language : English
Pages : 211
Downloadable : Yes
File Type : PDF

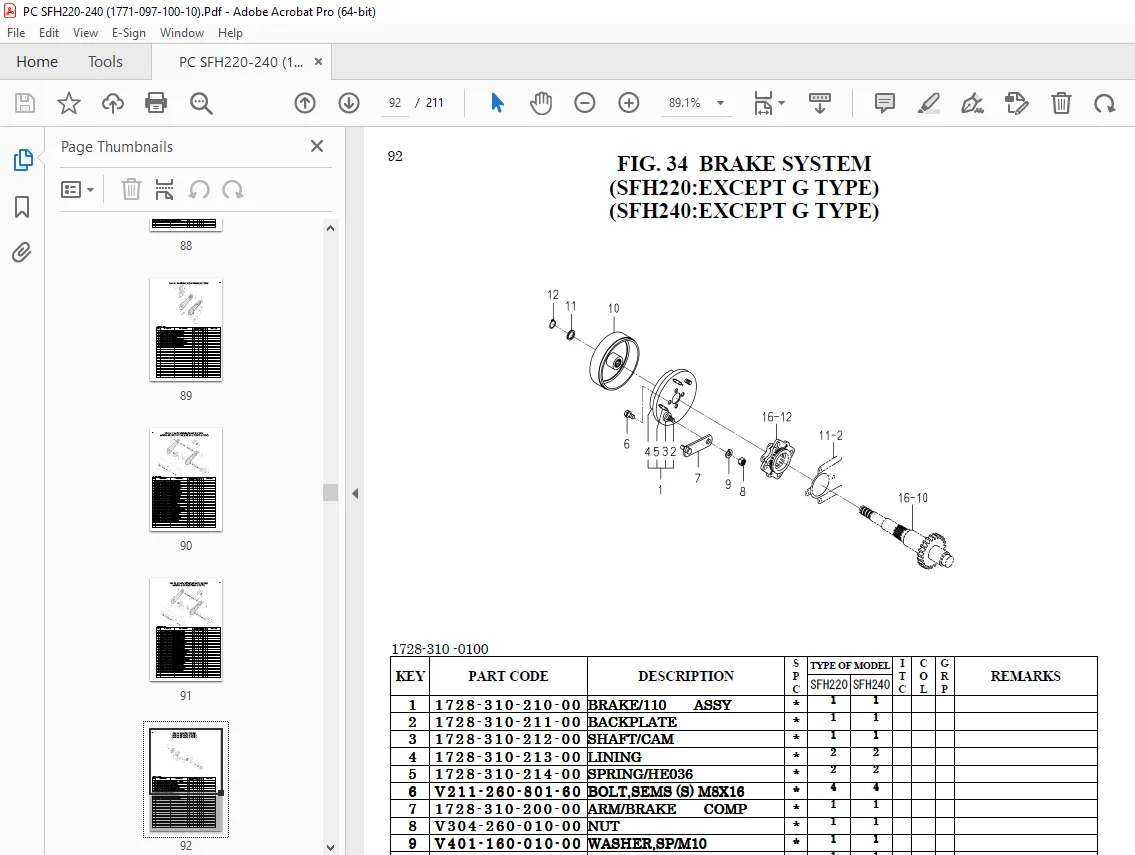

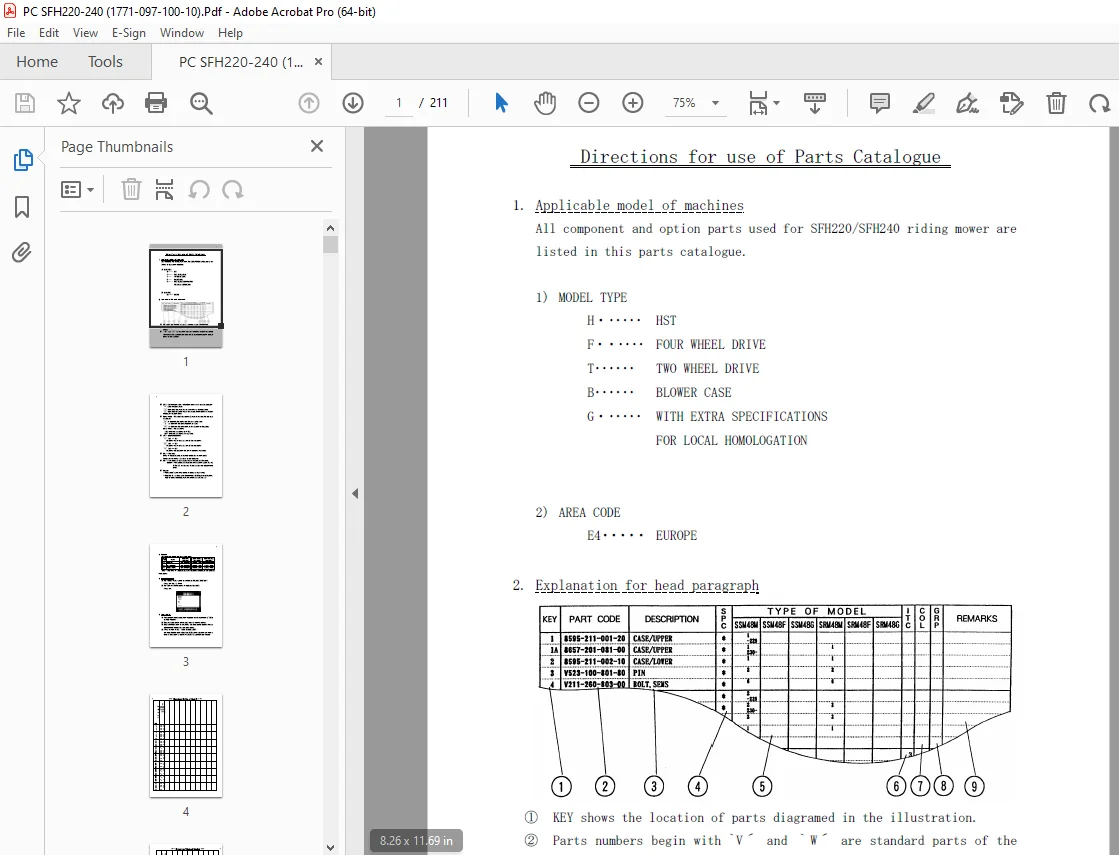

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki SFH220 SFH240 Riding Mower Parts Manual – PDF DOWNLOAD

ENGINE(E3112VG04)
SHORT BLOCK ENGIASSY Fig 1
CYLINDER HEAD Fig 2
CYLINDER HEAD COVER Fig 3
INLET MANIFOLD Fig 4
EXHAUST MANIFOLD Fig 5
CYLINDER BLOCK Fig 6
BEARING/UNDER SIZE (OPTION) Fig 7
OIL PAN Fig 8
REAR PLATE Fig 9
TIMING GEAR CASE Fig 10
HANGER Fig 11
VALVE Fig 12
CAM SHAFT Fig 13
PISTON Fig 14
PISTON/OVER SIZE (OPTION) Fig 15
CRANK SHAFT Fig 16
OIL PUMP Fig 17
WATER PUMP Fig 18
COOLING FAN Fig 19
INJECTION NOZZLE Fig 20
INJECTION PUMP Fig 21
FUEL PIPE Fig 22
ADAPTER Fig 23
ELECTRIC (1) Fig 24
8
ELECTRIC (2) Fig 25
ELECTRIC (2) Fig 26
REPAIR PARTS(OPTION) Fig 27
COMPONENT PARTS
FOR 6215-300-036-10 ON Fig 20 Fig 28
COMPONENT PARTS
FOR 6215-600-103-10 ON Fig 21 Fig 29
COMPONENT PARTS
FOR 6281-100-011-20 ON Fig 24 Fig 30
COMPONENT PARTS
FOR 6281-200-005-00 ON Fig 24 Fig 31
9
C o n t e n t s
CHASSIS
BRACKET(ENGINE)SYSTEM Fig 1
RADIATOR SYSTEM(1/2)(2/2) Fig 2
MUFFLER SYSTEM Fig 3
CLEANER(AIR)SYSTEM Fig 4
PIPING(FUEL)SYSTEM Fig 5
TANK(FUEL)SYSTEM Fig 6
BATTERY SYSTEM Fig 7
LEVER(ACCELERATOR)SYSTEM Fig 8
CABLE(ACCELERATOR)SYSTEM Fig 9
SHAFT(INPUT)SYSTEM Fig 10
CASE(TRANSMISSION)SYSTEM Fig 11
METAL(HST)SYSTEM Fig 12
GEAR(INPUT)SYSTEM Fig 13
HST SYSTEM(SFH220:NO 1-000160) Fig 14
HST SYSTEM(SFH220:NO 000161-) Fig 15
GEAR(DRIVE)SYSTEM
(SFH220:EXCEPT G TYPE)
(SFH240:EXCEPT G TYPE) Fig 16
GEAR(DRIVE)SYSTEM
(SFH220:G TYPE)
(SFH240:G TYPE) Fig 17
CASE(DIFFERENTIAL)SYSTEM Fig 18
DIFF-LOCK SYSTEM Fig 19
PEDAL(DIFF-LOCK)SYSTEM Fig 20
LEVER(UNLOAD/HST)SYSTEM Fig 21
METAL(PTO)SYSTEM Fig 22
DRIVE(PTO/MOWER)SYSTEM(SFH240)(1/2)(2/2) Fig 23
10
DRIVE(PTO/BLOWER)SYSTEM Fig 24
COVER(PTO/MID)SYSTEM(SFH220) Fig 25
LINK(HST)SYSTEM Fig 26
PEDAL(HST)SYSTEM Fig 27
LEVER(PTO/MOWER)SYSTEM(SFH240) Fig 28
LEVER(PTO/BLOWER)SYSTEM Fig 29
AUTO CRUISE SYSTEM(SFH240) Fig 30
HOUSING(AXLE/FRONT)SYSTEM Fig 31
SHAFT(WHEEL/FRONT)SYSTEM
(SFH220:EXCEPT G TYPE)(SFH240:EXCEPT G TYPE) Fig 32
SHAFT(WHEEL/FRONT)SYSTEM
(SFH220:G TYPE)(SFH240:G TYPE) Fig 33
BRAKE SYSTEM
(SFH220:EXCEPT G TYPE)
(SFH240:EXCEPT G TYPE) Fig 34
BRAKE SYSTEM
(SFH220:G TYPE)
(SFH240:G TYPE) Fig 35
PEDAL(BRAKE)SYSTEM
(SFH220:EXCEPT G TYPE)
(SFH240:EXCEPT G TYPE) Fig 36
PEDAL(BRAKE)SYSTEM
(SFH220:G TYPE)
(SFH240:G TYPE) Fig 37
BRAKE(PARKING)SYSTEM
(SFH220:EXCEPT G TYPE)
(SFH240:EXCEPT G TYPE) Fig 38
BRAKE(PARKING)SYSTEM
(SFH220:G TYPE)
(SFH240:G TYPE) Fig 39
WHEEL(STEERING)SYSTEM Fig 40
LEVER(TILT)SYSTEM Fig 41
COLUMN(STEERING)SYSTEM Fig 42
11
CONTROLLER(STEERING)SYSTEM Fig 43
CYLINDER(STEERING)SYSTEM(SFH240) Fig 44
CYLINDER(STEERING)SYSTEM(SFH220) Fig 45
FRAME SYSTEM(SFH240) Fig 46
FRAME SYSTEM(SFH220) Fig 47
LEVER(4WD)SYSTEM(SFH240) Fig 48
AUTO 4WD SYSTEM(SFH240) Fig 49
CASE(BEVEL)SYSTEM(SFH240) Fig 50
HOUSING(AXLE/REAR)SYSTEM(SFH240) Fig 51
HOUSING(AXLE/REAR)SYSTEM(SFH220) Fig 52
CASE(GEAR/FINAL)SYSTEM(SFH240) Fig 53
SPINDLE(KNUCKLE)SYSTEM(SFH220) Fig 54
SHAFT(DRIVE/FINAL)SYSTEM(SFH240) Fig 55
ROD(TIE)SYSTEM Fig 56
CONTROL SYSTEM(1/2)(2/2) Fig 57
CYLINDER(LIFT)SYSTEM Fig 58
CABLE(UP STOP)SYSTEM(SFH240) Fig 59
CABLE(UP STOP)SYSTEM(SFH220) Fig 60
PIPING(PUMP)SYSTEM Fig 61
PIPING(CONTROL)SYSTEM Fig 62
PIPING(HST)SYSTEM(SFH240) Fig 63
PIPING(HST)SYSTEM(SFH220) Fig 64
LINK(LIFT)SYSTEM Fig 65
LINK(LOWER)SYSTEM Fig 66
HOOD SYSTEM Fig 67
COVER(STEERING)SYSTEM(SFH240) Fig 68
COVER(STEERING)SYSTEM(SFH220) Fig 69
FENDER SYSTEM(SFH240) Fig 70
FENDER SYSTEM(SFH220) Fig 71
FLOOR SYSTEM Fig 72
LIGHT SYSTEM Fig 73
PANEL SYSTEM
(SFH220:EXCEPT G TYPE)
(SFH240:EXCEPT G TYPE) Fig 74
12
PANEL SYSTEM
(SFH220:G TYPE)
(SFH240:G TYPE) Fig 75
HARNESS SYSTEM
(SFH240:EXCEPT G TYPE)(1/2)(2/2) Fig 76
HARNESS SYSTEM(SFH220:EXCEPT G TYPE) Fig 77
HARNESS SYSTEM(SFH240:G TYPE)(1/2)(2/2) Fig 78
HARNESS SYSTEM(SFH220:G TYPE)(1/2)(2/2) Fig 79
BLOWER SYSTEM(SFH240) Fig 80
ORNAMENT(SFH240) Fig 81
ORNAMENT(SFH220) Fig 82
LABEL(CONTROL)(SFH240:EXCEPT G TYPE) Fig 83
LABEL(CONTROL)(SFH220:EXCEPT G TYPE) Fig 84
LABEL(CONTROL)(SFH240:G TYPE) Fig 85
LABEL(CONTROL)(SFH220:G TYPE) Fig 86
LABEL(CAUTION)(SFH240) Fig 87
LABEL(CAUTION)(SFH220) Fig 88
OPTIONAL PARTS
WHEEL(FRONT)ASSY(OPTION) Fig 89
BUMPER SET(OPTION) Fig 90
WHEEL(REAR)SYSTEM(OPTION)(SFH240) Fig 91
WHEEL(FRONT)(210/60D-8)SYSTEM
(OPTION)(SFH220) Fig 92
FRAME(LOWER)SET(OPTION) Fig 93
FRAME(UPPER)SET(OPTION) Fig 94
WEIGHT(15)SET(OPTION) Fig 95
WEIGHT(REAR)SET(OPTION) Fig 96
COMPONENT PARTS
COMPONENT PARTS
FOR K135-023-000-00 ON Fig 61 Fig 97
13
COMPONENT PARTS
FOR K510-012-000-10 ON Fig 14,15(1/2)(2/2) Fig 98
COMPONENT PARTS
FOR 1672-105-210-00 ON Fig 5 Fig 99
COMPONENT PARTS
FOR 1720-221-210-00 ON Fig 49 Fig 100
COMPONENT PARTS
FOR 1725-219-210-10 ON Fig 24 Fig 101
WIRING DIAGRAM
WIRING DIAGRAM(SFH220,240E4 TYPE)(1/2)
WIRING DIAGRAM(SFH220,240E4 TYPE)(2/2)
WIRING DIAGRAM(SFH220,240GE4 TYPE)(1/2)
WIRING DIAGRAM(SFH220,240GE4 TYPE)(2/2)
WIRING DIAGRAM(SFH240F TYPE)(1/2)
WIRING DIAGRAM(SFH240F TYPE)(2/2)

S.V 08/24
